WO2003015530A1 - Frozen confectionery - Google Patents

Frozen confectionery Download PDF

Info

Publication number
WO2003015530A1
WO2003015530A1 PCT/EP2001/009473 EP0109473W WO03015530A1 WO 2003015530 A1 WO2003015530 A1 WO 2003015530A1 EP 0109473 W EP0109473 W EP 0109473W WO 03015530 A1 WO03015530 A1 WO 03015530A1
Authority
WO
WIPO (PCT)
Prior art keywords
starch
fat
frozen confectionery
mixture
frozen
Prior art date
Application number
PCT/EP2001/009473
Other languages
French (fr)
Inventor
Myriam Schlegel
Pierre Wuersch
Original Assignee
Societe Des Produits Nestle S.A.
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Societe Des Produits Nestle S.A. filed Critical Societe Des Produits Nestle S.A.
Priority to BR0117104-6A priority Critical patent/BR0117104A/en
Priority to AU2001295476A priority patent/AU2001295476B2/en
Priority to MXPA04001502A priority patent/MXPA04001502A/en
Priority to IL16005401A priority patent/IL160054A0/en
Priority to CNA018235484A priority patent/CN1543314A/en
Priority to PCT/EP2001/009473 priority patent/WO2003015530A1/en
Publication of WO2003015530A1 publication Critical patent/WO2003015530A1/en
Priority to IL160054A priority patent/IL160054A/en

Links

Classifications

    • AHUMAN NECESSITIES
    • A23FOODS OR FOODSTUFFS; TREATMENT THEREOF, NOT COVERED BY OTHER CLASSES
    • A23GCOCOA; COCOA PRODUCTS, e.g. CHOCOLATE; SUBSTITUTES FOR COCOA OR COCOA PRODUCTS; CONFECTIONERY; CHEWING GUM; ICE-CREAM; PREPARATION THEREOF
    • A23G9/00Frozen sweets, e.g. ice confectionery, ice-cream; Mixtures therefor
    • A23G9/32Frozen sweets, e.g. ice confectionery, ice-cream; Mixtures therefor characterised by the composition containing organic or inorganic compounds
    • A23G9/38Frozen sweets, e.g. ice confectionery, ice-cream; Mixtures therefor characterised by the composition containing organic or inorganic compounds containing peptides or proteins
    • AHUMAN NECESSITIES
    • A23FOODS OR FOODSTUFFS; TREATMENT THEREOF, NOT COVERED BY OTHER CLASSES
    • A23GCOCOA; COCOA PRODUCTS, e.g. CHOCOLATE; SUBSTITUTES FOR COCOA OR COCOA PRODUCTS; CONFECTIONERY; CHEWING GUM; ICE-CREAM; PREPARATION THEREOF
    • A23G9/00Frozen sweets, e.g. ice confectionery, ice-cream; Mixtures therefor
    • A23G9/32Frozen sweets, e.g. ice confectionery, ice-cream; Mixtures therefor characterised by the composition containing organic or inorganic compounds
    • A23G9/34Frozen sweets, e.g. ice confectionery, ice-cream; Mixtures therefor characterised by the composition containing organic or inorganic compounds characterised by carbohydrates used, e.g. polysaccharides
    • AHUMAN NECESSITIES
    • A23FOODS OR FOODSTUFFS; TREATMENT THEREOF, NOT COVERED BY OTHER CLASSES
    • A23GCOCOA; COCOA PRODUCTS, e.g. CHOCOLATE; SUBSTITUTES FOR COCOA OR COCOA PRODUCTS; CONFECTIONERY; CHEWING GUM; ICE-CREAM; PREPARATION THEREOF
    • A23G9/00Frozen sweets, e.g. ice confectionery, ice-cream; Mixtures therefor
    • A23G9/32Frozen sweets, e.g. ice confectionery, ice-cream; Mixtures therefor characterised by the composition containing organic or inorganic compounds
    • A23G9/40Frozen sweets, e.g. ice confectionery, ice-cream; Mixtures therefor characterised by the composition containing organic or inorganic compounds characterised by the dairy products used

Definitions

  • the present invention relates to the field of frozen confectioneries and in particular to ice-cream.
  • Ice-creams are traditionally made using ingredients such as: fat, milk solids-not-fat, sweeteners, emulsifiers and water.
  • the various ingredients are homogenized, the mixture is then pasteurized, cooled and optionally allowed to mature at about 2 to 4°C and deep-frozen with stirring with injection of air to provide a degree of overrun of the order of 75 to 120%.
  • starch by virtue of its physicochemical characteristics and its rheological properties, is often used in the food industry as a thickener and/or as a binder.
  • a thickener and/or as a binder.
  • numerous documents describe the use of native or gelatinized starch, physically or chemically modified or not, in frozen confectioneries, as fat substitute or texturing agent.
  • Frozen confectioneries are particularly appreciated for their creamy and unctuous characteristics.
  • these products in order to preserve their optimum organoleptic characteristics of unctuousness, have to be stored and handled with care.
  • temperature variations even small, can be observed during storage, distribution or handling. This is particularly the case when the consumer buys a frozen confectionery, when they do not consume it straight away and when there is a gap between the time the product is taken from the deep-frozen section and when it is placed in the domestic freezer. In such circumstances, substantial or partial defrosting of the product occurs before it is refrozen.
  • Such cycles of temperature variation are responsible for crystalline growth of ice crystals in the product.
  • a crystallized texture thus results therefrom. This texture and this crystallized mouth feel accompanied by an impaired appearance of the product compromises or at the very least reduces its overall quality as perceived by the consumer.
  • Various gums and/or emulsifiers have been used as additives with the aim of improving the stability, the creaminess and the resistance of frozen confectioneries to heat shocks .
  • These may include guar gum, carob or guar seed flour, alginate, carboxymethyl cellulose, xanthan, carrageenan, synthetic or natural emulsifiers such as egg yolk.
  • the milk proteins contained in the milk dry extract participate in this stabilization by virtue of their water-binding property.
  • gums has the disadvantage of conferring on the product a texture which is sometimes firm or gummy.
  • addition of such stabilizing compounds is often poorly viewed by the consumer and their use is regulated.
  • additives of the type including milk solids-not-fat and/or proteins or milk protein derivatives are particularly expensive.
  • the problem which the invention proposes to solve consists in providing an inexpensive formulation for frozen confectioneries which makes it possible to increase their stability during heat shocks without compromising their organoleptic qualities.
  • the present invention consists in a frozen confectionery, in particular an ice-cream, comprising fat, sweeteners, milk solids-not-fat, water and starch, characterized in that the sum of the quantities of starch and milk solids-not-fat is between 2.5 and 18% and in that the starch/milk solids-not-fat weight ratio is between 0.03 and 1.5.
  • a frozen confectionery according to the present invention may comprise 2 to 12% of fat, 10 to 25% of sweeteners, 2 to 15% of milk solids-not-fat, 0.5 to3% of starch and 45 to 85% of water.
  • the percentages indicated in the description relate to the percentages by weight except in the case of the overrun values which are defined in % by volume.
  • the partial replacement of the milk solids-not-fat traditionally used by starch allows substantial savings while improving the resistance to heat shocks. Furthermore, the product thus obtained has a creamy and unctuous mouth feel close to or even superior to that of the traditional product.
  • the invention makes it possible to simultaneously improve the pleasantness of use and the textural and organoleptic qualities of frozen confectioneries .
  • the starch used in the present invention may be a native starch or a chemically or physically modified starch. It may thus include native starches from maize rice, potato or tapioca, for example, which are used alone or in the form of a mixture or alternatively chemically modified starches of these same origins, such as hydroxypropylated starches, for example. Such starches have a gelatinization temperature of between approximately 50 and 85°C, and a granule diameter of between approximately 3 and 100 ⁇ m.
  • the ingredients used for making a frozen confectionery according to the invention are, apart from the starch, milk solids-not-fat such as powdered or concentrated skimmed milk, for example. This may also include powdered or concentrated defatted sweet whey, for example. These milk solids-not-fat may also be derived from a commercial mixture of milk powder and whey proteins whose functionality is controlled by specific denaturation treatments . These may include for example Nollibel ® .
  • the frozen compositions according to the invention may optionally comprise one or more emulsifiers in an amount of 0.2 to 0.3% which facilitate the emulsification of the various ingredients during manufacture.
  • emulsifiers may thus include, for example, mono- or diglycerides or polysorbates or a mixture thereof, for example.
  • the frozen confectioneries according to the present invention may comprise stabilizing agents; these may include carob flour, guar flour, alginates, carboxy ethyl cellulose, xa than, carrageenan, used alone or in the form of a mixture at a dose of 0.1 to 0.5%, preferably 0.25%.
  • the fat used may be a vegetable or animal fat, hydrogenated or otherwise, for example. It may be a mixture of fat of plant origin, such as palm, coconut or palm kernel oil, hydrogenated or not.
  • the sweetener used may be sucrose, glucose, fructose or glucose syrup with variable DE varying from 20 to 40, or a mixture thereof, for example.
  • the formulation of the product according to the invention may in addition comprise colourings such as beta-carotene, for example, and/or any type of flavourings or perfumes customarily used to flavour frozen confectioneries, such as vanilla or chocolate for example.
  • the frozen confectioneries according to the invention may be composed of milk solids-not-fat, sweeteners, fat and water.
  • the proportions of ingredients such as starch and milk solids-not-fat make it possible to obtain increased stability of the products as well a substantial reduction in the cost price of these products. These savings are made through the partial replacement of the milk solids-not-fat traditionally used by starch.
  • the organoleptic qualities of the frozen compositions according to the invention are not reduced compared with the traditional products. Thus, the characteristics of unctuousness and creaminess are increased and in particular better preserved during the period of storage.
  • it is the addition of starch in place of a portion of the milk solids-not-fat which makes it possible to slow down the rate of melting of the products obtained and thus confers greater stability to heat shocks on the product.
  • the frozen compositions according to the invention may have a dry extract of the order of 25 to 45%, preferably 30 to 40% and more preferably still from 33 to 36%.
  • the compositions according to the invention may in addition optionally comprise additions such as fruit or fruit pieces, for example, or nuts, or hazelnuts, whole or in pieces, for example.
  • the invention also relates to a process for making frozen confectioneries comprising the following steps: - dispersion, heating and homogenization of the ingredients entering into the composition of a frozen confectionery according to the present invention at a temperature, a pressure and for a period sufficient to hydrate and gelatinize the starch and pasteurize the mixture, cooling of the mixture to a temperature of between 2 and 8°C,
  • the step of ripening of the mixture may be carried out with stirring.
  • the ingredients entering into the composition of a frozen confectionery according to the present invention may be dispersed at around approximately 60 to 70°C for approximately 15 to 30 minutes, for example.
  • the whole may be heated and homogenized at around 70 to 75°C, for example, at a pressure of the order of 140 to 220 bar, for example.
  • the mixture may then be pasteurized according to methods known to persons skilled in the art, for example at around 80 to 90°C for 10 to 30 seconds.
  • the homogenization-heating step may be carried out at a pasteurization temperature which brings about, on its own, pasteurization of the mixture.
  • the mixture may then be cooled to around 2 to 8°C by known means.
  • This mixture may then be ripened or otherwise for 4 to 48 hours at around 2 to 6°C, for example, with or without stirring.
  • the mixture may be frozen at around -3 to -7°C with stirring with injection of gas so as to produce a degree of overrun of the order of 70 to 130%, for example.
  • the mixture obtained may then be hardened by freezing at around -20 to -40°C, for example.
  • the frozen compositions may, for example, be extruded in the form of quenelles having a greater or lesser degree of overrun, with the aid of an ice-cream industry refrigerated extruder, with or without injection of gas, for example.
  • the melting tests are carried out both on samples stored at -30°C and on samples which have been subjected to a heat shock.
  • Standard heat shock the samples initially stored at -30°C are subjected, for 7 days, to a temperature cycle of -10°C/20°C. After the 7 days, the melting parameters are evaluated for these samples which were subjected to a heat shock.
  • the temperature for the melting test is set at 20°C, in a chamber saturated with moisture. Before the test, the samples are tempered overnight at -20°C. Each ice-cream sample is un oulded and deposited on a grid on top of a scale. The duration of the test is between 30 and 240 minutes approximately. The mass of unmelted product is thus recorded over time.
  • the parameters measured are the foilowing:
  • M percentage by weight of product which has flowed through the grid at the end of the test.
  • the measurement of the viscosity is carried out on the mixture during the ripening step at around 4°C, for example.
  • a measuring probe is inserted into the mixture and connected to a motor which brings about its rotation at a predefined constant speed.
  • the viscosity can thus be measured at around 4°C with the aid of a Brookfield LVT-DV2 viscometer, for example.
  • the speed of rotation of the probe may be established at 30 revolutions per minute, for example.
  • the visocity may then be read on the display of the viscometer. This viscosity may be expressed in Pa.s or a multiple.
  • An aliquot of ice-cream is mixed with an equivalent quantity of glycerol and observed under a microscope at a temperature of -10°C.
  • the measurement may be carried out in a chamber at -10°C equipped with microscope and a camera. It is thus possible to measure the mean diameter of the crystals (in ⁇ m) in the finished products and in the products which have been subjected to a heat shock. Knowing the mean diameter of the crystals, the crystalline growth which has taken place in the product can be easily evaluated.
  • Embodiments of the invention include, for example, frozen bars, ice-creams, frozen yoghurts and any frozen confectionery or dessert with a greater or lesser degree of overrun.
  • the samples containing for example 1.5% starch and 6% milk solids-not-fat have a homogeneous viscosity compared with a control sample traditionally containing 10% milk solids-not-fat and no starch.
  • the mixture after the ripening stage, exhibits no phase separation, remains pumpable and shows no signs of developing a gelled structure.
  • the parameters measured demonstrate retardation as regards the rate of melting of the samples containing starch compared with the traditional product.
  • the frozen confectioneries according to the present invention exhibit improved stability and organoleptic characteristics similar to traditional products.
  • Such products according to the invention preserve their organoleptic properties of creaminess and unctuousness throughout their preservation, storage, handling, distribution and more especially with respect to heat shocks which are harmful to these characteristics.
  • These products indeed exhibit reduced crystalline growth compared with traditional products . This contributes to their unctuous consistency and to the preservation of this characteristic despite unfavourable storage conditions responsible for the development of ice crystals which may be responsible for a crystallized and sandy structure.
  • Such functionalities make it possible to envisage production, storage and distribution of the products according to the invention extending over time, volume and space .
  • a frozen confectionery according to the present invention is therefore characterized in that it preserves its unctuousness and exhibits reduced crystalline growth during a heat shock followed by refreezing.
  • reduced crystalline growth is understood to mean an increase in the mean diameter of the ice crystals of less than 50% after heat shock (see Table 4) .
  • the various ingredients are dispersed at 65°C and then undergo a hydration step at 60°C for 20 minutes.
  • the mixture is preheated to 72°C, which brings about gelatinization of the starch present, where appropriate.
  • the mixture is then homogenized at 180 bar with the aid of an ice-cream industry homogenizer and then pasteurized at 86°C for 20 seconds. After cooling to 5°C, the mixture is ripened for 24 hours at 4°C, without stirring. Finally, the mixture is frozen at about -5°C with a degree of overrun of 100%.
  • the icecream obtained is hardened at -30°C by conventional means .
  • Nollibel mixture of milk powder and functional whey proteins .
  • Cremodan mixture of emulsifiers and stabilizers.
  • Polawar mixture of fractionated and partially hydrogenated vegetable fat from palm kernel . Variation of the viscosity of the mixtures
  • Figure 1 shows the viscosities of the mixtures and the variation of these viscosities during the ripening step at 4°C.

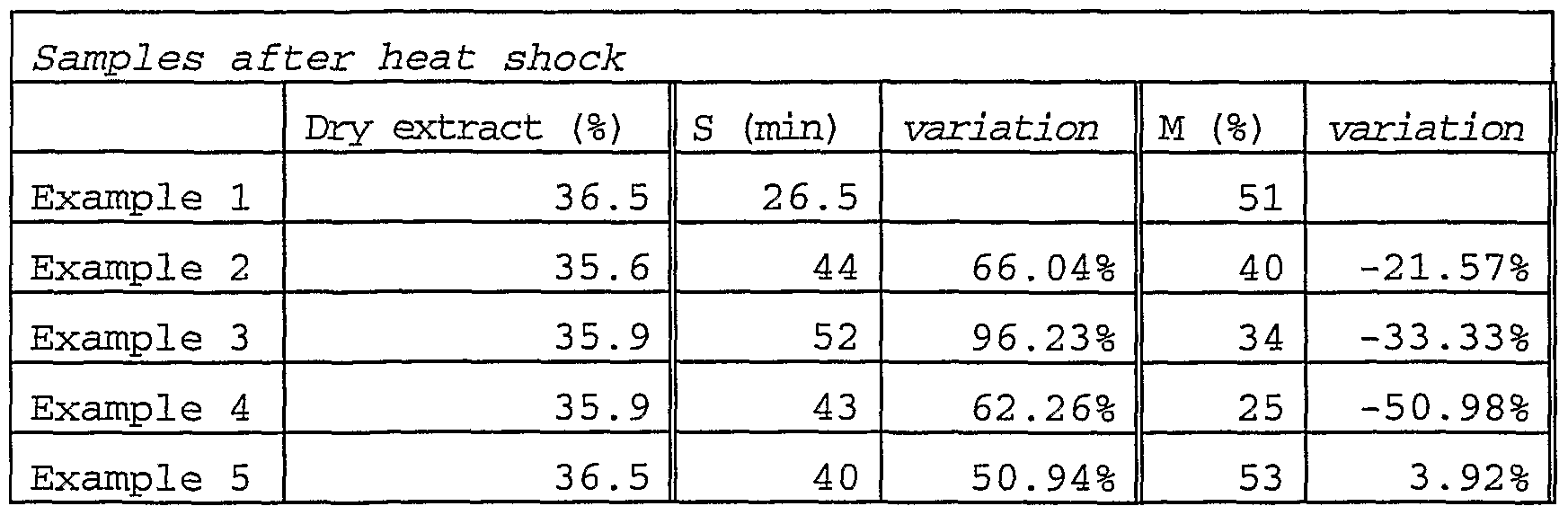

  • Tables 2 and 3 show that all the samples containing starch begin to melt later than (S value always higher, up to 100% increase, or equal) and their percentage of molten product at the end of the test is always less than for the references.
  • Table 4 shows the mean diameter of the ice crystals in various frozen products . It may be observed that the products containing starch have, on the one hand, a mean crystal diameter smaller than the references, this being so particularly after heat shock. The samples with starch exhibit increases in crystal size which are significantly less than for the references . Analysis of the size and of the distribution of the ice crystals makes it possible to show that the partial replacement of the milk solids-not-fat by starch improves the stability of the samples during heat shock.
  • the five samples were evaluated by a panel of people trained in the evaluation of texture and flavour.
  • the questionnaire distributed contains the descriptive attributes for:

Landscapes

  • Chemical & Material Sciences (AREA)
  • Life Sciences & Earth Sciences (AREA)
  • Inorganic Chemistry (AREA)
  • Engineering & Computer Science (AREA)
  • Food Science & Technology (AREA)
  • Polymers & Plastics (AREA)
  • Proteomics, Peptides & Aminoacids (AREA)
  • Health & Medical Sciences (AREA)
  • Molecular Biology (AREA)
  • Confectionery (AREA)
  • Dairy Products (AREA)

Abstract

Frozen confectionery preserving its unctuosness and exhibiting reduced crystalline growth during a heat shock followed by refreezing, and comprising fat, sweetener, milk solids-not-fat and water, characterized in that the sum of the quantities of starch and milk solids-not-fat is between 2.5 and 18 % and in that the starch/milk solids-not-fat weight ratio is between 0.03 and 1.5. Process for manufacturing such a frozen confectionery.

Description

FROZEN CONFECTIONERY
The present invention relates to the field of frozen confectioneries and in particular to ice-cream.
Ice-creams are traditionally made using ingredients such as: fat, milk solids-not-fat, sweeteners, emulsifiers and water. The various ingredients are homogenized, the mixture is then pasteurized, cooled and optionally allowed to mature at about 2 to 4°C and deep-frozen with stirring with injection of air to provide a degree of overrun of the order of 75 to 120%.
In general, starch, by virtue of its physicochemical characteristics and its rheological properties, is often used in the food industry as a thickener and/or as a binder. Thus, numerous documents describe the use of native or gelatinized starch, physically or chemically modified or not, in frozen confectioneries, as fat substitute or texturing agent.
Frozen confectioneries are particularly appreciated for their creamy and unctuous characteristics. However, these products, in order to preserve their optimum organoleptic characteristics of unctuousness, have to be stored and handled with care. Thus, temperature variations, even small, can be observed during storage, distribution or handling. This is particularly the case when the consumer buys a frozen confectionery, when they do not consume it straight away and when there is a gap between the time the product is taken from the deep-frozen section and when it is placed in the domestic freezer. In such circumstances, substantial or partial defrosting of the product occurs before it is refrozen. Such cycles of temperature variation are responsible for crystalline growth of ice crystals in the product. A crystallized texture thus results therefrom. This texture and this crystallized mouth feel accompanied by an impaired appearance of the product compromises or at the very least reduces its overall quality as perceived by the consumer.
Various gums and/or emulsifiers have been used as additives with the aim of improving the stability, the creaminess and the resistance of frozen confectioneries to heat shocks . These may include guar gum, carob or guar seed flour, alginate, carboxymethyl cellulose, xanthan, carrageenan, synthetic or natural emulsifiers such as egg yolk. The milk proteins contained in the milk dry extract participate in this stabilization by virtue of their water-binding property.
However, the use of gums has the disadvantage of conferring on the product a texture which is sometimes firm or gummy. Moreover, the addition of such stabilizing compounds is often poorly viewed by the consumer and their use is regulated. Furthermore, additives of the type including milk solids-not-fat and/or proteins or milk protein derivatives are particularly expensive.
The problem which the invention proposes to solve consists in providing an inexpensive formulation for frozen confectioneries which makes it possible to increase their stability during heat shocks without compromising their organoleptic qualities.
To this end, the present invention consists in a frozen confectionery, in particular an ice-cream, comprising fat, sweeteners, milk solids-not-fat, water and starch, characterized in that the sum of the quantities of starch and milk solids-not-fat is between 2.5 and 18% and in that the starch/milk solids-not-fat weight ratio is between 0.03 and 1.5.
A frozen confectionery according to the present invention may comprise 2 to 12% of fat, 10 to 25% of sweeteners, 2 to 15% of milk solids-not-fat, 0.5 to3% of starch and 45 to 85% of water.
The percentages indicated in the description relate to the percentages by weight except in the case of the overrun values which are defined in % by volume.
Thus, according to the invention, the partial replacement of the milk solids-not-fat traditionally used by starch allows substantial savings while improving the resistance to heat shocks. Furthermore, the product thus obtained has a creamy and unctuous mouth feel close to or even superior to that of the traditional product. Thus, apart from the mere economic advantage, the invention makes it possible to simultaneously improve the pleasantness of use and the textural and organoleptic qualities of frozen confectioneries .
The starch used in the present invention may be a native starch or a chemically or physically modified starch. It may thus include native starches from maize rice, potato or tapioca, for example, which are used alone or in the form of a mixture or alternatively chemically modified starches of these same origins, such as hydroxypropylated starches, for example. Such starches have a gelatinization temperature of between approximately 50 and 85°C, and a granule diameter of between approximately 3 and 100 μm.
The ingredients used for making a frozen confectionery according to the invention are, apart from the starch, milk solids-not-fat such as powdered or concentrated skimmed milk, for example. This may also include powdered or concentrated defatted sweet whey, for example. These milk solids-not-fat may also be derived from a commercial mixture of milk powder and whey proteins whose functionality is controlled by specific denaturation treatments . These may include for example Nollibel®.
The frozen compositions according to the invention may optionally comprise one or more emulsifiers in an amount of 0.2 to 0.3% which facilitate the emulsification of the various ingredients during manufacture. These may thus include, for example, mono- or diglycerides or polysorbates or a mixture thereof, for example.
The frozen confectioneries according to the present invention may comprise stabilizing agents; these may include carob flour, guar flour, alginates, carboxy ethyl cellulose, xa than, carrageenan, used alone or in the form of a mixture at a dose of 0.1 to 0.5%, preferably 0.25%.
The fat used may be a vegetable or animal fat, hydrogenated or otherwise, for example. It may be a mixture of fat of plant origin, such as palm, coconut or palm kernel oil, hydrogenated or not.
The sweetener used may be sucrose, glucose, fructose or glucose syrup with variable DE varying from 20 to 40, or a mixture thereof, for example. The formulation of the product according to the invention may in addition comprise colourings such as beta-carotene, for example, and/or any type of flavourings or perfumes customarily used to flavour frozen confectioneries, such as vanilla or chocolate for example.
The frozen confectioneries according to the invention may be composed of milk solids-not-fat, sweeteners, fat and water. The proportions of ingredients such as starch and milk solids-not-fat make it possible to obtain increased stability of the products as well a substantial reduction in the cost price of these products. These savings are made through the partial replacement of the milk solids-not-fat traditionally used by starch. Furthermore, the organoleptic qualities of the frozen compositions according to the invention are not reduced compared with the traditional products. Thus, the characteristics of unctuousness and creaminess are increased and in particular better preserved during the period of storage. In the frozen compositions according to the invention, it is the addition of starch in place of a portion of the milk solids-not-fat which makes it possible to slow down the rate of melting of the products obtained and thus confers greater stability to heat shocks on the product.
The frozen compositions according to the invention may have a dry extract of the order of 25 to 45%, preferably 30 to 40% and more preferably still from 33 to 36%. The compositions according to the invention may in addition optionally comprise additions such as fruit or fruit pieces, for example, or nuts, or hazelnuts, whole or in pieces, for example.
The invention also relates to a process for making frozen confectioneries comprising the following steps: - dispersion, heating and homogenization of the ingredients entering into the composition of a frozen confectionery according to the present invention at a temperature, a pressure and for a period sufficient to hydrate and gelatinize the starch and pasteurize the mixture, cooling of the mixture to a temperature of between 2 and 8°C,
- ripening of the mixture at a temperature of between 2 and 6°C, without stirring, - freezing to a temperature of between -3°C and -7°C, providing a degree of overrun of between 70 and 130%,
- hardening of the mixture by deep-freezing to a temperature of between -20°C and -40°C. Optionally, the step of ripening of the mixture may be carried out with stirring.
The ingredients entering into the composition of a frozen confectionery according to the present invention may be dispersed at around approximately 60 to 70°C for approximately 15 to 30 minutes, for example. The whole may be heated and homogenized at around 70 to 75°C, for example, at a pressure of the order of 140 to 220 bar, for example. These steps of dispersion, heating and homogenization make it possible to bring about hydration and swelling of the starch.
The mixture may then be pasteurized according to methods known to persons skilled in the art, for example at around 80 to 90°C for 10 to 30 seconds. The homogenization-heating step may be carried out at a pasteurization temperature which brings about, on its own, pasteurization of the mixture. The mixture may then be cooled to around 2 to 8°C by known means. This mixture may then be ripened or otherwise for 4 to 48 hours at around 2 to 6°C, for example, with or without stirring. After this ripening step, the mixture may be frozen at around -3 to -7°C with stirring with injection of gas so as to produce a degree of overrun of the order of 70 to 130%, for example. The mixture obtained may then be hardened by freezing at around -20 to -40°C, for example.
After the ripening step, the frozen compositions may, for example, be extruded in the form of quenelles having a greater or lesser degree of overrun, with the aid of an ice-cream industry refrigerated extruder, with or without injection of gas, for example.
To evaluate the influence of the partial replacement of milk solids-not-fat by starch, various textural, microscopic and macroscopic tests may be carried out. Measurement of the melting of ice-creams:
The melting tests are carried out both on samples stored at -30°C and on samples which have been subjected to a heat shock.
Standard heat shock: the samples initially stored at -30°C are subjected, for 7 days, to a temperature cycle of -10°C/20°C. After the 7 days, the melting parameters are evaluated for these samples which were subjected to a heat shock.
The temperature for the melting test is set at 20°C, in a chamber saturated with moisture. Before the test, the samples are tempered overnight at -20°C. Each ice-cream sample is un oulded and deposited on a grid on top of a scale. The duration of the test is between 30 and 240 minutes approximately. The mass of unmelted product is thus recorded over time. The parameters measured are the foilowing:
M: percentage by weight of product which has flowed through the grid at the end of the test.
S: time taken for 1% of the initial mass to have flowed.
Measurement of the viscosity of the mixtures for frozen confectionery :
The measurement of the viscosity is carried out on the mixture during the ripening step at around 4°C, for example. A measuring probe is inserted into the mixture and connected to a motor which brings about its rotation at a predefined constant speed.
The viscosity can thus be measured at around 4°C with the aid of a Brookfield LVT-DV2 viscometer, for example. The speed of rotation of the probe may be established at 30 revolutions per minute, for example. The visocity may then be read on the display of the viscometer. This viscosity may be expressed in Pa.s or a multiple.
Size and distribution of the ice crystals in an icecream
An aliquot of ice-cream is mixed with an equivalent quantity of glycerol and observed under a microscope at a temperature of -10°C. The measurement may be carried out in a chamber at -10°C equipped with microscope and a camera. It is thus possible to measure the mean diameter of the crystals (in μm) in the finished products and in the products which have been subjected to a heat shock. Knowing the mean diameter of the crystals, the crystalline growth which has taken place in the product can be easily evaluated.
Embodiments of the invention include, for example, frozen bars, ice-creams, frozen yoghurts and any frozen confectionery or dessert with a greater or lesser degree of overrun.
It can thus be observed that the samples containing for example 1.5% starch and 6% milk solids-not-fat have a homogeneous viscosity compared with a control sample traditionally containing 10% milk solids-not-fat and no starch. Thus, the mixture, after the ripening stage, exhibits no phase separation, remains pumpable and shows no signs of developing a gelled structure.
As regards the heat shock resistance properties, the parameters measured demonstrate retardation as regards the rate of melting of the samples containing starch compared with the traditional product.
The frozen confectioneries according to the present invention exhibit improved stability and organoleptic characteristics similar to traditional products. Such products according to the invention preserve their organoleptic properties of creaminess and unctuousness throughout their preservation, storage, handling, distribution and more especially with respect to heat shocks which are harmful to these characteristics. These products indeed exhibit reduced crystalline growth compared with traditional products . This contributes to their unctuous consistency and to the preservation of this characteristic despite unfavourable storage conditions responsible for the development of ice crystals which may be responsible for a crystallized and sandy structure. Such functionalities make it possible to envisage production, storage and distribution of the products according to the invention extending over time, volume and space .
A frozen confectionery according to the present invention is therefore characterized in that it preserves its unctuousness and exhibits reduced crystalline growth during a heat shock followed by refreezing.
The expression "reduced crystalline growth" is understood to mean an increase in the mean diameter of the ice crystals of less than 50% after heat shock (see Table 4) .
The invention is described below with reference to various precise examples of preferred embodiments and modes of formulation. However, various adaptations and/or modifications may be made while remaining within the scope of the present invention.
MANUFACTURE OF THE VARIOUS SAMPLES
Various examples of manufacture of frozen confectionery according to the present invention are produced according to the formulations indicated in Table 1 below.
The various ingredients are dispersed at 65°C and then undergo a hydration step at 60°C for 20 minutes. The mixture is preheated to 72°C, which brings about gelatinization of the starch present, where appropriate. The mixture is then homogenized at 180 bar with the aid of an ice-cream industry homogenizer and then pasteurized at 86°C for 20 seconds. After cooling to 5°C, the mixture is ripened for 24 hours at 4°C, without stirring. Finally, the mixture is frozen at about -5°C with a degree of overrun of 100%. The icecream obtained is hardened at -30°C by conventional means .
Table 1
Figure imgf000011_0001
Nollibel : mixture of milk powder and functional whey proteins .
Cremodan": mixture of emulsifiers and stabilizers. Polawar : mixture of fractionated and partially hydrogenated vegetable fat from palm kernel . Variation of the viscosity of the mixtures
Figure 1 shows the viscosities of the mixtures and the variation of these viscosities during the ripening step at 4°C.
All the mixtures are homogeneous after 24 hours of ripening, that is to say that no phase separation is observed in spite of the absence of stirring. The mixtures remain pumpable and are not gelled. A slight increase in viscosity may be noted over the period of time measured. Furthermore, the viscosity ranges are fairly narrow and are within the values of the reference examples (Examples 1 and 5) .
Melting tests
Table 2
Figure imgf000012_0001
Table 3
Figure imgf000012_0002
Tables 2 and 3 show that all the samples containing starch begin to melt later than (S value always higher, up to 100% increase, or equal) and their percentage of molten product at the end of the test is always less than for the references. These conclusions are valid for the products stored at -30°C but also, which is more important, for the products which were subjected to a heat shock.
Size of the crystals and crystalline growth:
Table 4
Figure imgf000013_0001
Table 4 shows the mean diameter of the ice crystals in various frozen products . It may be observed that the products containing starch have, on the one hand, a mean crystal diameter smaller than the references, this being so particularly after heat shock. The samples with starch exhibit increases in crystal size which are significantly less than for the references . Analysis of the size and of the distribution of the ice crystals makes it possible to show that the partial replacement of the milk solids-not-fat by starch improves the stability of the samples during heat shock.
Sensory analysis:
The five samples were evaluated by a panel of people trained in the evaluation of texture and flavour. The questionnaire distributed contains the descriptive attributes for:
- texture - sweet taste
- flavour
All the texture descriptions show significant product effects, reflecting the differences between the products. The products do not appear to be significantly different for the flavour descriptions. Furthermore, surprisingly, the samples with starch have a higher score as regards the description relating to the cream flavour.
The samples with starch (compared with the control samples) have a greater mouthful, are slightly harder, smoother, melt less rapidly, are less cold and are slightly more gummy, which appears to correspond to the presence of crystals in the control sample. It is thus confirmed that these samples with starch would therefore withstand heat shock better.

Claims

1. Frozen confectionery, comprising fat, sweetener, milk solids-not-fat, water and starch, characterized in that the sum of the quantities of starch and milk solids-not-fat is between 2.5 and 18% by weight and in that the starch/milk solids-not-fat weight ratio is between 0.03 and 1.5.
2. Frozen confectionery comprising, by weight, 2 to 12% of fat, 10 to 25% of sweeteners, 2 to 15% of milk solids-not-fat, 0.5 to 3% of starch and 45 to 85% of water.
3. Frozen confectionery according to Claims 1 and 2, characterized in that the starch is chosen from the group consisting of native starches from potato, maize, tapioca or rice or a mixture thereof.
4. Frozen confectionery according to Claims 1 to 3 , characterized in that the starch is a chemically or physically modified starch.
5. Frozen confectionery according to Claims 1 and 2, comprising one or more emulsifiers.
6. Frozen confectionery according to Claims 1 and 2, comprising at least one stabilizer chosen from the following group: carob or guar seed flour, alginates, cellulose, xanthan, carrageenans .
7. Frozen confectionery according to Claims 1 and 2, characterized in that the milk solids-not-fat are chosen from the group composed of powdered or concentrated skimmed milk, powdered or concentrated defatted sweet whey, a commercial mixture of milk powder and of whey proteins .
8. Frozen confectionery according to Claims 1 and 2 , characterized in that the sweeteners are chosen from the group comprising sucrose, glucose, fructose or glucose syrups or a mixture of these agents .
9. Frozen confectionery according to Claim 8, characterized in that the glucose syrups have a DE of between 20 and 40.
10. Frozen confectionery, characterized in that it preserves its unctuousness and exhibits reduced crystalline growth during a heat shock followed by refreezing.
11. Process for making frozen confectioneries comprising the following steps:
- dispersion, heating and homogenization of the ingredients entering into the composition of a frozen confectionery according to one of Claims 1 to 9 at a temperature, a pressure and for a period sufficient to hydrate and gelatinize the starch and pasteurize the mixture, cooling of the mixture to a temperature of between 2 and 8°C, - ripening of the mixture at a temperature of between 2 and 6°C, without stirring,
- freezing to a temperature of between -3°C and -7°C, providing a degree of overrun of between 70 and 130%, - hardening of the mixture by deep-freezing to a temperature of between -20°C and -40°C.
12. Process according to Claim 11, characterized in that the step of ripening of the mixture is carried out with stirring.
PCT/EP2001/009473 2001-08-17 2001-08-17 Frozen confectionery WO2003015530A1 (en)

Priority Applications (7)

Application Number Priority Date Filing Date Title
BR0117104-6A BR0117104A (en) 2001-08-17 2001-08-17 Frozen confection
AU2001295476A AU2001295476B2 (en) 2001-08-17 2001-08-17 Frozen confectionery
MXPA04001502A MXPA04001502A (en) 2001-08-17 2001-08-17 Frozen confectionery.
IL16005401A IL160054A0 (en) 2001-08-17 2001-08-17 Frozen confectionery
CNA018235484A CN1543314A (en) 2001-08-17 2001-08-17 Frozen confectionery
PCT/EP2001/009473 WO2003015530A1 (en) 2001-08-17 2001-08-17 Frozen confectionery
IL160054A IL160054A (en) 2001-08-17 2004-01-26 Frozen confectionery

Applications Claiming Priority (1)

Application Number Priority Date Filing Date Title
PCT/EP2001/009473 WO2003015530A1 (en) 2001-08-17 2001-08-17 Frozen confectionery

Publications (1)

Publication Number Publication Date
WO2003015530A1 true WO2003015530A1 (en) 2003-02-27

Family

ID=8164551

Family Applications (1)

Application Number Title Priority Date Filing Date
PCT/EP2001/009473 WO2003015530A1 (en) 2001-08-17 2001-08-17 Frozen confectionery

Country Status (6)

Country Link
CN (1) CN1543314A (en)
AU (1) AU2001295476B2 (en)
BR (1) BR0117104A (en)
IL (2) IL160054A0 (en)
MX (1) MXPA04001502A (en)
WO (1) WO2003015530A1 (en)

Cited By (17)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
EP1510134A2 (en) * 2003-08-29 2005-03-02 National Starch and Chemical Investment Holding Corporation Starch for frozen desserts
EP1597975A1 (en) * 2004-05-21 2005-11-23 Nestec S.A. Use of polyol esters of fatty acids in aerated frozen confection with improved nutritional attributes
EP1597976A1 (en) * 2004-05-21 2005-11-23 Nestec S.A. Use of polyol esters of fatty acids in aerated frozen confection with improved nutritional attributes
EP1621084A1 (en) * 2004-07-27 2006-02-01 Unilever Plc Aerated food products containing hydrophobin
WO2006010426A1 (en) * 2004-07-27 2006-02-02 Unilever Plc Aerated food products containing hydrophobin
US7488504B2 (en) 2003-12-19 2009-02-10 Danisco A/S Process for production of a frozen food product
US7727573B2 (en) 1999-07-21 2010-06-01 Nestec S.A. Aerated frozen products
EP2196096A1 (en) * 2008-12-15 2010-06-16 Nestec S.A. Stable frozen aerated products manufactured by low-temperature extrusion technology
US20100203202A1 (en) * 2007-08-03 2010-08-12 Nestec S.A. Natural stabiliser system for frozen dessert
WO2011061121A1 (en) * 2009-11-19 2011-05-26 Nestec S.A. Water-based coating for frozen confection
US8178151B2 (en) 2005-12-21 2012-05-15 Conopco, Inc. Frozen aerated confection
US8354503B2 (en) 2008-12-16 2013-01-15 Conopco, Inc. Method for extracting hydrophobin from a solution
US8357420B2 (en) 2009-05-29 2013-01-22 Conopco, Inc. Oil-in-water emulsion
US8394444B2 (en) 2009-05-29 2013-03-12 Conopco, Inc. Oil-in-water emulsion
US8993030B2 (en) 2005-09-23 2015-03-31 Conopco Low pH aerated products
US9005690B2 (en) 2005-09-23 2015-04-14 Conopco, Inc. Aerated products with reduced creaming
US9115349B2 (en) 2008-10-16 2015-08-25 Conopco, Inc. Hydrophobin solution containing antifoam

Families Citing this family (3)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
EP2793604A1 (en) * 2011-12-22 2014-10-29 Nestec S.A. Composition for the preparation of homemade frozen confections
EP3716778B1 (en) * 2017-11-27 2024-03-20 Unilever IP Holdings B.V. Frozen confection composition
CN112189750A (en) * 2019-07-08 2021-01-08 内蒙古伊利实业集团股份有限公司 Ice cream slurry or ice cream product, preparation method and application thereof

Citations (10)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
GB1256290A (en) * 1968-10-01 1971-12-08 Gervais Danone Sa Novel dairy product
US4264637A (en) * 1979-01-17 1981-04-28 Amiel Braverman Microcrystalline cellulose in freezable-gel-confection compositions
DD223628A1 (en) * 1984-05-21 1985-06-19 Adw Ddr PROCESS FOR PRODUCING ICE CREAM
JPS61293348A (en) * 1985-06-20 1986-12-24 Nitta Zerachin Kk Material for foamed ice cream
US4725445A (en) * 1984-09-07 1988-02-16 Ferrero S.P.A. Ice-cream confectionery product and a method for its manufacture
US4859484A (en) * 1988-04-14 1989-08-22 Continental Colloids, Inc. Processed starch-gum blends
US5082682A (en) * 1990-11-09 1992-01-21 Fantasy Flavors, Inc. Nonfat frozen dairy dessert with method and premix therefor
WO1992013465A1 (en) * 1991-02-01 1992-08-20 Conagra, Inc. Reduced fat frozen dessert
US5358728A (en) * 1990-06-13 1994-10-25 Kraft General Foods, Inc. Non-fat frozen dairy product
WO2000049883A1 (en) * 1999-02-25 2000-08-31 Dreyer's Grand Ice Cream, Inc. Frozen dairy products and methods of production

Patent Citations (10)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
GB1256290A (en) * 1968-10-01 1971-12-08 Gervais Danone Sa Novel dairy product
US4264637A (en) * 1979-01-17 1981-04-28 Amiel Braverman Microcrystalline cellulose in freezable-gel-confection compositions
DD223628A1 (en) * 1984-05-21 1985-06-19 Adw Ddr PROCESS FOR PRODUCING ICE CREAM
US4725445A (en) * 1984-09-07 1988-02-16 Ferrero S.P.A. Ice-cream confectionery product and a method for its manufacture
JPS61293348A (en) * 1985-06-20 1986-12-24 Nitta Zerachin Kk Material for foamed ice cream
US4859484A (en) * 1988-04-14 1989-08-22 Continental Colloids, Inc. Processed starch-gum blends
US5358728A (en) * 1990-06-13 1994-10-25 Kraft General Foods, Inc. Non-fat frozen dairy product
US5082682A (en) * 1990-11-09 1992-01-21 Fantasy Flavors, Inc. Nonfat frozen dairy dessert with method and premix therefor
WO1992013465A1 (en) * 1991-02-01 1992-08-20 Conagra, Inc. Reduced fat frozen dessert
WO2000049883A1 (en) * 1999-02-25 2000-08-31 Dreyer's Grand Ice Cream, Inc. Frozen dairy products and methods of production

Non-Patent Citations (2)

* Cited by examiner, † Cited by third party
Title
DATABASE WPI Section Ch Week 198541, Derwent World Patents Index; Class D13, AN 1985-249646, XP002157617 *
PATENT ABSTRACTS OF JAPAN vol. 011, no. 163 (C - 424) 26 May 1987 (1987-05-26) *

Cited By (32)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
US8425967B2 (en) 1999-07-21 2013-04-23 Nestec S.A. Aerated frozen products
US7727573B2 (en) 1999-07-21 2010-06-01 Nestec S.A. Aerated frozen products
EP1510134A3 (en) * 2003-08-29 2005-03-23 National Starch and Chemical Investment Holding Corporation Starch for frozen desserts
EP1510134A2 (en) * 2003-08-29 2005-03-02 National Starch and Chemical Investment Holding Corporation Starch for frozen desserts
CN1600145B (en) * 2003-08-29 2013-03-27 玉米产品开发股份有限公司 Starch for frozen desserts
AU2004205333B2 (en) * 2003-08-29 2009-11-05 Corn Products Development, Inc. Starch for frozen desserts
US7488504B2 (en) 2003-12-19 2009-02-10 Danisco A/S Process for production of a frozen food product
WO2005112656A1 (en) * 2004-05-21 2005-12-01 Nestec S.A. Use of polyol esters of fatty acids in aerated frozen confection with improved nutritional attributes
EP1597976A1 (en) * 2004-05-21 2005-11-23 Nestec S.A. Use of polyol esters of fatty acids in aerated frozen confection with improved nutritional attributes
EP1597975A1 (en) * 2004-05-21 2005-11-23 Nestec S.A. Use of polyol esters of fatty acids in aerated frozen confection with improved nutritional attributes
AU2005266665B2 (en) * 2004-07-27 2009-02-05 Unilever Plc Aerated food products containing hydrophobin
WO2006010426A1 (en) * 2004-07-27 2006-02-02 Unilever Plc Aerated food products containing hydrophobin
EP1621084A1 (en) * 2004-07-27 2006-02-01 Unilever Plc Aerated food products containing hydrophobin
US8206770B2 (en) 2004-07-27 2012-06-26 Conopco, Inc. Frozen products
US8216624B2 (en) 2004-07-27 2012-07-10 Conopco, Inc. Aerated food products
US9005690B2 (en) 2005-09-23 2015-04-14 Conopco, Inc. Aerated products with reduced creaming
US8993030B2 (en) 2005-09-23 2015-03-31 Conopco Low pH aerated products
US8178151B2 (en) 2005-12-21 2012-05-15 Conopco, Inc. Frozen aerated confection
JP2010535018A (en) * 2007-08-03 2010-11-18 ネステク ソシエテ アノニム Natural stabilizer system for frozen desserts
US20100203202A1 (en) * 2007-08-03 2010-08-12 Nestec S.A. Natural stabiliser system for frozen dessert
US8956680B2 (en) 2007-08-03 2015-02-17 Nestec S.A. Natural stabiliser system for frozen dessert
US9115349B2 (en) 2008-10-16 2015-08-25 Conopco, Inc. Hydrophobin solution containing antifoam
WO2010069727A1 (en) * 2008-12-15 2010-06-24 Nestec S.A. Stable frozen aerated products manufactured by low-temperature extrusion technology
US9591866B2 (en) 2008-12-15 2017-03-14 Nestec S.A. Stable frozen aerated products manufactured by low-temperature extrusion technology
EP2196096A1 (en) * 2008-12-15 2010-06-16 Nestec S.A. Stable frozen aerated products manufactured by low-temperature extrusion technology
US8354503B2 (en) 2008-12-16 2013-01-15 Conopco, Inc. Method for extracting hydrophobin from a solution
USRE44812E1 (en) 2008-12-16 2014-03-18 Conopco, Inc. Method for extracting hydrophobin from a solution
US8394444B2 (en) 2009-05-29 2013-03-12 Conopco, Inc. Oil-in-water emulsion
US8357420B2 (en) 2009-05-29 2013-01-22 Conopco, Inc. Oil-in-water emulsion
US20130101702A1 (en) * 2009-11-19 2013-04-25 Nestec S.A. Water-based coating for frozen confection
WO2011061121A1 (en) * 2009-11-19 2011-05-26 Nestec S.A. Water-based coating for frozen confection
US9913486B2 (en) 2009-11-19 2018-03-13 Nestec S.A. Water-based coating for frozen confection

Also Published As

Publication number Publication date
IL160054A0 (en) 2004-06-20
BR0117104A (en) 2004-08-17
CN1543314A (en) 2004-11-03
MXPA04001502A (en) 2004-05-14
AU2001295476B2 (en) 2008-06-26
IL160054A (en) 2009-09-22

Similar Documents

Publication Publication Date Title
AU2001295476B2 (en) Frozen confectionery
AU2001295476A1 (en) Frozen confectionery
US4400406A (en) Frozen dessert food
US4400405A (en) Dietetic frozen dessert food
KR100796039B1 (en) Method for production of frozen desserts
AU2005245249B2 (en) Use of polyol esters of fatty acids in aerated frozen confection with improved nutritional attributes
MXPA06013518A (en) Use of polyol esters of fatty acids in aerated frozen confection with decreased freezing point.
AU576391B2 (en) Ice-cream confectionery product and a method for its manufacture
CA2561999C (en) Aerated frozen confections with whey and propylene glycol monoester of fatty acids
JP2002515747A (en) All natural ice cream
AU2002340899B2 (en) Frozen dessert, the production method thereof and the container in which said dessert is packaged and distributed
ITMI20070543A1 (en) PRE-COMPOSITION PASTRY CREAM AND PROCIDEMENT FOR PREPARATION OF PASTRY CREAM
JP2956897B2 (en) Method for producing frozen desserts that are soft even at freezing temperatures
EP1180330A1 (en) Frozen confection and method of making same
RU2292154C2 (en) Frozen sweet product and method for production thereof
ZA200402102B (en) Frozen confectionery.
JPWO2003084339A1 (en) Frozen confectionery mix and frozen confection made from it
CN102293314A (en) Frozen dessert
WO2020170259A1 (en) Improved production of alcoholic food products
JP2018161075A (en) Frozen dessert and method for producing frozen dessert

Legal Events

Date Code Title Description
AK Designated states

Kind code of ref document: A1

Designated state(s): AU BR CA CN IL JP MX RU US ZA

Kind code of ref document: A1

Designated state(s): AU BR CA CN IL JP MX RU US

DFPE Request for preliminary examination filed prior to expiration of 19th month from priority date (pct application filed before 20040101)
WWE Wipo information: entry into national phase

Ref document number: 160054

Country of ref document: IL

WWE Wipo information: entry into national phase

Ref document number: 2001295476

Country of ref document: AU

WWE Wipo information: entry into national phase

Ref document number: 20018235484

Country of ref document: CN

Ref document number: PA/A/2004/001502

Country of ref document: MX

WWE Wipo information: entry into national phase

Ref document number: 2004/02102

Country of ref document: ZA

Ref document number: 200402102

Country of ref document: ZA

NENP Non-entry into the national phase

Ref country code: JP
