EP4470902A3 - Wing rig - Google Patents

Wing rig Download PDF

Info

Publication number
EP4470902A3
EP4470902A3 EP24208200.6A EP24208200A EP4470902A3 EP 4470902 A3 EP4470902 A3 EP 4470902A3 EP 24208200 A EP24208200 A EP 24208200A EP 4470902 A3 EP4470902 A3 EP 4470902A3
Authority
EP
European Patent Office
Prior art keywords
wing rig
rig
designed
wing
surfer
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Pending
Application number
EP24208200.6A
Other languages
German (de)
French (fr)
Other versions
EP4470902A2 (en
Inventor
Ken Winner
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Boards and More GmbH
Original Assignee
Boards and More GmbH
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Family has litigation
First worldwide family litigation filed litigation Critical https://patents.darts-ip.com/?family=69187793&utm_source=google_patent&utm_medium=platform_link&utm_campaign=public_patent_search&patent=EP4470902(A3) "Global patent litigation dataset” by Darts-ip is licensed under a Creative Commons Attribution 4.0 International License.
Application filed by Boards and More GmbH filed Critical Boards and More GmbH
Publication of EP4470902A2 publication Critical patent/EP4470902A2/en
Publication of EP4470902A3 publication Critical patent/EP4470902A3/en
Pending legal-status Critical Current

Links

Classifications

    • B—PERFORMING OPERATIONS; TRANSPORTING
    • B63—SHIPS OR OTHER WATERBORNE VESSELS; RELATED EQUIPMENT
    • B63H—MARINE PROPULSION OR STEERING
    • B63H8/00—Sail or rigging arrangements specially adapted for water sports boards, e.g. for windsurfing or kitesurfing
    • B63H8/10—Kite-sails; Kite-wings; Control thereof; Safety means therefor
    • B—PERFORMING OPERATIONS; TRANSPORTING
    • B63—SHIPS OR OTHER WATERBORNE VESSELS; RELATED EQUIPMENT
    • B63H—MARINE PROPULSION OR STEERING
    • B63H9/00—Marine propulsion provided directly by wind power
    • B63H9/04—Marine propulsion provided directly by wind power using sails or like wind-catching surfaces
    • B63H9/06—Types of sail; Constructional features of sails; Arrangements thereof on vessels
    • B63H9/067—Sails characterised by their construction or manufacturing process
    • B—PERFORMING OPERATIONS; TRANSPORTING
    • B63—SHIPS OR OTHER WATERBORNE VESSELS; RELATED EQUIPMENT
    • B63H—MARINE PROPULSION OR STEERING
    • B63H8/00—Sail or rigging arrangements specially adapted for water sports boards, e.g. for windsurfing or kitesurfing
    • B63H8/10—Kite-sails; Kite-wings; Control thereof; Safety means therefor
    • B63H8/16—Control arrangements, e.g. control bars or control lines
    • B—PERFORMING OPERATIONS; TRANSPORTING
    • B63—SHIPS OR OTHER WATERBORNE VESSELS; RELATED EQUIPMENT
    • B63H—MARINE PROPULSION OR STEERING
    • B63H8/00—Sail or rigging arrangements specially adapted for water sports boards, e.g. for windsurfing or kitesurfing
    • B63H8/10—Kite-sails; Kite-wings; Control thereof; Safety means therefor
    • B63H8/12—Kites with inflatable closed compartments

Landscapes

  • Engineering & Computer Science (AREA)
  • Chemical & Material Sciences (AREA)
  • Combustion & Propulsion (AREA)
  • Mechanical Engineering (AREA)
  • Ocean & Marine Engineering (AREA)
  • Sustainable Energy (AREA)
  • Life Sciences & Earth Sciences (AREA)
  • Sustainable Development (AREA)
  • Manufacturing & Machinery (AREA)
  • Toys (AREA)
  • Wind Motors (AREA)
  • Structures Of Non-Positive Displacement Pumps (AREA)
  • Tents Or Canopies (AREA)
  • Executing Machine-Instructions (AREA)
  • Pyrane Compounds (AREA)
  • Transition And Organic Metals Composition Catalysts For Addition Polymerization (AREA)

Abstract

Offenbart ist ein handgestütztes Flügelrigg, das vorzugsweise mit einer aufblasbaren Vorderkante ausgeführt ist, wobei diese sich in Anströmrichtung etwa V-förmig nach oben (weg vom Surfer) erweiternd ausgeführt ist.

Figure imgaf001

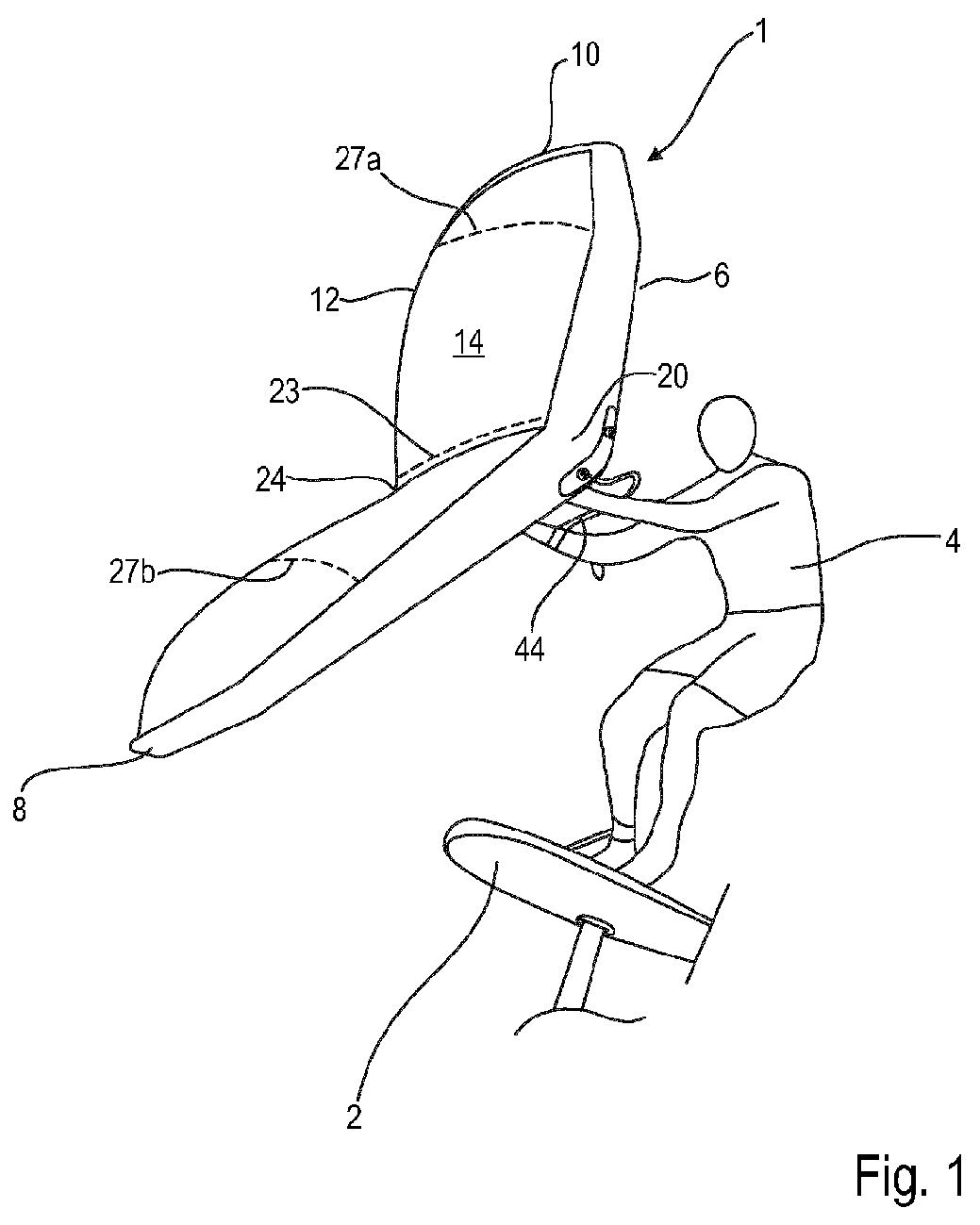

Disclosed is a hand-supported wing rig, which is preferably designed with an inflatable leading edge, which is designed to widen upwards (away from the surfer) in the direction of flow in an approximately V-shape.
Figure imgaf001
EP24208200.6A 2019-01-23 2020-01-22 Wing rig Pending EP4470902A3 (en)
