EP2736366B1 - Obermaterial mit zonaler konturierung und herstellung desselben - Google Patents

Obermaterial mit zonaler konturierung und herstellung desselben Download PDF

Info

Publication number
EP2736366B1
EP2736366B1 EP12737922.0A EP12737922A EP2736366B1 EP 2736366 B1 EP2736366 B1 EP 2736366B1 EP 12737922 A EP12737922 A EP 12737922A EP 2736366 B1 EP2736366 B1 EP 2736366B1
Authority
EP
European Patent Office
Prior art keywords
backing
outer panel
contouring
contouring element
panel
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Active
Application number
EP12737922.0A
Other languages
English (en)
French (fr)
Other versions
EP2736366A1 (de
Inventor
Tee L. WAN
Mike A. CALVANO
N. Scot Hull
Gjermund Haugbro
Thienchai CHAISUMREJ
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Nike Innovate CV USA
Original Assignee
Nike Innovate CV USA
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Nike Innovate CV USA filed Critical Nike Innovate CV USA
Publication of EP2736366A1 publication Critical patent/EP2736366A1/de
Application granted granted Critical
Publication of EP2736366B1 publication Critical patent/EP2736366B1/de
Active legal-status Critical Current
Anticipated expiration legal-status Critical

Links

Images

Classifications

    • A—HUMAN NECESSITIES
    • A43—FOOTWEAR
    • A43B—CHARACTERISTIC FEATURES OF FOOTWEAR; PARTS OF FOOTWEAR
    • A43B7/00—Footwear with health or hygienic arrangements
    • A43B7/06—Footwear with health or hygienic arrangements ventilated
    • A—HUMAN NECESSITIES
    • A43—FOOTWEAR
    • A43B—CHARACTERISTIC FEATURES OF FOOTWEAR; PARTS OF FOOTWEAR
    • A43B23/00—Uppers; Boot legs; Stiffeners; Other single parts of footwear
    • A43B23/02—Uppers; Boot legs
    • A43B23/0205—Uppers; Boot legs characterised by the material
    • A43B23/0235—Different layers of different material
    • A—HUMAN NECESSITIES
    • A43—FOOTWEAR
    • A43B—CHARACTERISTIC FEATURES OF FOOTWEAR; PARTS OF FOOTWEAR
    • A43B23/00—Uppers; Boot legs; Stiffeners; Other single parts of footwear
    • A43B23/02—Uppers; Boot legs
    • A43B23/0245—Uppers; Boot legs characterised by the constructive form
    • A43B23/0255—Uppers; Boot legs characterised by the constructive form assembled by gluing or thermo bonding
    • A—HUMAN NECESSITIES
    • A43—FOOTWEAR
    • A43B—CHARACTERISTIC FEATURES OF FOOTWEAR; PARTS OF FOOTWEAR
    • A43B23/00—Uppers; Boot legs; Stiffeners; Other single parts of footwear
    • A43B23/02—Uppers; Boot legs
    • A43B23/0245—Uppers; Boot legs characterised by the constructive form
    • A43B23/026—Laminated layers
    • A—HUMAN NECESSITIES
    • A43—FOOTWEAR
    • A43B—CHARACTERISTIC FEATURES OF FOOTWEAR; PARTS OF FOOTWEAR
    • A43B23/00—Uppers; Boot legs; Stiffeners; Other single parts of footwear
    • A43B23/02—Uppers; Boot legs
    • A43B23/04—Uppers made of one piece; Uppers with inserted gussets
    • A43B23/042—Uppers made of one piece
    • A—HUMAN NECESSITIES
    • A43—FOOTWEAR
    • A43B—CHARACTERISTIC FEATURES OF FOOTWEAR; PARTS OF FOOTWEAR
    • A43B5/00—Footwear for sporting purposes
    • A43B5/02—Football boots or shoes, i.e. for soccer, football or rugby
    • A43B5/025—Football boots or shoes, i.e. for soccer, football or rugby characterised by an element which improves the contact between the ball and the footwear
    • A—HUMAN NECESSITIES
    • A43—FOOTWEAR
    • A43B—CHARACTERISTIC FEATURES OF FOOTWEAR; PARTS OF FOOTWEAR
    • A43B7/00—Footwear with health or hygienic arrangements
    • A43B7/06—Footwear with health or hygienic arrangements ventilated
    • A43B7/08—Footwear with health or hygienic arrangements ventilated with air-holes, with or without closures
    • A43B7/084—Footwear with health or hygienic arrangements ventilated with air-holes, with or without closures characterised by the location of the holes
    • A43B7/085—Footwear with health or hygienic arrangements ventilated with air-holes, with or without closures characterised by the location of the holes in the upper

Definitions

  • shoe 10 includes an upper 11 that is attached to a sole structure 12.
  • Embodiments include shoes having sole structures of numerous widely varying types.
  • a sole structure in some embodiments may be, e.g., a single piece molded from synthetic rubber or other material.
  • a sole structure may include multiple components that have been sequentially molded or otherwise bonded together.
  • a sole structure may include a midsole formed from a first material (e.g., foamed ethylene vinyl acetate) bonded to an outsole formed from different materials (e.g., synthetic rubber).
  • composite panel 15 covers the lateral sides of the midfoot and forefoot.
  • composite panel 15 extends from below the top edge 20 of sole structure 12 on the lateral side, over the mid- and forefoot side regions, and under the lateral side of an eyelet reinforcing strip 21.
  • the rear lateral side of composite panel 15 extends under the forward lateral edge 22 of foxing panel 16.
  • composite panel 15 also covers the medial sides of the wearer forefoot and midfoot. Similar to the lateral side, the medial side of composite panel 15 extends from below the top edge 20 of sole structure 12, over the mid- and forefoot side regions, and under reinforcing strip 21.

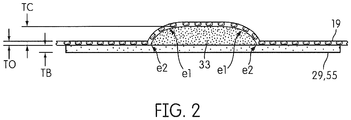

  • FIG. 2 offers several advantages. It is often desirable to include raised ridges or other types of surface contours in a footwear upper. Such contours may have aesthetic and/or functional purposes. For example, zones of increased thickness may provide additional support and/or additional cushioning in certain regions. Adding surface contours presents certain challenges when using meshes and other types of lightweight materials, however. Stitching a contouring element to a mesh material can be difficult, particularly with meshes having more open weave patterns. Moreover, stitching operations can be time consuming and expensive, and thus it is often desirable to minimize the amount of stitching needed.
  • Bonding or stitching a contour element to the outside of a mesh or other lightweight upper material can also present problems.
  • a contour element that is attached in such a fashion may be prone to separation. If an interface between a contour element and an exterior face of an upper is exposed, that interface might be snagged as a wearer foot brushes against external objects. As a result, the contour element might begin to separate from the upper. With the construction shown in FIG. 2 , however, the interface between the contouring element and backing 29 (e.g., edges e2) is protected by outer panel 29.
  • a contour element to the outer surface of a mesh panel might also have other disadvantages. Such an attachment might be aesthetically unpleasing and result in an upper with an unfinished and/or ragged look.
  • Conforming a mesh or other lightweight panel to a contouring element permits creation of an upper with a more finished overall appearance. For example, a mesh pattern that extends across much of an upper can be overlaid onto the contour element. This helps blend the contour elements with other portions of the upper.
  • the tension of the mesh material on the surface of a contour element can help soften the edges of the contour element and give it a more rounded appearance.
  • backing 29 is a polyester knit material having a layer of unactivated hot melt bonding agent pre-applied to surface 66.
  • a backing material may not include a pre-applied hot melt agent layer. Instead, a separate layer of hot melt bonding agent material having the same shape as backing 29 could be placed over surface 66 after backing 29 has been placed on jig 60.
  • a backing may have a thickness (TB from FIG. 2 ) of approximately 0.5 millimeters.

Landscapes

  • Health & Medical Sciences (AREA)
  • General Health & Medical Sciences (AREA)
  • Epidemiology (AREA)
  • Public Health (AREA)
  • Chemical & Material Sciences (AREA)
  • Engineering & Computer Science (AREA)
  • Materials Engineering (AREA)
  • Physical Education & Sports Medicine (AREA)
  • Footwear And Its Accessory, Manufacturing Method And Apparatuses (AREA)

Claims (10)

  1. Abschnitt eines Schuhoberteils (11), aufweisend:
    eine Trägerschicht (29);
    ein Profilierungselement (31, 32, 33, 34), wobei das Profilierungselement aus einem Material besteht, das aus Kunstleder, einem Schaumstoff oder einem Naturleder ausgewählt ist; und
    eine äußere Netzfläche (19), wobei
    das Profilierungselement eine Dicke (TC) hat, die größer als die kombinierten Dicken (TO, TB) der äußeren Fläche und der Trägerschicht ist,
    die Trägerschicht und die äußere Netzfläche jeweils eine Innenseite, die dazu ausgebildet ist, zu einem inneren Raum eines Schuhwerkartikels (11) gewandt zu sein, und eine Außenseite, die dazu ausgebildet ist, von dem inneren Raum abgewandt zu sein, wenn das Schuhoberteil in den Schuhwerkartikel eingearbeitet ist, haben,
    das Profilierungselement zwischen der Außenseite der Trägerschicht und der Innenseite der äußeren Netzfläche angeordnet ist,
    die Trägerschicht, das Profilierungselement und die äußere Netzfläche eine gebundene Verbundfläche (15) bilden, in der die äußere Netzfläche an das Profilierungselement und die Trägerschicht angepasst ist, um ein erhöhtes Profil zu bilden, wobei
    eine Bindung zwischen der äußeren Netzfläche und der Trägerschicht sich zu inneren Rändern (e2) erstreckt, an denen das Profilierungselement mit der Trägerschicht zusammentrifft, und wobei Bereiche der äußeren Netzfläche (19), die das Profilierungselement überlagern, unter Spannung stehen und das Profilierungselement verformen, um äußere Ränder (e1) des Profilierungselements abzurunden.
  2. Schuhoberteilabschnitt nach Anspruch 1, wobei das Profilierungselement (31, 32, 33, 34) Streifen des Materials aufweist, das aus Kunstleder, einem Schaumstoff oder einem Naturleder ausgewählt ist.
  3. Schuhoberteilabschnitt nach Anspruch 2, wobei die Trägerschicht mindestens eine Öffnung umfasst, die ein Belüftungsfenster (36 - 42) bestimmt, und wobei ein Abschnitt der äußeren Netzfläche das Belüftungsfenster überspannt und an Bereiche der Trägerschichtaußenseite an einem Rand des Belüftungsfensters gebunden ist.
  4. Schuhoberteilabschnitt nach Anspruch 2, wobei die Trägerschicht (29) Öffnungen umfasst, die eine Vielzahl von Belüftungsfenstern (36 - 42) bestimmen, wobei jedes der Belüftungsfenster durch einen entsprechenden Abschnitt der äußeren Netzfläche (19) überspannt ist und jeder der fensterüberspannenden äußeren Netzflächenabschnitte an Bereiche der Trägerschichtaußenseite an Rändern des entsprechenden Belüftungsfensters gebunden ist.
  5. Schuhoberteilabschnitt nach Anspruch 3 oder Anspruch 4, der ferner ein zweites Profilierungselement (31, 32, 33, 34) aufweist, das zwischen der Außenseite der Trägerschicht (29) und der Innenseite der äußeren Netzfläche (19) angeordnet ist, wobei
    das zweite Profilierungselement von angrenzenden Bereichen der Trägerschichtaußenseite umgeben ist, die das zweite Profilierungselement nicht berühren, und
    die angrenzenden Trägerschichtbereiche, die das zweite Profilierungselement umgeben, an die Innenseite der äußeren Netzfläche gebunden sind.
  6. Schuhoberteilabschnitt nach Anspruch 1, wobei das Profilierungselement (31, 32, 33, 34) von angrenzenden Bereichen der Außenseite der Trägerschicht (29) umgeben ist, die das Profilierungselement nicht berühren, und wobei die umgebenden angrenzenden Bereiche an die Innenseite der äußeren Netzfläche (19) gebunden sind.
  7. Schuhoberteilabschnitt nach Anspruch 6, wobei die Trägerschicht (29) mindestens ein Belüftungsfenster (36 - 42) umfasst und wobei ein Abschnitt der äußeren Netzfläche (19) das Belüftungsfenster überspannt und an Bereiche der Trägerschichtaußenseite an einem Rand des Belüftungsfensters gebunden ist.
  8. Schuhwerkartikel (10), der einen Schuhoberteilabschnitt gemäß einem der Ansprüche 1 bis 7 enthält.
  9. Verfahren zur Herstellung eines Abschnitts eines Schuhoberteils, aufweisend:
    Zusammensetzen eines Stapels (70) von Komponenten, der eine Trägerschicht (29), ein Bindemittel, mindestens ein Profilierungselement (31, 32, 33, 34) und eine poröse äußere Fläche (19) aufweist, wobei das Profilierungselement aus einem Material besteht, das aus Kunstleder, einem Schaumstoff oder einem Naturleder ausgewählt ist, und wobei das Profilierungselement zwischen der Trägerschicht und der porösen äußeren Fläche angeordnet ist; und
    Erhitzen und Zusammendrücken des zusammengesetzten Stapels, um die Trägerschicht, das Profilierungselement und die äußere Fläche zu binden und eine Verbundfläche (15) mit einem Profil zu bilden, das dem Profilierungselement entspricht, wobei das Profilierungselement in der Verbundfläche eine Dicke (TC) hat, die größer als die kombinierten Dicken (TO, TB) der äußeren Fläche und der Trägerschicht ist, wobei eine Bindung zwischen der äußeren Fläche und der Trägerschicht sich zu inneren Rändern (e2) erstreckt, an denen das Profilierungselement mit der Trägerschicht zusammentrifft, und wobei Bereiche der äußeren Netzfläche (19), die das Profilierungselement überlagern, unter Spannung stehen und das Profilierungselement verformen, um äußere Ränder (e1) des Profilierungselements abzurunden.
  10. Verfahren nach Anspruch 9, wobei die poröse äußere Fläche ein Netz ist.
EP12737922.0A 2011-07-27 2012-06-20 Obermaterial mit zonaler konturierung und herstellung desselben Active EP2736366B1 (de)
