Abstract

Laufwagen auf einer Führungsschiene (9, 10) zur Aufnahme eines Ausfahrprofils, insbesondere des Ausfahrprofils (8) eines Sonnenschutzes wie Markise o. dgl., mit einem Führungselement (1), welches der Führungsschiene (9, 10) zugeordnet ist, und einem Aufnahmeelement (2), welches das Ausfahrprofil (8) mittelbar oder unmittelbar trägt, dadurch gekennzeichnet, dass das Aufnahmeelement (2) relativ zum Führungselement (1) beweglich ist.

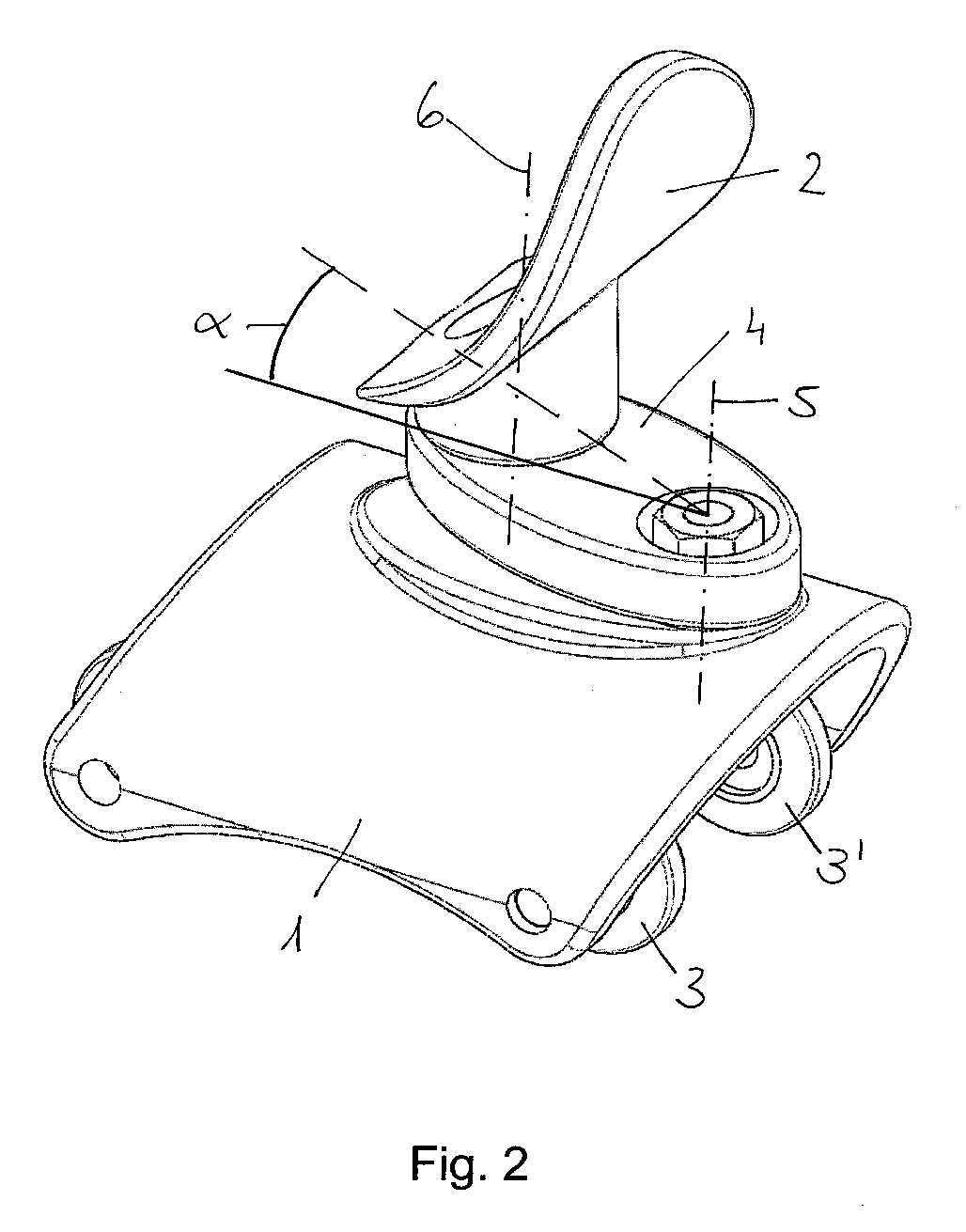

Figure imgaf001
Carriage on a guide rail (9, 10) for receiving an extension profile, in particular the Ausfahrprofils (8) of a sunshade such as awning o. The like., With a guide element (1) which is associated with the guide rail (9, 10), and a receiving element (2), which carries the Ausfahrprofil (8) indirectly or directly, characterized in that the receiving element (2) relative to the guide element (1) is movable.
Figure imgaf001
EP05021478.2A 2004-12-23 2005-09-30 Trolley Withdrawn EP1674635A3 (en)

Applications Claiming Priority (1)

Application Number Priority Date Filing Date Title
DE200410061975 DE102004061975A1 (en) 2004-12-23 2004-12-23 carriage

Publications (2)

Publication Number Publication Date
EP1674635A2 EP1674635A2 (en) 2006-06-28
EP1674635A3 true EP1674635A3 (en) 2014-01-08
