EP1574435A3 - Apparatus and method for packaging tobacco industry products - Google Patents

Apparatus and method for packaging tobacco industry products Download PDF

Info

Publication number
EP1574435A3
EP1574435A3 EP05002565A EP05002565A EP1574435A3 EP 1574435 A3 EP1574435 A3 EP 1574435A3 EP 05002565 A EP05002565 A EP 05002565A EP 05002565 A EP05002565 A EP 05002565A EP 1574435 A3 EP1574435 A3 EP 1574435A3
Authority
EP
European Patent Office
Prior art keywords
product
packaging
wrapping
pocket
wrapping material
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Withdrawn
Application number
EP05002565A
Other languages
German (de)
French (fr)
Other versions
EP1574435A2 (en
Inventor
Frank Syrzisko
Karsten Meinke
Michael Lüneburg
Dirk Zeuner
Claus Riedel
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Koerber Technologies GmbH
Original Assignee
Hauni Maschinenbau GmbH
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Hauni Maschinenbau GmbH filed Critical Hauni Maschinenbau GmbH
Publication of EP1574435A2 publication Critical patent/EP1574435A2/en
Publication of EP1574435A3 publication Critical patent/EP1574435A3/en
Withdrawn legal-status Critical Current

Links

Classifications

    • B—PERFORMING OPERATIONS; TRANSPORTING
    • B65—CONVEYING; PACKING; STORING; HANDLING THIN OR FILAMENTARY MATERIAL
    • B65B—MACHINES, APPARATUS OR DEVICES FOR, OR METHODS OF, PACKAGING ARTICLES OR MATERIALS; UNPACKING
    • B65B19/00—Packaging rod-shaped or tubular articles susceptible to damage by abrasion or pressure, e.g. cigarettes, cigars, macaroni, spaghetti, drinking straws or welding electrodes
    • B65B19/02—Packaging cigarettes
    • B65B19/22—Wrapping the cigarettes; Packaging the cigarettes in containers formed by folding wrapping material around formers
    • B65B19/223—Wrapping the cigarettes; Packaging the cigarettes in containers formed by folding wrapping material around formers in a curved path; in a combination of straight and curved paths, e.g. on rotary tables or other endless conveyors
    • B65B19/226—Wrapping the cigarettes; Packaging the cigarettes in containers formed by folding wrapping material around formers in a curved path; in a combination of straight and curved paths, e.g. on rotary tables or other endless conveyors using endless conveyors having pockets, each pocket being provided with separate members, e.g. folders

Landscapes

  • Engineering & Computer Science (AREA)
  • Mechanical Engineering (AREA)
  • Wrapping Of Specific Fragile Articles (AREA)

Abstract

Die Erfindung betrifft ein Verfahren und eine Vorrichtung zur Verpackung eines schachtelförmigen oder blockförmigen Produkts der Tabak verarbeitenden Industrie. Die Erfindung betrifft ferner eine Fördervorrichtung für einen Verpackungsmaterialabschnitt (12) der Tabak verarbeitenden Industrie.The invention relates to a method and a device for packaging a box-shaped or block-shaped product of Tobacco processing industry. The invention further relates to a Conveying device for a packaging material section (12) of Tobacco processing industry.

Die erfindungsgemäße Verpackungsvorrichtung umfasst wenigstens eine Tasche (14, 14', 14") zur Aufnahme des Produkts (11), insbesondere einer Zigarettenpackung (11), wobei ein Umhüllungsmaterial (12) um das Produkt (11) in der Tasche (14, 14', 14") wickelbar ist, wobei wenigstens ein Verpackungsorgan (13, 13', 13", 14, 14', 14", 15, 15', 16, 16', 17-23, 31, 33-35, 37, 38, 43-46) vorgesehen ist, mittels dem in einer einzigen Aufspannung das Produkt (11) in der Tasche (14, 14', 14") von dem Umhüllungsmaterial umwickelbar ist. Die erfindungsgemäße Fördervorrichtung umfasst wenigstens ein Element (60, 61) umfassend eine Aufnahme (66) zur Übernahme eines kontinuierlich zugeförderten Verpackungsmaterialabschnitts (12) und zur Übergabe des Verpackungsmaterialabschnitts (12) auf ein diskontinuierlich angetriebenes Förderelement (42, 64, 66).The packaging device according to the invention comprises at least a pocket (14, 14 ', 14 ") for receiving the product (11), in particular a cigarette pack (11), wherein a wrapping material (12) around the product (11) in the pocket (14, 14 ', 14 ") windable is, wherein at least one packaging member (13, 13 ', 13 ", 14, 14', 14 ", 15, 15 ', 16, 16', 17-23, 31, 33-35, 37, 38, 43-46) is, by means of which in a single setting the product (11) in the bag (14, 14 ', 14 ") of the wrapping material umwickelbar is. The conveying device according to the invention comprises at least an element (60, 61) comprising a receptacle (66) for acceptance a continuously conveyed packaging material section (12) and for the transfer of the packaging material section (12) a discontinuously driven conveyor element (42, 64, 66).

Das erfindungsgemäße Verfahren zeichnet sich durch die folgenden Verfahrenschritte aus:

  • Einschieben des Produkts (11) und wenigstens teilweise eines Umhüllungsmaterials (12) in eine Tasche (14-14") einer Verpackungsvorrichtung (10),
  • vollständiges Umwickeln des Produkts (11) mit dem Umhüllungsmaterial (12), wobei sämtliche Schritte des vollständigen Umwickelns in der Tasche (14-14") ausgeführt werden.

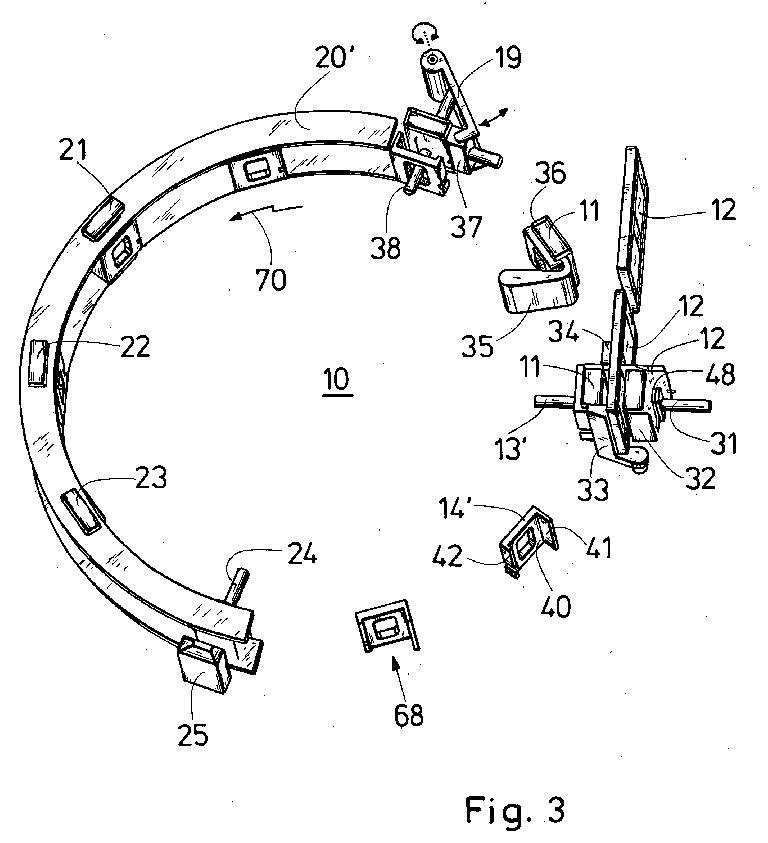

Figure 00000001
The process according to the invention is characterized by the following process steps:
  • Inserting the product (11) and at least partially a wrapping material (12) into a pocket (14-14 ") of a packaging device (10),
  • completely wrapping the product (11) with the wrapping material (12), performing all the steps of complete wrapping in the bag (14-14 ").
