EP0904935A3 - Device for changing the position of a print carrier web - Google Patents

Device for changing the position of a print carrier web Download PDF

Info

Publication number
EP0904935A3
EP0904935A3 EP98118051A EP98118051A EP0904935A3 EP 0904935 A3 EP0904935 A3 EP 0904935A3 EP 98118051 A EP98118051 A EP 98118051A EP 98118051 A EP98118051 A EP 98118051A EP 0904935 A3 EP0904935 A3 EP 0904935A3
Authority
EP
European Patent Office
Prior art keywords
printing
web
changing
material web
printing material
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Granted
Application number
EP98118051A
Other languages
German (de)
French (fr)
Other versions
EP0904935A2 (en
EP0904935B1 (en
Inventor
Erwin Dimmel
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Manroland AG
Original Assignee
MAN Roland Druckmaschinen AG
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by MAN Roland Druckmaschinen AG filed Critical MAN Roland Druckmaschinen AG
Publication of EP0904935A2 publication Critical patent/EP0904935A2/en
Publication of EP0904935A3 publication Critical patent/EP0904935A3/en
Application granted granted Critical
Publication of EP0904935B1 publication Critical patent/EP0904935B1/en
Anticipated expiration legal-status Critical
Expired - Lifetime legal-status Critical Current

Links

Classifications

    • B—PERFORMING OPERATIONS; TRANSPORTING
    • B41—PRINTING; LINING MACHINES; TYPEWRITERS; STAMPS
    • B41F—PRINTING MACHINES OR PRESSES
    • B41F13/00—Common details of rotary presses or machines
    • B41F13/02—Conveying or guiding webs through presses or machines

Landscapes

  • Engineering & Computer Science (AREA)
  • Mechanical Engineering (AREA)
  • Rotary Presses (AREA)

Abstract

Die Erfindung betrifft eine Vorrichtung zur Veränderung der Bahnlage einer Bedruckstoffbahn in einer Rotationsdruckmaschine mit mindestens zwei auf der Bedienseite übereinander angeordneten Druckwerken, von denen ein Druckwerk durch die sich in der Betriebslage befindende Bedruckstoffbahn für einen Bedienenden verdeckt und außerhalb des Druckbetriebes mittels einer Lageveränderung der Bedruckstoffbahn und eines ortsveränderbaren Auftrittes zugängig ist. Um eine kostengünstige und mit einfachen, wenig Platz benötigenden technischen Mitteln realisierbare Vorrichtung zu schaffen, sind die Bedruckstoffbahn (16; 17) fördernde Funktionsgruppen, einschließlich der jeweils zugehörigen Druckwerke (4; 5 bzw. 6; 7), über eine Veränderung der Bahnlänge eine den Zugang zu dem jeweils oben liegenden Druckwerk (6; 7) ermöglichende, durchhängende Bahnschlaufe (22; 27) erzeugend und diese wieder zurückbildend antreibbar und ist der Auftritt ( 24; 26) in den unteren Bereich der Bahnschlaufe (22; 27) verbringbar.

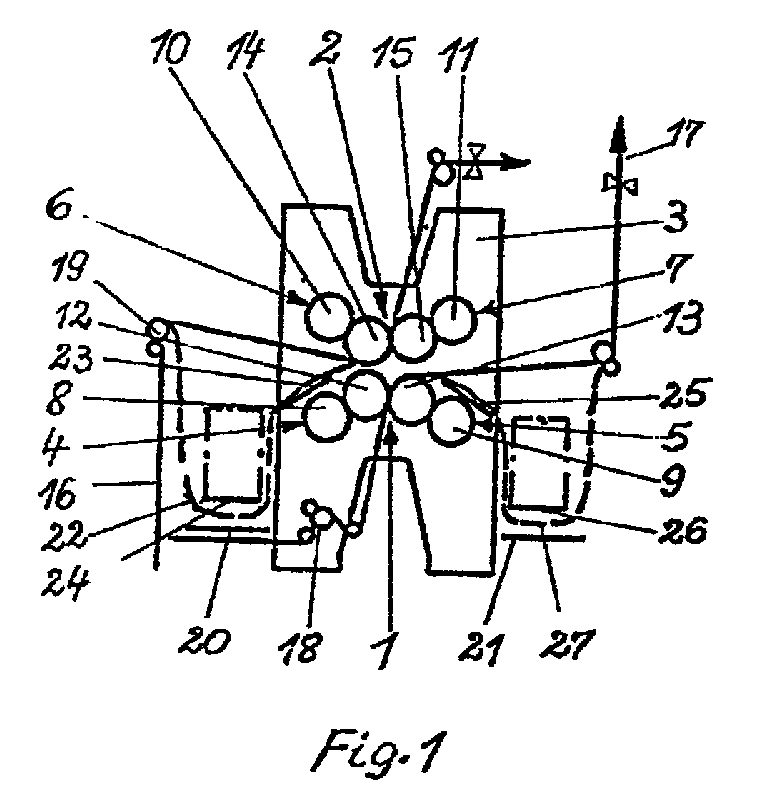

Figure 00000001
The invention relates to a device for changing the web position of a printing material web in a rotary printing press with at least two printing units arranged one above the other on the operating side, of which a printing unit is covered by the printing material web in the operating position for an operator and outside of the printing operation by means of a change in the position of the printing material web and a changeable appearance is accessible. In order to create a cost-effective device that can be implemented with simple, space-saving technical means, the printing material web (16; 17) promoting functional groups, including the associated printing units (4; 5 or 6; 7), are one by changing the web length generating the access to the printing unit (6; 7) located at the top, creating a sagging web loop (22; 27) and driving it back again, and the step (24; 26) can be brought into the lower region of the web loop (22; 27).
Figure 00000001
EP98118051A 1997-09-26 1998-09-23 Device for changing the position of a print carrier web Expired - Lifetime EP0904935B1 (en)
