Abstract

Klebfolienstreifen-Verbund aus
  • a) einem Klebfolienstreifen (2) der durch Ziehen in Richtung der Verklebungsebene (B) lösbar ist, und der
  • b) an seiner einen Klebseite mit der einen Seite eines Klettverschlusses (4, 7) verklebt ist, während
  • c) die andere Seite des Klettverschlusses (4, 7) befestigbar freiliegt.

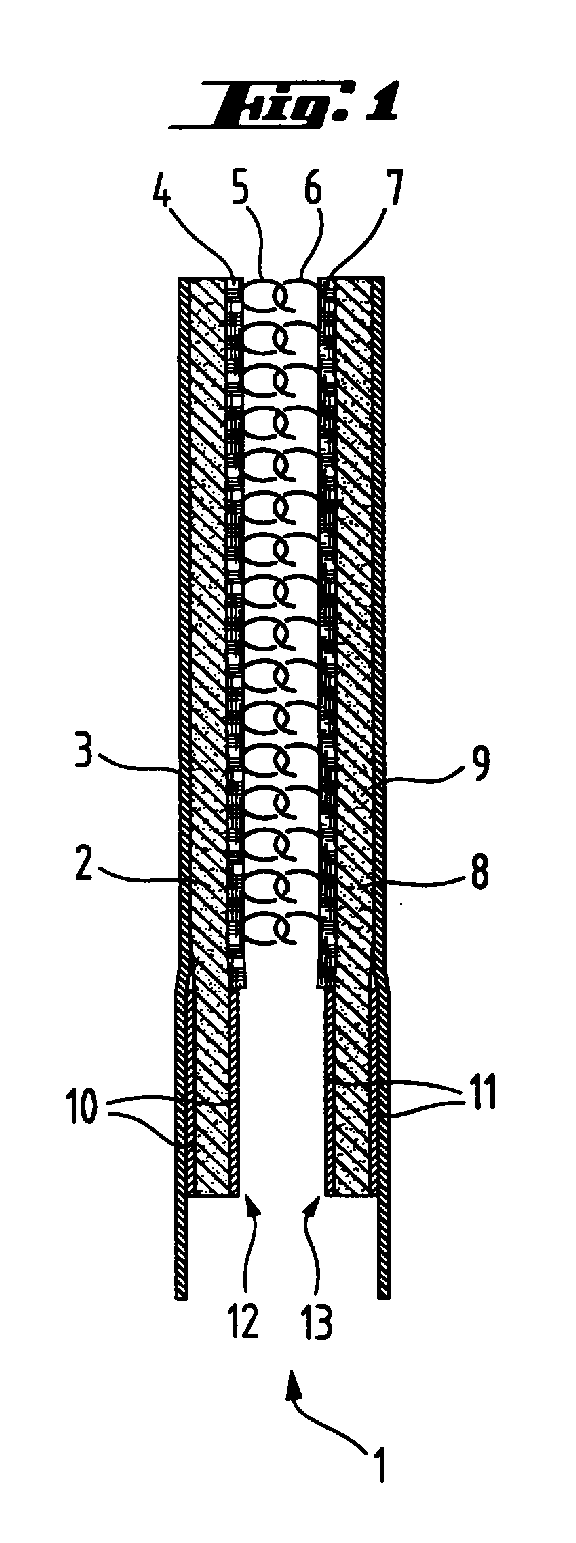

    • Figure 00000001
