CN219314952U - Special-shaped jacket conical fermentation tank

Info

Publication number: CN219314952U
Application number: CN202320387794.6U
Authority: CN
Inventors: 荆洪帅; 张魁; 徐世超; 李树明
Original assignee: Pingyuan Yucheng Stainless Steel Products Co ltd
Current assignee: Pingyuan Yucheng Stainless Steel Products Co ltd
Priority date: 2023-02-27
Filing date: 2023-02-27
Publication date: 2023-07-07
Anticipated expiration: 2033-02-27

Abstract

The utility model belongs to the technical field of fermentation tanks, and discloses a special-shaped jacket conical fermentation tank which comprises a fermentation tank body, wherein a heating mechanism is fixedly connected to the outer surface of the fermentation tank body, four supporting legs are arranged on a fixed block at the lower part of the outer surface of the heating mechanism, a supporting plate is fixedly connected to the middle part of the front end of the heating mechanism, a controller is fixedly connected to the middle part of the upper end of the supporting plate, a discharging pipe is fixedly connected to the middle part of the lower end of the fermentation tank body in a penetrating manner, a stirring mechanism is fixedly connected to the middle part of the upper end of the fermentation tank body, and a feeding pipe is fixedly connected to the rear part of the upper end of the fermentation tank body in a penetrating manner. The special-shaped jacket conical fermentation tank provided by the utility model can be used for uniformly heating the fermentation tank by arranging the heating mechanism, providing a proper temperature for the growth of microorganisms, enhancing the stirring effect on materials in the fermentation tank by arranging the stirring mechanism and the mixing mechanism, improving the quality of fermented products, and being suitable for wide application.

Description

Special-shaped jacket conical fermentation tank

Technical Field

The utility model relates to the technical field of fermentation tanks, in particular to a conical fermentation tank with a special-shaped jacket.

Background

The fermenter is an external environment device for the growth, propagation and formation of microorganisms during fermentation, and its main body is a main cylinder made of stainless steel plate with a volume of 1m ³ To hundreds of m ³ During design and processing, the structure is strict and reasonable, and the use process of the existing fermentation tank has at least the following disadvantages: 1. when the existing fermentation tank is used, the temperature which accords with the reaction of fermentation materials cannot be provided, so that the fermentation speed of the materials is stirred, and the practicability of the fermentation tank is reduced; 2. the existing fermentation tank has poor stirring effect on materials, so that the materials are not fermented uniformly, and the quality of the fermented products is influenced, so that the special-shaped jacket conical fermentation tank is provided.

Disclosure of Invention

The utility model mainly aims to provide the special-shaped jacket conical fermentation tank which can effectively solve the problems in the background technology.

In order to achieve the above purpose, the technical scheme adopted by the utility model is as follows:

the utility model provides a conical fermentation cylinder is pressed from both sides to dysmorphism, includes the fermentation cylinder body, the surface fixedly connected with heating mechanism of fermentation cylinder body, the surface lower part fixed block of heating mechanism will have four supporting legs, the front end middle part fixedly connected with backup pad of heating mechanism, the upper end middle part fixedly connected with controller of backup pad, the lower extreme middle part of fermentation cylinder body alternates fixedly connected with discharging pipe, the upper end middle part fixedly connected with rabbling mechanism of fermentation cylinder body, the upper end rear portion of fermentation cylinder body alternates fixedly connected with inlet pipe.

Preferably, the heating mechanism comprises a heating jacket, a heating pipe is fixedly connected to the inner sleeve wall of the heating jacket in a penetrating manner, a water inlet pipe is fixedly connected to the left part of the upper sleeve wall of the heating jacket in a penetrating manner, a circulating pipe is fixedly connected between the right part of the upper sleeve wall of the heating jacket and the right part of the lower sleeve wall in a penetrating manner, a circulating pump is fixedly connected to the middle part of the outer surface of the circulating pipe in a penetrating manner, and the left end of the circulating pump is fixedly connected to the right end of the heating jacket in a penetrating manner.

Preferably, the stirring mechanism comprises a driver, the output end of the driver penetrates through the upper wall of the fermentation tank body and is fixedly connected with a stirring shaft, three stirring rakes are fixedly connected in the middle of the outer surface of the stirring shaft in a penetrating mode, a first scraping plate is fixedly connected between the left ends and the right ends of the stirring rakes in a penetrating mode, a mixing mechanism is fixedly connected in the middle of the lower end of the stirring shaft in a penetrating mode, and the upper end of the stirring shaft is movably connected with the upper wall of the fermentation tank body through a bearing.

Preferably, the mixing mechanism comprises a fixed shaft, the middle part of the outer surface of the fixed shaft is fixedly connected with a fixed frame through a bearing in a penetrating and movable way, the outer surface of the fixed frame is fixedly connected with the lower wall of the fermentation tank body, the lower part of the outer surface of the fixed shaft is fixedly connected with a mixing blade in a penetrating and fixing way, a plurality of second scraping plates are fixedly connected between the left ends and between the right ends of the mixing blade in a penetrating and fixing way, and the upper end of the fixed shaft is fixedly connected with the lower end of the stirring shaft in a penetrating and fixing way.

Preferably, the heating pipe is arranged to be of a spiral structure, the heating pipe and the circulating pump are electrically connected with the controller, valves are arranged on the water inlet pipe, the discharging pipe and the feeding pipe, and the lower end face of the discharging pipe is higher than the lower end face of the supporting leg.

Preferably, the opposite surfaces of the two second scrapers and the opposite surfaces of the two first scrapers are in contact with the inner wall of the fermentation tank body, the lower part of the outer surface of the fermentation tank body is in a conical structure, and the driver is electrically connected with the controller.

Compared with the prior art, the utility model has the following beneficial effects:

1. according to the utility model, the heating mechanism is arranged, the heating pipe is used for heating water in the heating jacket, and then the circulating pump is matched with the circulating pipe, so that water in the heating jacket can circularly flow, and materials in the fermentation tank can be uniformly heated by uniformly heating water, so that a proper temperature can be provided for the reaction of fermentation materials, the fermentation efficiency is improved, and the practicability is also improved;

2. according to the utility model, the stirring mechanism and the mixing mechanism are arranged, the stirring shaft and the fixed shaft are driven to rotate by the driver, so that the stirring rake and the mixing blade stir materials in the fermentation tank, and the first scraping plate and the second scraping plate can scrape the materials attached to the inner wall of the fermentation tank, thereby enhancing the stirring effect on the materials, enabling the materials to be fermented uniformly and improving the quality of the fermented products.

Drawings

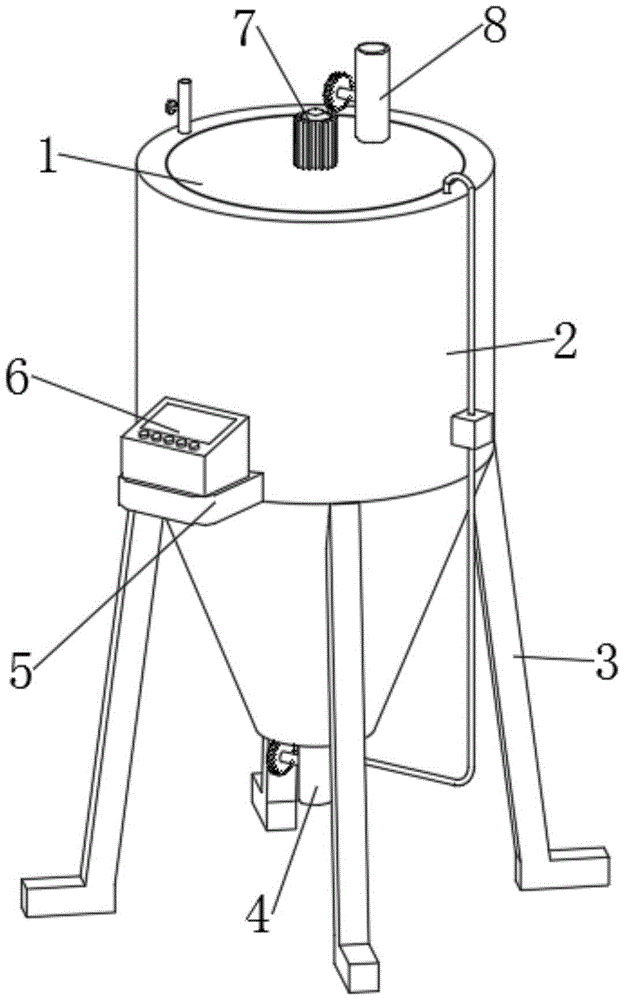

FIG. 1 is a schematic diagram of the overall structure of a profiled jacketed conical fermenter according to the present utility model;

FIG. 2 is a schematic diagram of the overall structure of a heating mechanism of the special-shaped jacket cone-shaped fermentation tank;

FIG. 3 is a schematic diagram of the overall structure of a stirring mechanism of the special-shaped jacket cone-shaped fermentation tank;

FIG. 4 is a schematic diagram of the overall structure of a mixing mechanism of the special-shaped jacketed conical fermenter of the present utility model.

In the figure: 1. a fermenter body; 2. a heating mechanism; 3. supporting feet; 4. a discharge pipe; 5. a support plate; 6. a controller; 7. a stirring mechanism; 8. a feed pipe; 21. a heating jacket; 22. heating pipes; 23. a water inlet pipe; 24. a circulation pump; 25. a circulation pipe; 71. a driver; 72. a stirring shaft; 73. stirring rake; 74. a first scraper; 75. a mixing mechanism; 751. a fixed shaft; 752. a fixing frame; 753. mixing leaves; 754. and a second scraper.

Detailed Description

The utility model is further described in connection with the following detailed description, in order to make the technical means, the creation characteristics, the achievement of the purpose and the effect of the utility model easy to understand.

In the description of the present utility model, it should be noted that the directions or positional relationships indicated by the terms "upper", "lower", "inner", "outer", "front", "rear", "both ends", "one end", "the other end", etc. are based on the directions or positional relationships shown in the drawings, are merely for convenience of describing the present utility model and simplifying the description, and do not indicate or imply that the devices or elements referred to must have a specific direction, be configured and operated in the specific direction, and thus should not be construed as limiting the present utility model. Furthermore, the terms "first," "second," and the like, are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.

In the description of the present utility model, it should be noted that, unless explicitly specified and limited otherwise, the terms "mounted," "provided," "connected," and the like are to be construed broadly, and may be fixedly connected, detachably connected, or integrally connected, for example; can be mechanically or electrically connected; can be directly connected or indirectly connected through an intermediate medium, and can be communication between two elements. The specific meaning of the above terms in the present utility model will be understood in specific cases by those of ordinary skill in the art.

Examples

Referring to fig. 1-4, the present utility model provides a technical solution:

the utility model provides a conical fermentation cylinder is pressed from both sides to dysmorphism, including fermentation cylinder body 1, the surface fixedly connected with heating mechanism 2 of fermentation cylinder body 1, the surface lower part fixed block of heating mechanism 2 will have four supporting legs 3, the front end middle part fixedly connected with backup pad 5 of heating mechanism 2, the upper end middle part fixedly connected with controller 6 of backup pad 5, the lower extreme middle part of fermentation cylinder body 1 alternates fixedly connected with discharging pipe 4, the upper end middle part fixedly connected with rabbling mechanism 7 of fermentation cylinder body 1, the upper end rear portion of fermentation cylinder body 1 alternates fixedly connected with inlet pipe 8.

In this embodiment, the heating mechanism 2 includes a heating jacket 21, a heating pipe 22 is fixedly connected to an inner sleeve wall of the heating jacket 21 in a penetrating manner, a water inlet pipe 23 is fixedly connected to a left part of an upper sleeve wall of the heating jacket 21 in a penetrating manner, a circulating pipe 25 is fixedly connected between a right part of the upper sleeve wall and a right part of a lower sleeve wall of the heating jacket 21 in a penetrating manner, a circulating pump 24 is fixedly connected to a middle part of an outer surface of the circulating pipe 25 in a penetrating manner, and a left end of the circulating pump 24 is fixedly connected to a right end of the heating jacket 21 in a penetrating manner; the heating pipe 22 is arranged into a spiral structure, the contact area between the heating pipe 22 and water in the heating jacket 21 can be increased, the water can be heated uniformly, the heating pipe 22 and the circulating pump 24 are electrically connected with the controller 6, valves are arranged on the water inlet pipe 23, the water outlet pipe 4 and the water inlet pipe 8, the water inlet pipe 23, the water outlet pipe 4 and the water inlet pipe 8 can be controlled to circulate and be closed through the valves, the lower end face of the water outlet pipe 4 is higher than the lower end face of the supporting leg 3, the water outlet pipe 4 is not contacted with the ground, and the discharging of the water outlet pipe 4 is not influenced.

In this embodiment, the stirring mechanism 7 includes a driver 71, an output end of the driver 71 penetrates through an upper wall of the fermenter body 1 and is fixedly connected with a stirring shaft 72, three stirring rakes 73 are fixedly connected in a penetrating manner in the middle of an outer surface of the stirring shaft 72, a first scraping plate 74 is fixedly connected between left ends and right ends of the three stirring rakes 73 together, a mixing mechanism 75 is fixedly connected in a penetrating manner in the middle of a lower end of the stirring shaft 72, and an upper end of the stirring shaft 72 is movably connected with the upper wall of the fermenter body 1 through a bearing; the mixing mechanism 75 comprises a fixed shaft 751, wherein the middle part of the outer surface of the fixed shaft 751 is in penetrating and movably connected with a fixed frame 752 through a bearing, the outer surface of the fixed frame 752 is fixedly connected with the lower wall of the fermentation tank body 1, the lower part of the outer surface of the fixed shaft 751 is in penetrating and fixedly connected with mixing blades 753, second scraping plates 754 are fixedly connected between the left ends and the right ends of the plurality of mixing blades 753 together, and the upper end of the fixed shaft 751 is in penetrating and fixedly connected with the lower end of the stirring shaft 72; the opposite surfaces of the two second scraping plates 754 and the opposite surfaces of the two first scraping plates 74 are in contact with the inner wall of the fermentation tank body 1, materials adhered to the inner wall of the fermentation tank body 1 are convenient to scrape, the lower part of the outer surface of the fermentation tank body 1 is in a conical structure, the driver 71 is electrically connected with the controller 6, and the opening and closing of the driver 71 can be flexibly controlled through the controller 6.

It should be noted that, in the use process, the valve on the water inlet pipe 23 is opened firstly, water is input into the heating jacket 21 through the water inlet pipe 23, then the heating pipe 22 and the circulating pump 24 are controlled by the controller 6, water in the heating jacket 21 can be heated through the heating pipe 22, and simultaneously the circulating pump 24 inputs the lower part of the heating jacket 21 into the upper part of the heating jacket 21 through the circulating pipe 25, so that water can circularly flow and heat in the heating jacket 21, and then uniform water is heated, materials in the fermentation tank body 1 can be uniformly heated, so that proper temperature can be provided for the reaction of fermentation materials, the fermentation efficiency of the materials is effectively improved, the practicability of the conical fermentation tank is also improved, and the controller 6 can control the driver 71 to start, so that the driver 71 drives the stirring shaft 72 and the fixed shaft 751 to rotate, and the three stirring rake 73 drives the two first scrapers 74 to rotate, and the two second scrapers 753 are also driven to rotate through the two stirring rake 73 and the two stirring rake blades 754, and the quality of the materials can be uniformly scraped off the two stirring blades 754, and the fermentation materials can be uniformly stirred in the fermentation tank body 1, so that the quality of the fermentation tank can be better improved.

The foregoing has shown and described the basic principles and main features of the present utility model and the advantages of the present utility model. It will be understood by those skilled in the art that the present utility model is not limited to the embodiments described above, and that the above embodiments and descriptions are merely illustrative of the principles of the present utility model, and various changes and modifications may be made without departing from the spirit and scope of the utility model, which is defined in the appended claims. The scope of the utility model is defined by the appended claims and equivalents thereof.

Claims

1. The utility model provides a dysmorphism presss from both sides toper fermentation cylinder, includes fermentation cylinder body (1), its characterized in that: the fermentation cylinder comprises a fermentation cylinder body (1), wherein a heating mechanism (2) is fixedly connected to the outer surface of the fermentation cylinder body (1), four supporting feet (3) are fixedly connected to the lower portion of the outer surface of the heating mechanism (2), a supporting plate (5) is fixedly connected to the middle of the front end of the heating mechanism (2), a controller (6) is fixedly connected to the middle of the upper end of the supporting plate (5), a discharging pipe (4) is fixedly connected to the middle of the lower end of the fermentation cylinder body (1), a stirring mechanism (7) is fixedly connected to the middle of the upper end of the fermentation cylinder body (1), and a feeding pipe (8) is fixedly connected to the rear of the upper end of the fermentation cylinder body (1).

2. The profiled jacketed conical fermenter according to claim 1, wherein: the heating mechanism (2) comprises a heating jacket (21), a heating pipe (22) is fixedly connected to the inner sleeve wall of the heating jacket (21) in a penetrating mode, a water inlet pipe (23) is fixedly connected to the left part of the upper sleeve wall of the heating jacket (21) in a penetrating mode, a circulating pipe (25) is fixedly connected between the right part of the upper sleeve wall of the heating jacket (21) and the right part of the lower sleeve wall in a penetrating mode jointly, a circulating pump (24) is fixedly connected to the middle of the outer surface of the circulating pipe (25) in a penetrating mode, and the left end of the circulating pump (24) is fixedly connected to the right end of the heating jacket (21) in a penetrating mode.

3. The profiled jacketed conical fermenter according to claim 1, wherein: the stirring mechanism (7) comprises a driver (71), the output end of the driver (71) penetrates through the upper wall of the fermentation tank body (1) and is fixedly connected with a stirring shaft (72), three stirring rakes (73) are fixedly connected in the middle of the outer surface of the stirring shaft (72), a first scraping plate (74) is fixedly connected between the left ends and the right ends of the three stirring rakes (73), a mixing mechanism (75) is fixedly connected in the middle of the lower end of the stirring shaft (72), and the upper end of the stirring shaft (72) is movably connected with the upper wall of the fermentation tank body (1) through a bearing.

4. A profiled jacketed conical fermenter according to claim 3, wherein: the mixing mechanism (75) comprises a fixed shaft (751), a fixing frame (752) is movably connected in the middle of the outer surface of the fixed shaft (751) in a penetrating mode through a bearing, the outer surface of the fixing frame (752) is fixedly connected with the lower wall of the fermentation tank body (1), mixing blades (753) are fixedly connected in the penetrating mode on the lower portion of the outer surface of the fixed shaft (751), second scraping plates (754) are fixedly connected between the left ends and between the right ends of the mixing blades (753) in a penetrating mode, and the upper end of the fixed shaft (751) is fixedly connected with the lower end of the stirring shaft (72) in the penetrating mode.

5. The profiled jacketed conical fermenter according to claim 2, wherein: the heating pipe (22) is of a spiral structure, the heating pipe (22) and the circulating pump (24) are electrically connected with the controller (6), valves are arranged on the water inlet pipe (23), the discharging pipe (4) and the feeding pipe (8), and the lower end face of the discharging pipe (4) is higher than the lower end face of the supporting leg (3).

6. The profiled jacketed conical fermenter according to claim 4, wherein: opposite surfaces of the two second scraping plates (754) and opposite surfaces of the two first scraping plates (74) are in contact with the inner wall of the fermentation tank body (1), the lower part of the outer surface of the fermentation tank body (1) is in a conical structure, and the driver (71) is electrically connected with the controller (6).
