Abstract

The utility model provides organic fertilizer crushing and screening equipment which comprises a screening box, a movable brake wheel, a screening cavity, a crushing box, a feeding hopper, a crushing roller, a crushing blade, a crushing motor, a classified collecting plate, a screening frame structure and a classified collecting frame structure. The N-type guide screening frame, the reinforcing plate, the fixing plate and the screening guide plate are arranged, so that the angle of the N-type guide screening frame is set in the using process, the moving speed of the organic fertilizer is improved, and the screening efficiency of the organic fertilizer is improved; n type is led and is sent screening frame, reinforcing plate, fixed plate, screening guide plate, U type collection frame, classifying plate, first guide plate and second guide plate and classifying collection plate's setting are favorable to carrying out classification work through setting up classifying collection plate and U type collection frame and classifying plate to the fertilizer of screening in the in-process of using, conveniently enlarge the application range of fertilizer in the in-process of using.

Description

Screening installation is smashed to fertilizer

Technical Field

The utility model belongs to the technical field of fertilizer processing equipment, and particularly relates to organic fertilizer crushing and screening equipment.

Background

Mainly from plants and/or animals, are applied to the soil to provide plant nutrition as the carbonaceous material of its primary function. Is processed by biological substances, animal and plant wastes and plant residues, eliminates toxic and harmful substances in the materials, is rich in a large amount of beneficial substances, and comprises the following steps: various organic acids, peptides and rich nutrient elements including nitrogen, phosphorus and potassium. The fertilizer not only can provide comprehensive nutrition for crops, but also has long fertilizer efficiency, can increase and update soil organic matters, promote microorganism propagation, improve physicochemical property and biological activity of soil, and is a main nutrient for green food production; animal excreta is the main raw materials of soil fertilization, because excreta piles up for a long time, moisture excessively evaporates, can form the piece, when splashing to the field, can cause the fertilization uneven, fertilization volume is too big or too little all can cause the influence to crop growth, in addition, when agricultural is grown seedlings, need use the fertilizer disintegrating slag after the screening, provide nutrition for the sprouting growth of seed, current organic fertilizer crushing screening facility includes the base, the collecting vat, the baffle, the backup pad, the bracing piece, the draw-in groove, the screen cloth, the card moves the subassembly, the spacing groove, the spring, the card ball, the roof, broken mechanism, crushing shell, first motor, first pivot, crushing roller, conveying mechanism, the conveying shell, the second motor, the second pivot, the blade, the hopper, because the granule after the fertilizer is smashed when carrying out the screening in the in-process that uses is different, categorised also different in order to be fit for different application ranges and the problem at the bottom of the organic fertilizer screening efficiency after the in-process of using.

Disclosure of Invention

In order to solve the technical problems, the utility model provides organic fertilizer crushing and screening equipment, which is used for improving the screening efficiency of organic fertilizer by adjusting the angle of a screening mechanism in the using process and improving the application range of the organic fertilizer by classifying the screened organic fertilizer in the using process.

The organic fertilizer crushing and screening device comprises a screening box, wherein movable brake wheels are respectively fixed at four corners of the lower end of the screening box through bolts; a screening cavity is arranged in the middle of the inside of the screening box; the middle position of the upper end of the screening box is fixedly provided with a crushing box through bolts; a feeding funnel is fixed at the middle position of the upper end of the crushing box through bolts; the crushing rollers are respectively arranged at the front middle position and the rear middle position of the inside of the crushing box; the outer wall of the crushing roller is sequentially and fixedly provided with crushing blades in a bolt manner from left to right; the left front and the left rear of the crushing box are respectively fixed with a crushing motor by bolts; the screening box is characterized in that a screening frame structure capable of being guided is arranged in the screening box; the lower part of the left side of the screening box is provided with a sortable collecting frame structure.

Preferably, the guide screening frame structure comprises an N-type guide screening frame, and the left end of the reinforcing plate is respectively fixed at the front of the upper end and the rear of the upper end of the N-type guide screening frame through bolts; the right end of the reinforcing plate is respectively fixed on the front of the left upper part and the rear of the left upper part of the fixing plate through bolts; the lower end bolt of the fixed plate is fixed with a screening guide plate.

Preferably, the structure of the sortable collecting frame comprises a U-shaped collecting frame, and a sorting plate is fixed on the upper part of the inner wall of the U-shaped collecting frame through bolts; the upper part of the right side of the U-shaped collecting frame is fixedly provided with a fixed block through bolts; the upper part of the right side of the U-shaped collecting frame is fixedly provided with a first guide plate through bolts; the lower part of the right side of the U-shaped collecting frame is fixedly provided with a second guide plate.

Compared with the prior art, the utility model has the beneficial effects that:

1. according to the utility model, the N-type guide screening frame, the reinforcing plate, the fixing plate and the screening guide plate are arranged, so that the angle of the N-type guide screening frame is set in the using process, the moving speed of the organic fertilizer is improved, and the screening efficiency of the organic fertilizer is improved.

2. According to the utility model, the arrangement of the N-type guide screening frame, the reinforcing plate, the fixing plate, the screening guide plate, the U-type collecting frame, the classifying plate, the first guide plate, the second guide plate and the classifying collecting plate is beneficial to classifying the screened organic fertilizer by arranging the classifying collecting plate, the U-type collecting frame and the classifying plate in the using process, and the application range of the organic fertilizer is conveniently enlarged in the using process.

Drawings

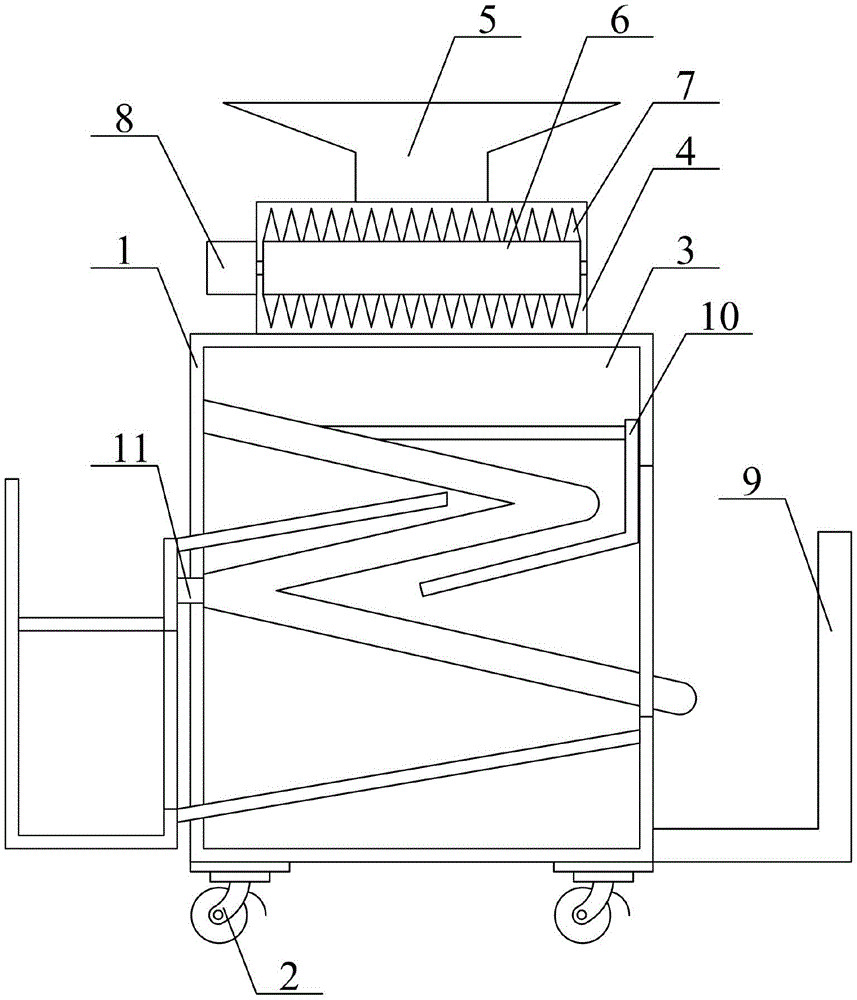

Fig. 1 is a schematic structural view of the present utility model.

Fig. 2 is a schematic structural view of the transportable screening shelf structure of the present utility model.

Fig. 3 is a schematic structural view of the sortable collection frame structure of the present utility model.

In the figure:

1. a screening box; 2. a moving brake wheel; 3. a screening cavity; 4. a crushing box; 5. a loading hopper; 6. a pulverizing roller; 7. a crushing blade; 8. a crushing motor; 9. a sorting collection plate; 10. a transportable screening rack structure; 101. an N-type guiding and screening frame; 102. a reinforcing plate; 103. a fixing plate; 104. screening a guide plate; 11. a sortable collection rack structure; 111. a U-shaped collecting rack; 112. a sorting plate; 113. a fixed block; 114. a first guide plate; 115. and a second guide plate.

Detailed Description

The utility model is specifically described below with reference to the accompanying drawings, as shown in fig. 1 and fig. 2, the organic fertilizer crushing and screening device comprises a screening box 1, a movable brake wheel 2, a screening cavity 3, a crushing box 4, a feeding funnel 5, a crushing roller 6, a crushing blade 7, a crushing motor 8, a classifying and collecting plate 9, a guided screening frame structure 10 and a classifying and collecting frame structure 11, wherein the movable brake wheel 2 is respectively fixed at four corners of the lower end of the screening box 1 through bolts; a screening cavity 3 is arranged in the middle of the inside of the screening box 1; the middle position of the upper end of the screening box 1 is fixedly provided with a crushing box 4 through bolts; a feeding funnel 5 is fixed at the middle position of the upper end of the crushing box 4 through bolts; the crushing roller 6 is respectively arranged at the middle position of the front inside and the middle position of the rear inside of the crushing box 4; the outer wall of the crushing roller 6 is sequentially and fixedly provided with a crushing blade 7 through bolts from left to right; the left front and left rear of the crushing box 4 are respectively fixed with a crushing motor 8 by bolts; a classification collecting plate 9 is fixed on the lower part of the right side of the screening box 1 through bolts; a screening frame structure 10 capable of being guided is arranged in the screening box 1; the lower part of the left side of the screening box 1 is provided with a sortable collecting frame structure 11; the guide screening frame structure 10 comprises an N-type guide screening frame 101, a reinforcing plate 102, a fixing plate 103 and a screening guide plate 104, wherein the front and rear of the upper end of the N-type guide screening frame 101 are respectively and fixedly provided with the left end of the reinforcing plate 102 through bolts; the right end of the reinforcing plate 102 is respectively fixed on the left upper front and the left upper rear of the fixing plate 103 by bolts; the lower end of the fixed plate 103 is fixedly provided with a screening guide plate 104 by bolts; when the organic fertilizer screening machine is used, the screening box 1 is pushed to move, the screening box 1 is moved to a proper position, an external power supply is connected through an external lead, then feeding work is carried out through the feeding hopper 5, organic fertilizer enters the crushing box 4, the crushing roller 6 and the crushing blade 7 are driven to rotate through the crushing motor 8, the crushing cutting work is carried out on the entering organic fertilizer, the crushed organic fertilizer falls on the upper end of the N-type guide screening frame 101, the organic fertilizer screening work is carried out through a net sheet arranged on the upper end of the N-type guide screening frame 101, and the screened organic fertilizer falls on the upper end of the screening guide plate 104, and then secondary screening work is carried out through the N-type guide screening frame 101.

In this embodiment, referring to fig. 3, the sortable collection frame structure 11 includes a U-shaped collection frame 111, a sorting plate 112, a fixing block 113, a first guide plate 114 and a second guide plate 115, wherein the sorting plate 112 is bolted to the upper portion of the inner wall of the U-shaped collection frame 111; a fixed block 113 is fixed on the upper part of the right side of the U-shaped collecting frame 111 through bolts; the upper right part of the U-shaped collecting frame 111 is fixedly provided with a first guide plate 114; a second guide plate 115 is fixed to the lower portion of the right side of the U-shaped collection frame 111 through bolts; after the organic fertilizer is screened, the organic fertilizer is conveyed to the upper end of the classification collecting plate 9 by the N-type guide screening frame 101, then the organic fertilizer leaked in the screening process falls on the upper ends of the first guide plate 114 and the second guide plate 115 respectively, and then is conveyed to the inner bottom end of the U-type collecting frame 111 and the upper end of the classification plate 112, so that the organic fertilizer crushing and screening work is completed.

In the embodiment, specifically, the crushing roller 6 is arranged in the crushing box 4 through a pin shaft; the crushing motor 8 is respectively connected with the crushing roller 6 in a transmission way; the crushing blades 7 arranged on the outer wall of the two crushing rollers 6 are staggered; the left side and the right side of the screening box 1 are respectively provided with a discharge hole.

In this embodiment, specifically, the upper end of the N-type guiding and screening frame 101 is bolted to the mesh; the screening guide plate 104 is disposed at the middle position inside the right side of the N-type guide screening frame 101.

In this embodiment, specifically, the N-type guiding and screening frame 101 is disposed at an inner middle position of the screening box 1; the upper part of the left end of the N-type guide screening frame 101 is connected with the upper part of the left inner wall of the screening box 1 through bolts; the fixing plate 103 is fixed with the upper part of the right inner wall of the screening box 1 through bolts; the right end of the N-type guide screening frame 101 penetrates through the lower right side of the screening box 1.

In this embodiment, specifically, a through hole is formed at the lower right side of the U-shaped collection rack 111, and the classification plate 112 is disposed at the upper end of the formed through hole; the fixing block 113 is disposed at the left side of the lower end of the first guide plate 114.

In the present embodiment, specifically, the U-shaped collection frame 111 is provided at the left lower portion of the screening box 1; the first guide plate 114 and the second guide plate 115 penetrate through the left side of the screening box 1 respectively; the first guide plate 114 is arranged at the upper left side of the N-type guide screening frame 101; the second guide plate 115 is arranged at the left lower end of the N-type guide screening frame 101; the fixed block 113 penetrates through the middle position of the left side of the screening box 1, and the fixed block 113 is connected to the lower left side of the N-type guide screening frame 101 through bolts.

Principle of operation

In the utility model, when the organic fertilizer screening machine is used, the screening box 1 is pushed to move to a proper position, an external power supply is connected by using an external lead, then the organic fertilizer enters the crushing box 4 through the feeding hopper 5 for feeding work, the crushing roller 6 and the crushing blade 7 are driven to rotate by the crushing motor 8, the entered organic fertilizer is crushed and cut, the crushed organic fertilizer falls on the upper end of the N-type guide and screening frame 101, the organic fertilizer screening work is carried out through a net sheet arranged on the upper end of the N-type guide and screening frame 101, the screened organic fertilizer falls on the upper end of the screening and conveying plate 104, then the secondary screening work is carried out through the N-type guide and screening frame 101, the organic fertilizer is conveyed to the upper end of the classification collecting plate 9 through the N-type guide and conveying frame 101, then the organic fertilizer leaked in the screening process falls on the upper ends of the first guide and conveying plate 114 and the second guide and conveying plate 115 respectively, and then the organic fertilizer is conveyed on the upper end of the U-type collecting plate 111 and the inner end 112, and the screening work is completed.

By using the technical scheme of the utility model or under the inspired by the technical scheme of the utility model, a similar technical scheme is designed by a person skilled in the art, so that the technical effects are achieved, and the technical effects fall into the protection scope of the utility model.

Claims (5)

1. The utility model provides a screening installation is smashed to fertilizer, includes screening case (1), removes wheel (2) of stopping, screening chamber (3), smashes case (4), feed hopper (5), smashes roller (6), smashes blade (7), smashes motor (8), classification collection board (9), can lead screening frame structure (10) and can classify collection frame structure (11), the lower extreme four corners position of screening case (1) bolt fastening respectively have removal wheel (2) of stopping; a screening cavity (3) is arranged in the middle of the inside of the screening box (1); the middle position of the upper end of the screening box (1) is fixedly provided with a crushing box (4) through bolts; a feeding funnel (5) is fixed at the middle position of the upper end of the crushing box (4) through bolts; the middle position of the front inside and the middle position of the rear inside of the crushing box (4) are respectively provided with a crushing roller (6); the outer wall of the crushing roller (6) is sequentially and fixedly provided with a crushing blade (7) through bolts from left to right; the left front and left rear of the crushing box (4) are respectively fixed with a crushing motor (8) by bolts; a classifying and collecting plate (9) is fixed on the lower part of the right side of the screening box (1) through bolts; the organic fertilizer crushing and screening device is characterized in that a screening frame structure (10) capable of being conveyed is arranged in the screening box (1) in the organic fertilizer crushing and screening device; the lower part of the left side of the screening box (1) is provided with a sortable collecting frame structure (11).

2. The organic fertilizer crushing and screening device according to claim 1, wherein the guide and screening frame structure (10) comprises an N-type guide and screening frame (101), and the left ends of the reinforcing plates (102) are respectively fixed on the front and rear of the upper end of the N-type guide and screening frame (101) through bolts; the right end of the reinforcing plate (102) is respectively fixed on the front of the left upper part and the rear of the left upper part of the fixing plate (103) through bolts; the lower end bolt of the fixed plate (103) is fixed with a screening guide plate (104).

3. The organic fertilizer crushing and screening device according to claim 1, wherein the sortable collecting frame structure (11) comprises a U-shaped collecting frame (111), and a sorting plate (112) is fixed on the upper part of the inner wall of the U-shaped collecting frame (111) through bolts; a fixed block (113) is fixed on the upper part of the right side of the U-shaped collecting frame (111) through bolts; the upper part of the right side of the U-shaped collecting frame (111) is fixedly provided with a first guide plate (114) through bolts; the lower part of the right side of the U-shaped collecting frame (111) is fixedly provided with a second guide plate (115) through bolts.

4. The organic fertilizer crushing and screening device according to claim 2, wherein the N-type guide and screening frame (101) is arranged at the middle position inside the screening box (1); the upper part of the left end of the N-type guide screening frame (101) is connected with the upper part of the left inner wall of the screening box (1) through bolts; the fixing plate (103) is fixed with the upper part of the right inner wall of the screening box (1) through bolts; the right end of the N-type guide screening frame (101) penetrates through the lower right side of the screening box (1).

5. A fertilizer crushing and screening apparatus according to claim 3, characterized in that the U-shaped collection frame (111) is provided at the lower left side of the screening box (1); the first guide plate (114) and the second guide plate (115) penetrate through the left side of the screening box (1) respectively; the fixed block (113) penetrates through the middle position of the left side of the screening box (1).
