Abstract
The utility model discloses a wall body cutting machine for construction relates to wall body cutting machine technical field, including base and crane, the crane is located the base directly over, the upper surface of base is equipped with gliding movable plate around can, the crane passes through the top of mounting screw at the movable plate, the left surface of crane is equipped with gliding drum from top to bottom, revolving cylinder is installed to the inside right flank of drum, the left end of drum rotates and is connected with the carousel, telescopic cylinder is installed respectively at the upper and lower both ends of carousel left surface, the knife rest is installed to the left end between two telescopic cylinder, the inboard left end of knife rest rotates and is connected with the blade. Through above structure, when the wall body cutting machine uses, need not to install the wall body cutting machine on the wall body to it is more simple when wall body cutting operation, it is short to consume time, and machining efficiency is high, and when the wall body cutting, can carry out vertical direction cutting from top to bottom to the wall body, also can carry out the horizontal direction cutting around to the wall body.
Description
Technical Field
The utility model relates to a wall body cutting machine technical field especially relates to a wall body cutting machine for construction.
Background
In building construction, a wall body is required to be grooved or opened, and a wall body cutting machine is required to be used for grooving or opening.
Utility model patent that publication number is CN209381144U discloses a wall cutting machine in current patent relates to construction technical field, and its technical scheme main points are: the cutting machine comprises a rack and a cutting mechanism arranged on the rack, wherein the rack comprises a mounting plate for mounting on a wall surface, a sliding seat connected to the mounting plate in a sliding manner, and a lifting support arranged on the sliding seat and far away from the end surface of the mounting plate;
when the machine tool is implemented, the machine frame needs to be installed on the wall in advance, so that the operation is troublesome, the consumed time is long, and the processing efficiency is influenced.
The invention patent with the publication number of CN111168866A in the prior patent discloses a novel household wall cutting machine, which comprises a bottom plate, wherein the upper end of the bottom plate is transversely provided with a first sliding groove, the inside of the bottom plate is transversely provided with a first threaded rod, the left end and the right end of the first threaded rod are respectively and rotatably connected with the inner wall of the bottom plate, the outer surface of the first threaded rod is sleeved with a first bevel gear, the first bevel gear is positioned on the right side of the sliding groove, a second bevel gear is arranged in the bottom plate and is meshed with the first bevel gear, the outer surface of the first threaded rod is sleeved with a first threaded sleeve, the first threaded sleeve is positioned in the first sliding groove, the upper end of the first threaded sleeve is longitudinally provided with a moving device, the moving device comprises a hollow plate and a second threaded rod, the upper end of the hollow plate is longitudinally provided with a second sliding groove, the inside of the hollow plate is longitudinally provided with a second threaded rod, and the front end and the rear end of the second threaded rod are respectively and rotatably connected with the inner wall of the hollow plate;
this patent need not to fix the frame when implementing and just can cut the wall body at the wall, and it is comparatively convenient to operate, but this patent can only carry out the cutting of upper and lower direction to the wall body, and is difficult to carry out the horizontal cut.
Therefore, a wall cutting machine for building construction is provided to solve the technical problems.
SUMMERY OF THE UTILITY MODEL
The utility model provides a wall body cutting machine for construction to solve the wall body cutting machine troublesome poeration of the prior art that above-mentioned background art provided, influence machining efficiency, and be difficult to carry out the problem of horizontal direction cutting.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
a wall body cutting machine for building construction comprises a base and a lifting frame, wherein the lifting frame is positioned right above the base;
the upper surface of base is equipped with gliding movable plate around can, the crane passes through the top of mounting screw at the movable plate, the left surface of crane is equipped with gliding drum from top to bottom, revolving cylinder is installed to the inside right flank of drum, the left end of drum rotates and is connected with the carousel, telescopic cylinder, two are installed respectively at the upper and lower both ends of carousel left surface the knife rest is installed to left end between the telescopic cylinder, the inboard left end of knife rest rotates and is connected with the blade.
Furthermore, a movable sliding groove is formed in the upper surface of the base, a movable sliding block is connected to the inner portion of the movable sliding groove in a sliding mode, and the top of the movable sliding block is welded to the bottom of the movable plate.
Furthermore, the inside of the movable sliding chute is rotatably connected with a first lead screw, and the first lead screw penetrates through the movable sliding block and is in threaded connection with the movable sliding block.
Furthermore, a first stepping motor is installed on the rear side face of the base, and the rear end of the first lead screw penetrates out of the base and is connected with a power output end of the first stepping motor.
Furthermore, a lifting sliding groove is formed in the lifting frame, a lifting sliding block is welded on the right side face of the cylinder, and the lifting sliding block is located in the lifting sliding groove and is in sliding connection with the lifting sliding groove.
Furthermore, the inside of lift spout rotates and is connected with the second lead screw, the second lead screw runs through the lifting slide and with lifting slide threaded connection.
Furthermore, a second stepping motor is installed at the top of the lifting frame, and the top of the second lead screw penetrates out of the lifting frame and is connected with a power output end of the second stepping motor.
Furthermore, the power output end of the rotary cylinder is connected with the right side face of the rotary disc, the motor is installed at the left end of the top of the tool rest, and the power output end of the motor penetrates into the inner side of the tool rest and is connected with the top of the blade.
Compared with the prior art, the utility model discloses the beneficial effect who realizes:
through the matching arrangement of the base and the lifting frame, the base can be placed on the ground, and the tool rest on the lifting frame can be lifted up and down along the lifting frame, so that the blade on the tool rest can cut the wall body in the up-and-down direction in the mode;
the tool rest is arranged on the turntable, and the rotary cylinder can drive the turntable to rotate ninety degrees, so that the tool rest and the blade can rotate ninety degrees together, the vertical blade can be turned into a horizontal state, and the horizontal blade is matched with the lifting frame capable of moving back and forth, so that the wall body can be cut in the front and back horizontal directions;
therefore, through the mode, when the wall body cutting machine is used, the wall body cutting machine does not need to be installed on a wall body, so that the wall body cutting machine is simpler in operation, short in time consumption and high in machining efficiency, the wall body can be cut in the vertical direction up and down when the wall body is cut, and the wall body can also be cut in the front and back horizontal direction.
Drawings

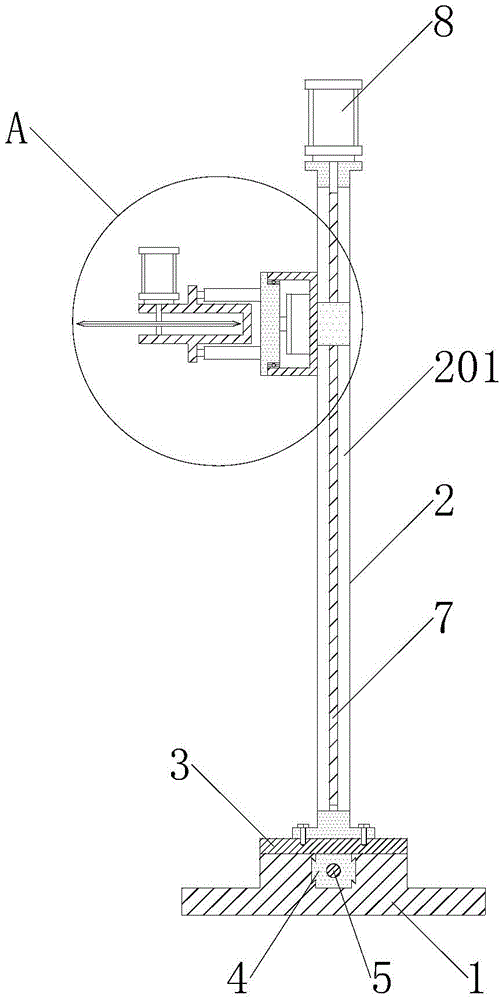

Fig. 1 is a schematic view of the overall internal structure of the present invention.
Fig. 2 is a partially enlarged schematic view of a portion a of fig. 1 according to the present invention.
Fig. 3 is a schematic diagram of the internal structure of the base side of the present invention.
In FIGS. 1-3: 1-base, 101-moving chute, 2-lifting frame, 201-lifting chute, 3-moving plate, 4-moving slide block, 5-first lead screw, 6-first step motor, 7-second lead screw, 8-second step motor, 9-cylinder, 901-lifting slide block, 10-rotary table, 11-rotary cylinder, 12-telescopic cylinder, 13-tool rest, 14-blade and 15-motor.
Detailed Description
Please refer to fig. 1 to 3:
the utility model provides a wall body cutting machine for construction, including base 1 and crane 2, crane 2 is located directly over base 1, the upper surface of base 1 is equipped with movable plate 3 that can slide from beginning to end, crane 2 passes through the mounting screw in the top of movable plate 3, the left surface of crane 2 is equipped with can be gliding drum 9 from top to bottom, the right flank of drum 9 inside is installed and is turned round cylinder 11, the left end of drum 9 rotates and is connected with carousel 10, telescopic cylinder 12 is installed respectively at the upper and lower both ends of the left surface of carousel 10, the left end between two telescopic cylinder 12 is installed with knife rest 13, the left end of the inboard of knife rest 13 rotates and is connected with blade 14;
specifically, a moving chute 101 is formed in the upper surface of the base 1, a moving slider 4 is slidably connected inside the moving chute 101, the top of the moving slider 4 is welded to the bottom of the moving plate 3, a first lead screw 5 is rotatably connected inside the moving chute 101, the first lead screw 5 penetrates through the moving slider 4 and is in threaded connection with the moving slider 4, a first stepping motor 6 is installed on the rear side surface of the base 1, and the rear end of the first lead screw 5 penetrates out of the base 1 and is connected with the power output end of the first stepping motor 6;
the first stepping motor 6 can drive the first lead screw 5 to rotate, the rotating first lead screw 5 can push the movable sliding block 4 to slide back and forth in the movable sliding groove 101, and meanwhile, the movable sliding block 4 sliding back and forth synchronously drives the movable plate 3 to slide back and forth, so that the lifting frame 2 can move back and forth on the base 1;
specifically, a lifting chute 201 is formed in the lifting frame 2, a lifting slider 901 is welded on the right side surface of the cylinder 9, the lifting slider 901 is located inside the lifting chute 201 and is in sliding connection with the lifting chute 201, a second lead screw 7 is rotatably connected inside the lifting chute 201, the second lead screw 7 penetrates through the lifting slider 901 and is in threaded connection with the lifting slider 901, a second stepping motor 8 is installed at the top of the lifting frame 2, and the top of the second lead screw 7 penetrates out of the lifting frame 2 and is connected with a power output end of the second stepping motor 8;
the second stepping motor 8 can drive the second lead screw 7 to rotate, and the rotating second lead screw 7 can drive the lifting slider 901 to slide up and down, so that the lifting slider 901 sliding up and down can drive the cylinder 9 to move up and down, and the tool rest 13 moves up and down synchronously along with the cylinder 9;
specifically, the power output end of the rotary cylinder 11 is connected with the right side surface of the rotary disc 10, the left end of the top of the tool rest 13 is provided with the motor 15, and the power output end of the motor 15 penetrates into the inner side of the tool rest 13 and is connected with the top of the blade 14;
the motor 15 can drive the blade 14 to rotate, so that the rotating blade 14 can cut a wall, and the two telescopic cylinders 12 can push the tool rest 13 to move left and right, so that the blade 14 can be inserted into the wall;
when the blade 14 is not located in the wall body, the rotary cylinder 11 can drive the rotary disc 10 to rotate ninety degrees, and the rotary disc 10 can drive the tool rest 13 to rotate synchronously, so that the vertical blade 14 can be turned to be in a horizontal state, as shown in fig. 2.
In conclusion, when the utility model is used, the base 1 is firstly placed close to a wall body to be cut, then the motor 15 can rotate the blade 14, after the blade 14 rotates, the telescopic cylinder 12 pushes the blade 14 to be inserted into the wall body so as to cut the wall body, and when the wall body is cut, the cylinder is enabled to move up and down along the lifting frame 2, so that the wall body can be cut in the vertical direction up and down;
when the wall needs to be cut in the front-back horizontal direction, the blade 14 is pulled out of the wall, then the turntable 10 is rotated by ninety degrees, then the blade 14 can be turned to be in a horizontal state, then the blade 14 is inserted into the wall again, then the lifting frame 2 is moved back and forth along the base 1, and then the blade 14 can be used for cutting the wall in the front-back horizontal direction.
According to the above:
through the matching arrangement of the base 1 and the lifting frame 2, the base 1 can be placed on the ground, and the tool rest 13 on the lifting frame 2 can be lifted up and down along the lifting frame 2, so that the blade 14 on the tool rest 13 can cut the wall body in the up-and-down direction;
the tool rest 13 is arranged on the rotary table 10, the rotary cylinder 11 can drive the rotary table 10 to rotate ninety degrees, so that the tool rest 13 and the blade 14 can rotate ninety degrees together, the vertical blade 14 can be turned into a horizontal state, and the horizontal blade 14 is matched with the lifting frame 2 which can move back and forth, so that the wall body can be cut in the front and back horizontal directions;
therefore, through the mode, when the wall body cutting machine is used, the wall body cutting machine does not need to be installed on a wall body, so that the wall body cutting machine is simpler in wall body cutting operation, short in time consumption and high in machining efficiency, the wall body can be cut in the vertical direction up and down when the wall body is cut, and the wall body can also be cut in the front and back horizontal direction.
Claims (8)
1. The utility model provides a wall body cutting machine for construction, includes base (1) and crane (2), crane (2) are located base (1) directly over its characterized in that:
the upper surface of base (1) is equipped with gliding movable plate (3) around can, crane (2) pass through the mounting screw in the top of movable plate (3), the left surface of crane (2) is equipped with gliding drum (9) from top to bottom, revolving cylinder (11) are installed to the inside right flank of drum (9), the left end of drum (9) is rotated and is connected with carousel (10), telescopic cylinder (12), two are installed respectively at the upper and lower both ends of carousel (10) left surface knife rest (13) are installed to left end between telescopic cylinder (12), the left end rotation of knife rest (13) inboard is connected with blade (14).
2. The wall cutter for building construction according to claim 1, characterized in that: the upper surface of base (1) has been seted up and has been removed spout (101), the inside sliding connection that removes spout (101) has removal slider (4), the top of removing slider (4) and the bottom welding of movable plate (3).
3. The wall cutter for construction according to claim 2, wherein: the inner part of the movable sliding chute (101) is rotatably connected with a first lead screw (5), and the first lead screw (5) penetrates through the movable sliding block (4) and is in threaded connection with the movable sliding block (4).
4. The wall cutter for building construction according to claim 3, characterized in that: the rear side surface of the base (1) is provided with a first stepping motor (6), and the rear end of the first lead screw (5) penetrates out of the base (1) and is connected with the power output end of the first stepping motor (6).
5. The wall cutter for building construction according to claim 1, characterized in that: the lifting frame (2) is internally provided with a lifting sliding groove (201), the right side surface of the cylinder (9) is welded with a lifting slider (901), and the lifting slider (901) is positioned inside the lifting sliding groove (201) and is in sliding connection with the lifting sliding groove (201).
6. The wall cutter for building construction according to claim 5, wherein: the inside of the lifting chute (201) is rotatably connected with a second lead screw (7), and the second lead screw (7) penetrates through the lifting slider (901) and is in threaded connection with the lifting slider (901).
7. The wall cutter for building construction according to claim 6, wherein: a second stepping motor (8) is installed at the top of the lifting frame (2), and the top of the second lead screw (7) penetrates through the lifting frame (2) and is connected with the power output end of the second stepping motor (8).
8. The wall cutter for building construction according to claim 1, characterized in that: the power output end of the rotary cylinder (11) is connected with the right side face of the rotary disc (10), the motor (15) is installed at the left end of the top of the knife rest (13), and the power output end of the motor (15) penetrates into the inner side of the knife rest (13) and is connected with the top of the blade (14).
