CN216664841U

CN216664841U - Floor heating module convenient to construct

Info

Publication number: CN216664841U
Application number: CN202123361574.6U
Authority: CN
Inventors: 王亚桥; 冯振; 王明忠
Original assignee: Henan Chunming Energy Saving Thermal Insulation Material Co ltd
Current assignee: Henan Chunming Energy Saving Thermal Insulation Material Co ltd
Priority date: 2021-12-29
Filing date: 2021-12-29
Publication date: 2022-06-03
Anticipated expiration: 2031-12-29

Abstract

The utility model relates to a floor heating module convenient for construction, which relates to the technical field of floor heating modules and comprises a floor heating module body, wherein leveling devices are arranged at four corners of the floor heating module body, and grouting holes penetrating through the floor heating module body are formed in the floor heating module body; the problems that in the prior art, the leveling work process is complex, the construction cost is high, the efficiency is low, and the integrity is poor after the floor heating heat preservation module is installed are effectively solved.

Description

Floor heating module convenient to construct

Technical Field

The utility model relates to the technical field of floor heating modules, in particular to a floor heating module convenient to construct.

Background

Ground heating heat preservation module, be prefabricated slot dry-type ground heating module for short, utilize the fixed integrated floor heating plate piece of protection heating tube and ability soaking of heated board slot, be the important soaking radiation end of underfloor heating system for replace supplementary materials such as heated board, reflectance coating, bail among the traditional underfloor heating system, do not need cement backfill can directly spread ceramic tile or floor, the floor heating installation procedure that the floor heating module can simplify by a wide margin, and reduce ground heating thickness, reduce the heat transfer loss downwards, it is more energy-conserving to warm up.

The existing floor heating module needs to be subjected to the processes of cement mortar laying, ground leveling, floor heating module leveling and the like in the installation process, the process flow is complex, the construction cost is high, the efficiency is low, and the floor heating heat preservation module is installed by leveling after the ground is dried, so that the floor heating heat preservation module is poor in integrity with the ground.

Therefore, the utility model provides a floor heating module convenient for construction, and solves the problem.

SUMMERY OF THE UTILITY MODEL

Aiming at the situation, in order to overcome the defects of the prior art, the utility model provides the floor heating module convenient for construction, and the problems of complex leveling work process, high construction cost, low efficiency and poor integrity after the floor heating heat preservation module is installed in the prior art are effectively solved.

The utility model discloses a floor heating module convenient to construct, which comprises a floor heating module body, wherein leveling devices are arranged at four corners of the floor heating module body, and grouting holes penetrating through the floor heating module body are formed in the floor heating module body.

In order to further optimize the present invention, the following technical solutions may be preferably selected:

preferably, the leveling device comprises an internal thread sleeve, a stud is arranged in the internal thread sleeve, the stud is movably connected with the internal thread sleeve, the internal thread sleeve vertically penetrates through the floor heating module body and is fixedly connected with the floor heating module body, the top surface of the internal thread sleeve is flush with the upper plane of the floor heating module body, and the bottom surface of the internal thread sleeve is flush with the bottom surface of the floor heating module body.

Preferably, the direction axial of the perpendicular wall pipe of internal thread cover outer wall is provided with a plurality of fixed grabs, fixed grab and floor heating module body fixed connection.

Preferably, the grouting holes are respectively arranged at the middle part of the floor heating module body and one side of the leveling position, and the grouting holes are funnel-shaped.

Preferably, the floor heating module body is provided with a mounting groove.

Preferably, the inner walls of the two sides of the mounting groove are provided with clamping parts for alternately pressing the floor heating pipeline from the two sides of the mounting groove;

the clamping part includes left chucking piece, right chucking piece, and is a plurality of left side chucking piece sets up in the mounting groove left side, and is a plurality of right side chucking piece sets up on the mounting groove right side from the right side, left side chucking piece is from mounting groove left side wall protrusion right side, right side chucking piece is from mounting groove right side wall protrusion left side.

Preferably, the left clamping blocks and the right clamping blocks are uniformly and alternately arranged.

Preferably, form left heat dissipation chamber between the left side chucking piece, form right heat dissipation chamber between the right side chucking piece, left side heat dissipation chamber sets up with right chucking piece relatively, right side heat dissipation chamber sets up with left chucking piece relatively.

Preferably, the top end of the stud is provided with a cross-shaped groove.

The utility model has the beneficial effects that:

according to the floor heating module, the leveling device is arranged on the floor heating module body, the floor heating heat preservation module is adjusted by rotating the stud when the floor heating module is installed, the floor heating heat preservation module is in a smooth installation state, and then mortar is poured into the bottom of the floor heating heat preservation module through the grouting hole to fix the floor heating heat preservation module.

Drawings

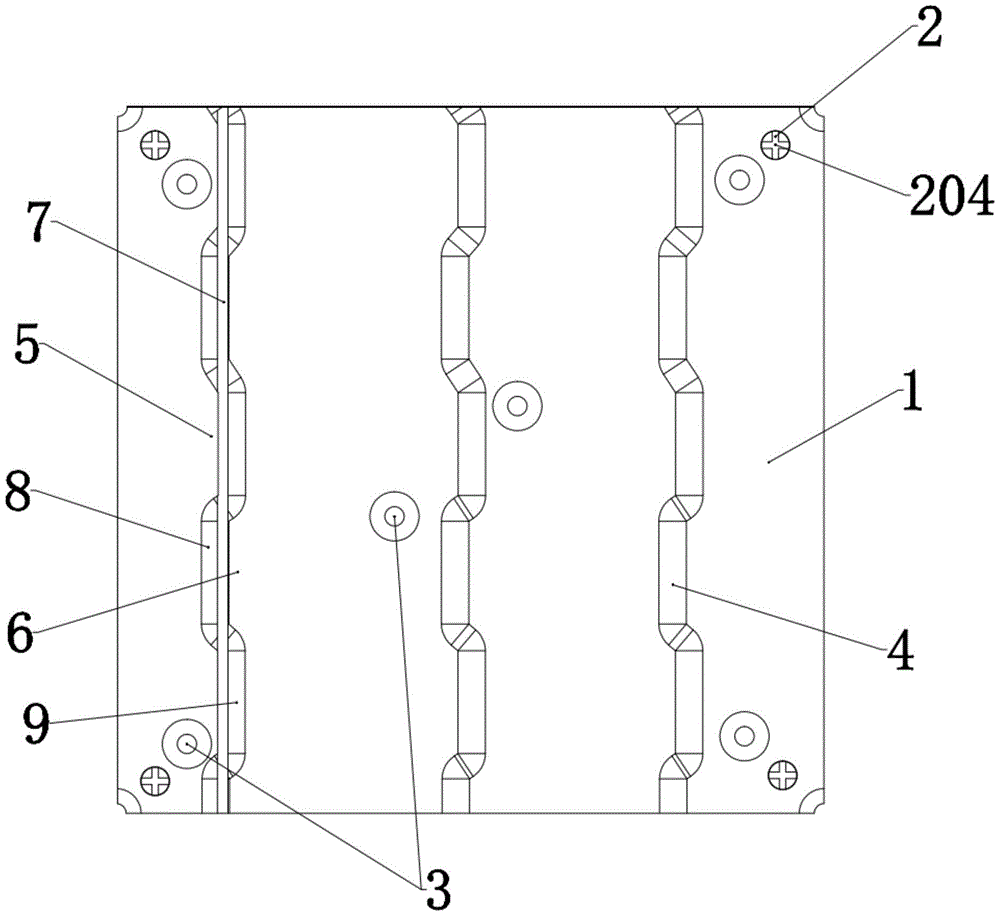

FIG. 1 is a schematic front view of the present invention;

FIG. 2 is a schematic cross-sectional view of the present invention.

Description of the reference numerals

1. A floor heating module body; 2. a leveling device; 201. an internal thread sleeve; 202. a stud; 203. fixing the grab; 204. a cross-shaped groove; 3. grouting holes; 4. mounting grooves; 5. a left clamping block; 6. a right clamping block; 7. a floor heating pipeline; 8. a left heat dissipation cavity; 9. and the right heat dissipation cavity.

Detailed Description

In the description of the present invention, it should also be noted that, unless otherwise explicitly specified or limited, the terms "disposed," "mounted," "connected," and "connected" are to be construed broadly and may, for example, be fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meanings of the above terms in the present invention can be understood in specific cases to those skilled in the art.

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

Example 1

As shown in fig. 1-2, a floor heating module convenient for construction comprises a floor heating module body 1, wherein leveling devices 2 are arranged at four corners of the floor heating module body 1, the leveling devices 2 are used for adjusting the floor heating module body 1 to be in accordance with the flatness of installation, and grouting holes 3 penetrating through the floor heating module body 1 are formed in the floor heating module body 1 and are used for filling cement mortar below the floor heating module body 1 after the floor heating module body 1 is leveled; for the purpose of filling the mortar, the grouting holes 3 are funnel-shaped.

Leveling device 2 includes internal thread cover 201, be provided with double-screw bolt 202 in the internal thread cover 201, double-screw bolt 202 and internal thread cover 201 swing joint, can make double-screw bolt 202 stretch out internal thread cover 201 through rotatory double-screw bolt 202, through leveling device 2 of adjusting the module body 1 four bights position of warming up, the roughness of module body 1 warms up in the adjustment, internal thread cover 201 vertically pierces through the module body 1 and warms up module body 1 fixed connection, the top surface of internal thread cover 201 and the module body 1 upper flat parallel and level of warming up, the bottom surface of internal thread cover 201 and the bottom surface parallel and level of module body 1 warms up.

A plurality of fixed claws 203 are axially arranged in the direction of the outer wall of the internal thread sleeve 201 vertical to the wall pipe, the fixed claws 203 are fixedly connected with the floor heating module body 1 and have the function of avoiding the internal thread sleeve 201 from loosening,

in order to facilitate the rotation of the stud 202, the top end of the stud 202 is provided with a cross-shaped groove 204, so that the stud 202 can be operated to rotate through the cross-shaped groove 204.

In the grouting process, in order to ensure the stress balance of the floor heating module body 1, the grouting holes 3 are respectively arranged at the middle part of the floor heating module body 1 and one side of the leveling position, and the grouting holes 3 are arranged near one side of the leveling device 2, namely cement mortar is used for firstly fixing the leveling device 2, so that the adjusted floor heating module body 1 is prevented from displacing.

In order to lay floor heating pipe, set up mounting groove 4 of floor heating pipe 7 on floor heating module body 1, integrative fixedly connected with clamping part is used for following both sides interval and alternately compresses tightly floor heating pipe 7 on the both sides inner wall of mounting groove 4, compresses tightly floor heating pipe 7 from the left and right sides asymmetrically promptly, and when the left side compressed tightly floor heating pipe 7, the right side did not compress tightly, and when the right side compressed tightly floor heating pipe 7, the left side did not compress tightly.

The concrete structure of chucking portion includes left chucking piece 5, right chucking piece 6, and a plurality of left chucking pieces 5 set up in mounting groove 4 left side, and a plurality of right chucking pieces 6 set up on mounting groove 4 right side from the right side, and left chucking piece 5 is salient to the right from mounting groove 4 left side wall, and right chucking piece 6 is salient to the left from mounting groove 4 right side wall.

Wherein, the even interval setting of left chucking piece 5, left chucking piece 5 evenly sets up in the mounting groove promptly, nevertheless does not link up the setting, and the even interval setting of right chucking piece 6, the even setting of right chucking money promptly also does not link up the setting in the mounting groove.

In order to reach better installation effect, set up every left chucking piece 5 and right chucking piece 6 in turn, a left side chucking piece 5 adjacent right chucking piece 6 promptly, left side chucking piece 5 compresses tightly floor heating pipe 7 to the right side, right side chucking piece 6 compresses tightly floor heating pipe to the left side, form left heat dissipation chamber 5 between the left side chucking piece 5, form right heat dissipation chamber 6 between the right side chucking piece 6, left side heat dissipation chamber 5 sets up with right chucking piece 6 relatively, right side heat dissipation chamber 6 sets up with left chucking piece 5 relatively, the heat radiating area of floor heating pipe 7 can be increased in the existence in heat dissipation chamber, it is more convenient to cooperate the chucking piece to make floor heating pipe install simultaneously.

When the floor heating module is used specifically, the leveling device is arranged on the floor heating module body, the floor heating heat preservation module is adjusted by rotating the stud when the floor heating module is installed, the floor heating heat preservation module is in a smooth installation state, and then mortar is poured into the bottom of the floor heating heat preservation module through the grouting hole to fix the floor heating heat preservation module.

Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments or portions thereof without departing from the spirit and scope of the utility model.

Claims

1. The utility model provides a warm up module convenient to construction, warms up module body (1) including, its characterized in that, four bights of warm up module body (1) all are provided with levelling device (2), warm up and set up grout hole (3) that pierce through warm up module body (1) on module body (1).

2. The floor heating module convenient to construct of claim 1, characterized in that, levelling device (2) includes internal thread cover (201), be provided with double-screw bolt (202) in internal thread cover (201), double-screw bolt (202) and internal thread cover (201) swing joint, internal thread cover (201) is vertical to be penetrated through floor heating module body (1) and floor heating module body (1) fixed connection, the top surface of internal thread cover (201) with floor heating module body (1) upper plane parallel and level, the bottom surface of internal thread cover (201) with the bottom surface parallel and level of floor heating module body (1).

3. The floor heating module convenient to construct of claim 2, characterized in that, the direction axial of the perpendicular wall pipe of internal thread cover (201) outer wall is provided with a plurality of fixed grabs (203), fixed grabs (203) and floor heating module body (1) fixed connection.

4. The floor heating module convenient to construct of claim 1, wherein the grouting holes (3) are respectively formed in the middle of the floor heating module body (1) and on one side of a leveling position, and the grouting holes (3) are funnel-shaped.

5. The floor heating module convenient to construct of claim 1, characterized in that the floor heating module body (1) is provided with a mounting groove (4).

6. The floor heating module convenient to construct according to claim 5, characterized in that clamping parts are arranged on the inner walls of two sides of the mounting groove (4) and used for pressing the floor heating pipes (7) from two sides of the mounting groove (4) at intervals in a staggered manner;

the clamping part includes left chucking piece (5), right chucking piece (6), and is a plurality of left side chucking piece (5) set up in mounting groove (4) left side, and is a plurality of right side chucking piece (6) are followed the right side and are set up on mounting groove (4) right side, left side chucking piece (5) are followed mounting groove (4) left side wall and are bulged right, right side chucking piece (6) are followed mounting groove (4) right side wall and are bulged left.

7. Floor heating module convenient to construction according to claim 6, characterized in that, left chucking block (5) and right chucking block (6) are arranged evenly and alternately.

8. The floor heating module convenient to construction of claim 6, characterized in that, form left heat dissipation chamber (8) between left chucking piece (5), form right heat dissipation chamber (9) between right chucking piece (6), left side heat dissipation chamber (8) sets up with right chucking piece (6) relatively, right side heat dissipation chamber (9) sets up with left chucking piece (5) relatively.

9. A floor heating module convenient for construction according to claim 2, characterized in that the stud (202) is provided with a cross-shaped groove (204) at its top end.
