CN216625948U - Included angle type heat radiation structure of router

Info

Publication number: CN216625948U
Application number: CN202123263499.XU
Authority: CN
Inventors: 叶云谱; 孙磊; 彭建伟
Original assignee: Shenzhen Tulin Technology Co ltd
Current assignee: Shenzhen Tulin Technology Co ltd
Priority date: 2021-12-23
Filing date: 2021-12-23
Publication date: 2022-05-27
Anticipated expiration: 2031-12-23

Abstract

The utility model provides an included angle type heat radiation structure of a router, comprising: the antenna, the shaft pin and the included angle type heat dissipation mechanism; the shaft pin is arranged at the upper part of the rear side surface of the router, the movable block is arranged below the shaft pin, and the lower end of the movable block is fixed in the rear part of the router; the antenna is hinged on the shaft pin and is of a turnover structure; the included angle type heat dissipation mechanism is arranged in the left part and the right part of the router, and a plurality of data interfaces are arranged in a groove formed in the rear side surface of the router; the upper side of the router is provided with an upper shell, and the lower side of the router is provided with a lower shell. The router shell is reasonable in structure arrangement, the left part and the right part in the router shell are convenient to be provided with the included angle type heat dissipation structures, large-area rapid heat dissipation is mainly carried out by utilizing the heat dissipation fins and the heat dissipation fan, meanwhile, the heat dissipation structures are small and exquisite, large space does not need to be occupied, convenience and trouble are brought to arrangement, and cooling treatment of the router is facilitated.

Description

Included angle type heat radiation structure of router

Technical Field

The utility model relates to the technical field of routers, in particular to an included angle type heat dissipation structure of a router.

Background

A router is a computer network device that can transmit data to a destination through a packed individual network, i.e., a process of selecting a transmission path of data is called routing. A router is a device that connects two or more individual networks, and the routing operates at the third layer of the OSI model, i.e., the network layer. However, the router in the prior art is not convenient to arrange a heat dissipation structure inside the router due to the fact that the inner space of the shell is small, so that heat inside the router is difficult to evacuate, the router is damaged due to overhigh internal temperature, the router is not safe to use, and meanwhile the service life of the router is difficult to prolong.

SUMMERY OF THE UTILITY MODEL

For overcoming the defect that prior art exists, now provide an contained angle formula heat radiation structure of router to solve prior art's router and because the casing inner space of itself is less, lead to and be inconvenient set up heat radiation structure inside it, thereby lead to the inside heat of router to be difficult to evacuate away, inside high temperature is too high to damage itself, uses and is not safe, the difficult permanent problem of life simultaneously.

To achieve the above object, an angle type heat dissipation structure of a router is provided, which includes: the antenna, the shaft pin and the included angle type heat dissipation mechanism;

the movable block is arranged below the shaft pin, and the lower end of the movable block is fixed in the rear part of the router;

the antenna is hinged on the shaft pin and is of a turnover structure;

the included angle type heat dissipation mechanism is installed in the left portion and the right portion of the router, and a plurality of data interfaces are arranged in a groove formed in the rear side face of the router.

Further, the upside of router is provided with the casing, and the downside of router is provided with down the casing to four corners of the lower terminal surface of casing all are provided with the base down, and the left end of going up casing and casing down is provided with the left surface board simultaneously, and is provided with the right-hand member panel between the right-hand member of casing and casing down.

Furthermore, set up right heat dissipation frame on the right side board, and the middle part of right side board is provided with the SIM interface to be provided with left heat dissipation frame on the left side board, left side board and right side parallel arrangement about the right side board simultaneously, and the alignment about left heat dissipation frame and the right heat dissipation frame.

Furthermore, the upper end of the included angle type heat dissipation mechanism is provided with a rubber extrusion block, the upper end of the rubber extrusion block is propped against the inner top surface of the upper shell, the lower end of the included angle type heat dissipation mechanism is provided with a plurality of groups of positioning rods, the lower parts of the positioning rods are sleeved in rod sleeves, and the bottom end of the rod sleeves is fixed on the inner bottom surface of the lower shell.

Furthermore, side radiating fin groups are arranged on the left side surface of the included angle type radiating mechanism at the left part in the router and the right side surface of the included angle type radiating mechanism at the right part in the router, a plurality of groups of radiating fans are arranged on the side radiating fin groups, and a lower radiating fin group is arranged at the lower end of each group of included angle type radiating mechanisms.

Furthermore, the lower end of the lower radiating fin group is located on the upper end face of the heat transfer plate, a radiating aluminum plate is arranged on the lower side of the heat transfer plate, and a lower radiating frame is arranged below the lower side of the radiating aluminum plate.

The utility model has the beneficial effects that:

1. the outer shell of the router is mainly composed of an upper shell, a lower shell, a right panel and a left panel, four groups of the outer shell are made of PE materials, and meanwhile, a left heat dissipation frame and a right heat dissipation frame are respectively arranged on the left panel and the right panel in a left-right alignment mode so as to conduct heat dissipation treatment on electrical components installed inside the router.

2. According to the utility model, the included angle type heat dissipation mechanisms are arranged on the left part and the right part in the router and are positioned between the included angles of the upper shell and the lower shell, so that the occupied internal space of the router is smaller, the heat dissipation in the router is facilitated, meanwhile, the excessive occupation of the space in the router is avoided, and the overlarge whole shell structure of the router is avoided.

3. According to the included angle type heat dissipation mechanism, the side heat dissipation fin group and the heat dissipation fan are arranged on the surface, facing the heat dissipation frame on the same side face plate, of the included angle type heat dissipation mechanism, on one hand, the side heat dissipation fin group and the heat dissipation fan are used for carrying out large-area rapid heat dissipation from the side face direction, on the other hand, the lower heat dissipation fin group, the heat transfer plate and the heat dissipation aluminum plate are used for evacuating heat from the bottom face direction, heat is evacuated in multiple directions, and therefore the heat is favorably cooled in the router.

Drawings

FIG. 1 is a perspective view of an embodiment of the present invention;

FIG. 2 is a schematic top view of an embodiment of the present invention;

FIG. 3 is a left side view of an embodiment of the present invention;

FIG. 4 is a schematic right-view of an embodiment of the present invention;

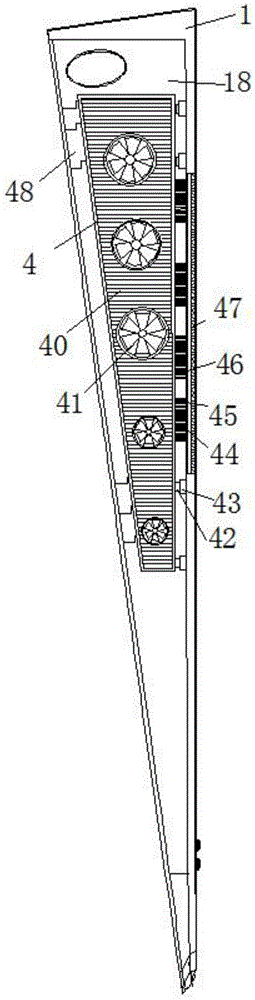

fig. 5 is an installation diagram of an angle type heat dissipation mechanism according to an embodiment of the present invention.

In the figure: 1. a router; 10. an upper housing; 11. a SIM interface; 12. a lower housing; 13. a right heat dissipation frame; 14. a base; 15. a right panel; 16. a left heat dissipation frame; 17. a left panel; 2. an antenna; 30. a movable block; 3. a shaft pin; 4. an included angle type heat dissipation mechanism; 40. a set of side heat dissipating fins; 41. a heat radiation fan; 42. positioning a rod; 43. a rod sleeve; 44. a lower set of heat dissipating fins; 45. a heat transfer plate; 46. a heat dissipation aluminum plate; 47. a lower heat dissipation frame; 48. and (4) extruding the block by using rubber.

Detailed Description

The embodiments of the present invention are described below with reference to specific embodiments, and other advantages and effects of the present invention will be easily understood by those skilled in the art from the disclosure of the present specification. The utility model is capable of other and different embodiments and of being practiced or of being carried out in various ways, and its several details are capable of modification in various respects, all without departing from the spirit and scope of the present invention.

Fig. 1 is a perspective view of an embodiment of the present invention, fig. 2 is a schematic top view of the embodiment of the present invention, fig. 3 is a schematic left view of the embodiment of the present invention, fig. 4 is a schematic right view of the embodiment of the present invention, and fig. 5 is a schematic installation view of an angled heat dissipation mechanism of the embodiment of the present invention.

Referring to fig. 1 to 5, the present invention provides an angled heat dissipation structure of a router, including: the antenna comprises an antenna 2, a shaft pin 3 and an included angle type heat dissipation mechanism 4; the shaft pin 3 is arranged at the upper part of the back side of the router 1, the movable block 30 is arranged below the shaft pin 3, and the lower end of the movable block 30 is fixed in the back part of the router 1; the antenna 2 is hinged on the shaft pin 3, and the antenna 2 is of a turnover structure; the included angle type heat dissipation mechanism 4 is installed in the left part and the right part of the router 1, and a plurality of data interfaces are arranged in a groove formed in the rear side surface of the router 1.

In the present embodiment, an upper shell 10 is disposed on the upper side of the router 1, a lower shell 12 is disposed on the lower side of the router 1, and four corners of the lower end surface of the lower shell 12 are provided with bases 14, meanwhile, the left ends of the upper shell 10 and the lower shell 12 are provided with a left panel 17, and a right panel 15 is disposed between the right ends of the upper shell 10 and the lower shell 12; set up right heat dissipation frame 13 on the right panel 15, and the middle part of right panel 15 is provided with SIM interface 11 to be provided with left heat dissipation frame 16 on the left panel 17, parallel arrangement about left panel 17 and right panel 15 simultaneously, and align about left heat dissipation frame 16 and right heat dissipation frame 13.

As a preferred embodiment, the external housing of the router 1 in the present invention is mainly composed of an upper housing 10, a lower housing 12, a right panel 15 and a left panel 17, and four sets of the external housing are made of PE material, and the left panel 17 and the right panel 15 are respectively provided with a left heat dissipation frame 16 and a right heat dissipation frame 13 in a left-right alignment manner, so as to perform heat dissipation treatment on electrical components installed inside the router 1, and are arranged in parallel in a left-right manner, so that an external cold air flow can conveniently enter from one side, and a hot air flow in the router 1 can be conveniently output from the other side, and heat dissipation and ventilation are convenient and labor-saving.

In the present embodiment, the upper end of the included angle type heat dissipation mechanism 4 is provided with a rubber extrusion block 48, the upper end of the rubber extrusion block 48 is pressed against the inner top surface of the upper casing 10, the lower end of the included angle type heat dissipation mechanism 4 is provided with a plurality of sets of positioning rods 42, the lower portions of the positioning rods 42 are sleeved in the rod sleeves 43, and the bottom ends of the rod sleeves 43 are fixed on the inner bottom surface of the lower casing 12.

As a preferred embodiment, in the present invention, the included angle type heat dissipation mechanisms 4 are disposed at both the left and right portions in the router 1, and the included angle type heat dissipation mechanisms 4 are located between the included angles of the upper housing 10 and the lower housing 12, so that the occupied internal space of the router 1 is small, which is helpful for helping heat dissipation in the router 1 and simultaneously avoiding excessive occupation of the internal space of the router 1, thereby avoiding the overall housing structure of the router 1 from being too large.

In this embodiment, a left side surface of the included angle type heat dissipation mechanism 4 at the left part in the router 1 and a right side surface of the included angle type heat dissipation mechanism 4 at the right part in the router 1 are both provided with a side heat dissipation fin group 40, the side heat dissipation fin group 40 is provided with a plurality of groups of heat dissipation fans 41, and the lower end of each group of included angle type heat dissipation mechanism 4 is provided with a lower heat dissipation fin group 44; the lower end of the lower heat dissipating fin set 44 is located on the upper end surface of the heat transfer plate 45, a heat dissipating aluminum plate 46 is disposed on the lower side of the heat transfer plate 45, and a lower heat dissipating frame 47 is disposed below the lower side of the heat dissipating aluminum plate 46.

As a preferred embodiment, in the present invention, the side heat dissipation fin set 40 and the heat dissipation fan 41 are disposed on the surface of the included angle type heat dissipation mechanism 4 facing the heat dissipation frame on the same side surface plate, on one hand, the side heat dissipation fin set 40 and the heat dissipation fan 41 are utilized to perform large-area rapid heat dissipation from the side surface direction, and on the other hand, the lower heat dissipation fin set 44, the heat transfer plate 45 and the heat dissipation aluminum plate 46 are utilized to evacuate heat from the bottom surface direction, so as to evacuate heat in multiple directions, which is helpful for cooling the interior of the router 1.

The router can effectively solve the problems that the heat dissipation structure is not convenient to arrange in the router due to the fact that the space in the shell of the router in the prior art is small, so that the heat in the router is difficult to evacuate, the router is damaged due to the fact that the temperature in the router is too high, the router is not safe to use, and the service life is difficult to prolong.

Claims

1. An angled heat dissipation structure of a router, comprising: the antenna comprises an antenna (2), a shaft pin (3) and an included angle type heat dissipation mechanism (4);

the router comprises a shaft pin (3) arranged at the upper part of the rear side face of the router (1), a movable block (30) is arranged below the shaft pin (3), and the lower end of the movable block (30) is fixed in the rear part of the router (1);

the antenna (2) is hinged to the shaft pin (3), and the antenna (2) is of a turnover structure;

the included angle type heat dissipation mechanism (4) is installed in the left portion and the right portion of the router (1), and a plurality of data interfaces are arranged in a groove formed in the rear side face of the router (1).

2. An angled heat dissipation structure of a router according to claim 1, characterized in that the upper side of the router (1) is provided with an upper casing (10), the lower side of the router (1) is provided with a lower casing (12), and four corners of the lower end face of the lower casing (12) are provided with pedestals (14), while the left ends of the upper casing (10) and the lower casing (12) are provided with a left panel (17), and a right panel (15) is provided between the right ends of the upper casing (10) and the lower casing (12).

3. The angled heat dissipation structure of router of claim 2, wherein the right panel (15) is provided with a right heat dissipation frame (13), the middle of the right panel (15) is provided with a SIM socket (11), the left panel (17) is provided with a left heat dissipation frame (16), the left panel (17) and the right panel (15) are arranged in parallel from left to right, and the left heat dissipation frame (16) and the right heat dissipation frame (13) are aligned from left to right.

4. The angled heat dissipation structure of a router according to claim 1, wherein the upper end of the angled heat dissipation mechanism (4) is provided with a rubber extrusion block (48), the upper end of the rubber extrusion block (48) is against the inner top surface of the upper housing (10), the lower end of the angled heat dissipation mechanism (4) is provided with a plurality of positioning rods (42), the lower portions of the positioning rods (42) are sleeved in the rod sleeves (43), and the bottom ends of the rod sleeves (43) are fixed on the inner bottom surface of the lower housing (12).

5. The angled heat dissipation structure of router according to claim 1, wherein a side heat dissipation fin set (40) is disposed on each of the left side surface of the angled heat dissipation mechanism (4) at the left portion in the router (1) and the right side surface of the angled heat dissipation mechanism (4) at the right portion in the router (1), and a plurality of sets of heat dissipation fans (41) are mounted on the side heat dissipation fin set (40), and a lower fin set (44) is disposed at the lower end of each set of angled heat dissipation mechanism (4).

6. An angled heat dissipation structure of a router according to claim 5, wherein the lower end of the lower heat dissipation fin set (44) is located on the upper end surface of the heat transfer plate (45), and the lower side of the heat transfer plate (45) is provided with a heat dissipation aluminum plate (46), and the lower side of the heat dissipation aluminum plate (46) is provided with a lower heat dissipation frame (47).
