Abstract
The utility model relates to the technical field of metal roof installation, in particular to a simple overhanging gutter aluminum plate installation support which comprises a hanging ladder and a bearing platform, wherein the hanging ladder comprises a hanging part and a telescopic part, the bottom of the hanging part is sleeved on the telescopic part and is connected with the hanging part through a bolt, the hanging part is used for hanging the hanging ladder on a gutter, and the bearing platform is arranged on the telescopic part and comprises a triangular support frame arranged on the outer side of the telescopic part and a springboard arranged on the triangular support frame. The utility model aims to solve the problems that a gutter aluminum plate wrapping system is installed in a roof construction process of a metal maintenance structure, a large-scale machine is used, a rigid platform is built, and the like, so that the safety risk is high, the cost is high, and the simple installation device for the overhanging gutter aluminum plate has the advantages of low safety risk, flexibility, simplicity in use, high installation speed and low cost.
Description
Technical Field
The utility model relates to the technical field of metal roof installation, in particular to a simple overhanging gutter aluminum plate installation support.
Background
The installation of the overhanging gutter aluminum plate of the traditional metal roof enclosure system adopts overhead car and manual installation or steel-type platform erection, and the method has high cost and great potential safety hazard in the implementation process. For example, in a building with a high building height and a large span, a conventional high-altitude vehicle cannot reach the installation height, and the built steel type platform has high potential safety hazard and low efficiency; the use of the ultra-high straight arm vehicle increases the mechanical cost and the management cost. Along with the continuous development of the building field, the buildings with large space and large span can better meet the social requirements, and the traditional overhanging gutter installation mode cannot adapt to the market requirements.
Disclosure of Invention
The utility model aims to overcome the defects and provides a simple overhanging gutter aluminum plate mounting bracket which is convenient and flexible to use.
In order to achieve the above object, the present invention is realized by:
the utility model provides a gutter aluminum plate installing support simply encorbelments, includes and hangs ladder and load-bearing platform hangs the ladder and establishes on the gutter including hanging portion and pars contractilis, and the bottom cover of hanging portion establishes through bolted connection between the two in the pars contractilis, and the pars contractilis is used for hanging the ladder and establishes, and load-bearing platform sets up on the pars contractilis, and it is including taking the triangular supports frame in the pars contractilis outside and setting up the springboard on the triangular supports frame.
The simple overhanging gutter aluminum plate mounting bracket is characterized in that a plurality of bolt holes are formed in a hanging part of the hanging ladder, the telescopic part is inserted into the hanging part, the length of the telescopic part is adjusted, and bolts are screwed into the bolt holes of the hanging part at proper positions, so that the purpose of adjusting the length of the hanging ladder is achieved.
The simple overhanging gutter aluminum plate mounting bracket,
the outer side of the triangular support frame forming the bearing platform is provided with a limiting block, and the distance between the limiting block and the hanging ladder is equal to the width of the springboard, so that the limiting block is used for limiting the transverse displacement of the springboard.
This support adopts above-mentioned design, during the use, earlier adjust to suitable height with hanging the ladder, hangs in the both sides that need install aluminum plate position, sets up the springboard again on load-bearing platform and the ligature firmly can carry out gutter aluminum plate side and downside aluminum plate installation.
The overhanging gutter aluminum plate mounting device provided by the utility model adopts the telescopic suspension device and the wood springboard bearing platform to carry out mounting work of overhanging gutter aluminum plates, can be applied to mounting of roof overhanging gutter aluminum plate-wrapping systems such as metal roofs, enclosure systems and the like, and has the following advantages compared with the traditional connection mode:
(1) the aluminum plate is installed on the overhanging gutter on the installation platform, so that large-scale mechanical equipment is not needed, potential safety hazards are reduced, and the cost is saved;
(2) the hanging device can adjust the use height and is not influenced by the height and the width of a building;
(3) the suspension device is convenient to install and dismantle, can be repeatedly used and saves the cost;
(4) the suspension device can be directly formed by welding residual materials installed on site, and has simple structure and convenient manufacture.
(5) The device is formed by processing common square steel pipes, is simple and easy to install, and can be disassembled and reused.
(6) Compared with the traditional mounting method of the overhanging gutter aluminum plate, the mounting method has novelty. The traditional installation mode or the cooperation of large-scale hoisting machinery is greatly influenced by environmental factors such as fields, heights and the like. Or the rigid platform is constructed to be transported to the installation position, a large amount of manpower and material resources are consumed, and the safety coefficient is low. By adopting the device, the cost of large-scale hoisting machinery and the cost of measure materials can be saved. The method is particularly suitable for mounting the overhanging gutter aluminum plate with large building height.
Drawings

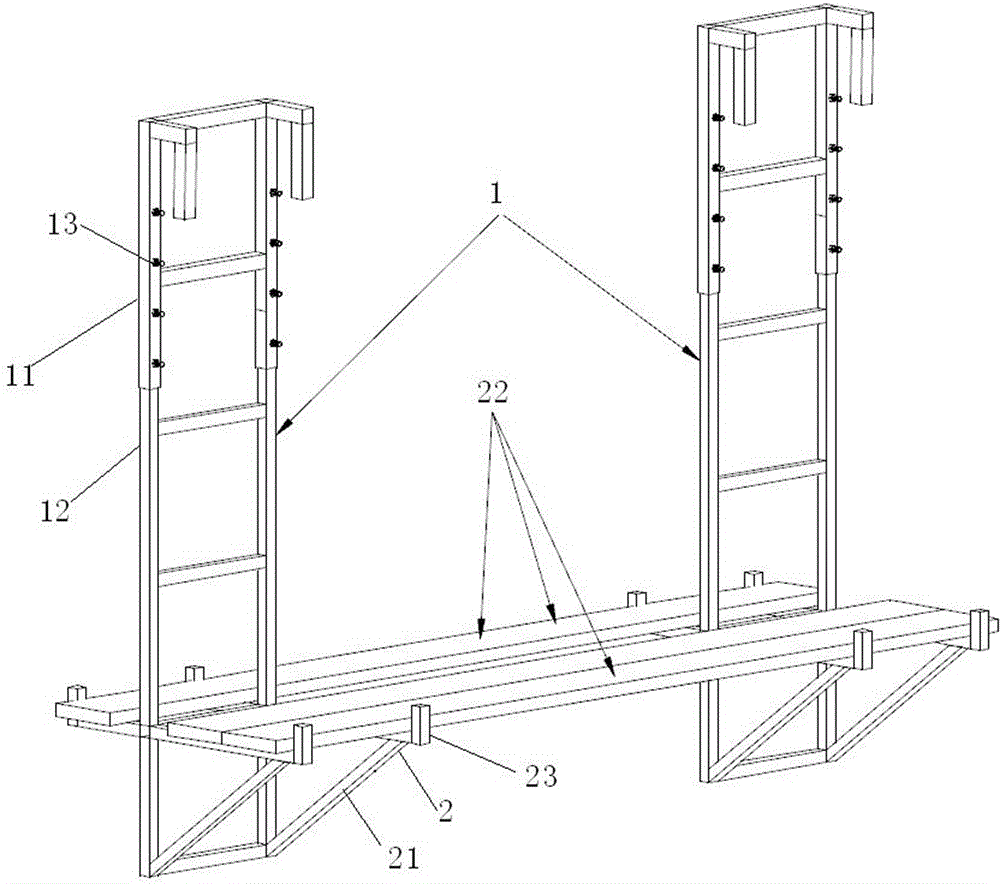

Fig. 1 is a schematic view of the use state of the mounting bracket.
Detailed Description
The utility model is further illustrated by the following specific examples.
As shown in fig. 1, a gutter aluminum plate installing support simply encorbelments, including hanging ladder 1 and load-bearing platform 2, hanging ladder 1 includes linkage 11 and pars contractilis 12, and linkage 13 is established on pars contractilis 12 to the bottom cover of linkage 11, and linkage between the two is through bolt, and linkage 11 is used for hanging ladder 1 and establishes on the gutter, and load-bearing platform 2 sets up on pars contractilis 12, and it is including taking the three angular bracing frame 21 in the pars contractilis 12 outside and setting up springboard 22 on three angular bracing frame 21.
The simple overhanging gutter aluminum plate mounting bracket is characterized in that a plurality of bolt holes are formed in a hanging part 11 of a hanging ladder 1, and after a telescopic part 12 is inserted into the hanging part 11, the length of the telescopic part is adjusted, and bolts 13 are screwed into the bolt holes of the hanging part at proper positions, so that the purpose of adjusting the length of the hanging ladder 1 is achieved.
The simple overhanging gutter aluminum plate mounting bracket,
a limiting block 23 is arranged on the outer side of a triangular supporting frame 21 forming the bearing platform, the distance between the limiting block 23 and the hanging ladder 1 is equal to the width of the springboard 22, and therefore the limiting block 23 is used for limiting the transverse displacement of the springboard 22.
This support adopts above-mentioned design, during the use, earlier adjust to suitable height with hanging the ladder, hangs in the both sides that need install aluminum plate position, sets up the springboard again on load-bearing platform and the ligature firmly can carry out gutter aluminum plate side and downside aluminum plate installation.
The overhanging gutter aluminum plate mounting device provided by the utility model adopts the telescopic suspension device and the wood springboard bearing platform to carry out mounting work of overhanging gutter aluminum plates, can be applied to mounting of roof overhanging gutter aluminum plate-wrapping systems such as metal roofs, enclosure systems and the like, and has the following advantages compared with the traditional connection mode:
(1) the aluminum plate is installed on the overhanging gutter on the installation platform, so that large-scale mechanical equipment is not needed, potential safety hazards are reduced, and the cost is saved;
(2) the hanging device can adjust the use height and is not influenced by the height and the width of a building;
(3) the suspension device is convenient to install and dismantle, can be repeatedly used and saves the cost;
(4) the suspension device can be directly formed by welding residual materials installed on site, and has simple structure and convenient manufacture.
(5) The device is formed by processing common square steel pipes, is simple and easy to install, and can be disassembled and reused.
(6) Compared with the traditional mounting method of the overhanging gutter aluminum plate, the mounting method has novelty. The traditional installation mode or the cooperation of large-scale hoisting machinery is greatly influenced by environmental factors such as fields, heights and the like. Or the rigid platform is constructed to be transported to the installation position, a large amount of manpower and material resources are consumed, and the safety coefficient is low. By adopting the device, the cost of large-scale hoisting machinery and the cost of measure materials can be saved. The method is particularly suitable for mounting the overhanging gutter aluminum plate with large building height.
Claims (3)
1. The utility model provides a gutter aluminum plate installing support simply encorbelments, characterized by: including hanging ladder and load-bearing platform, hang the ladder and include linkage and pars contractilis, the bottom cover of linkage is established on the pars contractilis, through bolted connection between the two, linkage is used for hanging the ladder and establishes on the gutter, and load-bearing platform sets up on the pars contractilis, and it is including taking the triangular supports frame in the pars contractilis outside and setting up the springboard on the triangular supports frame.
2. The simple overhanging gutter aluminum plate mounting bracket as claimed in claim 1, wherein: a plurality of bolt holes are formed in the hanging part of the hanging ladder, the telescopic part is inserted into the hanging part, the length of the telescopic part is adjusted, and bolts are screwed into the bolt holes of the hanging part at proper positions, so that the purpose of adjusting the length of the hanging ladder is achieved.
3. The simple overhanging gutter aluminum plate mounting bracket as claimed in claim 1, wherein: the outer side of the triangular support frame forming the bearing platform is provided with a limiting block, and the distance between the limiting block and the hanging ladder is equal to the width of the springboard, so that the limiting block is used for limiting the transverse displacement of the springboard.
