CN215685749U - Folding shoe rack - Google Patents
Folding shoe rack Download PDFInfo
- Publication number
- CN215685749U CN215685749U CN202121984660.XU CN202121984660U CN215685749U CN 215685749 U CN215685749 U CN 215685749U CN 202121984660 U CN202121984660 U CN 202121984660U CN 215685749 U CN215685749 U CN 215685749U
- Authority
- CN
- China
- Prior art keywords
- fixed
- base
- shoe rack
- rods
- sides
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Holders For Apparel And Elements Relating To Apparel (AREA)
Abstract
The utility model discloses a folding shoe rack which comprises a base, wherein vertical frames are fixed on two sides of the upper end of the base, four bearing plates are symmetrically arranged between the two vertical frames, the upper ends of the four bearing plates are respectively and rotatably connected to one side, opposite to the two vertical frames, a folding mechanism is arranged in the base, four round rods are symmetrically arranged on the folding mechanism, the lower ends of the four round rods are respectively and rotatably sleeved on two sides of the upper end of the base, and the upper ends of the four round rods are respectively and rotatably connected to two sides of the upper end in the two vertical frames. According to the utility model, when larger articles need to be placed on the shoe rack, the four bearing plates can be folded, so that the storage space of the shoe rack is enlarged, the larger articles can be effectively stored, and meanwhile, some cleaned clothes or shoes can be hung on the cross rod, so that the shoe rack can play a role in airing, the structure and the functionality of the shoe rack can be effectively increased, and the practicability of the shoe rack is stronger.
Description
Technical Field
The utility model relates to the technical field of shoe racks, in particular to a folding shoe rack.
Background
The shoe rack is used for placing shoes, and the shoes are classified and placed, so that the shoes are placed more neatly.
The existing shoe rack is single in structure and function, only can be used for placing shoes, does not have a folding function, and can not be placed on some large articles, so that the practicability of the shoe rack is reduced.
SUMMERY OF THE UTILITY MODEL
The utility model aims to solve the defects in the prior art and provides a folding shoe rack.
In order to achieve the purpose, the utility model adopts the following technical scheme:
a folding shoe rack comprises a base, wherein vertical frames are fixed on two sides of the upper end of the base, four bearing plates are symmetrically arranged between the two vertical frames, the upper ends of the four bearing plates are respectively and rotatably connected to one side opposite to the two vertical frames, a folding mechanism is arranged in the base, four round rods are symmetrically arranged on the folding mechanism, the lower ends of the four round rods are respectively and rotatably sleeved on two sides of the upper end of the base, the upper ends of the four round rods are respectively and rotatably connected to two sides of the upper end in the two vertical frames, two sleeves are fixedly sleeved on the four round rods at equal intervals, fixing rods are fixed on one sides of the eight sleeves, a fixing frame is fixed at one end of each fixing rod, pulleys are rotatably sleeved in the eight fixing frames, the eight pulleys respectively abut against one side wall of the four bearing plates, gears are fixed at the lower ends of the four round rods, and are arranged in the base, a moving plate is arranged between the two gears on the same side, straight racks are fixed on two sides of the two moving plates, and the four straight racks are meshed with the four gears respectively.
Preferably, in order to fold or open four loading boards, the folding mechanism comprises two fixing parts fixedly connected in the base, air cylinders are fixedly mounted in the two fixing parts, and the telescopic ends of the two air cylinders are respectively and fixedly connected to the opposite ends of the two moving plates.
Preferably, in order to hang the clothes on the cross bars, the upper ends of the opposite sides of the two vertical frames are jointly fixed with a frame, and a plurality of cross bars are fixed in the frame.
Preferably, in order to fold the loading plate when the loading plate is not pushed, two connecting rods are fixed on one opposite sides in the two vertical frames, springs are arranged on the eight connecting rods, two connecting pieces are fixed on one sides of the four loading plates, and one ends of the four springs are arranged on the eight connecting pieces respectively.
Preferably, in order to enable the moving plates to move in a horizontal state during movement, two sides of the upper end in the base are respectively fixed with a slideway, and the two moving plates are respectively sleeved on the two slideways in a sliding manner.
Compared with the prior art, the utility model has the beneficial effects that:
1. by using the folding mechanism, the four bearing frames can be folded when larger articles need to be placed, and the placing space of the shoe rack can be increased after the four bearing frames are folded, so that some larger articles can be placed, the functions and the structure of the shoe rack are effectively increased, and the practicability of the shoe rack is stronger;
2. through the use of the frame and the cross rods, when shoes or some cleaned clothes need to be aired, the four bearing plates can be folded, and the clothes needing to be aired are hung on the cross rods, so that the functionality and the structure of the shoe rack can be effectively increased, and the practicability of the shoe rack is effectively improved;
in conclusion, when larger articles need to be placed on the shoe rack, the four bearing plates can be folded, so that the storage space of the shoe rack is enlarged, the larger articles can be effectively stored, and meanwhile, some cleaned clothes or shoes can be hung on the cross rod, so that the shoe rack can play a role in airing, the structure and the functionality of the shoe rack can be effectively increased, and the shoe rack is higher in practicability.
Drawings

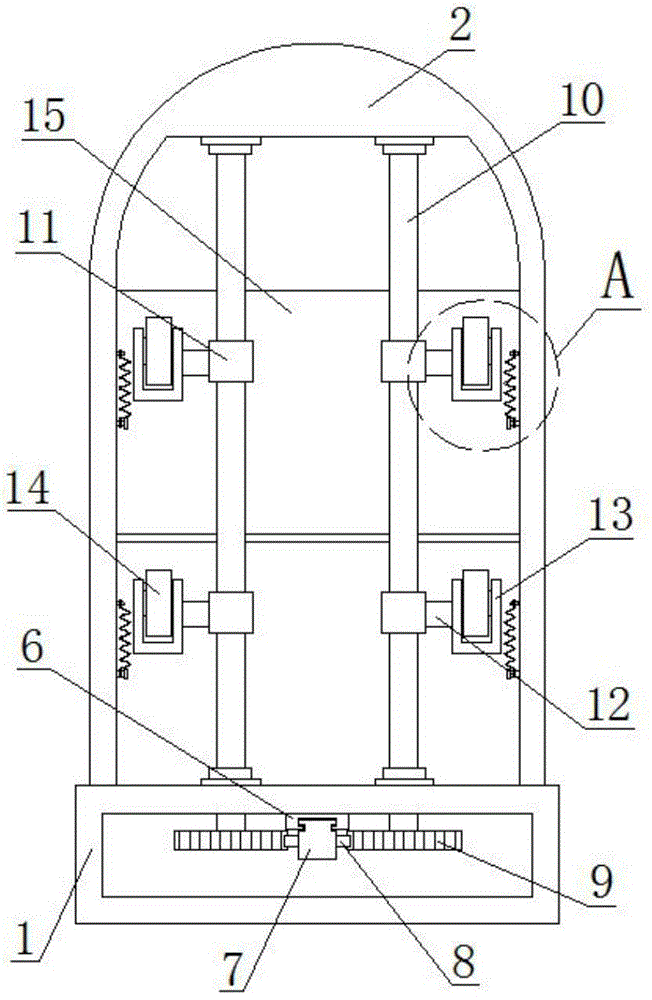

FIG. 1 is a front view of a foldable shoe rack according to the present invention;
FIG. 2 is a side view of a foldable shoe rack according to the present invention;
FIG. 3 is a connecting structure diagram of the inner part of the base of the foldable shoe rack according to the present invention;
FIG. 4 is an enlarged view of the A position of the foldable shoe rack provided by the utility model;
fig. 5 is a schematic view of a frame structure of the folding shoe rack provided by the utility model.
In the figure: the device comprises a base 1, a vertical frame 2, a frame 3, a fixing member 4, an air cylinder 5, a slideway 6, a movable plate 7, a spur rack 8, a gear 9, a round rod 10, a sleeve 11, a fixed rod 12, a fixing frame 13, a pulley 14, a bearing plate 15, a connecting rod 16, a spring 17, a connecting member 18 and a cross rod 19.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments.
Example 1
Referring to fig. 1-5, a folding shoe rack, including base 1, base 1's upper end both sides all are fixed with vertical frame 2, base 1 is used for bearing each part, can bear two vertical frame 2 through base 1, the symmetry is provided with four loading boards 15 between two vertical frame 2, the upper end of four loading boards 15 rotates respectively and connects in two vertical frame 2 relative one side, the upper end of four loading boards 15 is connected respectively on two vertical frame 2, loading board 15 is used for putting shoes, use through folding mechanism, can promote four loading boards 15, make four loading boards 15 open and keep horizontal position, thereby can reach the effect of putting shoes, when shoes are not put to loading board 15, can fold four loading boards 15, then can put some great article in base 1's upper end.
In the utility model, two connecting rods 16 are fixed on the opposite sides of the two vertical frames 2, springs 17 are arranged on the eight connecting rods 16, two connecting pieces 18 are fixed on one sides of the four bearing plates 15, one ends of the four springs 17 are respectively arranged on the eight connecting pieces 18, the springs 17 have elasticity, when the four bearing plates 15 are not pushed, the four bearing plates 15 can be pulled to attach the four bearing plates 15 to the opposite sides of the two vertical frames 2, so as to prevent the four bearing plates 15 from moving, the upper ends of the opposite sides of the two vertical frames 2 are jointly fixed with the frame 3, a plurality of cross rods 19 are fixed in the frame 3, the frame 3 can be fixed by the two vertical frames 2, a plurality of cross bars 19 in the frame 3 can be used for placing articles such as shoes and the like, meanwhile, some clothes to be aired can be hung on the cross bar 19, so that the functionality of the clothes airing rack can be effectively improved.
In the utility model, a folding mechanism is arranged in a base 1, four round rods 10 are symmetrically arranged on the folding mechanism, the lower ends of the four round rods 10 are respectively rotatably sleeved at two sides of the upper end of the base 1, the upper ends of the four round rods 10 are respectively rotatably connected at two sides of the upper end in two vertical frames 2, the four round rods 10 can be rotated through the operation of the folding mechanism, the rotation of the four round rods 10 can drive a transmission effect, thereby achieving the effect of controlling the four bearing plates 15 to be folded or unfolded, the folding mechanism comprises two fixing pieces 4 fixedly connected in the base 1, air cylinders 5 are fixedly arranged in the two fixing pieces 4, the air cylinders 5 can be fixedly arranged in the base 1 through the fixing pieces 4, the air cylinders 5 are connected with matched components, the folding mechanism is convenient for stable operation, can set programs and automatically operate, and the telescopic ends can be stretched when the air cylinders 5 operate, the air cylinder 5 can power the folding of the carrier plate 15.
In the utility model, the telescopic ends of two cylinders 5 are respectively fixedly connected to the opposite ends of two moving plates 7, the two moving plates 7 can be driven to move in opposite directions or move oppositely by the telescopic action of the two cylinders 5, two sleeves 11 are fixedly sleeved on four round rods 10 at equal intervals, fixed rods 12 are fixed on one sides of the eight sleeves 11, fixed frames 13 are fixed on one ends of the eight fixed rods 12, the eight sleeves 11 can be driven to rotate in opposite directions by the opposite rotation of the four round rods 10, one ends of the eight fixed rods 12 can be driven to move in opposite directions by the opposite rotation of the eight sleeves 11, one ends of the eight fixed rods 12 can be driven to move in opposite directions by the opposite movement of the eight fixed frames 13, pulleys 14 are rotatably sleeved in the eight fixed frames 13, the eight pulleys 14 respectively abut against one side wall of four bearing plates 15, and the eight pulleys 14 can rotate on the eight fixed frames 13, when the eight fixing frames 13 move in opposite directions, the eight pulleys 14 can be driven to move in opposite directions, when the eight pulleys 14 move in opposite directions, the eight pulleys can rotate on one side wall of the four bearing plates 15, and meanwhile, the lower ends of the four bearing plates 15 can be pushed to rotate by taking the upper ends as axes, so that the effect of opening the four bearing plates 15 to keep horizontal positions can be achieved.
In the utility model, gears 9 are fixed at the lower ends of four circular rods 10, the four gears 9 are arranged in a base 1, the circular rods 10 can be driven to rotate through the rotation of the gears 9, the rotation of the gears 9 can provide power for the rotation of the circular rods 10, a moving plate 7 is arranged between the two gears 9 on the same side, straight racks 8 are fixed at the two sides of the two moving plates 7, the four straight racks 8 are respectively meshed with the four gears 9, the two straight racks 8 on the same moving plate 7 and the corresponding moving plate 7 are integrally formed, the four straight racks 8 can be driven to move in opposite directions through the opposite movement of the two moving plates 7, and the four straight racks 8 can push the four gears 9 to rotate in opposite directions through the opposite movement, so that the effect of controlling the opening or folding of the four bearing plates 15 is achieved.
Example 2
Referring to fig. 1-5, a folding shoe rack, including base 1, base 1's upper end both sides all are fixed with vertical frame 2, base 1 is used for bearing each part, can bear two vertical frame 2 through base 1, the symmetry is provided with four loading boards 15 between two vertical frame 2, the upper end of four loading boards 15 rotates respectively and connects in two vertical frame 2 relative one side, the upper end of four loading boards 15 is connected respectively on two vertical frame 2, loading board 15 is used for putting shoes, use through folding mechanism, can promote four loading boards 15, make four loading boards 15 open and keep horizontal position, thereby can reach the effect of putting shoes, when shoes are not put to loading board 15, can fold four loading boards 15, then can put some great article in base 1's upper end.
In the utility model, two connecting rods 16 are fixed on the opposite sides of the two vertical frames 2, springs 17 are arranged on the eight connecting rods 16, two connecting pieces 18 are fixed on one sides of the four bearing plates 15, one ends of the four springs 17 are respectively arranged on the eight connecting pieces 18, the springs 17 have elasticity, when the four bearing plates 15 are not pushed, the four bearing plates 15 can be pulled to attach the four bearing plates 15 to the opposite sides of the two vertical frames 2, so as to prevent the four bearing plates 15 from moving, the upper ends of the opposite sides of the two vertical frames 2 are jointly fixed with the frame 3, a plurality of cross rods 19 are fixed in the frame 3, the frame 3 can be fixed by the two vertical frames 2, a plurality of cross bars 19 in the frame 3 can be used for placing articles such as shoes and the like, meanwhile, some clothes to be aired can be hung on the cross bar 19, so that the functionality of the clothes airing rack can be effectively improved.
In the utility model, a folding mechanism is arranged in a base 1, four round rods 10 are symmetrically arranged on the folding mechanism, the lower ends of the four round rods 10 are respectively rotatably sleeved at two sides of the upper end of the base 1, the upper ends of the four round rods 10 are respectively rotatably connected at two sides of the upper end in two vertical frames 2, the four round rods 10 can be rotated through the operation of the folding mechanism, the rotation of the four round rods 10 can drive a transmission effect, thereby achieving the effect of controlling the four bearing plates 15 to be folded or unfolded, the folding mechanism comprises two fixing pieces 4 fixedly connected in the base 1, air cylinders 5 are fixedly arranged in the two fixing pieces 4, the air cylinders 5 can be fixedly arranged in the base 1 through the fixing pieces 4, the air cylinders 5 are connected with matched components, the folding mechanism is convenient for stable operation, can set programs and automatically operate, and the telescopic ends can be stretched when the air cylinders 5 operate, the air cylinder 5 can power the folding of the carrier plate 15.
In the utility model, the telescopic ends of two cylinders 5 are respectively fixedly connected to the opposite ends of two moving plates 7, the two moving plates 7 can be driven to move in opposite directions or move oppositely by the telescopic action of the two cylinders 5, two sleeves 11 are fixedly sleeved on four round rods 10 at equal intervals, fixed rods 12 are fixed on one sides of the eight sleeves 11, fixed frames 13 are fixed on one ends of the eight fixed rods 12, the eight sleeves 11 can be driven to rotate in opposite directions by the opposite rotation of the four round rods 10, one ends of the eight fixed rods 12 can be driven to move in opposite directions by the opposite rotation of the eight sleeves 11, one ends of the eight fixed rods 12 can be driven to move in opposite directions by the opposite movement of the eight fixed frames 13, pulleys 14 are rotatably sleeved in the eight fixed frames 13, the eight pulleys 14 respectively abut against one side wall of four bearing plates 15, and the eight pulleys 14 can rotate on the eight fixed frames 13, when the eight fixing frames 13 move in opposite directions, the eight pulleys 14 can be driven to move in opposite directions, when the eight pulleys 14 move in opposite directions, the eight pulleys can rotate on one side wall of the four bearing plates 15, and meanwhile, the lower ends of the four bearing plates 15 can be pushed to rotate by taking the upper ends as axes, so that the effect of opening the four bearing plates 15 to keep horizontal positions can be achieved.
In the utility model, gears 9 are fixed at the lower ends of four circular rods 10, the four gears 9 are arranged in a base 1, the circular rods 10 can be driven to rotate through the rotation of the gears 9, the rotation of the gears 9 can provide power for the rotation of the circular rods 10, a moving plate 7 is arranged between the two gears 9 on the same side, straight racks 8 are fixed at the two sides of the two moving plates 7, the four straight racks 8 are respectively meshed with the four gears 9, the two straight racks 8 on the same moving plate 7 and the corresponding moving plate 7 are integrally formed, the four straight racks 8 can be driven to move in opposite directions through the opposite movement of the two moving plates 7, and the four straight racks 8 can push the four gears 9 to rotate in opposite directions through the opposite movement, so that the effect of controlling the opening or folding of the four bearing plates 15 is achieved.
In the utility model, the two sides of the upper end in the base 1 are both fixed with the slide ways 6, the two moving plates 7 are respectively sleeved on the two slide ways 6 in a sliding manner, and the slide ways 6 can limit the rotation of the moving plates 7, so that the moving plates 7 can keep horizontal position to move when moving, and the stability of the moving plates 7 can be effectively improved.
Compared with embodiment 1, this embodiment can restrict the rotation of the moving plate 7, so that the moving plate 7 keeps moving horizontally when moving, and thus can increase the stability of the moving plate 7.
In the present invention, when used: when shoes are required to be placed, the two cylinders 5 are controlled to shrink through a matched control device, the two cylinders 5 drive the two moving plates 7 to move in opposite directions, the two moving plates 7 drive the four spur racks 8 to move, the four spur racks 8 push the four gears 9 to rotate in opposite directions, the four gears 9 drive the four round rods 10 to rotate in opposite directions, the four round rods 10 drive the eight sleeves 11 to rotate in opposite directions, the eight sleeves 11 drive the eight fixing rods 12 to move, the eight fixing rods 12 drive the eight fixing frames 13 to move, the eight fixing frames 13 drive the eight pulleys 14 to move, the eight pulleys 14 push the lower ends of the four bearing plates 15 to move upwards, so that the four bearing plates 15 reach a horizontal position, and the shoes can be placed on the upper ends of the four bearing plates 15.
The above description is only for the preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art should be considered to be within the technical scope of the present invention, and equivalent alternatives or modifications according to the technical solution of the present invention and the inventive concept thereof should be covered by the scope of the present invention.
Claims (5)
1. The utility model provides a folding shoe rack, includes base (1), its characterized in that: the upper end of the base (1) is fixed with vertical frames (2), four bearing plates (15) are symmetrically arranged between the two vertical frames (2), the upper ends of the four bearing plates (15) are respectively rotatably connected to one opposite side of the two vertical frames (2), a folding mechanism is arranged in the base (1), four round rods (10) are symmetrically arranged on the folding mechanism, the lower ends of the four round rods (10) are respectively rotatably sleeved on two sides of the upper end of the base (1), the upper ends of the four round rods (10) are respectively rotatably connected to two sides of the upper end in the two vertical frames (2), two sleeves (11) are fixedly sleeved on the four round rods (10) at equal intervals, fixed rods (12) are respectively fixed on one side of each of the eight sleeves (11), one end of each of the eight fixed rods (12) is fixed with a fixing frame (13), and pulleys (14) are rotatably sleeved in the eight fixing frames (13), eight pulleys (14) are respectively abutted against one side wall of each of four bearing plates (15), gears (9) are fixed to the lower ends of four round rods (10), the four gears (9) are arranged in the base (1), a moving plate (7) is arranged between the two gears (9) on the same side, straight racks (8) are fixed to the two sides of the two moving plates (7), and the four straight racks (8) are respectively meshed with the four gears (9).
2. A folding shoe rack according to claim 1, characterized in that: folding mechanism includes two mounting (4) of fixed connection in base (1), and equal fixed mounting has cylinder (5) in two mounting (4), and the flexible end difference fixed connection of two cylinders (5) is in the relative one end of two movable plates (7).
3. A folding shoe rack according to claim 1, characterized in that: the upper ends of the opposite sides of the two vertical frames (2) are jointly fixed with a frame (3), and a plurality of cross rods (19) are fixed in the frame (3).
4. A folding shoe rack according to claim 1, characterized in that: two connecting rods (16) are fixed on opposite sides in the two vertical frames (2), springs (17) are arranged on the eight connecting rods (16), two connecting pieces (18) are fixed on one sides of the four bearing plates (15), and one ends of the four springs (17) are arranged on the eight connecting pieces (18) respectively.
5. A folding shoe rack according to claim 1, characterized in that: both sides of the upper end in the base (1) are fixed with slideways (6), and the two movable plates (7) are respectively sleeved on the two slideways (6) in a sliding manner.
