Abstract

The utility model discloses a router with a cooling function, which comprises a router shell, wherein two groups of antennas are symmetrically arranged on one side of the router shell, the antennas are rotationally connected with the router shell, a cooling assembly is arranged at the bottom of the router shell, a heat conducting plate in the cooling assembly is attached to the bottom of a circuit board, heat dissipated by electronic elements on the circuit board during working is conducted to radiating fins through the heat conducting plate, the heat is dissipated out through the radiating fins, two groups of radiating fans above the circuit board are used for starting to exhaust air so as to generate negative pressure in the router shell, the air enters the router shell through an air vent in an accelerating way, the radiating fans discharge the heat dissipated by the electronic elements on the circuit board out of the router shell through the matching of the radiating holes, and the temperature in the router shell can be quickly reduced through the matching of the cooling assembly and the radiating fans, the situation that the circuit board is damaged due to overhigh heat inside the router shell is avoided.

Description

From router of taking cooling function
Technical Field
The utility model relates to the technical field of routers, in particular to a router with a cooling function.
Background
The router can produce a large amount of heats in long-term use, and current router often gives off the heat through the louvre, and when the heat in the router was too much, the louvre can't be discharged fast, causes the inside circuit board of router to damage easily, reduces the life of router, therefore we need to propose a router from taking cooling function.
SUMMERY OF THE UTILITY MODEL
The present invention is directed to a router with a cooling function to solve the above problems.
In order to achieve the purpose, the utility model provides the following technical scheme:
a router with a cooling function comprises a router shell and bolts, wherein two groups of antennas are symmetrically arranged on one side of the router shell, the antennas are rotatably connected with the router shell, a part of the router shell, which is positioned between the two groups of antennas, is provided with a plug port, a circuit board is fixedly arranged at the inner bottom of the router shell, the lower end of the router shell is provided with a through groove, a cooling assembly is fixedly arranged in the through groove through the bolts, the cooling assembly comprises a heat conducting plate, a heat radiating fin and two groups of inverted L-shaped fixing plates, the heat conducting plate is positioned in the through groove, the heat radiating fin is fixedly arranged on one side of the heat conducting plate, the vertical plates of the two groups of inverted L-shaped fixing plates are respectively and fixedly arranged at the two ends of the heat conducting plate, and the transverse plate of the inverted L-shaped fixing plate is fixedly connected with the bottom of the router shell through the bolts, two sets of vents are symmetrically formed in two sides of the router shell, dust screens are arranged on the outer sides of the vents, and heat dissipation fans are arranged at the inner top of the router shell and located above the circuit board.
Preferably, the size of the heat conducting plate is matched with that of the through groove, and one side of the heat conducting plate is attached to the bottom of the circuit board.
Preferably, two groups of embedded grooves are symmetrically formed in two ends of the router shell, the embedded grooves are located on the outer side of the ventilation opening, and the dust screen is connected to the inside of the embedded grooves through screw fixing bolts.
Preferably, the heat dissipation fans are fixedly installed at the inner top of the router shell through a support, and the two groups of heat dissipation fans are symmetrically arranged.
Preferably, the upper end of the router shell is provided with heat dissipation holes, and the heat dissipation holes are located above the two sets of heat dissipation fans.
Preferably, the bottom of the router shell is fixedly provided with four foot pads, and four groups of the foot pads are symmetrical.
Compared with the prior art, the utility model has the beneficial effects that:
the utility model arranges the cooling component at the bottom of the router shell, the heat conducting plate in the cooling component is jointed with the bottom of the circuit board, the heat conducting plate conducts the heat dissipated by the electronic elements on the circuit board to the radiating fins, the heat is dissipated by the radiating fins, two groups of radiating fans above the circuit board are opened to exhaust air, so that negative pressure is generated inside the router shell, air is accelerated to enter the router shell through the ventilation opening, the radiating fans discharge the heat dissipated by the electronic elements on the circuit board out of the router shell through the matching of the radiating holes, the temperature inside the router shell can be rapidly reduced through the matching of the cooling component and the radiating fans, the situation that the circuit board is damaged due to overhigh heat inside the router shell is avoided, and the radiating holes can not be rapidly discharged when the heat in the router is too much to a certain degree, the circuit board in the router is easy to damage, and the condition of reducing the service life of the router is improved.
Drawings

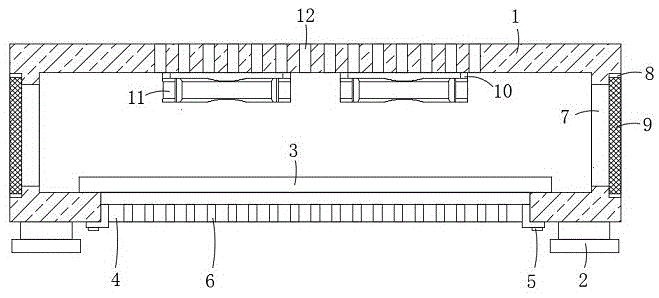

FIG. 1 is a schematic cross-sectional view of the present invention;
FIG. 2 is a schematic view of a cooling assembly according to the present invention;
FIG. 3 is a side view of the present invention;
fig. 4 is a schematic top view of the present invention.
In the figure: 1. a router housing; 2. a foot pad; 3. a circuit board; 4. a through groove; 5. a bolt; 6. a cooling assembly; 7. a vent; 8. embedding a groove; 9. a dust screen; 10. a support; 11. a heat radiation fan; 12. heat dissipation holes; 13. an antenna; 14. an interface; 601. a heat conducting plate; 602. a heat dissipating fin; 603. an inverted L-shaped fixing plate.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-4, the present invention provides a technical solution:
a router with a cooling function comprises a router shell 1 and a bolt 5, wherein two groups of antennas 13 are symmetrically arranged on one side of the router shell 1, the antennas 13 are rotatably connected with the router shell 1, a plug port 14 is formed in the part, located between the two groups of antennas 13, of the router shell 1, foot pads 2 are fixedly arranged at the bottom of the router shell 1, four groups of the foot pads 2 are symmetrical, and the four groups of the foot pads 2 are convenient to receive signals through the antennas 13 and are connected with a network cable or a data cable through the plug port 14;
the inner bottom of the router shell 1 is fixedly provided with a circuit board 3, the lower end of the router shell 1 is provided with a through groove 4, a cooling component 6 is fixedly arranged in the through groove 4 through a bolt 5, so that the cooling component 6 can be conveniently installed or detached through the bolt 5, the cooling component 6 comprises a heat conducting plate 601, a radiating fin 602 and two sets of inverted L-shaped fixing plates 603, the heat conducting plate 601 is positioned in the through groove 4, the size of the heat conducting plate 601 is matched with that of the through groove 4, one side of the heat conducting plate 601 is attached to the bottom of the circuit board 3, the radiating fin 602 is fixedly arranged on one side of the heat conducting plate 601, the vertical plates of the two sets of inverted L-shaped fixing plates 603 are respectively and fixedly arranged at two ends of the heat conducting plate 601, the transverse plate of the inverted L-shaped fixing plate 603 is fixedly connected with the bottom of the router shell 1 through the bolt 5, so that the heat conducting plate 601 in the cooling component 6 is attached to the bottom of the circuit board 3, the heat radiated by the electronic elements on the circuit board 3 is conducted to the radiating fin 602, the heat is dissipated through the heat dissipation fins 602, so that the situation that the circuit board 3 is damaged due to overhigh heat inside the router shell 1 is avoided;
two sets of ventilation openings 7 are symmetrically formed in two sides of the router shell 1, dust screens 9 are arranged on the outer sides of the ventilation openings 7, two sets of embedded grooves 8 are symmetrically formed in two ends of the router shell 1, the embedded grooves 8 are located on the outer sides of the ventilation openings 7, and the dust screens 9 are bolted in the embedded grooves 8 through screw fixing bolts, so that the dust screens 9 can conveniently filter and prevent dust when air enters the ventilation openings 7, and dust in the air is prevented from entering the router shell 1;
the interior top of router casing 1 is provided with radiator fan 11, radiator fan 11 is located the top of circuit board 3, radiator fan 11 passes through support 10 fixed mounting in the interior top of router casing 1, radiator fan 11 symmetry is provided with two sets ofly, louvre 12 has been seted up to router casing 1's upper end, louvre 12 is located the top of two sets of radiator fan 11, be convenient for open through two sets of radiator fan 11 and air exhaust, the heat that electronic component gived off on circuit board 3 discharges out router casing 1 through the cooperation of louvre 12, can reduce the inside temperature of router casing 1 fast through cooling assembly 6 and radiator fan 11's cooperation, avoid the inside heat of router casing 1 too high, the condition that leads to circuit board 3 to damage takes place.
When the router is used, the cooling component 6 is arranged at the bottom of the router shell 1, the heat dissipated by electronic elements on the circuit board 3 during working is conducted to the radiating fins 602 through the heat conducting plate 601 in the cooling component 6 and is radiated out through the radiating fins 602, two groups of radiating fans 11 above the circuit board 3 are started to exhaust air to enable the interior of the router shell 1 to generate negative pressure, air enters the interior of the router shell 1 through the ventilation opening 7 in an accelerating way, the dustproof net 9 filters and prevents dust in the air when air enters the ventilation opening 7, so that dust in the air is prevented from entering the interior of the router shell 1, the radiating fans 11 discharge the heat dissipated by the electronic elements on the circuit board 3 out of the router shell 1 through the matching of the radiating holes 12, and the temperature in the router shell 1 can be quickly reduced through the matching of the cooling component 6 and the radiating fans 11, the situation that the circuit board 3 is damaged due to overhigh heat inside the router shell 1 is avoided.
The same reference numbers in different drawings identify the same or similar elements; it should be further understood that terms such as "first," "second," "third," "upper," "lower," "front," "back," "inner," "outer," "end," "portion," "section," "width," "thickness," "zone," and the like, as used herein, are merely used for convenience in referring to the figures and to aid in describing the utility model, and are not intended to limit the utility model.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.

Claims (6)

1. A router with a cooling function comprises a router shell (1) and a bolt (5), and is characterized in that: the router comprises a router shell (1), wherein two groups of antennas (13) are symmetrically installed on one side of the router shell (1), the antennas (13) are rotatably connected with the router shell (1), a part of the router shell (1) between the two groups of antennas (13) is provided with a socket (14), a circuit board (3) is fixedly installed at the inner bottom of the router shell (1), the lower end of the router shell (1) is provided with a through groove (4), a cooling assembly (6) is fixedly installed inside the through groove (4) through a bolt (5), the cooling assembly (6) comprises a heat conduction plate (601), a heat dissipation fin (602) and two groups of inverted L-shaped fixing plates (603), the heat conduction plate (601) is located inside the through groove (4), the heat dissipation fin (602) is fixedly installed on one side of the heat conduction plate (601), and the vertical plates of the two groups of inverted L-shaped fixing plates (603) are respectively and fixedly installed at two ends of the heat conduction plate (601), the bottom fixed connection that the diaphragm of falling L type fixed plate (603) passes through bolt (5) and router casing (1), two sets of vents (7) have been seted up to the bilateral symmetry of router casing (1), and the outside of vent (7) is provided with dust screen (9), the interior top of router casing (1) is provided with radiator fan (11), radiator fan (11) are located the top of circuit board (3).
2. The router with cooling function according to claim 1, wherein: the size of the heat conducting plate (601) is matched with that of the through groove (4), and one side of the heat conducting plate (601) is attached to the bottom of the circuit board (3).
3. The router with cooling function according to claim 1, wherein: two ends of the router shell (1) are symmetrically provided with two groups of embedded grooves (8), the embedded grooves (8) are located on the outer side of the ventilation opening (7), and the dustproof net (9) is bolted in the embedded grooves (8) through screw fixing bolts.
4. The router with cooling function according to claim 1, wherein: the heat dissipation fans (11) are fixedly installed at the inner top of the router shell (1) through a support (10), and two groups of heat dissipation fans (11) are symmetrically arranged.
5. The router with cooling function according to claim 4, wherein: the router shell (1) is provided with heat dissipation holes (12) at the upper end, and the heat dissipation holes (12) are located above the two sets of heat dissipation fans (11).
6. The router with cooling function according to claim 1, wherein: the bottom fixed mounting of router casing (1) has callus on the sole (2), callus on the sole (2) four groups of symmetry have four groups.
