The utility model provides a limb movement nursing device for neurosurgery, which comprises a massage chair surface, wherein the rear end of the massage chair surface is connected with a massage chair back, the left side and the right side of the massage chair surface are respectively provided with a massage chair handrail, the bottom end surface of the massage chair handrail is connected with a massage chair supporting seat, the front end of the massage chair surface is connected with a plate body, the plate body is an inclined surface, the plate body is provided with a pair of slidable press templates, and the back surface of each press template is provided with a first sliding block; the plate body is provided with first sliding grooves, and the first sliding grooves are connected with the first sliding blocks on the back of the pressing template in a one-to-one correspondence manner; the upper surface of the massage chair surface is provided with a cushion. The pressing mold rod is obliquely arranged, the leg part is slightly lifted upwards or pressed downwards, and the pressure generated by the massage rod can be changed, so that the pressing mold rod can be freely adjusted according to the self needs of a patient, the comfort level of the patient is met, meanwhile, when the patient moves one leg, the other leg can be automatically driven to move, and the rehabilitation training of sensory motor nerves is facilitated.
Description
Technical Field
The utility model belongs to the technical field of rehabilitation instruments, and particularly relates to a limb movement nursing device for neurosurgery.
Background
After peripheral nerves of a neurosurgical patient are damaged, rehabilitation training needs to be carried out on local sensory motor nerves of the neurosurgical patient, and the patient is usually helped to recover by stimulating limb nerves through movement.
The existing rehabilitation apparatus is difficult to make the patient feel comfortable when the leg of the patient is rehabilitated, and meanwhile, the existing rehabilitation apparatus cannot make the patient automatically drive the other leg to move when one leg is moved, so that inconvenience is brought to the rehabilitation training of the patient.
Disclosure of Invention
The utility model aims to provide a limb movement nursing device for neurosurgery, aiming at the defects in the prior art.
In order to solve the technical problems, the utility model adopts the following technical scheme:
a limb movement nursing device for neurosurgery comprises a massage chair surface, wherein the rear end of the massage chair surface is connected with a massage chair back, massage chair handrails are respectively arranged on the left side and the right side of the massage chair surface, the bottom end surface of the massage chair surface is connected with a massage chair supporting seat, the front end of the massage chair surface is connected with a plate body, the plate body is an inclined surface, a pair of slidable pressing plates is arranged on the plate body, and a first sliding block is arranged on the back surfaces of the pressing plates; the plate body is provided with first sliding grooves, and the first sliding grooves are connected with the first sliding blocks on the back of the pressing template in a one-to-one correspondence manner; the upper surface of the massage chair surface is provided with a cushion.
A placing groove is formed in the pressing template, grooves are formed in the side walls of the left side and the right side of the placing groove, and massage rods in rotary connection are arranged between the upper side wall and the lower side wall of each groove; the outer surface of the massage rod is provided with a massage layer, and the bottom end of the massage rod is provided with a driver.
The plate body is also provided with an adjusting cavity which is positioned right below the pressing template; a fixed shaft is arranged in the middle of the adjusting cavity, and a gear is arranged on the fixed shaft; the bottom of the pressing template is connected with the fixing block, the bottom of the fixing block is provided with a rack, and the rack is meshed with the gear.
The side wall of one side of the rack without the gear is in sliding connection with the corresponding side wall of the adjusting cavity; and a second sliding block is arranged on the side wall of the rack, and second sliding grooves which are connected with the second sliding blocks in a one-to-one correspondence manner are arranged on the side wall of the adjusting cavity.
The rear end of the massage chair surface is fixedly connected with the bottom end of the massage chair back; the surface of the massage chair armrest is provided with a soft protective layer; the massage rod is obliquely arranged and is inclined towards the interior of the pressing template.
Compared with the prior art, the utility model has the beneficial effects that:
the pressing mold rod is obliquely arranged, the leg part is slightly lifted upwards or pressed downwards, and the pressure generated by the massage rod can be changed, so that the pressing mold rod can be freely adjusted according to the self requirement of a patient, the comfort level of the patient is met, meanwhile, when the patient moves one leg, the other leg can be automatically driven to move, and the rehabilitation training of sensory motor nerves is facilitated.
Drawings

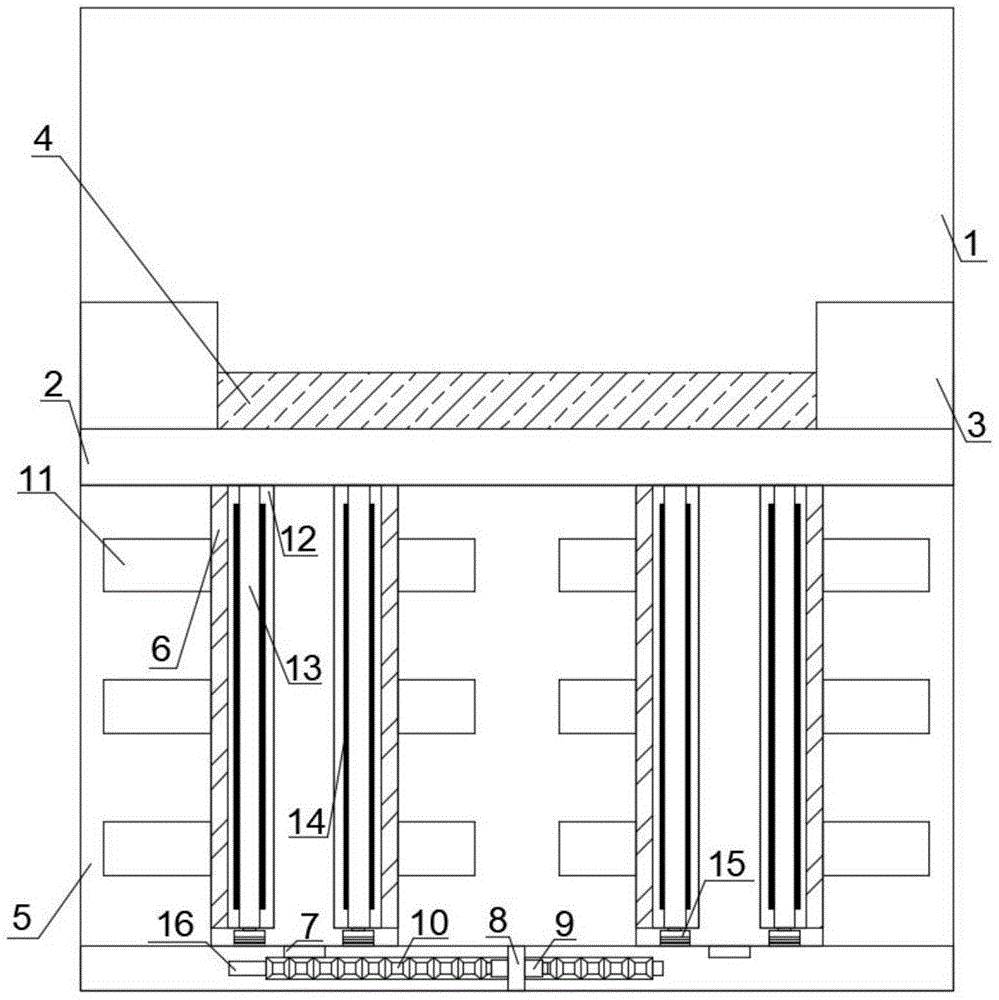

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic side view of the present invention;
fig. 3 is a schematic view of a transmission structure according to the present invention.
Wherein: 1-massage chair back; 2-massage chair surface; 3-massage chair armrest; 4-cushion; 5-a plate body; 6-pressing a template; 7-fixing blocks; 8, fixing the shaft; 9-gear; 10-a rack; 11-a first runner; 12-a groove; 13-massage rod; 14-a massage layer; 15-a driver; 16-a second chute; 17-massage chair supporting seat; 18-second slider.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the following embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
It should be noted that the embodiments and features of the embodiments may be combined with each other without conflict.
The present invention is further illustrated by the following examples, which are not to be construed as limiting the utility model.
As shown in fig. 1-2, a limb movement nursing device for neurosurgery comprises a massage chair surface 2, the rear end of the massage chair surface 2 is connected with a massage chair back 1, the left side and the right side of the massage chair surface are respectively provided with a massage chair armrest 3, the bottom end surface of the massage chair armrest is connected with a massage chair supporting seat 17, the front end of the massage chair surface 2 is connected with a plate body 5, the plate body 5 is an inclined surface, the plate body 5 is provided with a pair of slidable press templates 6, namely a first press template and a second press template, the back surface of the press template 6 is provided with a first slide block, and the number of the first slide blocks is multiple; the plate body 5 is provided with a plurality of first sliding grooves 11, and the first sliding grooves 11 on the plate body 5 are correspondingly connected with the first sliding blocks on the back surface of the pressing template 6 one by one; the upper surface of the massage chair surface 2 is provided with a cushion 4.
A placing groove is formed in the press template 6, grooves 12 are formed in the side walls of the left side and the right side of the placing groove, massage rods 13 which are connected in a rotating mode are arranged between the upper side wall and the lower side wall of each groove 12, and a plurality of massage rods 13 are arranged; the outer surface of each massage rod 13 is provided with a massage layer 14, and the bottom end of each massage rod 13 is provided with a driver 15.
As shown in fig. 3, the plate body 5 is further provided with an adjusting cavity, and the adjusting cavity is located right below the pressing template 6; a fixed shaft 8 is arranged in the middle of the adjusting cavity, the fixed shaft 8 is fixed on the adjusting cavity, a gear 9 is arranged on the fixed shaft 8, and the gear 9 rotates around the fixed shaft 8; the bottom end of the pressing template 6 is connected with a fixed block 7, the bottom end of the fixed block 7 is provided with a rack 10, and the rack 10 is meshed with a gear 9.
The bottom end of the first pressing template is connected with a first fixed block, and a first rack is arranged at the bottom end of the first fixed block;
the bottom end of the second pressing template is connected with a second fixed block, and a second rack is arranged at the bottom end of the second fixed block; the first rack and the second rack are meshed with the gear 9 and are respectively positioned at the front side and the rear side of the gear 9.
The side wall of one side of the rack 10 without the gear is in sliding connection with the side wall of the corresponding adjusting cavity; the side wall of the rack 10 is provided with a second sliding block 18, and the side wall of the adjusting cavity is provided with a second sliding groove 16 which is correspondingly connected with the second sliding block 18.
The back end of the massage chair surface 2 is fixedly connected with the bottom end of the massage chair back 1; the surface of the massage chair armrest 3 is provided with a soft protective layer; the massage rod 13 is inclined and inclined toward the inside of the pressing template 6.
When the rehabilitation training of sensory motor nerves is carried out, a user sits on the cushion 4 of the chair surface 2 of the massage chair, two feet are respectively placed in the corresponding pressing templates 6, the left foot is placed in the first pressing template, and the right foot is placed in the second pressing template. The power is started, the output end of the driver 15 drives the massage rod 13 to rotate, so that the massage layer 14 wrapped outside the massage rod 13 massages the epidermis of the leg, the effect of artificial massage is simulated, blood circulation is improved, and the nursing effect is improved.
Meanwhile, the legs of the patient can move as required, the legs are slightly lifted upwards or pressed downwards, the pressure generated by the massage rod 13 is changed, the use comfort level is freely adjusted according to the self needs of the patient, and when the patient moves one leg leftwards or rightwards, the corresponding rack 10 is driven to move through the fixed block 7 according to the template 6, so that the gear 9 rotates, the other rack 10 moves towards the direction opposite to the direction, the legs of the patient move to a certain degree, and the muscle and nerve recovery of the legs is promoted.
While the utility model has been described with reference to a preferred embodiment, it will be understood by those skilled in the art that various changes in form and detail may be made therein without departing from the spirit and scope of the utility model.
Claims (5)
1. The utility model provides a limb movement nursing device for neurosurgery, includes massage chair face (2), the rear end and the massage back of the chair (1) of massage chair face (2) are connected, and its left and right both sides are equipped with massage armchair handrail (3) respectively, and its bottom end face is connected its characterized in that with massage armchair supporting seat (17): the front end of the massage chair surface (2) is connected with a plate body (5), the plate body (5) is an inclined surface, a pair of slidable pressing templates (6) is arranged on the plate body (5), and a first sliding block is arranged on the back of each pressing template (6);
the plate body (5) is provided with first sliding grooves (11), and the first sliding grooves (11) are correspondingly connected with first sliding blocks (18) on the back surface of the pressing template (6) one by one;
the upper surface of the massage chair surface (2) is provided with a cushion (4).
2. A limb movement nursing device for neurosurgery according to claim 1, characterized in that: a placing groove is formed in the pressing template (6), grooves (12) are formed in the side walls of the left side and the right side of the placing groove, and massage rods (13) which are connected in a rotating mode are arranged between the upper side wall and the lower side wall of each groove (12); the outer surface of the massage rod (13) is provided with a massage layer (14), and the bottom end of the massage rod is provided with a driver (15).
3. A limb movement nursing device for neurosurgery according to claim 1, characterized in that: an adjusting cavity is further formed in the plate body (5), and the adjusting cavity is located right below the pressing template (6); a fixed shaft (8) is arranged in the middle of the adjusting cavity, and a gear (9) is arranged on the fixed shaft (8); the bottom end of the pressing template (6) is connected with the fixing block (7), the bottom end of the fixing block (7) is provided with a rack (10), and the rack (10) is meshed with the gear (9) and connected.
4. A limb movement nursing device for neurosurgery according to claim 3, characterized in that: the side wall of one side of the rack (10) without the gear is in sliding connection with the corresponding side wall of the adjusting cavity; and a second sliding block (18) is arranged on the side wall of the rack (10), and second sliding grooves (16) which are connected with the second sliding blocks (18) in a one-to-one correspondence manner are arranged on the side wall of the adjusting cavity.
5. A limb movement nursing device for neurosurgery according to claim 1, characterized in that: the rear end of the massage chair surface (2) is fixedly connected with the bottom end of the massage chair back (1); the surface of the massage chair armrest (3) is provided with a soft protective layer; the massage rod (13) is obliquely arranged and is inclined towards the interior of the pressing template (6).
