CN215211330U

CN215211330U - Kitchen and bathroom modular same-layer water supply and drainage water-saving device

Info

Publication number: CN215211330U
Application number: CN202120712608.2U
Authority: CN
Inventors: 张大志
Original assignee: Individual
Current assignee: Individual
Priority date: 2021-04-08
Filing date: 2021-04-08
Publication date: 2021-12-17
Anticipated expiration: 2031-04-08

Abstract

The utility model belongs to the technical field of same-layer water supply and drainage, in particular to a kitchen and toilet modularized same-layer water supply and drainage water-saving device, which comprises a wash basin, wherein the bottom end of the wash basin is communicated with a water pool through a water pipe, a filtering mechanism is fixedly connected on the water pipe and comprises a sealing cover and a drain pipe, the drain pipe is screwed in the sealing cover, the top of the drain pipe is clamped with a filtering frame, and an oil filter screen and a fine filter screen are fixedly connected in the filtering frame; can filter water through setting up filtering mechanism, prevent that waste water storage in-process from sending the stench, through setting up sealed lid and drain pipe, can directly open sealed lid and can change the filter frame when the filter frame is changed to needs, through setting up fixture block and draw-in groove block, can be with filtering the filter frame block on the drain pipe top, the oil cleaner screen can filter the grease of aquatic, the fine filter screen can carry out secondary filter to the impurity of aquatic, avoid impurity rotten in aquatic, lead to water to send the stench.

Description

Kitchen and bathroom modular same-layer water supply and drainage water-saving device

Technical Field

The utility model belongs to the technical field of the samming plumbing, concretely relates to kitchen guarding's modularization samming plumbing water saving fixtures.

Background

Domestic water resource is in shortage state for a long time, so water is needed to be saved in daily life, wherein waste water generated by kitchens and bathrooms is secondarily utilized, and the mode is also a water resource saving mode.

The prior art has the following problems:

in the prior art, the waste water is not filtered, so that the waste water is easy to generate stink in the storage process, meanwhile, the waste water is directly used for mopping the floor and the like due to human body oil stains and various sundries generated by washing, oil stains and the like on the floor can be caused, meanwhile, the filtering mechanism needs to be replaced after being used for a long time, and the purpose of facilitating replacement cannot be achieved by the filtering mechanism installed in a pipeline.

In order to solve the problems, the application provides a kitchen and bathroom modular same-layer water supply and drainage water-saving device.

SUMMERY OF THE UTILITY MODEL

To solve the problems set forth in the background art described above. The utility model provides a kitchen guarding modularization is with layer water supply and drainage water saving fixtures, have and to filter waste water, the characteristics of the filter of being convenient for to change simultaneously.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a kitchen guarding modularization is with layer water saving fixtures that gives drainage, includes the wash basin, wash basin bottom is passed through raceway and pond intercommunication, fixedly connected with filtering mechanism on the raceway, filtering mechanism's level is greater than the level in pond, filtering mechanism includes sealed lid and drain pipe, the threaded connection in the sealed lid has the drain pipe, drain pipe top block has the filter frame, fixedly connected with oil cleaner screen, thin filter screen in the filter frame, the oil cleaner screen is located thin filter screen top.

As the utility model relates to a kitchen guarding's modularization is with layer water supply and drainage water saving fixtures preferred, the draw-in groove of symmetric distribution is seted up at the drain pipe top, filter frame outer wall fixedly connected with symmetric distribution's fixture block, the fixture block is in the draw-in groove.

As the utility model relates to a kitchen guarding modularization is with layer water supply and drainage water saving fixtures preferred, fixedly connected with storage water tank on the water pipe, storage water tank top fixedly connected with inlet tube, storage water tank bottom fixedly connected with outlet pipe.

As the utility model relates to a kitchen guarding modularization is with layer water supply and drainage water saving fixtures preferred, wash basin bottom block is connected with the filter bowl, just the inside center fixedly connected with of filter bowl carries the pull rod.

As the utility model relates to a kitchen guarding modularization is with layer water supply and drainage water saving fixtures preferred, the pond top is equipped with the lid, the projected area of lid is greater than the projected area in pond.

As the utility model relates to a kitchen guarding's modularization is with layer water supply and drainage water saving fixtures preferred, the block hole has been seted up on the lid, the block hole with the drain pipe cooperatees.

As the utility model relates to a kitchen guarding's modularization is with layer water supply and drainage water saving fixtures preferred, storage water tank bottom fixedly connected with support.

Compared with the prior art, the beneficial effects of the utility model are that:

can filter water through setting up filtering mechanism, prevent that waste water storage in-process from sending the stench, through setting up sealed lid and drain pipe, can directly open sealed lid and can change the filter frame when the filter frame is changed to needs, through setting up fixture block and draw-in groove block, can be with filtering the filter frame block on the drain pipe top, the oil cleaner screen can filter the grease of aquatic, the fine filter screen can carry out secondary filter to the impurity of aquatic, avoid impurity rotten in aquatic, lead to water to send the stench.

Drawings

The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention. In the drawings:

fig. 1 is a schematic structural view of the present invention;

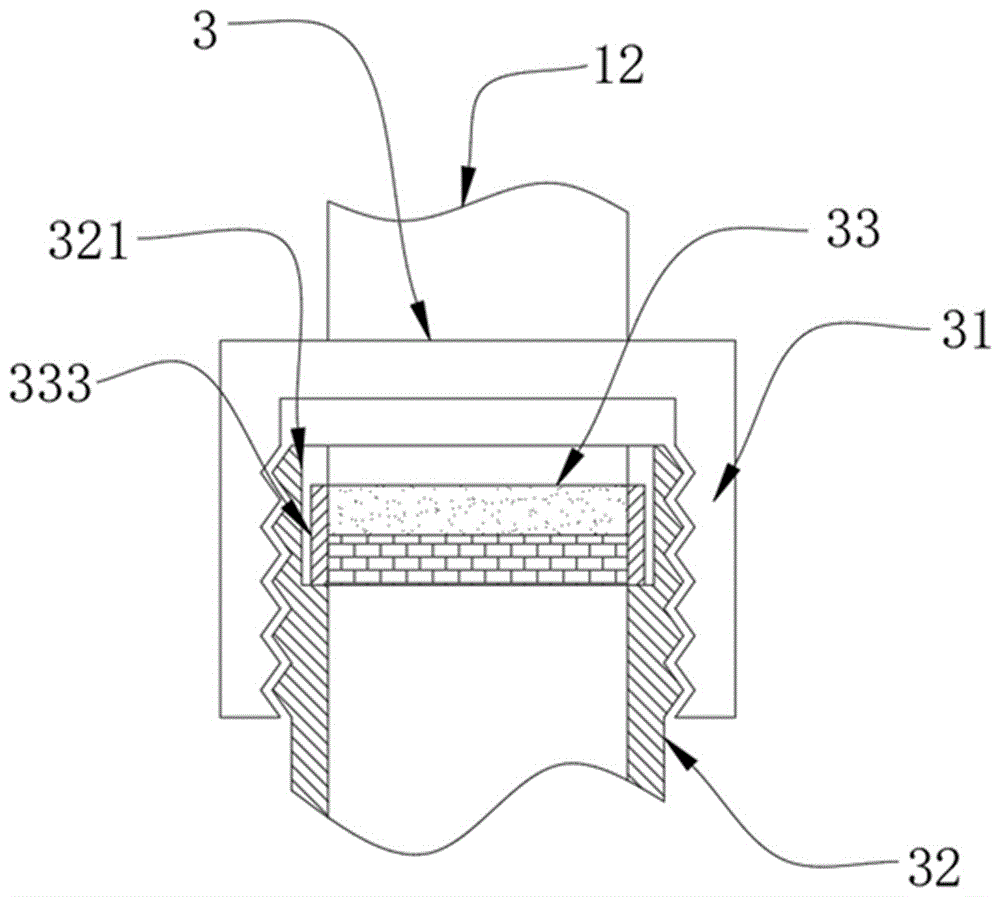

FIG. 2 is a schematic structural view of a filtering mechanism of the present invention;

FIG. 3 is a schematic structural view of the filter frame of the present invention;

FIG. 4 is a schematic structural view of a middle water pool of the present invention;

FIG. 5 is a schematic structural view of the middle filter funnel of the present invention;

in the figure: 1. a wash basin; 11. a filter hopper; 111. lifting a pull rod; 2. a water delivery pipe; 3. a filtering mechanism; 31. a sealing cover; 32. a drain pipe; 321. a card slot; 33. a filter frame; 331. an oil filter screen; 332. a fine filter screen; 333. a clamping block; 4. a pool; 41. a cover; 411. a clamping hole; 5. a water storage tank; 51. a water inlet pipe; 52. a water outlet pipe; 53. and (4) a bracket.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Example 1

Referring to fig. 1-5, the present invention provides the following technical solutions:

the utility model provides a kitchen guarding modularization is with layer water supply and drainage water saving fixtures, including

wash basin

1, 1 bottom in wash basin passes through raceway 2 and pond 4 intercommunication, fixedly connected with filtering mechanism 3 on raceway 2, filtering mechanism 3's level is greater than the level in pond 4, filtering mechanism 3 includes sealed lid 31 and drain pipe 32, the threaded connection has drain pipe 32 in sealed lid 31, drain pipe 32 top block has filter frame 33, fixedly connected with oil cleaner screen 331 in the filter frame 33, fine filter screen 332, oil cleaner screen 331 is located fine filter screen 332 top.

It should be noted that: in the embodiment, the washing basin 1 is communicated with the water pool 4, waste water generated by washing can be recycled and used for washing a mop and the like, water can be recycled, water resources are saved, water can be filtered by the filtering mechanism 3, odor generated in the waste water storage process is prevented, the filtering rack 33 can be replaced by directly opening the sealing cover 31 when the filtering rack 33 needs to be replaced by arranging the sealing cover 31 and the drain pipe 32, the filtering rack 33 can be clamped at the top end of the drain pipe 32 by arranging the clamping block 333 and the clamping groove 321 in a clamping manner, the oil filtering net 331 can filter grease in water, the fine filtering net 332 can carry out secondary filtering on impurities in water, the phenomenon that the impurities deteriorate in the water to cause the odor generated by the deterioration of the impurities is avoided, the horizontal height of the filtering mechanism 3 is larger than that of the water pool 4, and the filtering mechanism 3 can be prevented from being soaked in the water for a long time, affecting the service life.

In an alternative embodiment, symmetrically distributed clamping grooves 321 are formed in the top of the drain pipe 32, symmetrically distributed clamping blocks 333 are fixedly connected to the outer wall of the filter holder 33, and the clamping blocks 333 are clamped in the clamping grooves 321.

In this embodiment: by providing the engaging piece 333 to engage with the engaging groove 321, the filter holder 33 can be engaged with the top end of the drain pipe 32, which facilitates the fixing of the filter holder 33.

In an alternative embodiment, the water pipe 2 is fixedly connected with a water storage tank 5, the top end of the water storage tank 5 is fixedly connected with a water inlet pipe 51, and the bottom of the water storage tank 5 is fixedly connected with a water outlet pipe 52.

In this embodiment: through setting up storage water tank 5, can carry out temporary storage to the water that flows from wash basin 1 in to avoid, because filtering mechanism 3 leads to the water velocity too slow to the filtration of water, thereby lead to the water that the washing one's face and rinsing one's mouth produced to pile up in wash basin 1, inlet tube 51 and outlet pipe 52 can be convenient for with the connection of raceway 2.

In an alternative embodiment, the bottom end of the washing basin 1 is connected with the filter bucket 11 in a clamping manner, and the inner center of the filter bucket 11 is fixedly connected with a lifting rod 111.

In this embodiment: can carry out preliminary filtration to the water that washes one's face and rinses one's mouth and produce through setting up filter hopper 11, prevent that the great object of volume from getting into raceway 2 in to play the effect of temporarily depositing to the great object of volume, can be convenient for take out filter hopper 11 through setting up lifting rod 111.

In an alternative embodiment, a cover 41 is provided on the top of sink 4, and the projected area of cover 41 is larger than the projected area of sink 4.

In this embodiment: the cover 41 can cover the sink 4 to prevent impurities from falling into the water.

In an alternative embodiment, the cover 41 is provided with a latch hole 411, and the latch hole 411 is matched with the drain pipe 32.

In this embodiment: by providing the engaging hole 411, the drain pipe 32 can be engaged in the engaging hole 411, and the pool 4 can be covered.

In an alternative embodiment, a bracket 53 is fixedly connected to the bottom end of the water storage tank 5.

In this embodiment: the bracket 53 is arranged to support the water storage tank 5.

The utility model discloses a theory of operation and use flow: the washing basin 1 is communicated with the water pool 4, waste water generated by washing can be recycled and used for washing a mop and the like, water can be recycled, water resources are saved, water can be filtered by the filtering mechanism 3, odor is prevented from being generated in the waste water storage process, the filtering rack 33 can be replaced by directly opening the sealing cover 31 when the filtering rack 33 needs to be replaced by arranging the sealing cover 31 and the drain pipe 32, the filtering rack 33 can be clamped at the top end of the drain pipe 32 by arranging the clamping block 333 and the clamping groove 321 in a clamping manner, grease in water can be filtered by the oil filter screen 331, impurities in water can be secondarily filtered by the fine filter screen 332, the phenomenon that the impurities deteriorate in the water and generate the odor is avoided, the horizontal height of the filtering mechanism 3 is larger than that of the water pool 4, and the filtering mechanism 3 can be prevented from being soaked in the water for a long time, influence life, through setting up storage water tank 5, can carry out temporary storage to the water that flows out from wash basin 1 to avoid, because filtering mechanism 3 leads to the water velocity of flow too slow to the filtration of water, thereby lead to the water that the washing one's face and rinsing one's mouth produced to pile up in wash basin 1.

Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described in the foregoing embodiments, or equivalents may be substituted for elements thereof. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.

Claims

1. The utility model provides a kitchen guarding's modularization is with layer water saving fixtures that gives drainage, includes wash basin (1), its characterized in that: the bottom end of the washing basin (1) is communicated with a water pool (4) through a water delivery pipe (2), a filtering mechanism (3) is fixedly connected to the water delivery pipe (2), and the horizontal height of the filtering mechanism (3) is larger than that of the water pool (4);

filtering mechanism (3) are including sealed lid (31) and drain pipe (32), threaded connection has in sealed lid (31) drain pipe (32), drain pipe (32) top block has filter frame (33), fixedly connected with oil cleaner screen (331), thin filter screen (332) in filter frame (33), oil cleaner screen (331) are located thin filter screen (332) top.

2. The kitchen and bath modular same-floor water supply and drainage water saving device as claimed in claim 1, wherein: the top of the drain pipe (32) is provided with symmetrically distributed clamping grooves (321), the outer wall of the filter rack (33) is fixedly connected with symmetrically distributed clamping blocks (333), and the clamping blocks (333) are clamped in the clamping grooves (321).

3. The kitchen and bath modular same-floor water supply and drainage water saving device as claimed in claim 1, wherein: fixedly connected with storage water tank (5) on water pipe (2), storage water tank (5) top fixedly connected with inlet tube (51), storage water tank (5) bottom fixedly connected with outlet pipe (52).

4. The kitchen and bath modular same-floor water supply and drainage water saving device as claimed in claim 1, wherein: the bottom end of the wash basin (1) is connected with a filter hopper (11) in a clamping mode, and a lifting rod (111) is fixedly connected to the center of the interior of the filter hopper (11).

5. The kitchen and bath modular same-floor water supply and drainage water saving device as claimed in claim 1, wherein: the top end of the water pool (4) is provided with a cover (41), and the projection area of the cover (41) is larger than that of the water pool (4).

6. The kitchen and bath modular same-floor water supply and drainage water saving device as claimed in claim 5, wherein: the cover (41) is provided with a clamping hole (411), and the clamping hole (411) is matched with the drain pipe (32).

7. The kitchen and bath modular same-floor water supply and drainage water saving device as claimed in claim 3, wherein: the bottom end of the water storage tank (5) is fixedly connected with a support (53).
