CN215021644U

CN215021644U - Recovered nursing equipment of taking exercise of orthopedic patient

Info

Publication number: CN215021644U
Application number: CN202120128358.8U
Authority: CN
Inventors: 高美祝
Original assignee: Individual
Current assignee: Individual
Priority date: 2021-01-18
Filing date: 2021-01-18
Publication date: 2021-12-07
Anticipated expiration: 2031-01-18

Abstract

The utility model discloses a rehabilitation, exercise and nursing device for orthopedic patients; the utility model discloses a seat, seat top surface bonds there is the rubber cushion, seat one side fixed surface is connected with the backup plate, backup plate one side surface bonds there is the rubber cushion, the backup plate is kept away from rubber cushion one side welding and is had the pushing hands, backup plate top fixedly connected with roof, fixedly connected with gyro wheel A and gyro wheel B on the roof, sliding connection has the stay cord on gyro wheel A and the gyro wheel B, makes patient pulling handle, just can pass through gyro wheel A and gyro wheel B pulling stay cord, then stay cord pulling knee makes the patient crooked to make patient's heel drive the slider slide on the spout, so reciprocal just can drive low limbs through the upper limbs pulling and move, can temper rehabilitation training to patient's whole body, can satisfy the user demand.

Description

Recovered nursing equipment of taking exercise of orthopedic patient

Technical Field

The utility model relates to the technical field of medical equipment, specifically be an orthopedics patient rehabilitation takes exercise nursing equipment.

Background

In daily life, the phenomena of influencing normal work, learning and learning due to orthopedic diseases are rare, and although sometimes diagnosis and treatment are timely, operations are successful, and proper medication is difficult to avoid functional disorders of different degrees left on a certain part of a body, so that strengthening rehabilitation and nursing in the treatment of orthopedic patients are the same as rescue treatment, and are the key for promoting the recovery of the functions of the body.

Patent number CN210205296U provides an orthopedic patient rehabilitation exercise nursing equipment, including a supporting seat, the support base bottom is fixed with the support column, and the support column bottom mounting has the universal wheel, and the buckle is installed in the universal wheel outside, and walking auxiliary assembly is installed to the outside one side of support column, and nursing components is installed to supporting seat one end, the utility model discloses simple structure, convenient to use for orthopedic patient can walk at any time and take exercise when using the wheelchair, and do not need medical personnel's assistance in taking exercise process, strengthen the exercise effect, the patient's of being convenient for rehabilitation, the device collects functions in an organic whole such as wheelchair, exerciser and dining table, makes the device's use convenience more, has reduced required equipment among the patient's the rehabilitation nursing process.

The above patents also have the following disadvantages: 1. when rehabilitation training is carried out on orthopedic patients, the traction exercise cannot be carried out on the whole body of the patient, the practicability is low, and the use requirement cannot be met; 2. after the rehabilitation device is used, the rehabilitation device cannot be stored, the space is easily occupied, and the rehabilitation device cannot be fixed when rehabilitation training is carried out on a patient.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide an orthopedics patient rehabilitation takes exercise care of equipment to what propose in solving above-mentioned background art carries out the rehabilitation training to orthopedics patient, can not carry out traction movement to patient's whole body, the practicality is lower, can not satisfy user demand's problem.

In order to solve the technical problem, the utility model provides a following technical scheme: the utility model provides an orthopedic patient rehabilitation exercise nursing equipment, includes the seat, seat top surface bonds has the rubber cushion, seat one side fixed surface is connected with the backup plate, backup plate one side surface bonds has the rubber cushion, the backup plate is kept away from rubber cushion one side welding and is had the pushing hands, backup plate top fixedly connected with roof, fixedly connected with gyro wheel A and gyro wheel B on the roof, sliding connection has the stay cord on gyro wheel A and the gyro wheel B.

Preferably, the bandage is pasted to stay cord one end fixedly connected with magic, the stay cord is kept away from magic and is pasted bandage one end fixedly connected with handle, seat bottom fixed surface is connected with the support base, pastes the bandage with the magic and is fixed in patient's knee position, then makes the patient stimulate the handle.

Preferably, the mounting groove has been seted up on the support base, install the cylinder in the mounting groove, the output of cylinder runs through in supporting base fixedly connected with mounting panel, the universal wheel is installed to the mounting panel bottom, holds the pushing hands and just can promote nursing equipment through the universal wheel in order to promote nursing equipment to the position that needs used, then lets the patient that needs carry out the recovered exercise of orthopedics sit on the rubber cushion on the seat, leans on the rubber cushion on the backup plate, then opens the cylinder through control switch for the mounting panel drives the universal wheel and rises, when the universal wheel left ground and support base and ground contact, closes the cylinder through control switch.

Preferably, the surface of one side of the supporting base is fixedly connected with a connecting block, the connecting block is fixedly connected with a second rotating shaft, a supporting ejector rod is installed on the second rotating shaft, and the supporting ejector rod is rotated and inserted into the slot, so that the rotating plate is fixed.

Preferably, one end of the seat plate is fixedly connected with a first rotating shaft, the rotating plate is installed on the first rotating shaft, the slot is fixedly connected to the surface of one side of the rotating plate, one end of the slot is movably connected with the connecting block, the rotating plate rotates ninety degrees anticlockwise through the first rotating shaft, and the heel of the patient is placed on the sliding block.

Preferably, the surface of one side of the rotating plate is fixedly connected with a sliding chute, and the sliding chute is connected with a sliding block in a sliding manner, so that the heel of a patient drives the sliding block to slide on the sliding chute, and the sliding block is reciprocated and can drive the lower limbs to move by pulling the upper limbs.

Preferably, the power input end of the cylinder is connected with the power output end of an external power supply, so that the equipment can be simply fixed.

Compared with the prior art, the beneficial effects of the utility model are that:

1. the utility model discloses, through ninety degrees of first rotation axis with rotor plate anticlockwise rotation, place patient's heel on the slider, then rotatory support ejector pin and will support the ejector pin and insert in the slot, it is fixed to make the rotor plate, later paste the bandage with the magic and be fixed in patient's knee position, then make patient pulling handle, just can pass through gyro wheel A and gyro wheel B pulling stay cord, then stay cord pulling knee makes the patient crooked, thereby make patient's heel drive the slider and slide on the spout, so reciprocal, just can drive low limbs through the upper limbs pulling and move, can temper the rehabilitation training to patient's whole body, can satisfy the user demand, and when not using, can fold rotor plate and support the ejector pin, can conveniently accomodate, the practicality is higher, and is suitable for promoting.

2. The utility model discloses, hold the pushing hands and just can promote nursing equipment through the universal wheel in order to promote nursing equipment to the position that needs use, then let the patient that needs carry out the recovered exercise of orthopedics sit on the rubber cushion on the seat, lean on the rubber cushion on the backup plate, then open the cylinder through control switch, make the mounting panel drive the universal wheel and rise, when the universal wheel leaves ground and supports base and ground contact, close the cylinder through control switch, nursing equipment is through supporting base and ground contact this moment, can make equipment fixed, prevent to appear removing and lead to the accident to appear in patient's rehabilitation training's in-process.

Drawings

Fig. 1 is an overall schematic structural diagram of an embodiment of the present invention;

fig. 2 is a schematic structural diagram of a top view of an embodiment of the present invention;

fig. 3 is a schematic structural diagram of a slider according to an embodiment of the present invention;

fig. 4 is a schematic structural diagram of a side view of a slider according to an embodiment of the present invention.

In the figure: 1. a pushing handle; 2. a backup plate; 3. a rubber cushion; 4. a seat plate; 5. mounting grooves; 6. a cylinder; 7. a support base; 8. a rubber cushion; 9. a top plate; 10. a grip; 11. a roller A; 12. a roller B; 13. a magic tape; 14. a first rotating shaft; 15. supporting the ejector rod; 16. a rotating plate; 17. a chute; 18. a slider; 19. a universal wheel; 20. mounting a plate; 21. connecting blocks; 22. a second rotation shaft; 23. a slot; 24. and pulling a rope.

Detailed Description

In order to solve the problem that the whole body of the patient can not be dragged when the orthopedic patient is rehabilitated and trained, the practicability is lower, the use requirement can not be met, the embodiment of the utility model provides a nursing equipment for the rehabilitation exercise of the orthopedic patient. The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Example 1

Referring to fig. 1, the embodiment provides an orthopedic patient rehabilitation exercise nursing device, which includes a seat plate 4, a rubber cushion 3 is bonded on the top surface of the seat plate 4, a backup plate 2 is fixedly connected to the surface of one side of the seat plate 4, a rubber back cushion 8 is bonded on the surface of one side of the backup plate 2, a pushing handle 1 is welded on the side of the backup plate 2 away from the rubber back cushion 8, a top plate 9 is fixedly connected to the top end of the backup plate 2, a roller a11 and a roller B12 are fixedly connected to the top plate 9, a pull rope 24 is slidably connected to the roller a11 and the roller B12, the pushing handle 1 is held to push the nursing device through a universal wheel 19 to push the nursing device to a position to be used, then a patient needing orthopedic rehabilitation exercise is seated on the rubber cushion 3 on the seat plate 4 and leans against the rubber back cushion 8 on the backup plate 2, the patient can be driven to move by pulling the lower limbs, and the whole body of the patient can be exercised, can meet the use requirement.

In the embodiment, when the nursing device is used, the nursing device can be pushed to a position to be used by holding the pushing hand 1 through the universal wheel 19, then a patient needing orthopedic rehabilitation exercise sits on the rubber cushion 3 on the seat plate 4 and leans against the rubber cushion 8 on the back plate 2, then the air cylinder 6 is opened through the control switch, the mounting plate 20 drives the universal wheel 19 to ascend, until the universal wheel 19 leaves the ground and the support base 7 is contacted with the ground, the air cylinder 6 is closed through the control switch, at the moment, the nursing device is contacted with the ground through the support base 7, the device can be fixed, accidents caused by movement in the process of rehabilitation exercise of the patient are prevented, then the rotating plate 16 is rotated ninety degrees counterclockwise through the first rotating shaft 14, the heel of the patient is placed on the sliding block 18, then the support mandril 15 is rotated and the support mandril 15 is inserted into the slot 23, the rotating plate 16 is fixed, the magic tape 13 is fixed at the knee part of a patient, the handle 10 is pulled by the patient, the pull rope 24 can be pulled by the roller A11 and the roller B12, the knee is pulled by the pull rope 24 to bend the patient, so that the heel of the patient drives the slider 18 to slide on the sliding groove 17, the reciprocating is realized, the lower limb can be driven to move by the pulling of the upper limb, and the rotating plate 16 and the supporting mandril 15 can be folded when the novel medical instrument is not used.

Example 2

Please refer to fig. 1 to fig. 4, which are further improved based on embodiment 1: one end of a pull rope 24 is fixedly connected with a magic tape binding 13, one end of the pull rope 24, which is far away from the magic tape binding 13, is fixedly connected with a handle 10, the surface of the bottom of the seat plate 4 is fixedly connected with a supporting base 7, a mounting groove 5 is arranged on the supporting base 7, an air cylinder 6 is arranged in the mounting groove 5, the output end of the air cylinder 6 penetrates through the supporting base 7 and is fixedly connected with a mounting plate 20, the bottom of the mounting plate 20 is provided with a universal wheel 19, one side surface of the supporting base 7 is fixedly connected with a connecting block 21, a second rotating shaft 22 is fixedly connected with the connecting block 21, a supporting mandril 15 is arranged on the second rotating shaft 22, one end of the seat plate 4 is fixedly connected with a first rotating shaft 14, a rotating plate 16 is arranged on the first rotating shaft 14, one side surface of the rotating plate 16 is fixedly connected with an inserting groove 23, one end of the inserting groove 23 is movably connected with the connecting block 21, one side surface of the rotating plate 16 is fixedly connected with a sliding groove 17, and is slidably connected with a sliding block 18 on the sliding groove 17, the electric power input end of cylinder 6 is connected with external power source's electric power output end, opens cylinder 6 through control switch for mounting panel 20 drives universal wheel 19 and rises, when the universal wheel 19 leaves ground and supports base 7 and ground contact, closes cylinder 6 through control switch, and nursing equipment is through supporting base 7 and ground contact this moment, can make equipment fixed, prevents to appear removing and lead to the accident to appear in patient's rehabilitation training's in-process.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides an orthopedics patient rehabilitation exercise nursing equipment, includes seat (4), its characterized in that, seat (4) top surface bonds has rubber cushion (3), seat (4) one side fixed surface is connected with backup plate (2), backup plate (2) one side surface bonds has rubber cushion (8), rubber cushion (8) one side welding is kept away from in backup plate (2) has pushing hands (1), backup plate (2) top fixedly connected with roof (9), fixedly connected with gyro wheel A (11) and gyro wheel B (12) on roof (9), sliding connection has stay cord (24) on gyro wheel A (11) and gyro wheel B (12).

2. The rehabilitation, exercise and care device for orthopedic patients according to claim 1, characterized in that: stay cord (24) one end fixedly connected with magic subsides bandage (13), stay cord (24) are kept away from magic subsides bandage (13) one end fixedly connected with handle (10), seat (4) bottom fixed surface is connected with and supports base (7).

3. An orthopaedic patient rehabilitation, exercise and care device according to claim 2, characterized in that: support and seted up mounting groove (5) on base (7), install cylinder (6) in mounting groove (5), the output of cylinder (6) runs through in supporting base (7) fixedly connected with mounting panel (20), universal wheel (19) are installed to mounting panel (20) bottom.

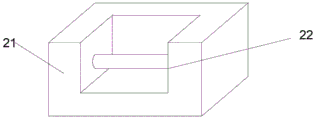

4. The rehabilitation, exercise and care device for orthopedic patients according to claim 3, characterized in that: support base (7) one side fixed surface and be connected with connecting block (21), fixedly connected with second rotation axis (22) on connecting block (21), install on second rotation axis (22) and support ejector pin (15).

5. The rehabilitation, exercise and care device for orthopedic patients according to claim 4, characterized in that: seat (4) one end fixedly connected with first rotation axis (14), install rotor plate (16) on first rotation axis (14), rotor plate (16) one side fixed surface is connected with slot (23), slot (23) one end and connecting block (21) swing joint.

6. The rehabilitation, exercise and care device for orthopedic patients according to claim 5, characterized in that: the surface of one side of the rotating plate (16) is fixedly connected with a sliding groove (17), and the sliding groove (17) is connected with a sliding block (18) in a sliding manner.

7. The rehabilitation, exercise and care device for orthopedic patients according to claim 6, characterized in that: and the power input end of the cylinder (6) is connected with the power output end of an external power supply.
