Abstract
本实用新型公开了一种人造草坪纱线单捆绑机构，包括基座和床身；还包括捆绑部分和收卷机构，所述捆绑部分设置于所述床身上半部分，所述收卷机构设置于所述床身下半部分；所述捆绑部分包括纱筒、定子、支架和空心支撑板，所述支架焊接于所述床身一侧，所述空心支撑板安装于所述支架上方，所述定子穿过所述支架和所述空心支撑板将所述纱筒固定在所述空心支撑板上；本实用新型通过自动化生产工艺，解决了人造草坪纱线松散不齐的情况，以及减少了草坪丝需要加捻、倒筒等工艺流程，同时节省了人工费用，保证了加工过程中纱线不受到损伤。
The utility model discloses a single binding mechanism for artificial turf yarns, which comprises a base and a bed; further comprises a binding part and a winding mechanism, the binding part is arranged on the upper half of the bed, and the winding mechanism is arranged the lower half of the bed; the binding part includes a bobbin, a stator, a bracket and a hollow support plate, the bracket is welded on one side of the bed, and the hollow support plate is installed above the bracket, so The stator passes through the bracket and the hollow support plate to fix the yarn bobbin on the hollow support plate; the utility model solves the loose and uneven situation of artificial turf yarns through an automated production process, and reduces the The lawn silk needs twisting, rewinding and other technological processes, and at the same time saves labor costs and ensures that the yarn is not damaged during processing.
Description
Technical Field
The utility model relates to a lawn wire drawing production line technical field specifically is a mechanism is binded to artificial turf yarn list.
Background
In the wire drawing production line, a plurality of four lines are firstly folded and twisted for the second time to be used, otherwise, the tufting process quality of the lawn yarn is seriously affected, in order to achieve the technical effect in the prior art, production process flows such as twisting and rewinding are often added in the wire drawing production line, time and labor are wasted, and the production efficiency is reduced; therefore, a device capable of binding a plurality of loose lawn filaments into a bundle of yarns capable of being directly tufted needs to be arranged, and unnecessary process flows are reduced.
SUMMERY OF THE UTILITY MODEL
In order to solve the above problem, the utility model provides a following technical scheme: a single artificial turf yarn binding mechanism comprises a base and a bed body; the winding machine further comprises a binding part and a winding mechanism, wherein the binding part is arranged on the upper half part of the machine body, and the winding mechanism is arranged on the lower half part of the machine body; the binding part comprises a yarn bobbin, a stator, a support and a hollow support plate, the support is welded on one side of the bed body, the hollow support plate is installed above the support, and the stator penetrates through the support and the hollow support plate to fix the yarn bobbin on the hollow support plate.
Preferably, the machine further comprises a motor mounting plate and a fixing plate, wherein the motor mounting plate penetrates through the machine body and is fixedly overlapped between the hollow supporting plate and the support with the fixing plate.
Preferably, the motor fixing device further comprises a main motor and a flat belt pulley, the main motor is fixed on one side, away from the fixing handle, of the motor mounting plate, and the flat belt pulley is fixed at the driving end of the main motor.
Preferably, a safety protection cover is further arranged outside the yarn barrel.
Preferably, the safety protection cover is fixed at the outer end of the bracket.
Preferably, the safety protection cover further comprises a sliding rail, and the safety protection cover is connected with the support through the sliding rail.
Preferably, the yarn drum is pagoda-shaped.
Compared with the prior art, the beneficial effects of the utility model are as follows:
the utility model has the advantages that the yarn tube which can rotate at an adjustable speed is arranged above the winding mechanism, so that a plurality of loose yarns are bound and wound into a bundle, and the subsequent lawn tufting process is convenient to carry out; the hollow supporting plate can stably fix the yarn barrel, can ensure that a space is reserved for driving the yarn barrel to rotate by external driving, and avoids yarn splashing and winding of the transmission mechanism.
Drawings

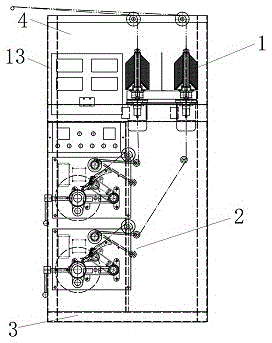

FIG. 1 is an overall structure diagram of the present invention;
FIG. 2 is an enlarged view of the binding portion of the present invention;
in the figure: the automatic winding machine comprises a binding part 1, a winding mechanism 2, a base 3, a bed 4, a bobbin 5, a stator 6, a bracket 7, a hollow supporting plate 8, a motor mounting plate 9, a fixing plate 10, a main motor 11, a flat belt pulley 12, a safety shield 13 and a sliding rail 14.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-2, the artificial turf yarn single-binding mechanism comprises a base 3 and a bed 4; the winding machine further comprises a binding part 1 and a winding mechanism 2, wherein the binding part 1 is arranged on the upper half part of the machine body 4, and the winding mechanism 2 is arranged on the lower half part of the machine body 4; the winding mechanism 2 is a winding device composed of a winding shaft, a reciprocating rod and a tension rod, and the winding mechanism is controlled by a motor to wind yarns. The binding part 1 comprises a yarn bobbin 5, a stator 6, a support 7 and a hollow support plate 8, the support 7 is welded on one side of the lathe bed 4, a triangular structure is arranged at the bottom of the support 7 to ensure the stability of the support 7, the hollow support plate 8 is arranged above the support 7, the exterior of the hollow support plate is hollow inside a cuboid, and the stator 6 penetrates through the support 7 and the hollow support plate 8 to fix the yarn bobbin 5 on the hollow support plate 8.
In order to enable the transmission device and the binding part 1 to be arranged on two sides of the lathe bed 4 and avoid yarn from being wound into the transmission mechanism when the binding part 1 works, the yarn winding machine further comprises a motor mounting plate 9 and a fixing plate 10, wherein the motor mounting plate 9 penetrates through the lathe bed 4 and is fixedly overlapped with the fixing plate 10 between the hollow supporting plate 8 and the support 7 to enable the hollow supporting plate and the support 7 to be clamped. Drive mechanism includes main motor 11 and flat belt pulley 12, main motor 11 is fixed in motor mounting panel 9 is kept away from the one side of fixed handling, flat belt pulley 12 is fixed in the drive end of main motor 11 is connected flat belt pulley 12 and stator 6's driving piece through conveyer belt, and the driving piece is the part that stator 6 passed hollow backup pad 8, makes hollow backup pad 8 not influence the normal operating of main motor 11 when sheltering from the yarn yet.
In order to prevent the binding part 1 from flying out of the yarn at high speed and endangering the safety of workers, a safety shield 13 is arranged outside the bobbin 5. The safety protection cover 13 is fixed at the outer end of the bracket 7. The safety protection cover is characterized by further comprising a sliding rail 14, the safety protection cover 13 is connected with the support 7 through the sliding rail 14, so that the safety protection cover 1 can move horizontally along the sliding rail, and the binding part 1 can be adjusted conveniently when the machine stops.
In order to prevent the yarn from slipping off when rotating at high speed, the yarn cylinder 5 is in a pagoda shape, the outer part of the yarn cylinder is opened like an umbrella, and the force for supporting and tensioning the yarn is formed.
In summary, the binding part 1 is provided with two or more yarn drums 5, each yarn drum 5 is wound with loose lawn filaments, a plurality of yarns passing through the stator 6 are rapidly bound into a bundle through the high-speed rotation of the yarn drum 5, and the bundle yarns capable of being directly tufted are wound by a winding mechanism below for subsequent processing.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (7)
1. A single artificial turf yarn binding mechanism comprises a base (3) and a bed body (4); the method is characterized in that: the winding machine is characterized by further comprising a binding part (1) and a winding mechanism (2), wherein the binding part (1) is arranged on the upper half part of the machine body (4), and the winding mechanism (2) is arranged on the lower half part of the machine body (4); the binding part (1) comprises a bobbin (5), a stator (6), a support (7) and a hollow support plate (8), the support (7) is welded on one side of the lathe bed (4), the hollow support plate (8) is installed above the support (7), and the stator (6) penetrates through the support (7) and the hollow support plate (8) to fix the bobbin (5) on the hollow support plate (8).
2. The single artificial turf yarn binding mechanism of claim 1, wherein: still include motor mounting panel (9) and fixed plate (10), motor mounting panel (9) pass lathe bed (4) to with fixed plate (10) stack is fixed in hollow backup pad (8) with between support (7).
3. The single artificial turf yarn binding mechanism of claim 2, wherein: still include main motor (11) and flat belt pulley (12), main motor (11) are fixed in motor mounting panel (9) are kept away from the one side of fixed office, flat belt pulley (12) are fixed in main motor (11) drive end.
4. The single artificial turf yarn binding mechanism of claim 1, wherein: and a safety protection cover (13) is arranged outside the yarn drum (5).
5. The single artificial turf yarn binding mechanism of claim 4, wherein: the safety protection cover (13) is fixed at the outer end of the bracket (7).
6. The single artificial turf yarn binding mechanism of claim 5, wherein: the safety protection cover is characterized by further comprising a sliding rail (14), and the safety protection cover (13) is connected with the support (7) through the sliding rail (14).
7. The single artificial turf yarn binding mechanism of claim 1, wherein: the yarn drum (5) is pagoda-shaped.
