Abstract

The application provides a winding mechanism for yarn processing, which includes a mounting plate, a reciprocating screw rod is arranged in the middle of the side end of the mounting plate, a first motor is installed at the left end of the reciprocating screw rod, and the first motor is fixedly installed on the mounting plate. In the middle part of the inner side, a sliding block is slidably installed in the middle part of the reciprocating screw rod, and a wire hole is arranged in the middle part of the upper end of the sliding block, and the wire hole is located above the threaded hole. On the right side of the side end, the middle part of the rotating shaft is fixedly equipped with a winding wheel, and the middle part of the left end of the rotating shaft is provided with a second motor, and the second motor is fixedly installed on the inner right end of the mounting plate. The utility model reciprocates in the horizontal direction through the sliding block in the middle of the reciprocating screw rod to drive the yarn to wind from one side of the winding wheel to the other, so that the yarn is evenly distributed in the middle of the winding wheel, thereby Avoid tangles of yarn during winding.

Description

A winding mechanism for yarn processing

technical field

The utility model relates to the field of yarn processing and winding, in particular to a winding mechanism for yarn processing.

Background technique

Yarn is a kind of textile, which is processed into products of a certain fineness with various textile fibers. It is used for weaving, rope making, thread making, knitting and embroidery, etc. In the thread processing process, it is necessary to wind up the processed finished textile thread, so as to facilitate the storage and transportation of the yarn.

The existing authorized announcement number is the Chinese patent of (CN210914752U), which discloses a kind of yarn processing and winding equipment, including a fixed plate and a tightening mechanism. The middle position of the fixed plate is provided with a tightening mechanism. There are two guide wheel shafts symmetrically arranged in the center of the mechanism, and one of the guide wheel shafts is located on the side of the fixed plate relative to the horizontal line above the center of the thread tightening mechanism. , and the guide wheel shaft located on one side of the fixed plate relative to the center horizontal line of the tensioning mechanism is connected to the rotation. The driving end of the cylinder is fixedly connected with a pressure plate.

This utility model uses the rotating rod and the spring as the thread tightening device, so that the winding wheel can perform tight winding work on the yarn, but this equipment uses continuous and tight tension transmission for the yarn transportation, so that the yarn is During the transmission process, the transmission track cannot be changed, resulting in the concentrated winding of the yarn at the same position of the take-up wheel, resulting in disorderly winding, which affects the quality of the yarn take-up.

For this reason, we propose a winding mechanism for yarn processing to solve the above problems.

Utility model content

The main purpose of the utility model is to provide a winding mechanism for yarn processing, which can effectively solve the problems in the background technology.

In order to achieve the above object, the technical scheme that the utility model takes is:

A winding mechanism for yarn processing, comprising:

The mounting plate, the middle part of the side end of the mounting plate is provided with a reciprocating screw rod, the left end of the reciprocating screw rod is provided with a first motor, and the first motor is fixedly installed on the inner middle part of the mounting plate, and the reciprocating screw rod The middle part is slidably installed with a sliding block, and the inner middle part of the sliding block is provided with a threaded hole, and the threaded hole is adapted to the reciprocating screw rod. Above, the reciprocating screw rod is driven by the first motor to rotate, so that the sliding block slides horizontally in the middle of the reciprocating screw rod. The line acts as a horizontal guide.

The middle part of the right end of the reciprocating screw rod is provided with a rotating shaft, the rotating shaft is mounted on the right side of the side end of the mounting plate, the middle part of the rotating shaft is fixedly equipped with a winding wheel, and the middle part of the left end of the rotating shaft is provided The second motor is fixedly mounted on the inner right end of the mounting plate, and the rotating shaft is driven by the second motor to rotate, so that the winding wheel performs winding work on the yarn.

The lower middle part of the reciprocating screw rod is provided with a guide rod, and the inner lower end of the sliding block is provided with a slide hole, the guide rod is slidably connected with the slide hole, and the sliding track of the slide block is limited by the guide rod, thereby Prevent the slider from shifting during sliding.

The middle part of the bottom end of the mounting plate is provided with a base plate, and the middle part of the top end of the base plate is provided with a main rod. The main rod is located under the left side of the reciprocating screw rod. The two sides of the top end of the sub-rod are provided with fixed plates, the inner middle part of the fixed plate is rotatably installed with rollers, the inner bottom of the main rod is fixedly installed with a spring, and the middle part of the top end of the spring is fixedly installed with a sub-rod. Drive the sub-rod to shrink, thereby driving the yarn to press down, so that the yarn is in a tightened state during the transmission process, so that the winding wheel can perform tight winding work on the yarn.

Preferably, a roller is installed on the left side of the side end of the installation plate, and the roller is located on the upper left side of the main rod.

Preferably, a fixed block is provided at the middle of both ends of the winding wheel, and the fixed block is fixedly installed at the middle of both ends of the rotating shaft to strengthen the limit and fix the winding wheel, so that the rotating shaft drives the winding wheel to turn.

Preferably, a support plate is fixedly installed in the middle of the top end of the bottom plate.

Preferably, the end of the guide rod is fixedly installed in the middle of the upper end of the support plate, and the end of the reciprocating screw is rotatably installed in the middle of the upper end of the support plate, which can enhance the stability of the reciprocating screw when rotating.

Compared with the prior art, the utility model has the following beneficial effects:

A wire hole is provided in the middle of the upper end of the sliding block, and the reciprocating screw rod is driven by the first motor to rotate, so that the sliding block reciprocates horizontally in the middle of the reciprocating screw rod, so that the yarn can be evenly wound during the winding process. Winding from one side of the winding wheel to the other side, through the above-mentioned device, the yarn is evenly distributed in the middle of the winding wheel, so as to avoid the accumulation of yarn in one place during the winding process, resulting in flocculation Random winding, thus affecting the quality of yarn winding.

Description of drawings

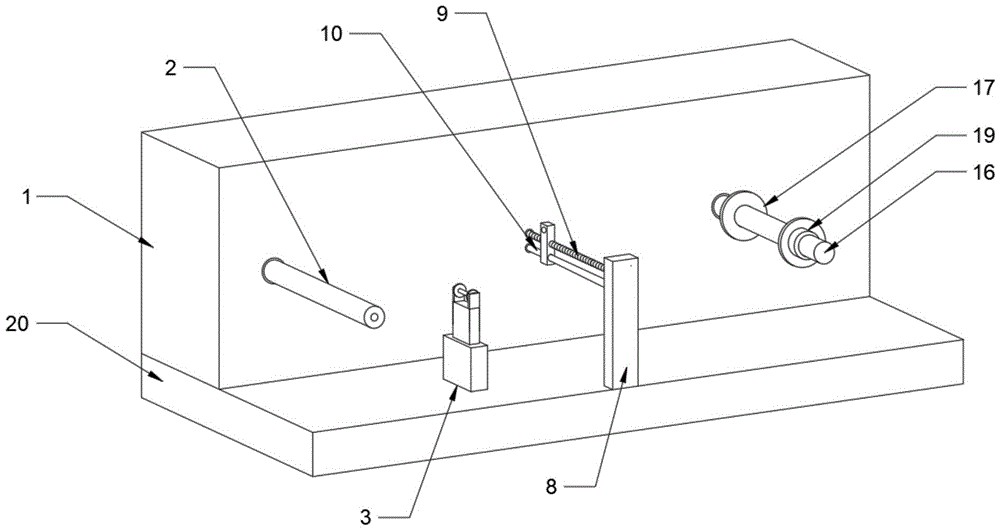

Fig. 1 is an overall structural diagram of a winding mechanism for yarn processing of the present invention;

Fig. 2 is a top plan view of a winding mechanism for yarn processing of the present invention;

Fig. 3 is a side sectional structure diagram of the main rod and the auxiliary rod in a winding mechanism for yarn processing of the present invention;

Fig. 4 is an overall structural diagram of a sliding block in a winding mechanism for yarn processing of the present invention.

In the figure: 1. Mounting plate; 2. Roller; 3. Main rod; 4. Auxiliary rod; 5. Spring; 6. Fixed plate; 7. Roller; 8. Support plate; 9. Reciprocating screw rod; 10. Guide rod 11, the first motor; 12, sliding block; 13, sliding hole; 14, threaded hole; 15, wire hole; 16, rotating shaft; 17, winding wheel; 18, second motor; 19, fixed block; , Base plate.

Detailed ways

Below in conjunction with accompanying drawing, the utility model is described in further detail.

When the yarn needs to be wound up, the yarn is first slid from the top of the drum 2, then the yarn is driven to pass under the roller 7, and then passes through the wire hole 15 provided in the middle of the upper end of the sliding block 12, and finally the The yarn is wound and fixed in the middle of the winding wheel 17, and the second motor 18 drives the rotating shaft 16 to rotate, thereby driving the winding wheel 17 to rotate, so that the winding wheel 17 performs winding work on the yarn.

In the process of winding up the yarn, the position of the sub-rod 4 is tightened and limited by the spring 5, so that the yarn is in a collected state during the transmission process, thereby avoiding loose winding of the yarn, so that the winding The winding wheel 17 tightly winds the yarn to improve the quality of the yarn winding. At the same time, the first motor 11 drives the reciprocating screw 9 to rotate, so that the sliding block 12 is positioned horizontally in the middle of the reciprocating screw 9. The reciprocating motion makes the yarn evenly wound from one side of the winding wheel 17 to the other side, so that the yarn is evenly distributed in the middle of the winding wheel 17, thereby avoiding the accumulation of the yarn in the winding process. One place, resulting in tangled entanglement.

Example 1

Referring to Figure 1, a winding mechanism for yarn processing includes:

Mounting plate 1, the middle part of the side end of the mounting plate 1 is provided with a reciprocating screw rod 9, the left end of the reciprocating screw rod 9 is provided with a first motor 11, and the first motor 11 is fixedly mounted on the inner middle part of the mounting plate 1 , the middle part of the reciprocating screw rod 9 is slidably installed with a sliding block 12, and the inner middle part of the sliding block 12 is provided with a threaded hole 14, and the threaded hole 14 is adapted to the reciprocating screw rod 9, and the sliding block 12 The middle part of the upper end is provided with a wire hole 15, and the wire hole 15 is located above the threaded hole 14, and the reciprocating screw mandrel 9 is driven by the first motor 11 to rotate, so that the sliding block 12 slides horizontally in the middle part of the reciprocating screw mandrel 9, Simultaneously, by being provided with wire hole 15 in the middle part of the upper end of sliding block 12, the effect of horizontal guiding can be played to the yarn that needs to be wound up.

The middle part of the right end of the reciprocating screw mandrel 9 is provided with a rotating shaft 16, and the rotating shaft 16 is mounted on the right side of the side end of the mounting plate 1, and the middle part of the rotating shaft 16 is fixedly equipped with a winding wheel 17. The middle part of the left end of the shaft 16 is provided with a second motor 18, and the second motor 18 is fixedly installed on the inner right end of the mounting plate 1, and the rotating shaft 16 is driven by the second motor 18 to rotate, so that the winding wheel 17 can carry out the process on the yarn. Winding work.

The bottom middle part of described reciprocating screw mandrel 9 is provided with guide rod 10, and the inner lower end of described slide block 12 is provided with slide hole 13, and described guide rod 10 is slidably connected with slide hole 13, slide block 12 is connected by guide rod 10. The sliding track is limited, so as to prevent the sliding block 12 from shifting during the sliding process.

The working principle of the utility model is:

When the yarn needs to be wound up, the yarn is wound in the middle of the surface of the winding wheel 17, and then the rotating shaft 16 is driven by the second motor 18 to rotate, and the winding wheel 17 is fixedly installed on the rotating shaft The middle part of 16 drives the winding wheel 17 to rotate through the rotating shaft 16, so as to realize the winding work of the yarn.

At the same time, a reciprocating screw mandrel 9 is arranged in the middle part of the side end of the mounting plate 1, and a sliding block 12 is slidably installed in the middle part of the reciprocating screw mandrel 9. The upper end middle part of the sliding block 12 is provided with a wire hole 15, which is passed through by the yarn. The wire hole 15 is then driven by the first motor 11 to rotate the reciprocating screw mandrel 9, so that the sliding block 12 reciprocates horizontally in the middle of the reciprocating screw mandrel 9, so that the yarn can be evenly wound from one side of the winding wheel 17 To the other side, and then reciprocate to wind back and forth, so that the winding wheel 17 performs uniform winding work during the winding process of the yarn, thereby avoiding the accumulation of the yarn in one place, resulting in messy winding.

Example 2

Referring to Figure 1, a winding mechanism for yarn processing:

The middle part of the bottom end of the mounting plate 1 is provided with a base plate 20, and the middle part of the top end of the base plate 20 is provided with a main rod 3, and the main rod 3 is located below the left side of the reciprocating screw rod 9, and the inner middle part of the main rod 3 A secondary lever 4 is slidably installed, and fixed plates 6 are arranged on both sides of the top end of the secondary lever 4, and rollers 7 are installed in the middle of the inner side of the fixed plate 6, which can play a guiding role in the process of yarn delivery. The inner bottom of the main rod 3 is fixedly equipped with a spring 5, and the middle part of the top of the spring 5 is fixedly installed with a secondary rod 4, and then the secondary rod 4 is driven by the spring 5 to shrink, thereby driving the yarn to press downward, so that The yarn is in a tightened state during transmission, so that the winding wheel 17 performs compact winding work on the yarn.

The side end of the mounting plate 1 is rotated to the left and installed with a drum 2, and the drum 2 is located on the upper left side of the main rod 3, and the trajectory during the yarn transmission process can be adjusted by the drum 2.

The middle part of both ends of described winding wheel 17 is provided with fixed block 19, and described fixed block 19 is fixedly installed in the middle part of both ends of rotating shaft 16, and winding wheel 17 is fixed by fixed block 19, thereby makes rotating shaft 16 drive The winding wheel 17 rotates.

The top middle part of the bottom plate 20 is fixedly equipped with a support plate 8, the end of the guide rod 10 is fixedly installed on the upper middle part of the support plate 8, and the end of the reciprocating screw rod 9 is rotatably installed on the upper end middle part of the support plate 8. The end of reciprocating screw mandrel 9 is rotatably installed with support plate 8, thereby strengthens the stability when reciprocating screw mandrel 9 rotates.

The working principle of the utility model is:

By turning and installing the roller 2 on the left side of the side end of the mounting plate 1, the yarn can be limited and slid during the transmission process. The middle part is provided with a spring 5, through which the secondary rod 4 slides vertically in the inner middle part of the main rod 3, and at the same time, a roller 7 is arranged at the top middle of the secondary rod 4, and the yarn is passed through the roller 7, and then passed The spring 5 shrinks the sub-rod 4, thereby driving the yarn to press downward, so that the yarn is in a tightened state during transmission, so that the winding wheel 17 performs tight winding work on the yarn.

The basic principles and main features of the present utility model and the advantages of the present utility model have been shown and described above. Those skilled in the industry should understand that the utility model is not limited by the above-mentioned embodiments. The above-mentioned embodiments and descriptions only illustrate the principles of the utility model. Without departing from the spirit and scope of the utility model, the utility model The new model also has various changes and improvements, and these changes and improvements all fall within the scope of the claimed utility model. The scope of protection required by the utility model is defined by the appended claims and their equivalents.

Claims (8)

1. A winding mechanism for yarn processing, comprising:

the device comprises a mounting plate (1), wherein a reciprocating screw rod (9) is arranged in the middle of the side end of the mounting plate (1), a first motor (11) is arranged at the left end of the reciprocating screw rod (9), the first motor (11) is fixedly arranged in the middle of the inner side of the mounting plate (1), a sliding block (12) is slidably arranged in the middle of the reciprocating screw rod (9), a threaded hole (14) is formed in the middle of the inner side of the sliding block (12), the threaded hole (14) is matched with the reciprocating screw rod (9), a wire guide hole (15) is formed in the middle of the upper end of the sliding block (12), and the wire guide hole (15) is located above the threaded hole (14);

the novel automatic winding machine is characterized in that a rotating shaft (16) is arranged in the middle of the right end of the reciprocating screw rod (9), the rotating shaft (16) is rotatably arranged on the right side of the side end of the mounting plate (1), a winding wheel (17) is fixedly arranged in the middle of the rotating shaft (16), a second motor (18) is arranged in the middle of the left end of the rotating shaft (16), and the second motor (18) is fixedly arranged at the right end of the inner side of the mounting plate (1).

2. The yarn processing winding mechanism as claimed in claim 1, wherein: the middle part below the reciprocating screw rod (9) is provided with a guide rod (10), the lower end of the inner side of the sliding block (12) is provided with a sliding hole (13), and the guide rod (10) is in sliding connection with the sliding hole (13).

3. The yarn processing winding mechanism as claimed in claim 2, wherein: bottom middle part of mounting panel (1) is provided with bottom plate (20), the top middle part of bottom plate (20) is provided with mobile jib (3), mobile jib (3) are located the left side below of reciprocating screw rod (9), the inboard mid-section slidable mounting of mobile jib (3) has auxiliary rod (4), the top both sides of auxiliary rod (4) are provided with fixed plate (6), gyro wheel (7) are installed in the inboard mid-section rotation of fixed plate (6).

4. A yarn processing winding mechanism as claimed in claim 3, wherein: the novel intelligent control device is characterized in that a spring (5) is fixedly arranged at the bottom of the inner side of the main rod (3), and an auxiliary rod (4) is fixedly arranged in the middle of the top end of the spring (5).

5. The yarn processing winding mechanism as claimed in claim 4, wherein: the roller (2) is rotatably arranged on the left side of the side end of the mounting plate (1), and the roller (2) is positioned on the upper left side of the main rod (3).

6. The yarn processing winding mechanism as claimed in claim 1, wherein: the middle parts of the two ends of the winding wheel (17) are provided with fixed blocks (19), and the fixed blocks (19) are fixedly arranged at the middle parts of the two ends of the rotating shaft (16).

7. A yarn processing winding mechanism as claimed in claim 3, wherein: the middle part of the top end of the bottom plate (20) is fixedly provided with a supporting plate (8).

8. The yarn processing winding mechanism as claimed in claim 7, wherein: the tail end of the guide rod (10) is fixedly arranged in the middle of the upper end of the supporting plate (8), and the tail end of the reciprocating screw rod (9) is rotatably arranged in the middle of the upper end of the supporting plate (8).
