CN214262672U - Peanut screening and collecting device for food processing - Google Patents
Peanut screening and collecting device for food processing Download PDFInfo
- Publication number
- CN214262672U CN214262672U CN202022636021.6U CN202022636021U CN214262672U CN 214262672 U CN214262672 U CN 214262672U CN 202022636021 U CN202022636021 U CN 202022636021U CN 214262672 U CN214262672 U CN 214262672U
- Authority
- CN
- China
- Prior art keywords
- screening
- plate
- food processing
- movable plate
- peanut
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Apparatuses For Bulk Treatment Of Fruits And Vegetables And Apparatuses For Preparing Feeds (AREA)
Abstract
The utility model discloses a peanut screening collection device for food processing relates to food processing technology field. This peanut screening collection device for food processing, including the fixing base, the inboard top of fixing base is provided with the movable plate, and the top of movable plate is provided with the screening case, and the bottom fixed mounting of screening case has telescopic sleeve, and telescopic sleeve's one end and the top fixed mounting of movable plate overlap on the telescopic sleeve and establish and install first spring, the one end of first spring and the bottom fixed mounting of screening case. This peanut screening collection device for food processing uses through motor, rotation post, disc, trace, fixed frame, sliding block, connecting rod and shock dynamo's cooperation, through the setting of rocking mechanism and shock dynamo, rocking and the in-process of vibrations, can filter the classification to the peanut, has reduced the condition emergence that the peanut blockked up through vibrations, has improved the efficiency of screening.
Description
Technical Field
The utility model relates to a food processing technology field specifically is a peanut screening collection device for food processing.
Background
The peanut fruit contains protein, fat, saccharide, vitamin A, vitamin B6, vitamin E, vitamin K, mineral calcium, phosphorus, iron and other nutrients, contains 8 kinds of amino acids and unsaturated fatty acids essential for human body, lecithin, choline, carotene, coarse fiber and other matters, has fat content of 44-45%, protein content of 24-36% and sugar content of about 20%, and contains rich vitamins B2, PP, A, D, E, calcium, iron, etc. as well as thiamine, riboflavin, nicotinic acid and other vitamins, and has the functions of promoting human brain cell development and strengthening memory.
The peanut is at the in-process of processing, need filter the classification to the peanut to improve the practicality of peanut, reach different application method, the screening of present part peanut is mainly filtered through the manual work on the one hand, to workman's amount of labour greatly increased like this, wastes time and energy moreover, and production efficiency is low, and on the other hand leads to the screening board to block up when filtering the peanut again, influences the efficiency of screening easily.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a peanut screening collection device for food processing to solve the problem that proposes in the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: a peanut screening and collecting device for food processing comprises a fixed seat, wherein a movable plate is arranged at the top of the inner side of the fixed seat, a screening box is arranged at the top of the movable plate, a telescopic sleeve is fixedly arranged at the bottom of the screening box, one end of the telescopic sleeve is fixedly arranged with the top of the movable plate, a first spring is sleeved on the telescopic sleeve, one end of the first spring is fixedly arranged with the bottom of the screening box, one end of the first spring is fixedly arranged with the top of the movable plate, a shaking mechanism is arranged at the bottom of the inner side of the fixed seat, a second spring is fixedly arranged at one side of the movable plate, one end of the second spring is fixedly arranged with the inner wall of one side of the fixed seat, a feeding pipe is fixedly arranged at the bottom of the screening box, the feeding pipe is communicated with the interior of the screening box, a first screening plate, a second screening plate and an inclined plate are fixedly arranged on the inner wall of one side of the screening box, and the first screening plate is positioned above the second screening plate, the second screening board is located the top of hang plate, and the opening has all been seted up to the both sides of screening case, and the top fixed mounting of fixing base has first riser and second riser.
Preferably, the bottom of the inner side of the fixed seat is provided with a sliding groove, a sliding block is arranged in the sliding groove in a sliding mode, the top of the sliding block is fixedly installed with the bottom of the movable plate, and the movable plate is installed with the fixed seat in a sliding mode.
Preferably, rocking mechanism is including the motor, the rotation post, the disc, the trace, fixed frame, sliding block and connecting rod, the inboard bottom fixed mounting of fixing base has the motor, the output shaft of motor has the rotation post through shaft coupling fixed mounting, the one end fixed mounting who rotates the post has the disc, the articulated trace of installing of the front side outer wall of disc, the inboard bottom fixed mounting of fixing base has fixed frame, the inside of fixed frame is provided with the sliding block, the one end of trace and the articulated installation of one side of sliding block, one side fixed mounting of sliding block has the connecting rod, one side of connecting rod and one side fixed mounting of movable plate, through rocking mechanism and shock dynamo's setting, at the in-process of rocking and vibrations, can screen classification the peanut, the condition that has reduced the peanut jam through vibrations takes place, the efficiency of screening has been improved.
Preferably, the guide plates are fixedly mounted on one sides of the first screening plate, the second screening plate and the inclined plate.
Preferably, the equal fixed mounting in adjacent one side of first riser and second riser has the board of placing, the top of placing the board is fixed and is placed first collection frame and second collection frame, the third collection frame has been placed at the top of fixing base, first collection frame, second collection frame and third collection frame all are in the below of stock guide, through the setting of first screening plate and second screening plate, utilize the hole size to the bottom on the screening plate, carry out the size separation to the peanut, reach the purpose to the screening of peanut classification, and through first collection frame, second collection frame and third collection frame carry out the categorised collection to the peanut, effectual classification efficiency that has improved, production efficiency has been accelerated.
Preferably, the equal fixed mounting in both sides inner wall of screening case has shock dynamo, through shock dynamo's setting, can carry out quick screening to the peanut through vibrations.
Compared with the prior art, the beneficial effects of the utility model are that:
(1) this peanut screening collection device for food processing uses through motor, rotation post, disc, trace, fixed frame, sliding block, connecting rod and shock dynamo's cooperation, through the setting of rocking mechanism and shock dynamo, rocking and the in-process of vibrations, can filter the classification to the peanut, has reduced the condition emergence that the peanut blockked up through vibrations, has improved the efficiency of screening.
(2) This peanut screening collection device for food processing, through first screening plate, the second screening plate, the hang plate, the stock guide, first collection frame, the cooperation that frame and third were collected to the second is used, setting through first screening plate and second screening plate, utilize the hole size from top to bottom of screening plate, carry out size separation to the peanut, reach the purpose to the screening of peanut classification, and through first collection frame, frame and third are collected to the second and the peanut is carried out classification collection, the effectual classification efficiency that has improved, and production efficiency is accelerated.
Drawings

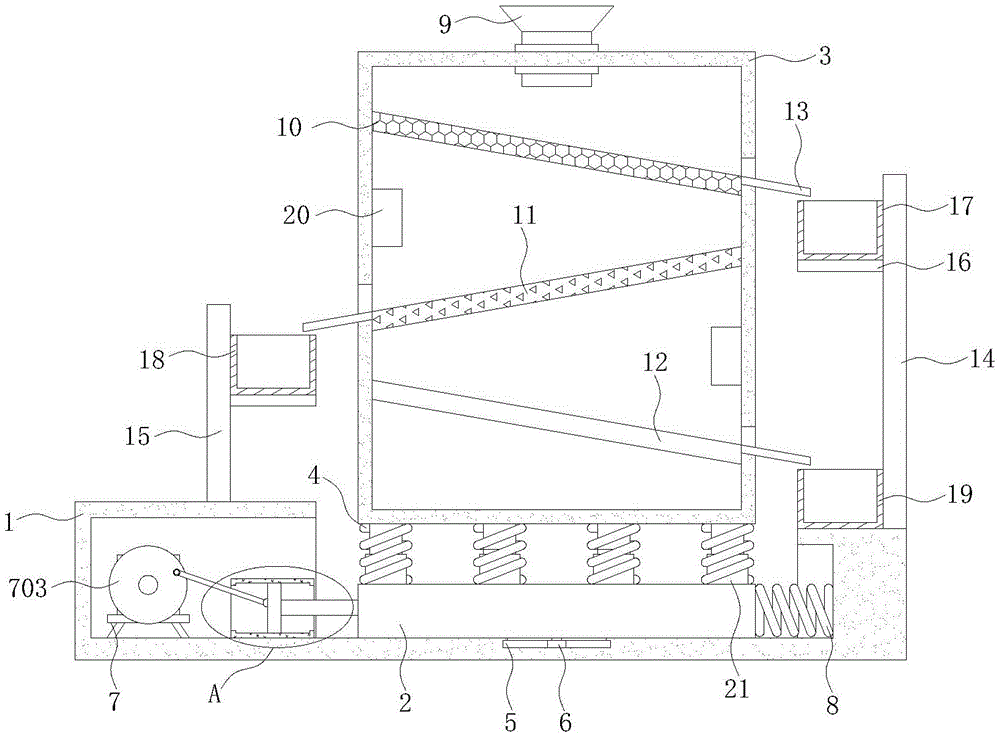

Fig. 1 is a schematic structural view of the present invention;
FIG. 2 is a left side view of the disc of the present invention;
FIG. 3 is an enlarged view of part A of the present invention;
fig. 4 is a front view of the present invention.
In the figure: 1 fixing base, 2 movable plates, 3 screening casees, 4 first spring, 5 spouts, 6 sliders, 7 rock the mechanism, 701 motor, 702 rotation post, 703 disc, 704 trace, 705 fixed frame, 706 slider, 707 connecting rod, 8 second spring, 9 inlet pipes, 10 first screening boards, 11 second screening boards, 12 hang plates, 13 stock guide, 14 first riser, 15 second riser, 16 place the board, 17 first collection frame, 18 second collection frame, 19 third collection frame, 20 shock dynamo, 21 telescopic sleeve.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-4, the present invention provides a technical solution: the utility model provides a peanut screening collection device for food processing, including fixing base 1, the inboard top of fixing base 1 is provided with movable plate 2, the top of movable plate 2 is provided with screening case 3, the bottom fixed mounting of screening case 3 has telescopic sleeve 21, the one end of telescopic sleeve 21 and the top fixed mounting of movable plate 2, telescopic sleeve 21 is gone up to establish and is installed first spring 4, the one end of first spring 4 and the bottom fixed mounting of screening case 3, the one end of first spring 4 and the top fixed mounting of movable plate 2, the inboard bottom of fixing base 1 is provided with rocks mechanism 7, one side fixed mounting of movable plate 2 has second spring 8, the one end of second spring 8 and one side inner wall fixed mounting of fixing base 1, the bottom fixed mounting of screening case 3 has inlet pipe 9, inlet pipe 9 communicates with each other with the inside of screening case 3, one side inner wall fixed mounting of screening case 3 has first screening board 10, Second screening board 11 and hang plate 12, first screening board 10 is located the top of second screening board 11, and second screening board 11 is located the top of hang plate 12, and the opening has all been seted up to the both sides of screening case 3, and the top fixed mounting of fixing base 1 has first riser 14 and second riser 15.
The bottom of the inner side of the fixed seat 1 is provided with a sliding groove 5, the inside of the sliding groove 5 is provided with a sliding block 6 in a sliding way, the top of the sliding block 6 is fixedly installed with the bottom of the movable plate 2, the movable plate 2 is slidably installed with the fixed seat 1, the shaking mechanism 7 comprises a motor 701, a rotating column 702, a disc 703, a linkage rod 704, a fixed frame 705, a sliding block 706 and a connecting rod 707, the bottom of the inner side of the fixed seat 1 is fixedly installed with the motor 701, the output shaft of the motor 701 is fixedly installed with the rotating column 702 through a coupler, one end of the rotating column 702 is fixedly installed with the disc 703, the outer wall of the front side of the disc 703 is hinged with the linkage rod 704, the bottom of the inner side of the fixed seat 1 is fixedly installed with the fixed frame 705, the sliding block 706 is arranged inside the fixed frame 705, one end of the linkage rod 704 is hinged with one side of the sliding block 706, one side of the sliding block 706 is fixedly installed with the connecting rod 707, one side of the movable plate is fixedly installed with one side of the connecting rod 2, the shelled peanuts are poured into the feeding pipe 9, the motor 701 is started, the motor 701 drives the disc 703 on the rotating column 702 to rotate, the linkage rod 704 drives the sliding block 706 to slide, the screening box 3 on the moving plate 2 is driven to shake through the connecting rod 707, the peanuts can be screened and classified in the shaking and vibrating process through the arrangement of the shaking mechanism 7, the occurrence of peanut blockage is reduced through vibration, the screening efficiency is improved, the material guide plate 13 is fixedly arranged on one side of each of the first screening plate 10, the second screening plate 11 and the inclined plate 12, the placing plate 16 is fixedly arranged on the adjacent side of each of the first vertical plate 14 and the second vertical plate 15, the first collecting frame 17 and the second collecting frame 18 are fixedly arranged on the top of the placing plate 16, the third collecting frame 19 is arranged on the top of the fixed seat 1, the first collecting frame 17, the second collecting frame 18 and the third collecting frame 19 are all positioned below the material guide plate 13, the peanuts with larger shaking are conveyed from the material guide plate 13 to the inside of the first collection frame 17, the rest peanuts fall from the first screening plate 10 to the second screening plate 11, the medium peanuts are conveyed from the material guide plate 13 on the second screening plate 11 to the inside of the second collection frame 18, the rest peanuts fall on the inclined plate 12 and are conveyed to the inside of the third collection frame 19 through the material guide plate 13, the peanuts are separated in size through the arrangement of the first screening plate 10 and the second screening plate 11 by utilizing the sizes of holes from the upper part to the lower part of the screening plates, the purpose of sorting and screening the peanuts is achieved, the peanuts are sorted and collected through the first collection frame 17, the second collection frame 18 and the third collection frame 19, the sorting efficiency is effectively improved, the production efficiency is accelerated, the inner walls on the two sides of the screening box 3 are fixedly provided with the shaking motors 20, the shaking motors 20 are started, the screening box 3 is driven to shake through the shaking motors 20, through vibrating motor 20's setting, can carry out quick screening to the peanut through vibrations.
The working principle is as follows: the peanuts after husking are poured into the peanut husking machine through the feeding pipe 9, the motor 701 is started, the motor 701 drives the disc 703 on the rotating column 702 to rotate, the linkage rod 704 drives the sliding block 706 to slide, the screening box 3 on the moving plate 2 is driven to shake through the connecting rod 707, the vibration motor 20 is started at the same time, the screening box 3 is driven to shake through the vibration motor 20, the larger peanuts are conveyed to the inside of the first collecting frame 17 from the material guide plate 13, the rest peanuts fall onto the second screening plate 11 from the first screening plate 10, the medium peanuts are conveyed to the inside of the second collecting frame 18 from the material guide plate 13 on the second screening plate 11, and the rest peanuts fall onto the inclined plate 12 and are conveyed to the inside of the third collecting frame 19 through the material guide plate 13.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a peanut screening collection device for food processing, includes fixing base (1), its characterized in that: the movable plate is arranged at the top of the inner side of the fixed seat (1), the screening box (3) is arranged at the top of the movable plate (2), a telescopic sleeve (21) is fixedly arranged at the bottom of the screening box (3), one end of the telescopic sleeve (21) is fixedly arranged with the top of the movable plate (2), a first spring (4) is sleeved on the telescopic sleeve (21), one end of the first spring (4) is fixedly arranged with the bottom of the screening box (3), one end of the first spring (4) is fixedly arranged with the top of the movable plate (2), a shaking mechanism (7) is arranged at the bottom of the inner side of the fixed seat (1), a second spring (8) is fixedly arranged at one side of the movable plate (2), one end of the second spring (8) is fixedly arranged with the inner wall at one side of the fixed seat (1), an inlet pipe (9) is fixedly arranged at the bottom of the screening box (3), the inlet pipe (9) is communicated with the inside of the screening box (3), one side inner wall fixed mounting of screening case (3) has first screening board (10), second screening board (11) and hang plate (12), and first screening board (10) are located the top of second screening board (11), and second screening board (11) are located the top of hang plate (12), and the opening has all been seted up to the both sides of screening case (3), and the top fixed mounting of fixing base (1) has first riser (14) and second riser (15).
2. The screening and collecting device for peanuts for food processing as claimed in claim 1, wherein: spout (5) have been seted up to the inboard bottom of fixing base (1), and the inside slidable mounting of spout (5) has slider (6), and the top of slider (6) and the bottom fixed mounting of movable plate (2), movable plate (2) and fixing base (1) slidable mounting.
3. The screening and collecting device for peanuts for food processing as claimed in claim 1, wherein: the shaking mechanism (7) comprises a motor (701), a rotating column (702), a disc (703), a linkage rod (704), a fixed frame (705), a sliding block (706) and a connecting rod (707), the inner side bottom of the fixed seat (1) is fixedly provided with a motor (701), an output shaft of the motor (701) is fixedly provided with a rotating column (702) through a coupler, one end of the rotating column (702) is fixedly provided with a disc (703), the outer wall of the front side of the disc (703) is hinged with a linkage rod (704), the inner side bottom of the fixed seat (1) is fixedly provided with a fixed frame (705), the inside of the fixed frame (705) is provided with a sliding block (706), one end of the linkage rod (704) is hinged with one side of the sliding block (706), one side of the sliding block (706) is fixedly provided with a connecting rod (707), and one side of the connecting rod (707) is fixedly arranged with one side of the moving plate (2).
4. The screening and collecting device for peanuts for food processing as claimed in claim 1, wherein: and material guide plates (13) are fixedly arranged on one sides of the first screening plate (10), the second screening plate (11) and the inclined plate (12).
5. The screening and collecting device for peanuts for food processing as claimed in claim 1, wherein: the all fixed mounting in adjacent one side of first riser (14) and second riser (15) has places board (16), places the top of board (16) and fixedly places first collection frame (17) and second collection frame (18), and third collection frame (19) have been placed at the top of fixing base (1), and first collection frame (17), second collection frame (18) and third collection frame (19) all are in the below of stock guide (13).
6. The screening and collecting device for peanuts for food processing as claimed in claim 1, wherein: the inner walls of the two sides of the screening box (3) are fixedly provided with vibrating motors (20).
