Abstract
The utility model discloses a trachea cannula seaming that accords with anatomy characteristic and safety, including supporting component and sleeve part, supporting component cavity, sleeve part suit is on supporting component, and sleeve part's hardness is less than supporting component's hardness, and sleeve part's appearance and human oral cavity local anatomy structure adaptation, sleeve part's lateral wall are equipped with the recess, and the recess axial link up sleeve part's preceding, rear end, recess and trachea cannula adaptation. The utility model provides a exist not enough among the prior art, disclose a trachea cannula seam of stinging that accords with anatomy characteristic and safety, can protect trachea cannula pipe, reduce the risk that intubate in-process complication appears simultaneously, have good practical function.
Description
Technical Field
The invention relates to the field of medical instruments, in particular to a trachea cannula mouthpiece.
Background
The trachea cannula is a technology for placing a special trachea catheter into a trachea through a glottis, can provide optimal conditions for smooth air passage, ventilation and oxygen supply, respiratory tract suction, prevention of aspiration and the like, and is an important tool in the medical process of critical rescue, general anesthesia and the like at present. The trachea cannula catheter can regulate and control oxygen and carbon dioxide, administer inhalation anesthetic, absorb secretion and the like, so that the effective guarantee of the trachea cannula catheter is the key for ensuring the safety of patients under rescue or general anesthesia conditions. At present in the clinical use, after putting the suitable position of glottis to trachea cannula pipe, in order to prevent that the pipe from shifting and patient harm the pipe, can put into a bite in patient's mouth behind the intubate usually, adopt medical sticky tape and trachea cannula pipe fixed, fix in patient's bilateral face portion after the winding with the sticky tape simultaneously. The fixing method needs to use more adhesive tapes, and the safety and the aesthetic property in the using process are influenced. More importantly, the main material of the currently used mouthpiece is polyethylene, the hardness is high, the mouthpiece is of a straight structure and does not conform to the characteristics of human anatomy, the palate, lips and teeth of a patient are easily injured in the use process, especially for old patients, patients using immunosuppressants, patients undergoing radiotherapy and chemotherapy and the like, the risks of instrument-related mucosal injury and tooth falling are increased, the infection risk of the patient is increased, adverse complications after intubation are increased, the consumption of medical resources is increased, and the pain and medical burden of the patient are increased.
Disclosure of Invention
An object of the utility model is to solve exist among the prior art not enough, disclose a trachea cannula seam that accords with anatomy characteristic and safety, can protect trachea cannula pipe, reduce the risk that intubate in-process complication appears simultaneously, have good practical function.
In order to achieve the purpose, the utility model adopts the following technical proposal to realize:
the utility model discloses a trachea cannula seaming that accords with anatomical feature and safety, including supporting component and bushing part, supporting component cavity, bushing part suit is on supporting component, and bushing part's hardness is less than supporting component's hardness, bushing part's outer wall and human oral cavity local anatomy structure adaptation, bushing part's lateral wall are equipped with the recess, the recess axial link up bushing part's preceding, rear end, recess and trachea cannula adaptation.
Preferably, the support member is tubular, and comprises a straight section at the front part and a bent section at the rear part; the cannula member includes a straight section at the front and a curved section at the rear.
Further, the utility model discloses still include the fixed band, the one end of fixed band links firmly the support component, the lateral wall of sleeve part is equipped with the seam that supplies the fixed band to pass.
Preferably, the tracheal cannula is embedded in the groove, and the fixing band radially wraps the tracheal cannula and the sleeve part.
Preferably, the fixing tape is a pressure sensitive adhesive tape.
Preferably, the support component is made of polyethylene, and the sleeve component is made of silica gel or cotton woven cloth.
It is further preferred that the sleeve member comprises a membrane fixedly attached to the support member, the membrane encasing the filler material.
Preferably, the sleeve member entirely covers the support member.
Preferably, the outer diameter of the supporting part is 11-13mm, the inner diameter is 8-12mm, and the length is 60-70 mm; the length of the fixing band is 60-80 mm.
The utility model discloses a use method as follows:
the utility model discloses need pass through sterilization before using, after trachea cannula operation is accomplished, will the utility model discloses put into along the mouth, make its bow face towards the palate, the concave surface is towards the tongue body, after the adjustment rear position, hugs closely trachea cannula in its side depressed grains department, and the right side pulls out the fixed band and puts in the cheek, later will the utility model discloses it is fixed through the sticky tape with the trachea cannula pipe, passes through at last the utility model discloses a pressure-sensitive adhesive material of fixed band, will the utility model discloses with trachea cannula pipe monolithic stationary in people's face, prevent that trachea cannula pipe from shifting in the use. The patient's upper and lower teeth will then bite onto the cannula part.
The utility model has the advantages as follows:
1. the utility model discloses overall structure has the bending, agrees with human oral anatomy, can reduce the damage of inserting the in-process to oral structure, mucous membrane tissue during the use.
2. Corresponding instruments and catheters can be placed into the supporting component with the hollow structure, certain clinical use value is achieved, the supporting component has certain hardness, the trachea cannula catheter can be prevented from being damaged and bent by teeth or other oral cavity structures, and accordingly smoothness of an airway is guaranteed.
3. The peripheral sleeve part is made of soft materials, can play a role in buffering, prevents the injury of the relevant mucous membrane of the apparatus and the injury of teeth or other oral structures in the process of maintaining ventilation through the tracheal intubation, and reduces the incidence rate of complications after intubation, thereby reducing the pain and medical burden of patients.
4. The fixed band can help the intubate to be fixed in people's face to can be according to the fixed firm degree of pressure adjustment, also can prevent the damage of baffle structure that uses at present to lip and gum.
5. The utility model is disposable, can satisfy the disinfection and sterilization of the surgical operation standard, has light materials and low price, and can not increase the economic burden of patients.
Drawings

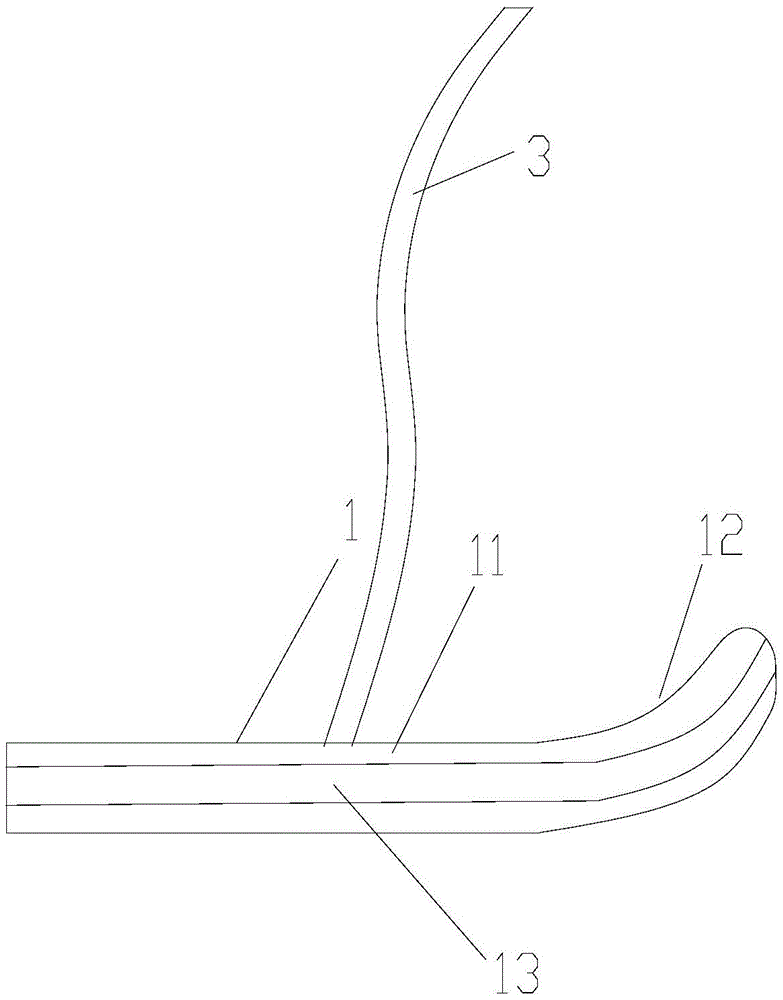

Fig. 1 is a schematic structural view of the present invention;
fig. 2 is an end view of the present invention.
Detailed Description
In order to make the objects, technical solutions and advantages of the present invention more clearly understood, the present invention is further described in detail below with reference to the accompanying drawings.
As shown in fig. 1 and 2, the utility model discloses an anatomically correct and safe endotracheal intubation mouthpiece, which comprises a support part 2 and a sleeve part 1, wherein the support part 2 is hollow, the support part 2 is tubular, and the support part comprises a straight line section at the front part and a bent section at the rear part; the sleeve part 1 is sleeved on the supporting part 2, the hardness of the sleeve part 2 is smaller than that of the supporting part 1, the sleeve part 1 comprises a straight line section 11 located in the front part and a bending section 12 located in the rear part, the outer wall of the sleeve part 1 is matched with the local anatomical structure of the oral cavity of a human body, a groove 13 is formed in the side wall of the sleeve part 1, the groove 13 axially penetrates through the front end and the rear end of the sleeve part 1, and the groove 13 is matched with the tracheal cannula.
The utility model discloses still include fixed band 3, fixed band 3 is pressure sensitive adhesive tape, and the one end of fixed band links firmly the support component, and the lateral wall of sleeve part is equipped with the seam that supplies the fixed band to pass, and trachea cannula inlays the dress in recess 13, and 3 radial winding trachea cannula and sleeve part of fixed band. The material of support component 2 is polyethylene, and the material of sleeve part 1 includes silica gel or cotton spinning, and sleeve part 1 includes the film, film and support component 2 fixed connection, film parcel filling material. The sleeve member 1 covers the support member 1 entirely.
The outer diameter of the supporting part 2 is 11-13mm, the inner diameter is 8-12mm, and the length is 60-70 mm; the length of the fixing band is 60-80 mm.
Specifically, the method comprises the following steps:
the utility model is disposable and can be used for standard disinfection and sterilization of surgical operation. The sleeve is wrapped on the periphery of the hollow supporting structure, and the overall shape of the sleeve is slightly bent, so that the anatomical characteristics of the oral cavity of a human body are met.
The polyethylene hollow device is straight in head end, slightly bent in tail end, 11-13mm in outer diameter, 8-12mm in inner diameter and 60-70mm in length, and a fixing band is fixed in the middle of the hollow device.
The sleeve part 1 is made of soft materials, can be made of silica gel or cotton fabric materials, a thin film is arranged on the periphery of the sleeve structure and fixed with the hollow structure, filled materials are wrapped, the sleeve wraps the hollow structure, and a gap is formed in the side wall of the sleeve for the fixing band to penetrate out. The sleeve part 1 on the opposite side of the fixing band 3 is provided with a groove 13 for matching with the tracheal intubation tube.
The fixing belt is 60-80mm long, is composed of white non-woven fabric gum of propylene adhesive, is coated with pressure-sensitive acrylic adhesive, and can be firmly adhered to human body surface skin.
Of course, the present invention may have other embodiments, and those skilled in the art may make various corresponding changes and modifications according to the present invention without departing from the spirit and the essence of the present invention, and these corresponding changes and modifications should fall within the protection scope of the appended claims.
Claims (9)
1. An anatomically correct and safe endotracheal tube mouthpiece, comprising: the tracheal cannula comprises a supporting part and a sleeve part, wherein the supporting part is hollow, the sleeve part is sleeved on the supporting part, the hardness of the sleeve part is smaller than that of the supporting part, the appearance of the sleeve part is matched with the local anatomical structure of the oral cavity of a human body, a groove is formed in the side wall of the sleeve part, the groove axially penetrates through the front end and the rear end of the sleeve part, and the groove is matched with the tracheal cannula.
2. An anatomically correct and safe endotracheal tube mouthpiece of claim 1, characterized in that: the supporting component is tubular and comprises a straight section positioned at the front part and a bent section positioned at the rear part; the cannula member includes a straight section at the front and a curved section at the rear.
3. An anatomically correct and safe endotracheal tube mouthpiece of claim 1, characterized in that: the fixing device is characterized by further comprising a fixing belt, wherein one end of the fixing belt is fixedly connected with the supporting component, and a seam for the fixing belt to penetrate through is formed in the side wall of the sleeve component.
4. An anatomically correct and safe endotracheal tube mouthpiece of claim 3, characterized in that: the trachea cannula is embedded in the groove, and the fixing band can radially wind the trachea cannula and the sleeve part.
5. An anatomically correct and safe endotracheal tube mouthpiece of claim 3 or 4, characterized in that: the fixing band is a pressure-sensitive adhesive tape and can be stuck to the facial skin of a human body.
6. An anatomically correct and safe endotracheal tube mouthpiece of claim 1, characterized in that: the material of the supporting part is polyethylene, and the material of the sleeve part comprises silica gel or cotton woven cloth.
7. An anatomically correct and safe endotracheal tube mouthpiece of claim 6, characterized in that: the sleeve part comprises a film which is fixedly connected with the supporting part, and the film wraps the filling material.
8. An anatomically correct and safe endotracheal tube mouthpiece of claim 1, characterized in that: the sleeve member entirely covers the support member.
9. An anatomically correct and safe endotracheal tube mouthpiece of claim 3, characterized in that: the outer diameter of the supporting part is 11-13mm, the inner diameter is 8-12mm, and the length is 60-70 mm; the length of the fixing band is 60-80 mm.
