CN213896965U

CN213896965U - Accumulated soil pushing device for road maintenance

Info

Publication number: CN213896965U
Application number: CN202022887846.5U
Authority: CN
Inventors: 刘宏艳
Original assignee: Individual
Current assignee: Individual
Priority date: 2020-12-06
Filing date: 2020-12-06
Publication date: 2021-08-06
Anticipated expiration: 2030-12-06

Abstract

A pushing device for road maintenance accumulated soil. Belongs to the technical field of road maintenance. The sand and soil accumulated at the bottom of the guardrail between the two-way lanes needs to be manually pushed to the roads on two sides by a shovel and then collected by a bulldozer, and the cleaning efficiency is low. The utility model discloses a: the device comprises a crawler-type remote control car (1), an L-shaped fixed plate (2) and a push plate (4), wherein the L-shaped fixed plate is fixed at the top of the crawler-type remote control car, and the push plate is fixed at the vertical section of the L-shaped fixed plate; the push pedal includes V-arrangement board (8) and two branch (7), and the both ends of V-arrangement board articulate respectively has rotor plate (5), and the one end of two branch welds with the contained angle department of V-arrangement board, and the other end welds with backplate (10), and the backplate passes through the bolt fastening with the vertical section of L shape fixed plate, and both sides are fixed with spring (6) respectively around every branch, and the spring is fixed on the rotor plate. The utility model is used for the long-pending soil release of road maintenance.

Description

Accumulated soil pushing device for road maintenance

Technical Field

The utility model relates to a highway maintenance technical field, specifically speaking relates to a road maintenance is native ejecting device that accumulates.

Background

The maintenance of the highway is the maintenance and the maintenance of the highway, the maintenance is mainly performed in the whole process from the building of the traffic vehicle, the maintenance is mainly performed in the repairing of the damaged part, the highway, particularly some highways in mountainous areas, is often accumulated with sand, so the sand needs to be cleaned when the highway is maintained, the sand on the road surface is cleaned by a bulldozer, but the sand accumulated at the bottom of a guardrail between two-way lanes needs to be manually pushed to the roads on two sides by shovels and then collected by the bulldozer, and the cleaning efficiency is low.

SUMMERY OF THE UTILITY MODEL

In order to solve the shortcomings of the prior art, the utility model aims to provide a road maintenance accumulated soil ejecting device to overcome the defects in the prior art.

In order to achieve the purpose, the utility model provides a road maintenance accumulated soil push-out device, which comprises a crawler-type remote control car, an L-shaped fixed plate and a push plate, wherein the L-shaped fixed plate is fixed at the top of the crawler-type remote control car, and the push plate is fixed at the vertical section of the L-shaped fixed plate;

the push pedal include V-arrangement board and two branch, the both ends of V-arrangement board articulated respectively have a rotor plate, two the one end of branch with the contained angle department welding of V-arrangement board, the other end and backplate welding, the backplate with the vertical section of L shape fixed plate pass through the bolt fastening, every branch around both sides be fixed with the spring respectively, the spring fix the rotor plate on.

As right a road maintenance soil accumulation ejecting device's further explanation, preferably, the backplate on set up two slide holes, L shape backplate on the welding have four double-screw bolts, the double-screw bolt pass behind the slide hole with nut threaded connection.

As a further explanation of the road maintenance soil accumulation pushing device of the present invention, preferably, the length of the rotating plate is greater than 1 time of the length of one side of the V-shaped plate and less than 1.5 times of the length of one side of the V-shaped plate.

As right the utility model discloses a road maintenance is native ejecting device's further explanation, preferably, the height less than or equal to of push pedal the height of crawler-type telecar.

As to the further explanation of the road maintenance accumulated soil push-off device of the present invention, preferably, the width between the two ends of the V-shaped plate is equal to the width of the crawler-type remote control car.

The utility model has the advantages that:

1. the utility model discloses a crawler-type telecar walks between the twice guardrail between the two-way lane of highway, and the push pedal through the front side promotes the sandy soil of bottom, with its promotion to the guardrail both sides, does not need the spade for the maintainer to push away it to the guardrail both sides, can improve sandy soil cleaning efficiency, guarantees the clearance effect simultaneously.

2. The utility model discloses a crawler-type telecar can be applicable to the walking on the ground of different topography.

3. The utility model discloses V-arrangement board both sides are articulated with the rotor plate respectively, when the crawler-type telecar advances to walk, touch the rotor plate rotation behind the stabilizer blade of guardrail bottom, can guarantee that the device passes through stabilizer blade department smoothly, and the rotor plate gets back to initial position under the effect of spring after through the stabilizer blade, continues to lead to the guardrail both sides with sand and soil.

Drawings

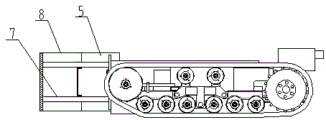

Fig. 1 is a front view of the present invention;

fig. 2 is a top view of the present invention;

FIG. 3 is a schematic structural view of the present invention;

FIG. 4 is a cross-sectional view taken along line A-A of FIG. 3;

FIG. 5 is a schematic structural view of the raised push plate;

FIG. 6 is a schematic view of the structure of the present invention;

FIG. 7 is a schematic structural view of a push plate replaced with a T-shaped push plate;

the reference numerals are explained below:

in the figure: 1. a crawler-type remote control car; 2. an L-shaped fixing plate; 3. a remote controller; 4. pushing the plate; 5. a rotating plate; 6. a spring; 7. a strut; 8. a V-shaped plate; 9. a guardrail; 10. a back plate; 11. a bolt; 12. a slide hole; 13. and a nut.

Detailed Description

In order to further understand the structure, characteristics and other objects of the present invention, the following detailed description is given with reference to the accompanying preferred embodiments, which are only used to illustrate the technical solution of the present invention and are not intended to limit the present invention.

The road maintenance accumulated soil pushing device comprises a crawler-type remote control car 1, an L-shaped fixed plate 2 and a push plate 4, wherein the L-shaped fixed plate is fixed at the top of the crawler-type remote control car, and the push plate is fixed at the vertical section of the L-shaped fixed plate;

the push pedal include V-arrangement board 8 and two branch 7, the both ends of V-arrangement board articulated respectively have rotor plate 5, two the one end of branch with the contained angle department welding of V-arrangement board, the other end welds with backplate 10, the backplate with the vertical section of L shape fixed plate pass through the bolt fastening, every branch around both sides be fixed with spring 6 respectively, the spring fix the rotor plate on.

The structure of crawler-type telecar is constituteed and is conventional technique with the remote control form of remote controller, and the remote control form of crawler-type telecar and remote controller is: be provided with the button module on the remote controller 3, the remote control mainboard, the remote control transmission head, the remote control mainboard respectively with the button module, remote control transmission head electric connection, the button module is including advancing the key, retreat the key, turn left the key, turn right the key, the user passes through button module input control command, button module with signal input to the remote control mainboard, handle the back with signal output to the remote control transmission head and by the remote control transmission head with signal transmission to crawler-type telecar through the remote control mainboard.

Be provided with the controller on the crawler-type telecar, set up mainboard, communication module, drive circuit, the motor and the power of connecting the telecar athey wheel in the controller, the mainboard respectively with communication module, drive circuit, power electric connection, this drive circuit and motor electric connection, the signal that comes from the remote controller is received to the communication module on the telecar, and communication module is through decoding back with signal input to the mainboard, inputs drive circuit after the mainboard is handled.

In the second embodiment, two sliding holes 12 are formed in the back plate, four studs 11 are welded to the L-shaped back plate, the studs penetrate through the sliding holes and are in threaded connection with nuts 13, the four nuts can be unscrewed when the sandy soil is not pushed, then the push plate is lifted upwards, so that the height of the push plate is raised, and the nuts are screwed after the height is raised, so that the device can be conveniently moved.

In a third specific embodiment, the length of the rotating plate is greater than 1 time of the length of one side of the V-shaped plate and less than 1.5 times of the length of one side of the V-shaped plate, in order to ensure that the side of the rotating plate hinged to the V-shaped plate is located between the two guardrails and the other side of the rotating plate extends out of the guardrails, the sandy soil can be completely pushed out of the two guardrails onto the road.

In a fourth specific embodiment, the present embodiment is a further description of the first specific embodiment of the device for pushing out soil accumulated in road maintenance, and the height of the push plate is less than or equal to the height of the crawler-type remote control car, so that the crawler-type remote control car can smoothly enter between the two guardrails and smoothly pass through between the two guardrails.

In a fifth specific embodiment, the present embodiment is a further description of the road maintenance accumulated soil pushing device of the first specific embodiment, wherein the width between the two ends of the V-shaped plate is equal to the width of the crawler-type remote control car, and the V-shaped plate is completely located between the two guardrails, so that the crawler-type remote control car can smoothly walk between the two guardrails.

The working principle is as follows: the device of the utility model is suitable for being used as shown in figure 6, two guardrails are arranged between two bidirectional roads of a road, a reflecting plate between the two guardrails is welded between the two guardrails 9, no independent pillar is arranged, meanwhile, the device is used under the condition that no step is poured at the bottom of the guardrail, when sandy soil is accumulated under the guardrails under the condition, a crawler-type remote control vehicle is started to walk to move between the two guardrails, the front side of the crawler-type remote control vehicle faces the walking direction of the road, then all four nuts are unscrewed, the nuts are screwed after a push plate slides downwards, then the crawler-type remote control vehicle is controlled by a remote controller to walk between the two guardrails, the push plate pushes the sandy soil on the ground to the roads at the two sides of the guardrail when the crawler-type remote control vehicle walks, when the rotating plate touches the pillar of the guardrail, the rotating plate rotates under the pressure of the pillar, after the rotating plate moves over the position of the pillar, the rotating plate returns to the initial position under the action of the spring, the sandy soil is continuously guided, the device is moved out of the guardrail after the sandy soil is pushed, then the four nuts are unscrewed, and the nuts are screwed after the push plate is pushed upwards;

when a guardrail is arranged between two-way roads of a highway or a reflector between two guardrails is provided with a pillar separately to support on the ground, the back plate can be detached from the L-shaped fixing plate, then the T-shaped push plate is replaced to be fixed on the L-shaped fixing plate, as shown in figure 7, then the crawler-type remote control car is rotated to the direction vertical to the guardrails, and sandy soil under the guardrails is pushed out to the roads.

It should be noted that the above mentioned embodiments and embodiments are intended to demonstrate the practical application of the technical solution provided by the present invention, and should not be interpreted as limiting the scope of the present invention. Various modifications, equivalent substitutions and improvements will occur to those skilled in the art and are intended to be within the spirit and scope of the present invention. The protection scope of the present invention is subject to the appended claims.

Claims

1. The road maintenance accumulated soil pushing device is characterized by comprising a crawler-type remote control car, an L-shaped fixed plate and a push plate, wherein the L-shaped fixed plate is fixed at the top of the crawler-type remote control car, and the push plate is fixed at the vertical section of the L-shaped fixed plate;

2. The road maintenance accumulated soil push-out device as claimed in claim 1, wherein two sliding holes are formed in the back plate, four studs are welded to the L-shaped back plate, and the studs penetrate through the sliding holes and are in threaded connection with nuts.

3. A road maintenance accumulated soil push-out device as claimed in claim 2, wherein the length of the rotating plate is greater than 1 time of the length of one side of the V-shaped plate and less than 1.5 times of the length of one side of the V-shaped plate.

4. The road maintenance accumulated soil pushing device as claimed in claim 3, wherein the height of the pushing plate is less than or equal to the height of the crawler-type remote control car.

5. A road maintenance accumulated soil push-out device as claimed in claim 4, wherein the width between the two ends of the V-shaped plate is equal to the width of the remote-control crawler vehicle.
