Abstract
The utility model discloses a portable automation equipment maintenance platform relates to maintenance platform technical field, need rely on the manual work to maintain and detect after breaking down for solving the current automation industry equipment among the prior art, and traditional testing platform is bulky, no matter is the maintenance process or the loading and unloading process of equipment all very troublesome problem. The top of first maintenance workstation and second maintenance workstation is provided with the suspended support framework, and the top of suspended support framework is provided with track frame, track frame's inboard is provided with automatically controlled sliding sleeve subassembly, and automatically controlled sliding sleeve subassembly and track frame sliding connection, the top of first maintenance workstation and second maintenance workstation all is provided with equipment unit platform, and equipment unit platform passes through bolted connection with first maintenance workstation and second maintenance workstation, one side of equipment unit platform is provided with maintenance unit platform.
Description
Technical Field
The utility model relates to a maintenance platform technical field specifically is portable automation equipment maintenance platform.
Background
Industrial automation is a trend of widely adopting automatic control and automatic adjustment devices in industrial production to replace manual operation machines and machine systems for processing production. Under industrial production automation conditions, humans only take care and supervise machines indirectly to produce. The industrial automation can be divided into the following stages according to the development stages: (1) semi-automatic. I.e. partly by automatic control and automation, and partly by manually operated machines. (2) The method is full-automatic. The whole procedures in the production process, including feeding, blanking, loading and unloading, do not need people to directly carry out production operation, and one or a batch of products are continuously and repeatedly automatically produced by a machine.
However, the existing automatic industrial equipment needs to be maintained and detected manually after the equipment fails, and the traditional detection platform has a large volume, so that the traditional detection platform is extremely troublesome in both the maintenance process and the equipment loading and unloading process; thus, the existing needs are not met, for which we propose a portable automation device maintenance platform.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a portable automation equipment maintenance platform to need to rely on the manual work to maintain and detect after solving the current automation industry equipment that proposes in the above-mentioned background art and break down, and traditional testing platform is bulky, no matter is the maintenance process or the loading and unloading process of equipment all very troublesome problem.
In order to achieve the above object, the utility model provides a following technical scheme: a portable automatic equipment maintenance platform comprises a first maintenance workbench and a second maintenance workbench, a suspension supporting framework is arranged above the first maintenance workbench and the second maintenance workbench, a track frame is arranged above the suspension supporting framework, an electric control sliding sleeve component is arranged at the inner side of the track frame, and the electric control sliding sleeve component is connected with the track frame in a sliding way, the tops of the first maintenance workbench and the second maintenance workbench are both provided with an equipment unit platform, the equipment unit platform is connected with the first maintenance workbench and the second maintenance workbench through bolts, one side of the equipment unit platform is provided with a maintenance unit platform, and the maintenance unit platform is rotationally connected with the equipment unit platform through a hydraulic drive rotating shaft, one side of the top of the equipment unit platform is provided with a limiting sleeved shaft seat, and the limiting sleeved shaft seat is connected with the equipment unit platform through a bolt.
Preferably, a central object placing groove is arranged between the first maintenance workbench and the second maintenance workbench and is located below the maintenance unit platform.
Preferably, the two sides of the first maintenance workbench and the second maintenance workbench are both provided with tooling tripods, and the tooling tripods are connected with the first maintenance workbench and the second maintenance workbench through bolts.
Preferably, the two ends of the first maintenance workbench and the second maintenance workbench are respectively provided with a tool storage drawer, and the tool storage drawers are connected with the first maintenance workbench and the second maintenance workbench in a sliding manner.
Preferably, the overhung support structure comprises a receiving sleeve shaft and an extending shaft, and the extending shaft is telescopically connected with the receiving sleeve shaft.
Preferably, the accommodating sleeve shaft is connected with the limiting sleeve shaft seat through a clamping groove, and the extending shaft rod is connected with the track frame through a screw.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the utility model discloses a make up first maintenance workstation and second maintenance workstation and use, and install the top at two sets of maintenance workstations with the overhung supporting framework, and after two sets of maintenance workstations make up, maintenance unit platform will be in the central zone of whole maintenance platform, the both sides of maintaining unit platform simultaneously are equipment unit platform, install the mechanism that is used for the maintenance on equipment unit platform, move some heavier equipment to the central thing groove of putting between the maintenance workstation through the transport vechicle when overhauing, maintenance unit platform need overturn the expansion downwards before here, later through the centre gripping on the automatically controlled sliding sleeve subassembly or suspend the mechanism in midair and hoist equipment, and place it on the maintenance unit platform that draws in.
Drawings

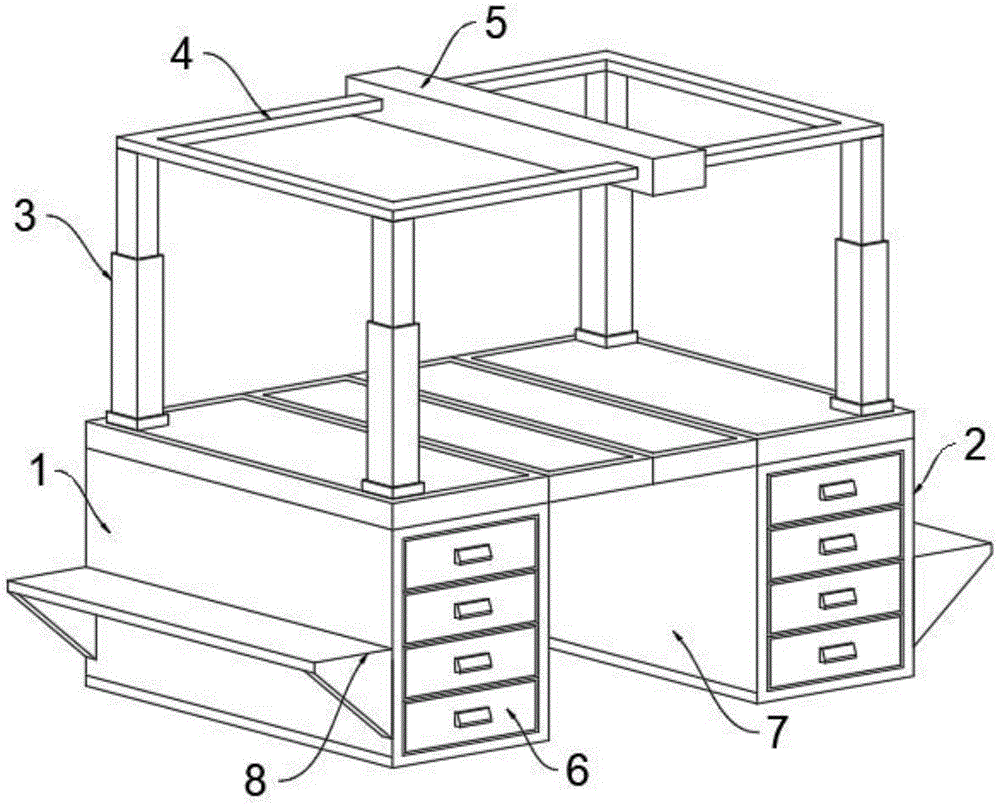

FIG. 1 is an overall front view of the present invention;
FIG. 2 is a schematic structural view of a maintenance unit platform according to the present invention;
fig. 3 is a schematic view of the structure of the suspension support structure of the present invention.
In the figure: 1. a first maintenance work table; 2. a second maintenance workbench; 3. a suspended support framework; 4. a track frame; 5. an electrically controlled sliding sleeve assembly; 6. a tool storage drawer; 7. a central storage groove; 8. a tripod of the tooling; 9. an equipment unit platform; 10. maintaining the unit platform; 11. the shaft seat is sleeved in a limiting way; 12. a hydraulically driven rotating shaft; 13. a housing sleeve shaft; 14. an extension shaft.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1-3, the present invention provides an embodiment: a portable automatic equipment maintenance platform comprises a first maintenance workbench 1 and a second maintenance workbench 2, wherein a suspension support framework 3 is arranged above the first maintenance workbench 1 and the second maintenance workbench 2, a track frame 4 is arranged above the suspension support framework 3, an electric control sliding sleeve assembly 5 is arranged on the inner side of the track frame 4, the electric control sliding sleeve assembly 5 comprises a linear slide rail and a lifting hydraulic cylinder, the lifting hydraulic cylinder is arranged on a slide block at the bottom of the linear slide rail and can realize the three-dimensional movement of a clamping mechanism or a suspension mechanism on the track frame 4, the clamping mechanism or the suspension mechanism can be arranged at the output end of the lifting hydraulic cylinder at the bottom of the electric control sliding sleeve assembly 5 when the platform is put into use, the electric control sliding sleeve assembly 5 is used for driving the maintenance mechanisms at the bottom to move, and the electric control sliding sleeve assembly 5 is connected with the track frame 4 in a sliding manner, namely, two ends of a linear slide rail are connected with a rail frame 14 in a sliding way, the top parts of a first maintenance workbench 1 and a second maintenance workbench 2 are both provided with an equipment unit platform 9, the equipment unit platform 9 is of a fixed structure, some mechanisms for maintenance can be installed on the equipment unit platform 9 of each maintenance workbench when in use, the equipment unit platform 9 is connected with the first maintenance workbench 1 and the second maintenance workbench 2 through bolts, one side of the equipment unit platform 9 is provided with a maintenance unit platform 10, when the two groups of maintenance workbenches are combined, the maintenance unit platform 10 is positioned in the central area of the whole maintenance platform, equipment needing to be maintained can be placed on the maintenance unit platform 10, the maintenance unit platform 10 is rotationally connected with the equipment unit platform 9 through a hydraulic driving rotating shaft 12, and the turnover operation of the maintenance unit platform 10 can be realized through the hydraulic driving rotating shaft 12, one side at equipment unit platform 9 top is provided with spacing suit axle bed 11, and spacing suit axle bed 11 passes through bolted connection with equipment unit platform 9.
Further, a central storage groove 7 is arranged between the first maintenance workbench 1 and the second maintenance workbench 2, the central storage groove 7 is located below the maintenance unit platforms 10, some heavy equipment is moved into the central storage groove 7 between the maintenance workbenches through a transport vehicle, the maintenance unit platforms 10 need to be turned downwards and unfolded before that, the equipment is lifted through a clamping or hanging mechanism on the electric control sliding sleeve assembly 5, and the equipment is placed on the folded maintenance unit platforms 10.
Further, the two sides of the first maintenance workbench 1 and the second maintenance workbench 2 are both provided with the tooling tripod 8, the tooling tripod 8 is connected with the first maintenance workbench 1 and the second maintenance workbench 2 through bolts, some cylinder devices can be installed and fixed on the tooling tripod 8 on the two sides, and the maintenance workbench can be conveniently transported and moved.
Further, the both ends of first maintenance workstation 1 and second maintenance workstation 2 all are provided with the instrument and accomodate steamer tray 6, and the instrument accomodates steamer tray 6 and first maintenance workstation 1 and second maintenance workstation 2 sliding connection, and the instrument is accomodate the inside of steamer tray 6 and is equipped with the required spanner part of maintenance and some other maintenance parts.
Further, the overhung supporting framework 3 comprises a storage sleeve shaft 13 and an extension shaft 14, the extension shaft 14 is telescopically connected with the storage sleeve shaft 13, the extension shaft 14 is locked with the storage sleeve shaft 13 through screws, and the height lifting operation of the track frame 4 and the electric control sliding sleeve assembly 5 can be realized through the matching of the extension shaft 14 and the storage sleeve shaft 13.
Further, accomodate cover axle 13 and pass through the draw-in groove with spacing suit axle bed 11 and be connected, be convenient for carry out composite erection, extend axostylus axostyle 14 and pass through bolted connection with track frame 4, reinforcing track frame 4 and hang high stability between the framework 3.
The working principle is as follows: when in use, the first maintenance workbench 1 and the second maintenance workbench 2 are combined, the suspended support framework 3 is arranged above the two groups of maintenance workbench, the top of the suspended support framework 3 is provided with the track frame 4 and the matched electric control sliding sleeve component 5, when in use, the clamping mechanism or the suspension mechanism can be arranged at the bottom of the electric control sliding sleeve component 5, the electric control sliding sleeve component 5 drives the maintenance mechanisms at the bottom to move, when in maintenance, some heavy equipment is moved to the central object placing groove 7 between the maintenance workbench through the transport vehicle, before that, the maintenance unit platform 10 needs to be turned downwards and unfolded, then the equipment is lifted up through the clamping or suspension mechanism on the electric control sliding sleeve component 5 and is placed on the folded maintenance unit platform 10, when the two groups of maintenance workbench are combined, the maintenance unit platform 10 is positioned in the central area of the whole maintenance platform, and the two sides of the maintenance unit platform 10 are the equipment unit platforms 9, and the equipment unit platforms 9 are provided with mechanisms for maintenance.
It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Claims (6)
1. The utility model provides a portable automation equipment maintenance platform, includes first maintenance workstation (1) and second maintenance workstation (2), its characterized in that: a suspended support framework (3) is arranged above the first maintenance workbench (1) and the second maintenance workbench (2), a track frame (4) is arranged above the suspended support framework (3), an electric control sliding sleeve assembly (5) is arranged on the inner side of the track frame (4), the electric control sliding sleeve assembly (5) is connected with the track frame (4) in a sliding manner, equipment unit platforms (9) are arranged at the tops of the first maintenance workbench (1) and the second maintenance workbench (2), the equipment unit platforms (9) are connected with the first maintenance workbench (1) and the second maintenance workbench (2) through bolts, a maintenance unit platform (10) is arranged at one side of each equipment unit platform (9), the maintenance unit platform (10) is rotatably connected with the equipment unit platform (9) through a hydraulic drive rotating shaft (12), and a limiting sleeve shaft seat (11) is arranged at one side of the top of each equipment unit platform (9), and the limiting sleeved shaft seat (11) is connected with the equipment unit platform (9) through a bolt.
2. The portable automation device servicing platform of claim 1, wherein: a central object placing groove (7) is arranged between the first maintenance workbench (1) and the second maintenance workbench (2), and the central object placing groove (7) is positioned below the maintenance unit platform (10).
3. The portable automation device servicing platform of claim 1, wherein: the two sides of the first maintenance workbench (1) and the second maintenance workbench (2) are respectively provided with a tooling tripod (8), and the tooling tripod (8) is connected with the first maintenance workbench (1) and the second maintenance workbench (2) through bolts.
4. The portable automation device servicing platform of claim 1, wherein: the two ends of the first maintenance workbench (1) and the second maintenance workbench (2) are respectively provided with a tool storage drawer (6), and the tool storage drawers (6) are connected with the first maintenance workbench (1) and the second maintenance workbench (2) in a sliding mode.
5. The portable automation device servicing platform of claim 1, wherein: the suspension support framework (3) comprises a storage sleeve shaft (13) and an extension shaft rod (14), and the extension shaft rod (14) is in telescopic connection with the storage sleeve shaft (13).
6. The portable automation device servicing platform of claim 5, wherein: the accommodating sleeve shaft (13) is connected with the limiting sleeve shaft seat (11) through a clamping groove, and the extending shaft rod (14) is connected with the track frame (4) through a screw.
