CN111215627A - A kind of titanium alloy additive intelligent manufacturing device and preparation process - Google Patents
A kind of titanium alloy additive intelligent manufacturing device and preparation process Download PDFInfo
- Publication number
- CN111215627A CN111215627A CN201911230778.0A CN201911230778A CN111215627A CN 111215627 A CN111215627 A CN 111215627A CN 201911230778 A CN201911230778 A CN 201911230778A CN 111215627 A CN111215627 A CN 111215627A
- Authority
- CN
- China
- Prior art keywords
- fixedly connected
- titanium alloy
- bearing
- sides
- manufacturing device
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Granted
Links
Images
Classifications
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B22—CASTING; POWDER METALLURGY
- B22F—WORKING METALLIC POWDER; MANUFACTURE OF ARTICLES FROM METALLIC POWDER; MAKING METALLIC POWDER; APPARATUS OR DEVICES SPECIALLY ADAPTED FOR METALLIC POWDER
- B22F10/00—Additive manufacturing of workpieces or articles from metallic powder
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B22—CASTING; POWDER METALLURGY
- B22F—WORKING METALLIC POWDER; MANUFACTURE OF ARTICLES FROM METALLIC POWDER; MAKING METALLIC POWDER; APPARATUS OR DEVICES SPECIALLY ADAPTED FOR METALLIC POWDER
- B22F10/00—Additive manufacturing of workpieces or articles from metallic powder
- B22F10/20—Direct sintering or melting
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B22—CASTING; POWDER METALLURGY
- B22F—WORKING METALLIC POWDER; MANUFACTURE OF ARTICLES FROM METALLIC POWDER; MAKING METALLIC POWDER; APPARATUS OR DEVICES SPECIALLY ADAPTED FOR METALLIC POWDER
- B22F10/00—Additive manufacturing of workpieces or articles from metallic powder
- B22F10/10—Formation of a green body
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B22—CASTING; POWDER METALLURGY
- B22F—WORKING METALLIC POWDER; MANUFACTURE OF ARTICLES FROM METALLIC POWDER; MAKING METALLIC POWDER; APPARATUS OR DEVICES SPECIALLY ADAPTED FOR METALLIC POWDER
- B22F12/00—Apparatus or devices specially adapted for additive manufacturing; Auxiliary means for additive manufacturing; Combinations of additive manufacturing apparatus or devices with other processing apparatus or devices
- B22F12/22—Driving means
- B22F12/222—Driving means for motion along a direction orthogonal to the plane of a layer
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B22—CASTING; POWDER METALLURGY
- B22F—WORKING METALLIC POWDER; MANUFACTURE OF ARTICLES FROM METALLIC POWDER; MAKING METALLIC POWDER; APPARATUS OR DEVICES SPECIALLY ADAPTED FOR METALLIC POWDER
- B22F12/00—Apparatus or devices specially adapted for additive manufacturing; Auxiliary means for additive manufacturing; Combinations of additive manufacturing apparatus or devices with other processing apparatus or devices
- B22F12/90—Means for process control, e.g. cameras or sensors
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B33—ADDITIVE MANUFACTURING TECHNOLOGY
- B33Y—ADDITIVE MANUFACTURING, i.e. MANUFACTURING OF THREE-DIMENSIONAL [3D] OBJECTS BY ADDITIVE DEPOSITION, ADDITIVE AGGLOMERATION OR ADDITIVE LAYERING, e.g. BY 3D PRINTING, STEREOLITHOGRAPHY OR SELECTIVE LASER SINTERING
- B33Y10/00—Processes of additive manufacturing
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B33—ADDITIVE MANUFACTURING TECHNOLOGY
- B33Y—ADDITIVE MANUFACTURING, i.e. MANUFACTURING OF THREE-DIMENSIONAL [3D] OBJECTS BY ADDITIVE DEPOSITION, ADDITIVE AGGLOMERATION OR ADDITIVE LAYERING, e.g. BY 3D PRINTING, STEREOLITHOGRAPHY OR SELECTIVE LASER SINTERING
- B33Y30/00—Apparatus for additive manufacturing; Details thereof or accessories therefor
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B33—ADDITIVE MANUFACTURING TECHNOLOGY
- B33Y—ADDITIVE MANUFACTURING, i.e. MANUFACTURING OF THREE-DIMENSIONAL [3D] OBJECTS BY ADDITIVE DEPOSITION, ADDITIVE AGGLOMERATION OR ADDITIVE LAYERING, e.g. BY 3D PRINTING, STEREOLITHOGRAPHY OR SELECTIVE LASER SINTERING
- B33Y70/00—Materials specially adapted for additive manufacturing
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02P—CLIMATE CHANGE MITIGATION TECHNOLOGIES IN THE PRODUCTION OR PROCESSING OF GOODS
- Y02P10/00—Technologies related to metal processing
- Y02P10/25—Process efficiency
Landscapes
- Engineering & Computer Science (AREA)
- Chemical & Material Sciences (AREA)
- Manufacturing & Machinery (AREA)
- Materials Engineering (AREA)
- Analytical Chemistry (AREA)
- Automation & Control Theory (AREA)
- Mechanical Engineering (AREA)
- Transmission Devices (AREA)
- Machine Tool Units (AREA)
Abstract
本发明公开了一种钛合金增材智能制造装置及制备工艺，包括底座，所述底座顶部表面的两侧均纵向固定连接有支撑板，所述支撑板的顶部横向固定连接有顶板，所述顶板顶部表面的中心处固定连接有旋转电机，所述旋转电机转轴的底部通过联轴器固定连接有旋转轴。本发明通过设置加工台、定位架、正反转电机、螺套、升降支撑板、双头螺杆、移动槽口、承载板、导向槽、收纳槽、导向杆、轴承座、固定框和固定轴的配合使用，可根据生产需求进行高度调整，这样增材智能制造装置可生产出多种型号的钛合金工件，解决了增材智能制造装置在使用时，因无法根据实际的生产需求进行调整从而导致增材智能制造装置只能生产同种型号钛合金工件的问题。
The invention discloses a titanium alloy additive intelligent manufacturing device and a preparation process, comprising a base, two sides of the top surface of the base are longitudinally fixedly connected with a support plate, the top of the support plate is laterally fixedly connected with a top plate, the A rotating motor is fixedly connected to the center of the top surface of the top plate, and a rotating shaft is fixedly connected to the bottom of the rotating shaft of the rotating motor through a coupling. The present invention is provided with a processing table, a positioning frame, a forward and reverse rotation motor, a screw sleeve, a lifting support plate, a double-ended screw, a moving slot, a bearing plate, a guide groove, a storage groove, a guide rod, a bearing seat, a fixed frame and a fixed shaft. When used together, the height can be adjusted according to production needs, so that the additive intelligent manufacturing device can produce various types of titanium alloy workpieces, which solves the problem that the additive intelligent manufacturing device cannot be adjusted according to the actual production needs when it is used. This leads to the problem that the additive intelligent manufacturing device can only produce the same type of titanium alloy workpiece.
Description
Technical Field
The invention relates to the technical field of intelligent additive, in particular to a titanium alloy additive intelligent manufacturing device and a preparation process.
Background
Titanium alloy workpieces are used in the aviation and aerospace fields in a large scale in modern industry, an additive intelligent manufacturing device is required in the production process of the titanium alloy workpieces, the existing additive intelligent manufacturing device can only produce the titanium alloy workpieces of the same type in the processing process, and different additive intelligent manufacturing is required when the titanium alloy workpieces of different types are required to be produced; in addition, a plurality of material increase intelligent manufacturing also occupy great space, also need a plurality of operating personnel to go to the operation, greatly increased manufacturing cost.
Disclosure of Invention
The invention aims to provide a titanium alloy additive intelligent manufacturing device and a preparation process, which have the advantages of producing various types of titanium alloy workpieces and solve the problem that the additive intelligent manufacturing device can only produce the same type of titanium alloy workpieces.
In order to achieve the purpose, the invention provides the following technical scheme: an intelligent manufacturing device and a manufacturing process for titanium alloy additive materials comprise a base, wherein two sides of the top surface of the base are longitudinally and fixedly connected with supporting plates, the top of each supporting plate is transversely and fixedly connected with a top plate, the center of the top surface of the top plate is fixedly connected with a rotating motor, the bottom of a rotating shaft of the rotating motor is fixedly connected with a rotating shaft through a coupler, the bottom of the rotating shaft is fixedly connected with a bearing ring plate, the center of the outer ring surface of the bearing ring plate is provided with a bearing ring groove, the top of the inner side surface of each supporting plate is fixedly connected with a bearing rod, the inner side of the bearing rod extends to the inner cavity of the bearing ring groove and is in sliding contact with the inner cavity of the bearing ring groove, the left side and the right side of the center of the top surface of the bearing ring plate are respectively provided with a storage box and a cleaning machine box in a penetrating, the surface of the two sides of the accumulation pipe and the cleaning rod is fixedly connected with a distance measuring sensor, the two sides of the center of the bottom surface of the top plate are provided with electric telescopic rods, the bottom of each electric telescopic rod is fixedly connected with the material storage box and the cleaning machine box respectively, a machining table is placed between the two support plates on the surface of the top of the base, a placing groove is formed in the center of the surface of the top of the machining table, a positioning frame is fixedly connected to the center of the surface of the left side of the base, and a forward and reverse rotating motor penetrates through the right side of the positioning frame;
the two sides of the center of the surface of the top of the base are both provided with moving notches, the bottom of the inner cavity of each moving notch is communicated with a containing groove, the two sides of the bottom of the inner cavity of each containing groove are both provided with guide grooves, the centers of the two sides of the inner cavity of each containing groove are both fixedly connected with bearing blocks, the center of the inner cavity of each containing groove is vertically and fixedly connected with a bearing plate, the left side of the rotating shaft of the forward and reverse rotating motor is fixedly connected with a double-end screw rod through a shaft coupling, the left side of the double-end screw rod sequentially penetrates through the processing table and the bearing plates from right to left and extends to the inner cavity of the bearing block to be movably connected with the inner cavity of the bearing block through a bearing, both sides of the surface of the double-end screw rod are both sleeved with screw sleeves, the center of the bottom surface of each screw sleeve is fixedly connected with a guide rod, the bottom of the guide rod extends to, the inner chamber of fixed frame vertically runs through and is provided with the fixed axle, and two corresponding one sides of fixed axle transversely are provided with the lift backup pad, and left surface mosaic of left backup pad has control panel, control panel's output respectively with positive reverse motor, rotating electrical machines, electric telescopic handle, storage case, clearance machine case and range sensor electric connection.
Preferably, the inner circle of swivel nut is sliding contact with the surface of double-end screw, run through on the loading board and seted up the bearing hole, the surface of double-end screw is sliding contact with the inner chamber in bearing hole, the thread of double-end screw surface both sides is rotated to opposite, the thread on double-end screw surface is seted up between the inboard of bearing frame and the outside of loading board.
Preferably, the lifting groove has been seted up on the inboard surface of backup pad, spacing spout has all been seted up to the both sides in the lifting groove inner chamber outside, the equal fixedly connected with lift limiting plate in surface of processing platform both sides, the outside of lift limiting plate extends to the inner chamber of lift recess and is sliding contact with the inner chamber of lift recess, the equal fixedly connected with spacing slide bar in both sides in the lift limiting plate outside, the outside of spacing slide bar extends to the inner chamber of spacing spout and is sliding contact with the inner chamber of spacing spout.
Preferably, the front side and the rear side of the inner cavity of the fixing frame are both provided with a rotating hole in a penetrating mode, the surface of the fixing shaft is in sliding contact with the inner cavity of the rotating hole, and the front surface and the back surface of the fixing shaft are both fixedly connected with limiting baffles.
Preferably, a rotating hole matched with the rotating motor for use is formed in the center of the top surface of the top plate in a penetrating mode, and the inner diameter of the rotating hole is larger than the outer diameters of a rotating shaft and a coupling of the rotating motor.
Preferably, the surface of roof bottom just is located the outer lane of rotatory hole and has seted up the standing groove, spacing ring groove has all been seted up to the center department of standing groove inner chamber both sides, electric telescopic handle's top extends to the inner chamber of standing groove and is sliding contact with the inner chamber of standing groove, the equal fixedly connected with peg in top on electric telescopic handle both sides surface, the outside of peg extend to the inner chamber in spacing ring groove and be sliding contact with the inner chamber in spacing ring groove.
Preferably, the two sides of the center of the top surface of the bearing ring plate are both provided with a lifting through hole in a penetrating manner, the lifting through hole is matched with the storage box and the cleaning case, and the inner ring of the lifting through hole is in sliding contact with the surfaces of the storage box and the cleaning case.
Preferably, the intelligent manufacturing device for titanium alloy additive and the preparation process thereof comprise the following production steps:
A) when the titanium alloy machined part is thin, the control panel is used for controlling the forward and reverse rotation motor to rotate forward, so that the double-head screw rod rotates forward to drive the two screw sleeves to move oppositely on the surface of the double-head screw rod, the inner side of the lifting support plate is tilted, the fixing frame at the bottom of the machining table is jacked up to drive the machining table to ascend, and the forward and reverse rotation motor is controlled to stop running after the lifting support plate is in a vertical state;
B) the control panel is used for controlling the electric telescopic rod to extend out to drive the storage box and the cleaning machine box to descend, so that the distance between the cleaning rod and the stacking pipe and the processing table is reduced to meet the requirement, and then the electric telescopic rod is controlled to stop running;
C) utilize control panel control storage case and range sensor operation, spout material in it to placing in the recess from piling up the pipe, the run-stop storage case after the blowout, and control the electric telescopic handle above that, the operation of shrink control clearance machine case, it rotates to drive the clearance pole, the titanium alloy work piece that produces after the blowout carries out further processing, in the course of working, change through the titanium alloy height, electric telescopic handle contracts or stretches out under range sensor's effect, carry out the finish machining, the rotatory ring board that drives of steerable rotating electrical machines is rotatory, thereby accomplish all-round processing to the titanium alloy work piece.
Compared with the prior art, the invention has the following beneficial effects:
1. according to the invention, the machining table, the positioning frame, the forward and reverse rotating motor, the threaded sleeve, the lifting support plate, the double-head screw, the moving notch, the bearing plate, the guide groove, the accommodating groove, the guide rod, the bearing seat, the fixing frame and the fixing shaft are matched for use, and the height can be adjusted according to production requirements, so that the material increase intelligent manufacturing device can produce titanium alloy workpieces of various models, the problem that the material increase intelligent manufacturing device can only produce titanium alloy workpieces of the same model due to the fact that the material increase intelligent manufacturing device cannot be adjusted according to actual production requirements when the material increase intelligent manufacturing device is used is solved, and the material increase intelligent manufacturing device is worthy of popularization.
2. The double-end screw can be effectively supported through the matching of the bearing plate and the bearing seat, the machining table can be limited through the matching of the lifting groove, the limiting sliding groove, the lifting limiting plate and the limiting sliding rod, the up-and-down moving stability of the machining table is improved, the rotation of the fixing shaft is facilitated through the rotating hole, the fixing shaft can be limited through the limiting baffle plate, the fixing shaft is prevented from being separated from the fixing frame, the rotation of the rotating shaft of the rotating motor is facilitated through the rotating hole, the electric telescopic rod can be limited through the matching of the placing groove, the limiting ring groove and the hanging rod, and meanwhile, the rotation of the electric telescopic rod is facilitated.
Drawings

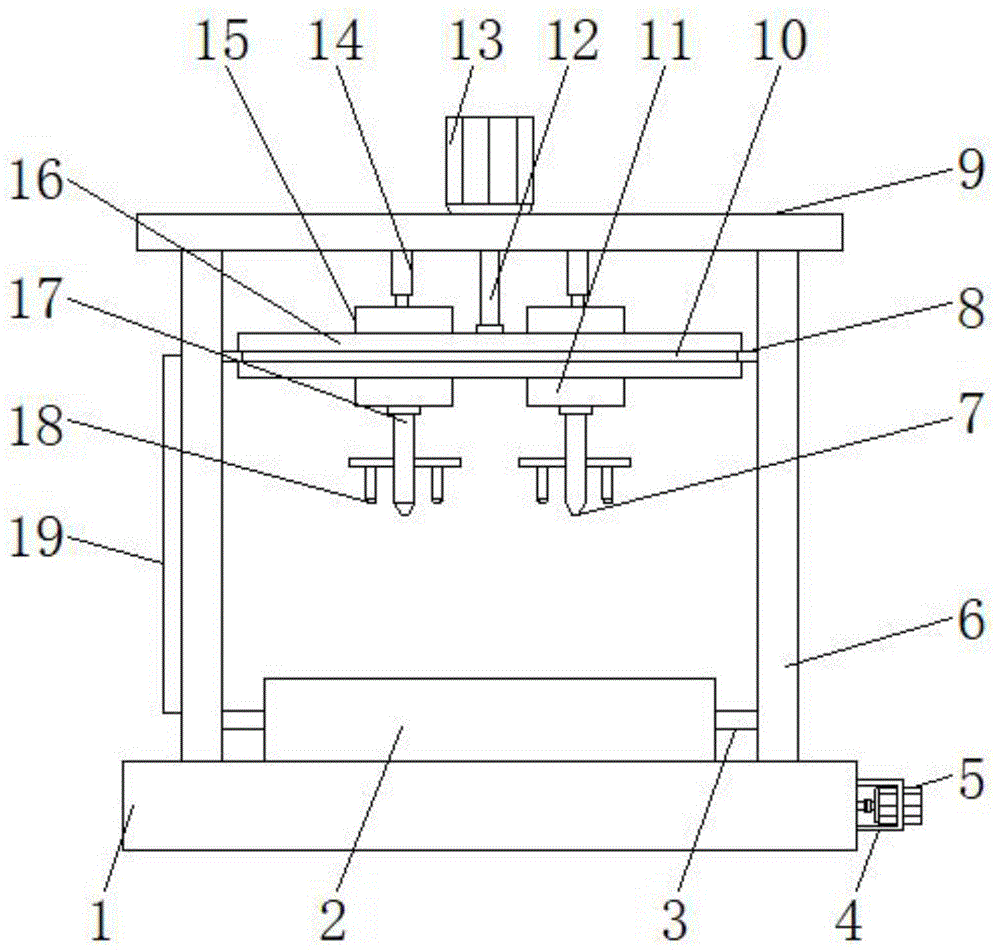

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a cross-sectional view of a base structure of the present invention;
FIG. 3 is a cross-sectional view of the structure of the processing station of the present invention;
FIG. 4 is a top view of the frame structure of the present invention;
FIG. 5 is a partial side view of a support plate structure according to the present invention;
FIG. 6 is a bottom cross-sectional view of the roof structure of the present invention.
In the figure: 1 base, 2 processing platforms, 3 lifting limit plates, 4 locating racks, 5 positive and negative rotating motors, 6 supporting plates, 7 cleaning rods, 8 bearing rods, 9 top plates, 10 bearing ring grooves, 11 cleaning machine boxes, 12 rotating shafts, 13 rotating motors, 14 electric telescopic rods, 15 storage boxes, 16 bearing ring plates, 17 stacking pipes, 18 distance measuring sensors, 19 control panels, 20 thread sleeves, 21 lifting support plates, 22 double-thread screws, 23 moving notch openings, 24 bearing plates, 25 guide grooves, 26 containing grooves, 27 guide rods, 28 bearing seats, 29 fixing frames, 30 placing grooves, 31 limiting sliding grooves, 32 lifting grooves, 33 limiting ring grooves, 34 placing grooves and 35 fixing shafts.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-6, an intelligent manufacturing device for titanium alloy additive and a manufacturing process thereof, includes a base 1, wherein two sides of the top surface of the base 1 are longitudinally and fixedly connected with supporting plates 6, the top of the supporting plates 6 is transversely and fixedly connected with a top plate 9, the center of the top surface of the top plate 9 is fixedly connected with a rotating motor 13, the bottom of the rotating shaft of the rotating motor 13 is fixedly connected with a rotating shaft 12 through a coupler, the center of the top surface of the top plate 9 is provided with a rotating hole matched with the rotating motor 13, the inner diameter of the rotating hole is larger than the outer diameters of the rotating shaft of the rotating motor 13 and the coupler, the rotating shaft of the rotating motor 13 is convenient to rotate through the rotating hole, the bottom of the rotating shaft 12 is fixedly connected with a bearing ring plate 16, the center of the outer ring surface of the bearing ring plate 16 is, the inner side of the bearing rod 8 extends to the inner cavity of the bearing ring groove 10 and is in sliding contact with the inner cavity of the bearing ring groove 10, the left side and the right side of the center of the top surface of the bearing ring plate 16 are respectively provided with a storage box 15 and a cleaning case 11 in a penetrating manner, the two sides of the center of the top surface of the bearing ring plate 16 are respectively provided with a lifting through hole in a penetrating manner, the inner ring of the lifting through hole is in sliding contact with the surfaces of the storage box 15 and the cleaning case 11, the bottoms of the storage box 15 and the cleaning case 11 are respectively and fixedly connected with an accumulation pipe 17 and a cleaning rod 7, the surfaces of the two sides of the accumulation pipe 17 and the cleaning rod 7 are respectively and fixedly connected with a distance measuring sensor 18, the two sides of the center of the bottom surface of the top plate 9 are respectively provided with an electric telescopic rod 14, the bottoms of the electric telescopic rods 14 are respectively and fixedly connected with the storage box 15 and the cleaning case 11, the surface, the center of the two sides of the inner cavity of the placing groove 34 is provided with a limit ring groove 33, the top of the electric telescopic rod 14 extends to the inner cavity of the placing groove 34 and is in sliding contact with the inner cavity of the placing groove 34, the top of the two side surfaces of the electric telescopic rod 14 is fixedly connected with a hanging rod, the outer side of the hanging rod extends to the inner cavity of the limit ring groove 33 and is in sliding contact with the inner cavity of the limit ring groove 33, the electric telescopic rod 14 can be limited by the matching of the placing groove 34, the limit ring groove 33 and the hanging rod, meanwhile, the rotation of the electric telescopic rod 14 is facilitated, a processing table 2 is arranged on the surface of the top of the base 1 and between the two supporting plates 6, the surface of the inner side of each supporting plate 6 is provided with a lifting groove 32, the two sides of the outer side of the inner cavity of each lifting groove 32 are provided with limit chutes 31, the surfaces of the two sides of the processing table 2 are fixedly connected with lifting limit, both sides of the outer side of the lifting limiting plate 3 are fixedly connected with limiting slide bars, the outer side of each limiting slide bar extends to the inner cavity of the limiting slide groove 31 and is in sliding contact with the inner cavity of the limiting slide groove 31, the machining table 2 can be limited through the matching of the lifting groove 32, the limiting slide grooves 31, the lifting limiting plate 3 and the limiting slide bars, the stability of the vertical movement of the machining table 2 is improved, the center of the top surface of the machining table 2 is provided with a placing groove 30, the center of the left side surface of the base 1 is fixedly connected with a positioning frame 4, and the right side of the positioning frame 4 is provided with a forward and reverse rotating;
the two sides of the center of the top surface of the base 1 are both provided with a movable notch 23, the bottom of the inner cavity of the movable notch 23 is communicated with a containing groove 26, the two sides of the bottom of the inner cavity of the containing groove 26 are both provided with a guide groove 25, the centers of the two sides of the inner cavity of the containing groove 26 are both fixedly connected with a bearing plate 28, the center of the inner cavity of the containing groove 26 is vertically and fixedly connected with a bearing plate 24, the left side of the rotating shaft of the forward and reverse motor 5 is fixedly connected with a double-end screw 22 through a coupler, the left side of the double-end screw 22 sequentially penetrates through the processing table 2 and the bearing plate 24 from right to left and extends to the inner cavity of the bearing plate 28 to be movably connected with the inner cavity of the bearing seat 28 through a bearing, both sides of the surface of the double-end screw 22 are both sleeved with screw sleeves 20, the inner ring, the thread directions of two sides of the surface of the double-head screw 22 are opposite, the thread of the surface of the double-head screw 22 is arranged between the inner side of the bearing seat 28 and the outer side of the bearing plate 24, the double-head screw 22 can be effectively supported by matching the bearing plate 24 and the bearing seat 28, the center of the bottom surface of the screw sleeve 20 is fixedly connected with a guide rod 27, the bottom of the guide rod 27 extends to the inner cavity of the guide groove 25 and is in sliding contact with the inner cavity of the guide groove 25, the center of the top surface of the screw sleeve 20 and two sides of the center of the bottom surface of the processing table 2 are fixedly connected with fixed frames 29, the inner cavity of the fixed frame 29 is longitudinally provided with fixed shafts 35 in a penetrating way, one sides corresponding to the two fixed shafts 35 are transversely provided with lifting support plates 21, and the processing table 2, the positioning frame 4, the forward and reverse rotation motor 5, the, The guide groove 25, the accommodating groove 26, the guide rod 27, the bearing seat 28, the fixing frame 29 and the fixing shaft 35 are matched for use, the height can be adjusted according to production requirements, so that the intelligent additive manufacturing device can produce titanium alloy workpieces of various models, the problem that the intelligent additive manufacturing device can only produce titanium alloy workpieces of the same model due to the fact that the intelligent additive manufacturing device cannot be adjusted according to actual production requirements when in use is solved, the intelligent additive manufacturing device is worthy of popularization, the front side and the rear side of the inner cavity of the fixing frame 29 are both provided with rotating holes in a penetrating mode, the surface of the fixing shaft 35 is in sliding contact with the inner cavity of the rotating holes, the front surface and the back surface of the fixing shaft 35 are both fixedly connected with limiting baffle plates, the two sides of the lifting support plate 21 are both sleeved on the surface of the fixing shaft 35, the rotation of the fixing shaft 35 is facilitated through the rotating holes, the fixed shaft 35 is prevented from being separated from the fixed frame 29, the control panel 19 is embedded on the surface of the left side of the left supporting plate 6, and the output end of the control panel 19 is electrically connected with the forward and reverse rotating motor 5, the rotating motor 13, the electric telescopic rod 14, the material storage box 15, the cleaning case 11 and the distance measuring sensor 18 respectively.
When in use, the intelligent manufacturing device for the titanium alloy additive and the preparation process have the following production steps:
A) when the titanium alloy workpiece is thin, the control panel 19 is used for controlling the forward and reverse rotation motor 5 to rotate forward, so that the double-headed screw 22 rotates forward, the two screw sleeves 20 are driven to move oppositely on the surface of the double-headed screw 22, the inner side of the lifting support plate 21 is tilted, the fixing frame 29 at the bottom of the processing table 2 is jacked up, the processing table 2 is driven to ascend, and the forward and reverse rotation motor 5 is controlled to stop running after the lifting support plate 21 is in a vertical state;
B) the control panel 19 is used for controlling the electric telescopic rod 14 to extend out to drive the material storage box 15 and the cleaning machine box 11 to descend, so that after the distances between the cleaning rod 7, the accumulation pipe 17 and the processing table 2 become smaller and meet the requirements, the electric telescopic rod 14 is controlled to stop running;
C) utilize control panel 19 control storage case 15 and range sensor 18 operation, spout material in it to placing in the recess 30 from piling up pipe 17, stop operation storage case 15 after the blowout, and control the shrink of electric telescopic handle 14 above that, control clearance machine case 11 operation, drive clearance pole 7 and rotate, the titanium alloy work piece that produces after the blowout carries out further processing, in the course of working, through the change of titanium alloy height, electric telescopic handle 14 contracts or stretches out under range sensor 18's effect, carry out the finish machining, the rotatory ring board 16 rotation that drives of steerable rotating electrical machines 13, thereby accomplish all-round processing to the titanium alloy work piece.
All parts used in the application document are standard parts and can be purchased from the market, the specific connection mode of each part adopts conventional means such as mature bolts, rivets, welding and the like in the prior art, machinery, parts and electrical equipment all adopt conventional models in the prior art, the equipment appearing in the text adopts 380V voltage for power supply, the circuit connection adopts the conventional connection mode in the prior art, and detailed description is not given.
In summary, the following steps: according to the intelligent additive manufacturing device and the preparation process for the titanium alloy, the problem that the intelligent additive manufacturing device can only produce titanium alloy workpieces of the same type is solved by matching the machining table 2, the positioning frame 4, the forward and reverse rotating motor 5, the threaded sleeve 20, the lifting support plate 21, the double-headed screw 22, the moving notch 23, the bearing plate 24, the guide groove 25, the accommodating groove 26, the guide rod 27, the bearing seat 28, the fixing frame 29 and the fixing shaft 35.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (8)
1. The utility model provides a titanium alloy vibration material disk intelligent manufacturing device and preparation technology, includes the base, its characterized in that: the two sides of the top surface of the base are longitudinally and fixedly connected with supporting plates, the top of each supporting plate is transversely and fixedly connected with a top plate, the center of the top surface of the top plate is fixedly connected with a rotating motor, the bottom of a rotating shaft of the rotating motor is fixedly connected with a rotating shaft through a coupler, the bottom of the rotating shaft is fixedly connected with a bearing ring plate, a bearing ring groove is formed in the center of the outer ring surface of the bearing ring plate, the top of the inner side surface of each supporting plate is fixedly connected with a bearing rod, the inner side of the bearing rod extends to the inner cavity of the bearing ring groove and is in sliding contact with the inner cavity of the bearing ring groove, the left side and the right side of the center of the top surface of the bearing ring plate are respectively provided with a storage box and a cleaning box in a penetrating manner, the bottoms of the storage box and the cleaning box are respectively and fixedly connected with an, the two sides of the center of the bottom surface of the top plate are provided with electric telescopic rods, the bottoms of the electric telescopic rods are respectively and fixedly connected with the material storage box and the cleaning machine box, a machining table is placed on the surface of the top of the base and between the two supporting plates, a placing groove is formed in the center of the surface of the top of the machining table, a positioning frame is fixedly connected to the center of the surface of the left side of the base, and a forward and reverse rotating motor penetrates through the right side of the positioning frame;
the two sides of the center of the surface of the top of the base are both provided with moving notches, the bottom of the inner cavity of each moving notch is communicated with a containing groove, the two sides of the bottom of the inner cavity of each containing groove are both provided with guide grooves, the centers of the two sides of the inner cavity of each containing groove are both fixedly connected with bearing blocks, the center of the inner cavity of each containing groove is vertically and fixedly connected with a bearing plate, the left side of the rotating shaft of the forward and reverse rotating motor is fixedly connected with a double-end screw rod through a shaft coupling, the left side of the double-end screw rod sequentially penetrates through the processing table and the bearing plates from right to left and extends to the inner cavity of the bearing block to be movably connected with the inner cavity of the bearing block through a bearing, both sides of the surface of the double-end screw rod are both sleeved with screw sleeves, the center of the bottom surface of each screw sleeve is fixedly connected with a guide rod, the bottom of the guide rod extends to, the inner chamber of fixed frame vertically runs through and is provided with the fixed axle, and two corresponding one sides of fixed axle transversely are provided with the lift backup pad, and left surface mosaic of left backup pad has control panel, control panel's output respectively with positive reverse motor, rotating electrical machines, electric telescopic handle, storage case, clearance machine case and range sensor electric connection.
2. The intelligent additive manufacturing device and the intelligent additive manufacturing process for titanium alloy according to claim 1 are characterized in that: the inner circle of swivel nut is sliding contact with double-end screw's surface, run through on the loading board and seted up the bearing hole, double-end screw's surface is sliding contact with the inner chamber that bears the hole, the thread of double-end screw surface both sides is rotated to opposite, the thread on double-end screw surface is seted up between the inboard of bearing frame and the outside of loading board.
3. The intelligent additive manufacturing device and the intelligent additive manufacturing process for titanium alloy according to claim 1 are characterized in that: the utility model discloses a processing platform, including backup pad, processing platform, lift recess, lift limiting plate, the inboard surface of backup pad has been seted up the lift recess, spacing spout has all been seted up to the both sides in the lift recess inner chamber outside, the equal fixedly connected with lift limiting plate in surface of processing platform both sides, the outside of lift limiting plate extends to the inner chamber of lift recess and is sliding contact with the inner chamber of lift recess, the equal fixedly connected with spacing slide bar in both sides in the lift limiting plate outside, and the outside of spacing slide bar extends to the inner chamber of spacing spout and is sliding contact with the inner.
4. The intelligent additive manufacturing device and the intelligent additive manufacturing process for titanium alloy according to claim 1 are characterized in that: the front side and the rear side of the inner cavity of the fixing frame are both penetrated through and provided with a rotating hole, the surface of the fixing shaft is in sliding contact with the inner cavity of the rotating hole, and the front surface and the back surface of the fixing shaft are both fixedly connected with limiting baffle plates.
5. The intelligent additive manufacturing device and the intelligent additive manufacturing process for titanium alloy according to claim 1 are characterized in that: the center of roof top surface department runs through and sets up the rotatory hole that uses with the rotating electrical machines cooperation, and the internal diameter in rotatory hole is greater than the external diameter of rotating electrical machines pivot and shaft coupling.
6. The intelligent additive manufacturing device and the intelligent additive manufacturing process for titanium alloy according to claim 5 are characterized in that: the surface of roof bottom just is located the outer lane of swivelling joint and has seted up the standing groove, the center department of standing groove inner chamber both sides has all seted up the spacing ring groove, electric telescopic handle's top extends to the inner chamber of standing groove and is sliding contact with the inner chamber of standing groove, the equal fixedly connected with peg in top on electric telescopic handle both sides surface, the outside of peg extend to the inner chamber in spacing ring groove and be sliding contact with the inner chamber in spacing ring groove.
7. The intelligent additive manufacturing device and the intelligent additive manufacturing process for titanium alloy according to claim 1 are characterized in that: the lifting through holes matched with the storage box and the cleaning machine case are formed in the two sides of the center of the top surface of the bearing ring plate in a penetrating mode, and the inner ring of each lifting through hole is in sliding contact with the surfaces of the storage box and the cleaning machine case.
8. The intelligent additive manufacturing device and the intelligent additive manufacturing process for titanium alloy according to any one of claims 1 to 7, wherein: the production steps are as follows:
A) when a titanium alloy workpiece to be produced is thin, a control panel is used for controlling a forward and reverse rotation motor to rotate forward, so that the double-head screw rod rotates forward to drive two screw sleeves to move oppositely on the surface of the double-head screw rod, the inner side of the lifting support plate is tilted, a fixing frame at the bottom of the machining table is jacked up to drive the machining table to ascend, and the forward and reverse rotation motor is controlled to stop running after the lifting support plate is in a vertical state;
B) the control panel is used for controlling the electric telescopic rod to extend out to drive the storage box and the cleaning machine box to descend, so that the distance between the cleaning rod and the stacking pipe and the processing table is reduced to meet the requirement, and then the electric telescopic rod is controlled to stop running;
C) utilize control panel control storage case and range sensor operation, spout the material in it to placing in the recess from piling up the pipe, the out-of-service storage case after the blowout, and control the electric telescopic handle shrink on it, the operation of control clearance machine case, it rotates to drive the clearance pole, the titanium alloy work piece that produces after the blowout carries out further processing, in the course of working, change through titanium alloy height, electric telescopic handle contracts or stretches out under range sensor's effect, carry out the finish machining, the rotatory ring board that drives of steerable rotating electrical machines is rotatory, thereby accomplish all-round processing to the titanium alloy work piece.
