Abstract
The utility model discloses a waste material cleaning device for gear machining, the on-line screen storage device comprises a base, lateral wall fixedly connected with backup pad on the base, lateral wall fixedly connected with operation panel on the base, lateral wall fixedly connected with roof in the backup pad, be equipped with the clearance mechanism of clearance gear waste material on the base, clearance mechanism includes the motor of lateral wall on the fixedly connected with roof, the output shaft fixedly connected with bull stick of motor, bull stick lower extreme fixedly connected with mounting panel, two fixed plates of lateral wall fixedly connected with, two under the mounting panel the equal fixedly connected with brush of fixed plate lateral wall. The utility model discloses can in time clear up the waste material, avoid adding the processing man-hour waste material and splash, improve gear machining speed, still realize the centralized management to the waste material, alleviate staff's work burden, bring the facility for the clearance after the processing.
Description
Technical Field
The utility model relates to a waste material clearance technical field especially relates to a waste material cleaning device is used in gear machining.
Background
The gear is a mechanical element with a rim provided with a gear which is continuously meshed to transmit motion and power, along with the development of production, the gear is more and more widely applied, the requirement on the gear is more and more fine, and the grinding requirement on the gear is higher and higher.
In the actual processing process, can produce the waste material when cutter cutting gear, the waste material is piled up on the operation panel, if not in time clearance, can reduce gear machining's speed, influences gear machining's quality, and the waste material can splash when adding man-hour sometimes, makes the workman clear up after processing very inconveniently, in order to solve above-mentioned problem, needs to design a waste material cleaning device for gear machining.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the defects existing in the prior art and providing a waste cleaning device for gear machining.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
a waste cleaning device for gear machining comprises a base, wherein a supporting plate is fixedly connected to the side wall of the base, an operating table is fixedly connected to the side wall of the base, a top plate is fixedly connected to the side wall of the supporting plate, a cleaning mechanism for cleaning gear waste is arranged on the base and comprises a motor fixedly connected with the upper side wall of the top plate, a rotating rod is fixedly connected to an output shaft of the motor, a mounting plate is fixedly connected to the lower end of the rotating rod, two fixing plates are fixedly connected to the lower side wall of the mounting plate, hairbrushes are fixedly connected to the side walls of the two fixing plates, a transverse plate is fixedly connected to the side wall of the supporting plate, a water pump is fixedly connected to the upper side wall of the transverse plate, a water outlet pipe is communicated with the water outlet end of the water pump, a water storage cavity is arranged in the, a plurality of aqueduct one end all communicates and is equipped with the shower nozzle, the base lateral wall is equipped with carries out filterable filter mechanism to the waste material.
Preferably, filtering mechanism is including setting up the recess of lateral wall on the base, be equipped with the collection box in the recess, the lateral wall is equipped with a plurality of infiltration holes under the collection box, the recess lateral wall intercommunication is equipped with the drain pipe.
Preferably, the drain pipe extends to the outside of the base, and a valve is arranged on the drain pipe.
Preferably, the supporting plate is arranged in an annular shape, and the water storage cavity is of an annular structure.
Preferably, the cross sections of the two fixing plates are both fold lines, the operating platform is of a circular table type structure, and the hairbrush is in contact with the side wall of the operating platform.
Preferably, the inner wall of the water storage cavity is provided with an inclined plane, and the plurality of water guide pipes are obliquely arranged.
The utility model discloses in have following beneficial effect:
1. the device sprays water onto the operation table through the water pump, so that waste materials are adsorbed on the surface of the water and slide down along the inclined surface of the operation table, and the motor drives the rotating rod to rotate, so that the transverse plate is driven to rotate, the fixing plate is driven to rotate, the brush can brush the waste materials adhered to the side wall of the operation table, the waste materials can be cleaned in time, the waste materials are prevented from splashing during processing, and the gear processing speed is improved;
2. this device makes the water in collecting the box can follow the infiltration hole through the infiltration hole of collecting the box bottom and flows down to stay the waste material in collecting the box, realized the centralized management to the waste material, alleviateed staff's work burden, brought the facility for the clearance after the processing.
Drawings

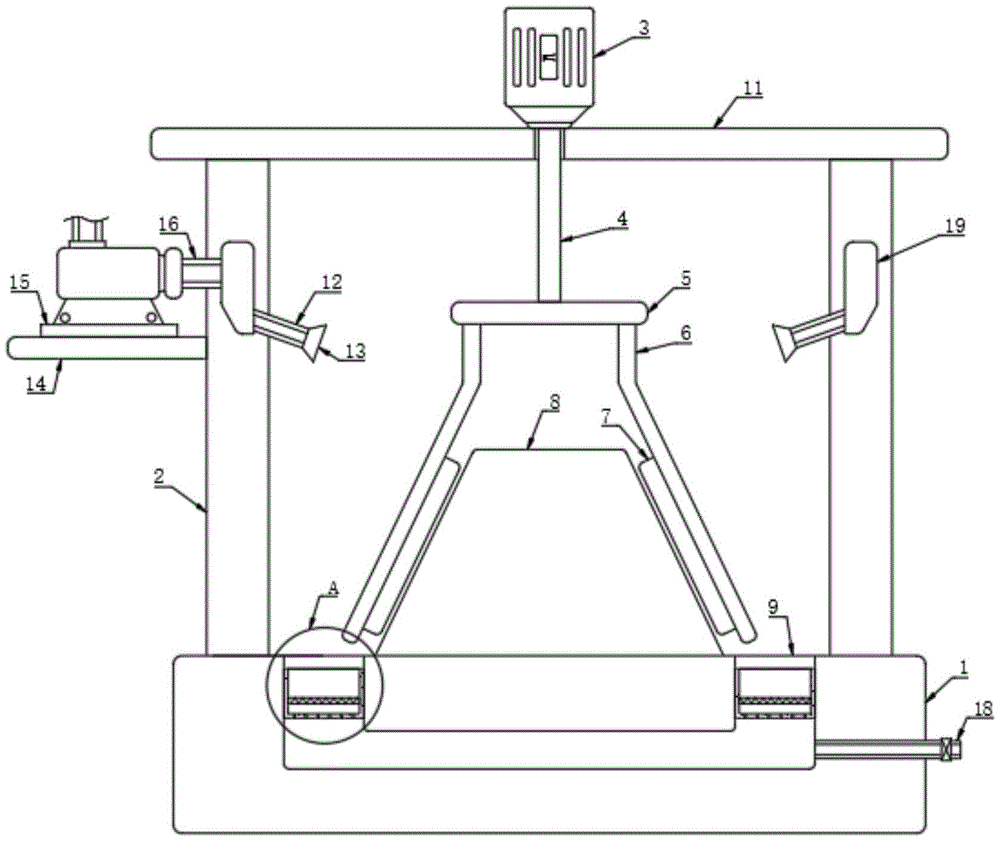

Fig. 1 is a schematic structural view of a waste cleaning device for gear machining according to the present invention;
fig. 2 is the utility model provides a waste material cleaning device's for gear machining A department structure enlargedly.
In the figure: 1 base, 2 backup pads, 3 motors, 4 bull sticks, 5 mounting panels, 6 fixed plates, 7 brushes, 8 operation panels, 9 recesses, 10 collection boxes, 11 roof, 12 aqueducts, 13 shower nozzles, 14 diaphragm, 15 water pump, 16 outlet pipes, 17 infiltration holes, 18 drain pipes, 19 water storage chamber.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1-2, a gear machining uses waste material cleaning device, includes base 1, lateral wall fixedly connected with backup pad 2 on base 1, and backup pad 2 is the annular setting, and lateral wall fixedly connected with operation panel 8 on base 1, operation panel 8 are round platform type structure, and lateral wall fixedly connected with roof 11 on backup pad 2.
The base 1 is provided with a cleaning mechanism for cleaning gear waste, the cleaning mechanism comprises a motor 3 fixedly connected with the upper side wall of a top plate 11, an output shaft of the motor 3 is fixedly connected with a rotating rod 4, the lower end of the rotating rod 4 is fixedly connected with a mounting plate 5, the lower side wall of the mounting plate 5 is fixedly connected with two fixing plates 6, the cross sections of the two fixing plates 6 are both in a zigzag shape, the side walls of the two fixing plates 6 are fixedly connected with hairbrushes 7, the hairbrushes 7 are contacted with the side wall of an operating table 8 to brush off the waste on the side wall of the operating table 8, the side wall of a supporting plate 2 is fixedly connected with a transverse plate 14, the side wall on the transverse plate 14 is fixedly connected with a water pump 15, the water outlet end of the water pump 15 is communicated with a water outlet pipe 16, a water storage cavity 19 is arranged inside the supporting, a plurality of water guide pipes 12 are communicated with the inner wall of the water storage cavity 19, the water guide pipes 12 are obliquely arranged, and one ends of the water guide pipes 12 are communicated with a spray head 13.
The lateral wall of base 1 is equipped with and carries out filterable filtering mechanism to the waste material, and filtering mechanism is equipped with collection box 10 including setting up the recess 9 of lateral wall on base 1 in the recess 9, collects box 10 and the laminating of recess 9 inner wall, prevents that the waste material from the gap landing, collects box 10 downside wall and is equipped with a plurality of infiltration holes 17, and recess 9 lateral wall intercommunication is equipped with drain pipe 18, and outside drain pipe 18 extended to base 1, the last valve that is equipped with of drain pipe 18.
When needing to clear up gear waste, start water pump 15, water pump 15 is gone into water storage chamber 19 with the water pump, and rethread shower nozzle 13 sprays on operation panel 8, and waste material on the operation panel 8 is along with rivers along the lateral wall landing of operation panel 8, and starter motor 3, motor 3 drive bull stick 4 and rotate to drive mounting panel 5 and rotate, thereby drive fixed plate 6 and rotate, make brush 7 can fall into recess 9 with the waste material brush on the 8 lateral walls of operation panel.
During the waste material was collected box 10 along with rivers entering, water flowed down through infiltration hole 17, and the waste material was stayed in collecting box 10 on, can concentrate the clearance with the waste material, need when discharging with water, open the valve can, realized clearance and collection to gear machining fertilizer through above-mentioned operation, need not the manual work and cleared up with instruments such as some rags, alleviateed staff's work burden.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (6)
1. The waste cleaning device for gear machining comprises a base (1) and is characterized in that a supporting plate (2) is fixedly connected to the side wall of the base (1), an operation table (8) is fixedly connected to the side wall of the base (1), a top plate (11) is fixedly connected to the side wall of the supporting plate (2), a cleaning mechanism for cleaning gear waste is arranged on the base (1), the cleaning mechanism comprises a motor (3) fixedly connected to the upper side wall of the top plate (11), a rotating rod (4) is fixedly connected to an output shaft of the motor (3), a mounting plate (5) is fixedly connected to the lower end of the rotating rod (4), two fixing plates (6) are fixedly connected to the lower side wall of the mounting plate (5), brushes (7) are fixedly connected to the side walls of the two fixing plates (6), and transverse plates (14) are fixedly connected to the side walls of the supporting plate, lateral wall fixedly connected with water pump (15) on diaphragm (14), the play water end intercommunication of water pump (15) is equipped with outlet pipe (16), backup pad (2) inside is equipped with water storage chamber (19), outlet pipe (16) and water storage chamber (19) intercommunication, water storage chamber (19) inner wall intercommunication is equipped with a plurality of aqueducts (12), and is a plurality of aqueduct (12) one end all communicates and is equipped with shower nozzle (13), base (1) lateral wall is equipped with carries out filterable filter mechanism to the waste material.
2. The gear machining waste cleaning device according to claim 1, characterized in that the filtering mechanism comprises a groove (9) formed in the upper side wall of the base (1), a collecting box (10) is arranged in the groove (9), a plurality of penetrating holes (17) are formed in the lower side wall of the collecting box (10), and a drain pipe (18) is communicated with the side wall of the groove (9).
3. A gear machining scrap removal apparatus in accordance with claim 2 wherein the drain pipe (18) extends out of the base (1), the drain pipe (18) being provided with a valve.
4. The gear processing waste material cleaning device according to claim 1, characterized in that the support plate (2) is arranged in a ring shape, and the water storage chamber (19) is in a ring structure.
5. The gear processing waste material cleaning device according to claim 1, wherein the cross section of the two fixing plates (6) is fold line shape, the operation table (8) is in a round table shape structure, and the brush (7) is contacted with the side wall of the operation table (8).
6. The gear processing waste material cleaning device according to claim 4, wherein the inner wall of the water storage cavity (19) is provided with an inclined surface, and the plurality of water conduits (12) are all arranged in an inclined manner.
