Abstract

The utility model provides an automatic rolling machine of paper tape belongs to rolling machine equipment technical field. The utility model comprises a guiding clamping mechanism, a rolling mechanism and a base, wherein the guiding clamping mechanism is longitudinally arranged on one side of the upper end surface of the base, the guiding clamping mechanism comprises a lower bracket and an upper bracket, the upper end surfaces of the two ends of the lower bracket are provided with guide rods, the holes at the two ends of the upper bracket are sleeved on the guide rods at the two ends of the lower bracket, guide rollers are respectively arranged in the middle of the upper end surface of the lower bracket and the bottom surface of the upper bracket, the rolling mechanism is arranged on the right side of the guiding clamping mechanism on the upper end surface of the base, the rolling mechanism comprises a mounting plate which is transversely and vertically arranged on the upper end surface of the base, the surface of one side of the mounting plate is provided with a turntable, the side surface of the turntable is connected with a plurality of connecting rods, one end of each connecting rod, which is far away from the turntable, is provided, the labor intensity of the operating personnel is reduced.

Description

Automatic paper tape winding machine
Technical Field
The utility model relates to an automatic rolling machine of paper tape belongs to rolling machine equipment technical field.
Background
The receipts material part of coil stock processing lines rolls up into the coil stock through mechanical system to raw and other materials, and extensive application is in the scroll, the yardage roll, and the plastic material is rolled up, and on the metal coil processing lines, according to actual technological requirement design diversification, it is common to have simple and easy rolling machine, hydraulic pressure rolling machine, and the rolling machine generally has a book internal diameter to the material, rolls up the external diameter, and coil stock thickness, width all have strict demands.
The in-process of rolling is carried out the coil stock to current rolling machine, finishes the back when the coil stock rolling, needs the manual coil stock that cuts off of operating personnel, then changes the reel, attaches the coil stock on the reel of change again, and the restart machine carries out the rolling operation, adopts the change mode of this kind of reel, and the time that consumes is slight big, and operating personnel's work is slight big, and can also appear some dangerous circumstances in the reel change operation, and danger coefficient is high, and rolling work efficiency is low.
SUMMERY OF THE UTILITY MODEL
In view of the above prior art's shortcoming, an object of the utility model is to provide a paper tape automatic winding machine for solve the in-process that current rolling machine carries out the rolling to the coil stock among the prior art, after the coil stock rolling finishes, need the manual coil stock that cuts off of operating personnel, then change the reel, attach the coil stock on the reel of change again, restart machine carries out the rolling operation, adopt the change mode of this kind of reel, the time that consumes is long, operating personnel's work is slightly big, and can also appear some dangerous circumstances in the reel change operation, the danger coefficient is high, the problem that rolling work efficiency is low.
In order to realize the above-mentioned purpose and other relevant purposes, the utility model provides a paper tape automatic winding machine includes: the winding mechanism is arranged on the right side of the guiding clamping mechanism on the upper end surface of the base, the mounting plate is transversely and vertically arranged on the upper end surface of the base, a turntable is arranged on one side surface of the mounting plate, the side surface of the turntable is connected with a plurality of connecting rods, the winding roller is arranged at one end of each connecting rod, which is far away from the turntable, a glue box is also arranged on the upper end surface of the base, and the glue box is arranged under the turntable, one side of the glue box is provided with a cutting mechanism, and the cutting mechanism and the mounting plate are symmetrically arranged.
By adopting the technical scheme: when the paper tape is wound, firstly, the paper tape penetrates through the middle of an upper support and a lower support, the paper tape is attached to a guide roller in the middle of the lower support, then a paper tube is sleeved outside a winding roller on a winding mechanism, glue is coated outside the paper tube, the paper tape is stretched and attached to the outside of the leftmost paper tube, the winding roller rotates to drive the paper tube to rotate, so that the paper tape is wound on the paper tube, when the leftmost paper tube is wound to a set number of paper tape layers, a turntable rotates clockwise to drive a connecting rod to move rightwards, the wound winding roller moves rightwards, another winding roller to be wound moves to a winding station, an upper support in a guide clamping mechanism moves downwards along a guide rod, the guide roller in the middle of the upper support and the lower support is contacted to clamp the paper tape tightly, the paper tape extends in the process and is attached to the paper tube wound on the winding roller of the winding station, and the paper bag and the winding roller move due, the tension in the paper tape becomes large, when the winding roller which finishes winding moves rightwards, the paper tape is driven to be in contact with a cutting mechanism, the tension of the paper tape is cut off after the winding roller which finishes winding is in contact with the cutting mechanism, the winding roller which finishes winding continuously rotates to wind the rest of the paper tape onto the paper tube, the winding roller which finishes winding starts to run simultaneously at a winding station, an upper support in a guide clamping mechanism moves upwards, the paper tape is loosened, the winding roller which finishes winding starts to wind the paper tape, when the winding roller which finishes winding moves rightwards, the winding roller which waits for the winding station below drives the paper tube to enter a glue box, when the paper tube passes through the glue box, glue is attached to the surface, the winding operation is waited for winding operation, the steps are repeated, and therefore the winding operation of the automatic paper tube.
In an embodiment of the present invention, the bottom surfaces of the two ends of the lower bracket are further provided with a cylinder, and the telescopic rod of the cylinder passes through the lower bracket to be connected with the bottom surface of the upper bracket.
By adopting the technical scheme: when the guiding and clamping mechanism clamps the paper tape, the cylinder is started to drive the telescopic rod to contract and move downwards, the telescopic rod drives the upper support to move downwards along the guide rod, so that the upper support and the guide roller inside the lower support are in contact to clamp the paper tape, and in the same way, when the paper tape is loosened, the cylinder drives the telescopic rod to move upwards, the guide roller between the upper support and the lower support is separated from the lower support, and the paper tape is loosened.
In an embodiment of the present invention, the mounting plate opposite side is provided with a driving motor, and the turntable passes through the mounting plate and is connected with the driving motor through a driving belt.
By adopting the technical scheme: when the wind-up roll is replaced, the driving motor is started, the driving belt drives the turntable to rotate, and the driving turntable rotates clockwise.
In an embodiment of the utility model, the connecting rod on keep away from a side surface of wind-up roll and be provided with micro motor, the last rotation axis of micro motor passes the connecting rod and is connected with wind-up roll one end.
By adopting the technical scheme: when the winding roller carries out the rolling operation, micro motor starts, drives the winding roller through the rotation axis and rotates, and the winding roller drives the fiber container and rotates to the realization is to the rolling operation of paper tape.
In an embodiment of the utility model, the shutdown mechanism include vertical support, a side surface relative with the mounting panel on the vertical support is provided with horizontal support, horizontal support and wind-up roll parallel arrangement just set up in the centre of two wind-up rolls, horizontal support up end is provided with the blade.
By adopting the technical scheme: the blade sets up on horizontal support, because the motion that direction clamping mechanism pressed from both sides tight and wind-up roll to the container bag, the tensile force grow in the paper tape, and when the wind-up roll that the rolling was accomplished moved right, the blade that drives paper tape and shutdown mechanism contacted, was cut off after touching the blade on the shutdown mechanism greatly to the paper tape tensile force.
As above, the utility model discloses an automatic rolling machine of paper tape has following beneficial effect:
the utility model discloses in through setting up carousel, connecting rod and wind-up roll, the rotation through the carousel drives the wind-up roll motion, realized the automatic wind-up roll operation of changing, and be provided with a plurality of wind-up rolls on the winding mechanism, alternate operation in turn, and realized gluing the automation of paper tape to the automation of fiber container through setting up glue box and shutdown mechanism and cut off, effectively improved the work efficiency of rolling machine, reduced operation personnel's intensity of labour, improve the security of operation personnel work, and install simple structure, easy and simple to handle.
Drawings

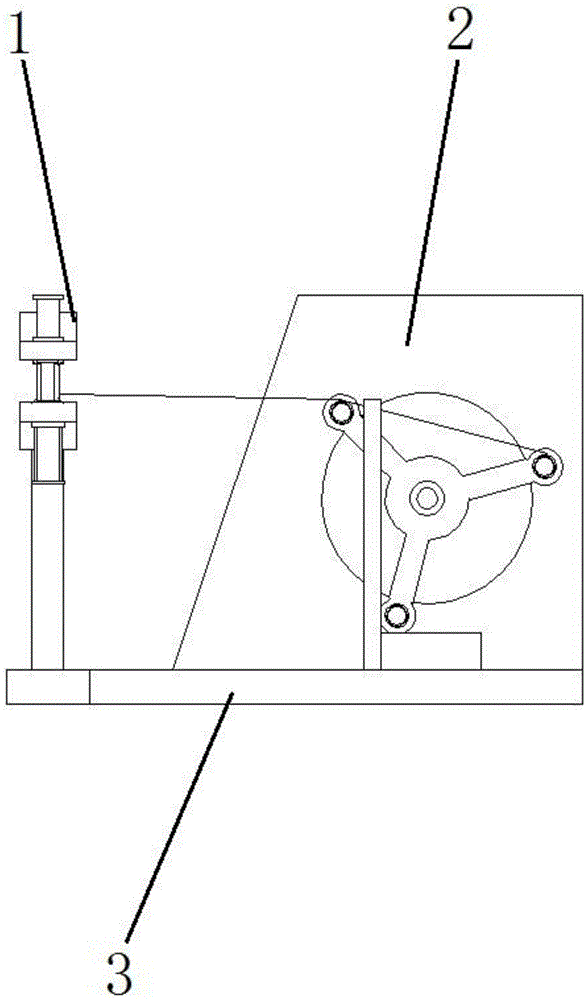

Fig. 1 shows the overall structure schematic diagram of an automatic paper tape winding machine in the embodiment of the present invention.
Fig. 2 shows that the embodiment of the utility model provides an in the embodiment of a winding mechanism right side of paper tape automatic winding machine looks at the schematic diagram.
Fig. 3 shows that the embodiment of the utility model provides an in the embodiment of a direction clamping mechanism of paper tape automatic winding machine looks structural diagram to the right.
Fig. 4 shows a schematic view of the main-view internal structure of the guiding and clamping mechanism of the automatic paper tape winding machine according to the embodiment of the present invention.
Fig. 5 shows a schematic view of a wind-up roll structure of an automatic paper tape wind-up machine in an embodiment of the present invention.
Fig. 6 shows a schematic structural view of a cutting mechanism of an automatic paper tape winding machine according to an embodiment of the present invention.
Wherein, 1, a guide clamping mechanism; 2. a winding mechanism; 3. a base; 4. a wind-up roll; 5. a cutting mechanism; 51. a blade; 52. A vertical support; 53. a transverse support; 6. a turntable; 7. a glue box; 8. mounting a plate; 9. a connecting rod; 10. a transmission belt; 11. A drive motor; 12. a guide bar; 13. an upper bracket; 14. a guide roller; 15. a lower bracket; 16. a telescopic rod; 17. a cylinder; 18. A support bar; 19. a micro motor; 20. a paper tube; 21. a rotating shaft.
Detailed Description
The following description is provided for illustrative purposes, and other advantages and features of the present invention will become apparent to those skilled in the art from the following detailed description.
Please refer to fig. 1 to 6. It should be understood that the structure, ratio, size and the like shown in the drawings attached to the present specification are only used for matching with the content disclosed in the specification, so as to be known and read by those skilled in the art, and are not used for limiting the limit conditions that the present invention can be implemented, so that the present invention has no technical essential meaning, and any structure modification, ratio relationship change or size adjustment should still fall within the scope that the technical content disclosed in the present invention can cover without affecting the function that the present invention can produce and the purpose that the present invention can achieve. Meanwhile, the terms such as "upper", "lower", "left", "right", "middle" and "one" used in the present specification are for convenience of description, and are not intended to limit the scope of the present invention, and changes or adjustments of the relative relationship thereof may be made without substantial technical changes, and the present invention is also regarded as the scope of the present invention.
Referring to fig. 1, the present invention provides an automatic paper tape winding machine, including: the winding mechanism 2 is arranged on the right side of the guiding clamping mechanism 1 on the upper end surface of the base 3, the winding mechanism 2 comprises a mounting plate 8, the mounting plate 8 is transversely and vertically arranged on the upper end surface of the base 3, a rotary disc 6 is arranged on one side surface of the mounting plate 8, a plurality of connecting rods 9 are connected on the side surface of the rotary disc 6, one end of each connecting rod 9, which is far away from the rotary disc 6, is provided with a winding roller 4, the base 3 up end still is provided with glue box 7, and glue box 7 sets up under carousel 6, and 7 one sides of glue box are provided with shutdown mechanism 5, and shutdown mechanism 5 sets up with 8 symmetries of mounting panel.
The bottom surfaces of two ends of the lower bracket 15 are also provided with air cylinders 17, and telescopic rods 16 of the air cylinders 17 penetrate through the lower bracket 15 to be connected with the bottom surface of the upper bracket 13.
The other side of the mounting plate 8 is provided with a driving motor 11, and the turntable 6 penetrates through the mounting plate 8 and is connected with the driving motor 11 through a driving belt 10.
The surface of one side of the connecting rod 9 far away from the winding roller 4 is provided with a micro motor 19, and a rotating shaft 21 on the micro motor 19 penetrates through the connecting rod 9 to be connected with one end of the winding roller 4.
The cutting mechanism 5 comprises a vertical support 52, a transverse support 53 is arranged on the surface of one side, opposite to the mounting plate 8, of the vertical support 52, the transverse support 53 is arranged in parallel with the winding rollers 4 and is arranged between the two winding rollers 4, and a blade 51 is arranged on the upper end face of the transverse support 53.
To sum up, the utility model discloses in through setting up carousel, connecting rod and wind-up roll, drive the wind-up roll motion through the rotation of carousel, realized the automatic wind-up roll operation of changing, and be provided with a plurality of wind-up rolls on the winding mechanism, alternate operation in turn to realized gluing the automation of paper tape and cutting off through setting up glue box and shutdown mechanism to the automation of fiber container, effectively improved the work efficiency of rolling machine, reduced operation personnel's intensity of labour, improve the security of operation personnel work, and install simple structure, easy and simple to handle. Therefore, the utility model effectively overcomes various defects in the prior art and has high industrial utilization value.
The above embodiments are merely illustrative of the principles and effects of the present invention, and are not to be construed as limiting the invention. Modifications and variations can be made to the above-described embodiments by those skilled in the art without departing from the spirit and scope of the present invention. Accordingly, it is intended that all equivalent modifications or changes which may be made by those skilled in the art without departing from the spirit and technical spirit of the present invention be covered by the claims of the present invention.

Claims (5)

1. An automatic paper tape winding machine, characterized in that, an automatic paper tape winding machine includes: the winding device comprises a guiding clamping mechanism (1), a winding mechanism (2) and a base (3), wherein the guiding clamping mechanism (1) is longitudinally arranged on one side of the upper end surface of the base (3), the guiding clamping mechanism (1) comprises a lower support (15) and an upper support (13), the bottom surfaces of two ends of the lower support (15) are connected with the base (3) through support rods (18), guide rods (12) are arranged on the upper end surfaces of two ends of the lower support (15), holes at two ends of the upper support (13) are sleeved on the guide rods (12) at two ends of the lower support (15) and freely move up and down along the guide rods (12), guide rollers (14) are respectively arranged in the middle of the upper end surface of the lower support (15) and in the middle of the bottom surface of the upper support (13), the winding mechanism (2) is arranged on the right side of the guiding clamping mechanism (1) on the upper end surface of the base (3), the winding mechanism (2) comprises a mounting plate (8), and the, the winding device is characterized in that a turntable (6) is arranged on the surface of one side of the mounting plate (8), a plurality of connecting rods (9) are connected to the side face of the turntable (6), a winding roller (4) is arranged at one end, away from the turntable (6), of each connecting rod (9), a glue box (7) is further arranged on the upper end face of the base (3), the glue box (7) is arranged under the turntable (6), a cutting mechanism (5) is arranged on one side of the glue box (7), and the cutting mechanism (5) and the mounting plate (8) are symmetrically arranged.
2. A paper tape automatic winder according to claim 1, characterized in that: and the bottom surfaces of two ends of the lower support (15) are also provided with air cylinders (17), and telescopic rods (16) of the air cylinders (17) penetrate through the lower support (15) to be connected with the bottom surface of the upper support (13).
3. A paper tape automatic winder according to claim 1, characterized in that: the other side of the mounting plate (8) is provided with a driving motor (11), and the turntable (6) penetrates through the mounting plate (8) and is connected with the driving motor (11) through a driving belt (10).
4. A paper tape automatic winder according to claim 1, characterized in that: the winding device is characterized in that a micro motor (19) is arranged on the surface of one side, far away from the winding roller (4), of the connecting rod (9), and a rotating shaft (21) on the micro motor (19) penetrates through the connecting rod (9) to be connected with one end of the winding roller (4).
5. A paper tape automatic winder according to claim 1, characterized in that: cutting mechanism (5) include vertical support (52), the lateral surface that is relative with mounting panel (8) on vertical support (52) is provided with horizontal support (53), horizontal support (53) and wind-up roll (4) parallel arrangement and set up in the centre of two wind-up rolls (4), horizontal support (53) up end is provided with blade (51).
