CN213000814U

CN213000814U - Paint spraying device for civil air defense door

Info

Publication number: CN213000814U
Application number: CN202021109082.0U
Authority: CN
Inventors: 高玉贵; 徐道峰
Original assignee: Cathay Pacific Civil Air Defense Equipment Co ltd
Current assignee: Cathay Pacific Civil Air Defense Equipment Co ltd
Priority date: 2020-06-16
Filing date: 2020-06-16
Publication date: 2021-04-20
Anticipated expiration: 2030-06-16

Abstract

The utility model discloses a people's air defense door paint spraying apparatus, including the spray booth, all connect first motor on the both sides outer wall of spray booth, the lateral wall that the output shaft of every first motor all passed the spray booth connects clamping device, is equipped with the slide rail in the bottom of spray booth, sliding connection paint box on the slide rail, connects two electric putter in the top of paint box, connects the paint spraying pipe in two electric putter's top, and the paint spraying pipe level sets up, connects a set of shower nozzle on the paint spraying pipe, connects the conveyer pipe in the below of paint spraying pipe, and the lower extreme of conveyer pipe passes the lateral wall of paint box, at the end connection paint pump of conveyer pipe, the paint pump sets up in the paint box. The utility model has the advantages that: this device passes through clamping device and grasps the people's air defense door, then drives the people's air defense door through first motor and rotates, and the rethread shower nozzle sprays paint to the people's air defense door, has realized the two-sided spraying paint of people's air defense door, has still set up filter equipment moreover, can adsorb the filtration to the poison gas that paint produced.

Description

Paint spraying device for civil air defense door

Technical Field

The utility model relates to a civil air defense engineering production facility technical field especially relates to a civil air defense door paint spraying apparatus.

Background

The air defense is measures and actions taken by governments to mobilize and organize people to prevent enemy air attacks and eliminate consequences, called civil air defense for short, a civil air defense door is one of common hardware, the surface of the civil air defense door needs to be painted in the manufacturing process, so that the surface of the civil air defense door becomes more attractive, at present, the civil air defense door is usually painted on a placing table, one surface of the civil air defense door is painted by using a painting tool, after the painted surface is dry, the civil air defense door is turned over and then the other surface is painted, and the painting efficiency is low.

SUMMERY OF THE UTILITY MODEL

The utility model aims at solving the defects existing in the prior art and providing a civil air defense door paint spraying device.

In order to achieve the above purpose, the utility model adopts the following technical scheme:

the utility model provides a people's air defense door paint spraying apparatus, includes the spray booth, all connects the motor on the both sides outer wall of spray booth, and the output shaft of every first motor all passes the lateral wall of spray booth all connects clamping device on the output shaft of every first motor, and two clamping device all set up in the spray booth and relative setting are equipped with the slide rail in the bottom of spray booth, and sliding connection paint box is connected to sliding connection on the slide rail in the top of paint box, connects the paint spraying pipe in the top of two electric putter, and the paint spraying pipe level sets up, connects a set of shower nozzle on the paint spraying pipe, connects the conveyer pipe in the below of the pipe that sprays paint, and the lower extreme of conveyer pipe passes the lateral wall of paint box is at the end connection paint pump of conveyer pipe, and the paint pump sets up in the paint box.

Preferably, the top of spray booth still sets up filter equipment, and filter equipment includes the shell, and the shell passes the top lateral wall of spray booth, and the filter screen is connected to the below in the shell, sets up the suction fan in the top of filter screen, and the suction fan passes through the cross and connects the inside of shell.

Preferably, two rows of dust-proof plates are arranged at the inlet and the outlet of the spraying chamber, the two rows of dust-proof plates are arranged oppositely, and the dust-proof plates are rubber plates.

Preferably, the clamping device comprises a vertical plate, two support plates are connected to the side faces of the vertical plate, a hydraulic cylinder is arranged on one support plate, a piston rod of the hydraulic cylinder penetrates through the corresponding support plate, a pressing plate is connected to a driving rod of the hydraulic cylinder, and the pressing plate is arranged between the two support plates.

Preferably, the lower side of the paint box is connected with a sliding block, a sliding groove is arranged below the sliding block, and the sliding block slides on the sliding rail through the sliding groove.

Preferably, the two sides of the sliding block are both connected with second motors, the output shaft of each second motor is connected with a gear, the bottom in the spraying chamber is connected with two racks, and the racks are meshed with the corresponding gears.

The utility model has the advantages that: the utility model provides a pair of people's air defense door paint spraying apparatus passes through clamping device and grasps people's air defense door, then drives people's air defense door through first motor and rotates, and the rethread shower nozzle sprays paint to people's air defense door, has realized that people's air defense door's two-sided sprays paint, has still set up filter equipment moreover, can adsorb the filtration to the poison gas that paint produced.

Drawings

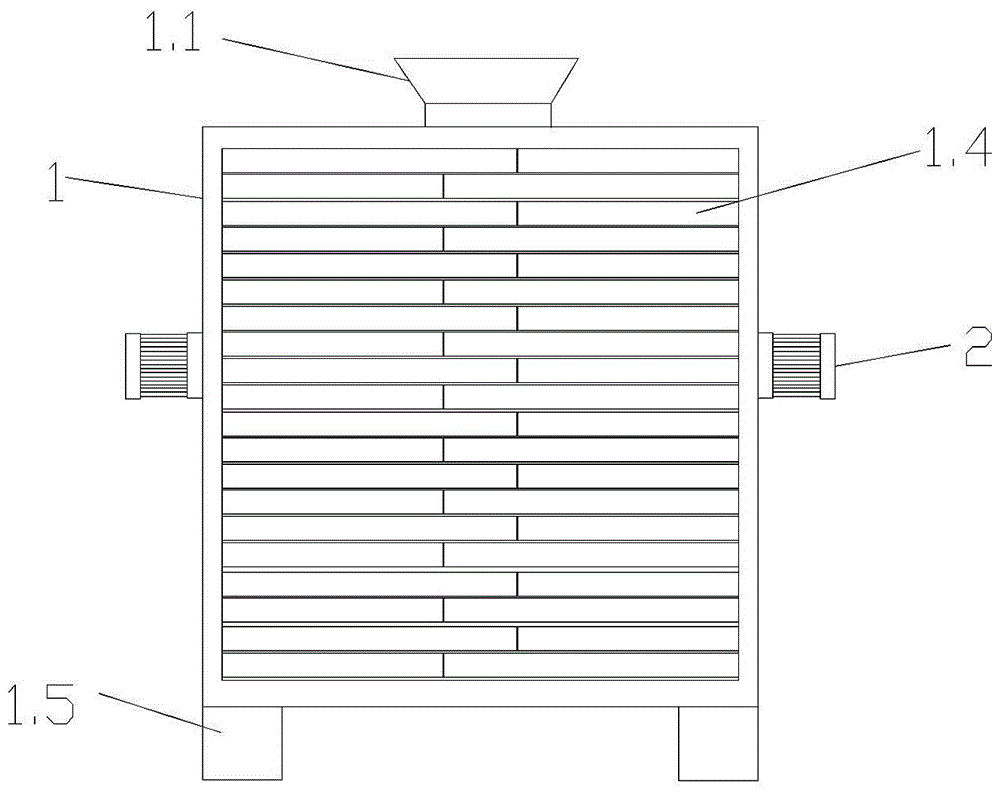

FIG. 1 is a schematic structural diagram of a painting device for a civil air defense door provided by the utility model;

FIG. 2 is a schematic view of the internal structure of the spray booth;

fig. 3 is a schematic view of the structure of the filter device.

Detailed Description

In order to make the objects, technical solutions and advantages of the present invention more clearly understood, the present invention is further described in detail below with reference to the accompanying drawings and embodiments. It should be understood that the specific embodiments described herein are merely illustrative of the invention and are not intended to limit the invention.

As shown in fig. 1, the utility model provides a pair of people's air defense door paint spraying apparatus, including spray booth 1, equal joint support post 1.5 in four corners in spray booth 1's below, four support columns 1.5 are used for supporting spray booth 1, all pass through two rows of dust guards 1.4 of bolt fastening in the entrance and exit department of spray booth 1, two rows of dust guards 1.4 set up relatively, dust guard 1.4 is the rubber slab, two rows of dust guards 1.4 not only can prevent when the spraying that outside dust from getting into in spray booth 1, can also prevent that paint and the smell in the spray booth 1 from spilling over, but also can not obstruct people's air defense door and get into in spray booth 1.

As shown in fig. 3, in order to prevent paint and toxic gas from diffusing to the outside air of spray booth 1 when spray booth 1 sprays people's air defense door, the top at spray booth 1 sets up the mounting hole, at the fixed filter equipment of mounting hole grafting, filter equipment includes shell 1.1, shell 1.1 welds in the mounting hole, below welding filter screen 1.2 in shell 1.1, filter screen 1.2 is the active carbon filter screen in this embodiment, can adsorb poison gas and peculiar smell, set up suction fan 1.3 in the top of filter screen 1.2, suction fan 1.3 connects through cross 1.4 the inside of shell 1.1, cross 1.4 welds the inside at shell 1.1 promptly, suction fan 1.3 passes through the bolt fastening on cross 1.4.

As shown in fig. 2, the first motors 2 are fixed on the outer walls of two sides of the spray booth 1 through bolts, the output shaft of each first motor 2 penetrates through the side wall of the spray booth 1, the output shaft of each first motor 2 is connected with the clamping device 3, the two clamping devices 3 are arranged in the spray booth 1 and are arranged oppositely, each clamping device 3 comprises a vertical plate 3.1, the vertical plate 3.1 is welded on the output shaft of the corresponding first motor 2, the two support plates 3.2 are welded on the side surface of the vertical plate 3.1, the two support plates 3.2 are arranged symmetrically up and down, the hydraulic cylinder 3.3 is fixed above the upper support plate 3.2 through bolts, the piston rod of the hydraulic cylinder 3.3 penetrates through the corresponding support plate 3.2, the pressing plate 3.4 is welded on the driving rod of the hydraulic cylinder 3.3, the pressing plate 3.4 is arranged between the two support plates 3.2, the civil air defense door is placed on the two support plates 3.2 below, then start hydraulic cylinder 3.3 and drive clamp plate 3.4 downstream, clamp plate 3.4 presses on the people's air defense door to compress tightly fixedly people's air defense door.

Be equipped with slide rail 4 in the bottom of spray booth 1, sliding connection paint box 5 on slide rail 4, at the below side welding sliding block 5.1 of paint box 5, set up the sliding tray in sliding tray 5.1's below, sliding block 5.1 is in through the sliding tray slide on the slide rail 4.

The two sides of the sliding block 5.1 are fixed with second motors 5.2 through bolts, the output shaft of each second motor 5.2 is welded with a gear 5.3, the bottom in the spraying chamber 1 is welded with two racks 5.4, the racks 5.4 are meshed with the corresponding gears 5.3, and the second motors 5.2 drive the gears 5.3 to be meshed and driven on the racks 5.4, so that the paint boxes 5 are driven to move.

Two electric putter 6 of bolt fastening are passed through in the top of paint case 5, and at two electric putter 6's top welding paint spraying pipe 7, the 7 level settings of pipe that sprays paint, a set of shower nozzle 8 of intercommunication on the pipe 7 that sprays paint, connect conveyer pipe 9 in the below of the pipe 7 that sprays paint, and the lower extreme of conveyer pipe 9 passes the lateral wall of paint case 5, at the end connection paint pump of conveyer pipe 9, the paint pump sets up in paint case 5, spray paint to the civil air defense door through shower nozzle 8.

The working principle is as follows: first place the people's air defense door on two backup pads 3.2 that are in the below, then start hydraulic cylinder 3.3 and drive clamp plate 3.4 downstream, clamp plate 3.4 presses on the people's air defense door, thereby compress tightly fixedly the people's air defense door, then start second motor 5.2 and drive gear 5.3 and rotate, make gear 5.3 and rack 5.4 meshing transmission, thereby drive paint can 5 and remove, then start the paint pump and draw out the paint, spray paint through shower nozzle 8 to the one side of people's air defense door, after one side has sprayed paint, then start first motor 2 and drive people's air defense door and rotate, make another side set up downwards, then start second motor 5.2 and drive shower nozzle 8 and return, shower nozzle 8 sprays paint to the another side of people's air defense door in the picture that returns.

Claims

1. The utility model provides a people's air defense door paint spraying apparatus which characterized in that: including spray booth (1), all connect first motor (2) on the both sides outer wall of spray booth (1), the output shaft of every first motor (2) all passes the lateral wall of spray booth (1), all connect clamping device (3) on the output shaft of every first motor (2), two clamping device (3) all set up in spray booth (1) and relative setting are equipped with slide rail (4) in the bottom of spray booth (1), sliding connection paint box (5) on slide rail (4), connect two electric putter (6) in the top of paint box (5), connect paint spraying pipe (7) in the top of two electric putter (6), paint spraying pipe (7) level sets up, connects a set of shower nozzle (8) on paint spraying pipe (7), connects conveyer pipe (9) in the below of paint spraying pipe (7), the lower extreme of conveyer pipe (9) passes the lateral wall of paint box (5), the end part of the conveying pipe (9) is connected with a paint pump, and the paint pump is arranged in the paint box (5).

2. The painting apparatus for a civil air defense door according to claim 1, wherein: the top of spray booth (1) still sets up filter equipment, and filter equipment includes shell (1.1), and shell (1.1) passes the top lateral wall of spray booth (1), below in shell (1.1) is connected filter screen (1.2), sets up suction fan (1.3) in the top of filter screen (1.2), and suction fan (1.3) are connected through cross (1.4) the inside of shell (1.1).

3. The painting apparatus for a civil air defense door according to claim 1, wherein: the inlet and outlet department of spray booth (1) all sets up two rows of dust guards (1.4), and two rows of dust guards (1.4) set up relatively, and dust guard (1.4) are the rubber slab, all connect support column (1.5) in four corners in the bottom of spray booth (1).

4. The painting apparatus for a civil air defense door according to claim 1, wherein: clamping device (3) include riser (3.1), connect two backup pad (3.2) on the side of riser (3.1), set up pneumatic cylinder (3.3) on one of them backup pad (3.2), the piston rod of pneumatic cylinder (3.3) passes correspondingly backup pad (3.2), connect clamp plate (3.4) on the actuating lever of pneumatic cylinder (3.3), clamp plate (3.4) set up two between backup pad (3.2).

5. The painting apparatus for a civil air defense door according to claim 1, wherein: sliding block (5.1) are connected to the below side of paint case (5), set up the sliding tray in the below of sliding block (5.1), and sliding block (5.1) are in through the sliding tray slide on slide rail (4).

6. The painting apparatus for a civil air defense door according to claim 5, wherein: the two sides of the sliding block (5.1) are connected with second motors (5.2), the output shaft of each second motor (5.2) is connected with a gear (5.3), the bottom in the spraying chamber (1) is connected with two racks (5.4), and the racks (5.4) are meshed with the corresponding gears (5.3).
