Abstract

The utility model discloses a multifunctional workbench is used in machining, including the processing platform, the equal fixedly connected with slide bar in both ends on processing platform inner chamber surface, two swing joint has lift platform between the slide bar, all there is the loose wheel all around of lift platform bottom through bearing swing joint. The utility model discloses a central controller, first motor, the second motor, the air-blower, lifting threaded rod, lift platform, the slide bar, the loose wheel, the processing platform, two-way threaded rod, the clamp plate, press from both sides tight platform, the air-blower, the control box, the suction hood, under mutually supporting's effect between rose box and dust filter screen and the blast pipe, when having realized that the processing platform is convenient for remove, can carry out the quick purpose of pressing from both sides tight fixed and removing dust in the course of working to the processing part, it is multi-functional in an organic whole to collect, very big satisfied the functional demand of workstation for the machining that the user used.

Description

Multifunctional workbench for machining
Technical Field
The utility model relates to the technical field of machining, specifically be a multifunctional workbench is used in machining.
Background
At present, machining means the process that changes the overall dimension or the performance of work piece through a mechanical equipment, in the middle of the process of processing, need use present machining workstation, and the placing of the workstation is comparatively firm for machining that exists in the existing market, but is not convenient for remove, can't carry out quick clamp to fix when processing to the part simultaneously, and can't carry out effectual dust removal to the processing environment in the parts machining process.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a multi-functional workstation is used in machining possesses multi-functional advantage, has solved placing of the workstation is used in machining that exists in the existing market comparatively firm, but is not convenient for remove, can't carry out quick clamp to fix man-hour simultaneously to the part, and can't carry out the problem of effectively removing dust to the processing environment in the course of the part machining.
In order to achieve the above object, the utility model provides a following technical scheme: a multifunctional workbench for machining comprises a machining table, wherein two ends of the surface of an inner cavity of the machining table are fixedly connected with slide rods, a lifting platform is movably connected between the two slide rods, the periphery of the bottom of the lifting platform is movably connected with movable wheels through bearings, a first motor is fixedly installed at the middle end of the top of the inner cavity of the machining table through a support, an output end of the first motor is fixedly connected with a lifting threaded rod, the surface of the lifting threaded rod is in threaded connection with the middle end of the lifting platform, the middle end of the top of the machining table is fixedly connected with a clamping table, a second motor is fixedly installed on the right side of the outer surface of the clamping table, an output end of the second motor is fixedly connected with a bidirectional threaded rod, two ends of the surface of the bidirectional threaded rod are movably connected with the middle ends of two sides of the inner cavity of the clamping table through, the top fixedly connected with control box of processing platform, the left lower extreme fixed mounting of control box surface has central controller, the right-hand member fixed mounting at control box surface top has the air-blower, the input fixedly connected with suction hood of air-blower, and support fixed mounting is passed through in the middle-end at control box inner chamber top in the top of suction hood, the output fixedly connected with rose box of air-blower, and the left side fixed connection of rose box surface in the right side of control box surface, the equal fixedly connected with dust filter screen in both ends of rose box inner chamber, the lower extreme fixedly connected with blast pipe on rose box right side.
Preferably, the two ends of the bottom of the outer surface of the processing table are fixedly connected with anti-skidding bottom plates, and the anti-skidding bottom plates are made of rubber.
Preferably, both ends of the top of the processing table are fixedly connected with a discharging pipe, and the bottom of the discharging pipe is in threaded connection with a crushed material collecting box.
Preferably, the both sides on processing platform positive surface all have the maintenance door through hinge swing joint, the observation window has been seted up on the surface of maintenance door, and the inboard of observation window is including transparent glass.
Preferably, the top of the clamping table is provided with a guide hole, the bottom of the inner cavity of the clamping table is provided with a sliding groove, and the lower end of the surface of the clamping table is movably connected to the surface of the sliding groove.
Preferably, the lighting lamps are fixedly mounted at the two ends of the top of the inner cavity of the operating box, the placing plates are fixedly connected to the middle ends of the two sides of the inner cavity of the operating box, and the tool placing boxes are fixedly connected to the top of the placing plates.
Preferably, both ends of the top of the outer surface of the processing table are fixedly connected with material guide plates, and one side of the surface of each material guide plate is fixedly connected to the lower end of the surface of the inner cavity of the operation box.
Compared with the prior art, the beneficial effects of the utility model are as follows:
1. the utility model controls the first motor, the second motor and the blower to work through the central controller, the first motor works to drive the lifting threaded rod to rotate, the lifting threaded rod rotates to drive the lifting platform to move downwards along the sliding rod, the lifting platform moves downwards to drive the movable wheel to move downwards, under the state that the first motor works continuously, after the movable wheel is contacted with the ground, the processing table is lifted upwards, at the moment, a user can push the processing table to move, the two-way threaded rod is driven to rotate through the second motor, the clamping plates on two sides are driven to approach to the middle end of the clamping table while the two-way threaded rod rotates until one side of the clamping plate is tightly attached to the processing part on the top of the clamping table, the processing part on the top of the clamping table can be rapidly clamped and fixed, the air flow which can drive a large amount of processing dust in the operation box through the blower flows to the filter box through the dust hood, because the inside of rose box is provided with the dust filter screen, can fully filter the dust in the air current that the air-blower carried, the air current after filtering is under the continuous transport of air-blower, discharge to the external world from the blast pipe, under holistic cooperation, when having realized the processing platform and being convenient for to remove, can carry out quick clamp to the processing part and fix the purpose of removing dust in with the course of working, collect multi-functionally in an organic whole, the very big machining that has satisfied the user used uses the functional demand of workstation, it is comparatively firm to have solved placing of workstation for the machining that exists in the existing market, but be not convenient for remove, simultaneously can't carry out quick clamp to fix man-hour to the part, and can't carry out the problem of effectively removing dust to the processing environment in the part machining process.
Drawings

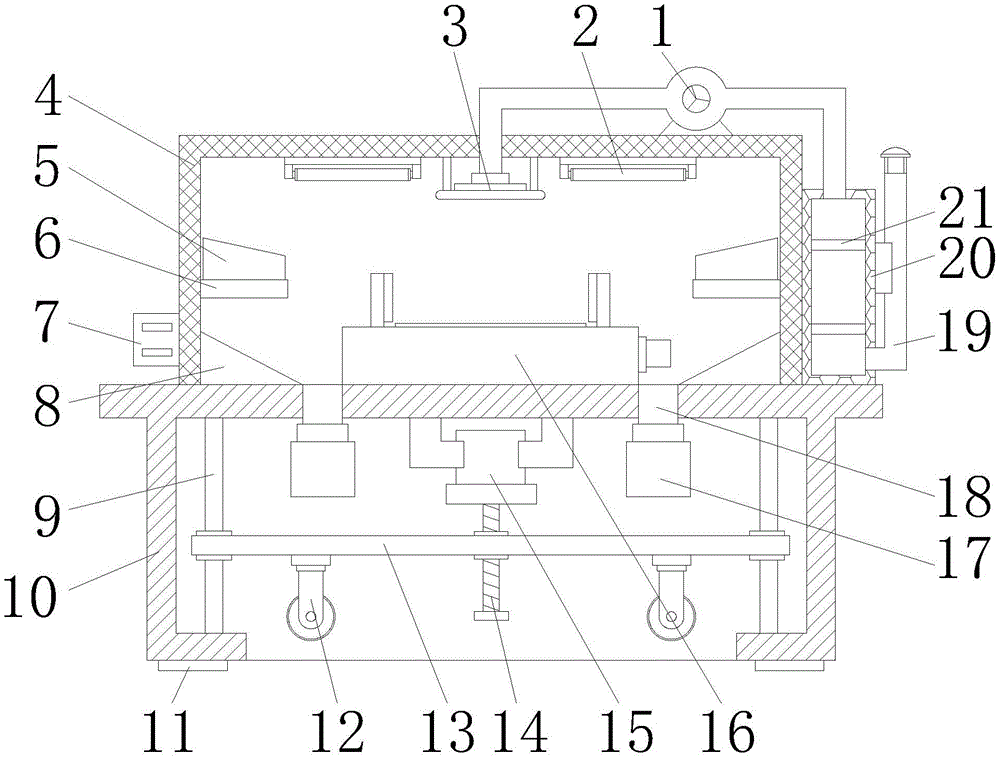

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic front view of the present invention;
fig. 3 is the schematic view of the sectional structure of the clamping table of the present invention.
In the figure: 1. a blower; 2. an illuminating lamp; 3. a dust hood; 4. an operation box; 5. a tool storage case; 6. placing the plate; 7. a central controller; 8. a material guide plate; 9. a slide bar; 10. a processing table; 11. an anti-skid bottom plate; 12. a movable wheel; 13. a lifting platform; 14. lifting a threaded rod; 15. a first motor; 16. a clamping table; 17. a crushed material collecting box; 18. a discharging pipe; 19. an exhaust pipe; 20. a filter box; 21. a dust filter screen; 22. repairing the door; 23. an observation window; 24. a second motor; 25. a chute; 26. a bidirectional threaded rod; 27. a guide hole; 28. and (5) clamping the plate.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
In the description herein, it is to be understood that the terms "center," "upper," "lower," "front," "rear," "left," "right," "vertical," "horizontal," "top," "bottom," "inner," "outer," and the like are used in the orientations and positional relationships indicated in the drawings to facilitate the description of the patent and to simplify the description, but do not indicate or imply that the referenced device or element must have a particular orientation, be constructed and operated in a particular orientation, and thus are not to be considered limiting of the patent. In the description of the present application, it should be noted that unless otherwise explicitly stated or limited, the terms "mounted," "connected," and "disposed" are to be construed broadly and can, for example, be fixedly connected, disposed, detachably connected, disposed, or integrally connected and disposed. The specific meaning of the above terms in this patent may be understood by those of ordinary skill in the art as appropriate.
Referring to fig. 1-3, a multifunctional worktable for machining includes a machining table 10, both ends of the bottom of the outer surface of the machining table 10 are fixedly connected with anti-skid bottom plates 11, the anti-skid bottom plates 11 are made of rubber, both sides of the front surface of the machining table 10 are movably connected with maintenance doors 22 through hinges, the surface of the maintenance doors 22 is provided with observation windows 23, the inner sides of the observation windows 23 include transparent glass, both ends of the surface of the inner cavity of the machining table 10 are fixedly connected with slide bars 9, a lifting platform 13 is movably connected between the two slide bars 9, the periphery of the bottom of the lifting platform 13 is movably connected with movable wheels 12 through bearings, the middle end of the top of the inner cavity of the machining table 10 is fixedly provided with a first motor 15 through a bracket, the output end of the first motor 15 is fixedly connected with a lifting threaded rod 14, and the surface of the lifting threaded rod 14, the two ends of the top of the processing table 10 are fixedly connected with a blanking pipe 18, the bottom of the blanking pipe 18 is in threaded connection with a crushed aggregate collecting box 17, the middle end of the top of the processing table 10 is fixedly connected with a clamping table 16, the right side of the outer surface of the clamping table 16 is fixedly provided with a second motor 24, the output end of the second motor 24 is fixedly connected with a bidirectional threaded rod 26, the two ends of the surface of the bidirectional threaded rod 26 are movably connected with the middle ends of the two sides of the inner cavity of the clamping table 16 through bearings, the two ends of the surface of the bidirectional threaded rod 26 are in threaded connection with clamping plates 28, the top of the clamping table 16 is provided with a guide hole 27, the bottom of the inner cavity of the clamping table 16 is provided with a sliding groove 25, the lower end of the surface of the clamping plate 28 is movably connected with the surface of the sliding groove 25, the top of the processing table 10 is fixedly connected with an, the lamp 2 is fixedly arranged at two ends of the top of the inner cavity of the operation box 4, the placing plate 6 is fixedly connected with the middle ends of two sides of the inner cavity of the operation box 4, the tool placing box 5 is fixedly connected with the top of the placing plate 6, the central controller 7 is fixedly arranged at the left lower end of the outer surface of the operation box 4, the air blower 1 is fixedly arranged at the right end of the top of the outer surface of the operation box 4, the dust suction hood 3 is fixedly connected with the input end of the air blower 1, the top of the dust suction hood 3 is fixedly arranged at the middle end of the top of the inner cavity of the operation box 4 through a support, the filter box 20 is fixedly connected with the output end of the air blower 1, the left side of the outer surface of the filter box 20 is fixedly connected with the right side of the outer surface of the operation box 4, the dust filter screens, The second motor 24 and the blower 1 work, the first motor 15 works to drive the lifting threaded rod 14 to rotate, the lifting threaded rod 14 rotates to drive the lifting platform 13 to move downwards along the sliding rod 9, the lifting platform 13 moves downwards to drive the movable wheel 12 to move downwards, the processing table 10 is lifted up after the movable wheel 12 is in contact with the ground under the condition that the first motor 15 continuously works, at the moment, a user can push the processing table 10 to move, the second motor 24 works to drive the two-way threaded rod 26 to rotate, the two-way threaded rod 26 rotates and simultaneously drives the clamping plates 28 at two sides to approach to the middle end of the clamping table 16 until one side of the clamping plate 28 is tightly attached to a processing part at the top of the clamping table 16, the processing part at the top of the clamping table 16 can be rapidly clamped and fixed, the blower 1 works to drive the air flow carrying a large amount of processing dust in the operation box 4 to flow to the filter box 20 through the dust hood 3, because the inside of rose box 20 is provided with dust filter screen 21, can fully filter the dust in the air current that air-blower 1 carried, the air current after filtering is under the continuous transport of air-blower 1, discharge to the external world from blast pipe 19, under holistic cooperation, when having realized that processing platform 10 is convenient for remove, can carry out the quick clamp to the processing part and fix the purpose of removing dust in with the course of working, collect multi-functional in an organic whole, very big satisfied the functional requirement of the workstation for the machining that the user used, place comparatively firm of the workstation for the machining who exists in having solved present market, but be not convenient for remove, can't carry out quick clamp to the part man-hour simultaneously and fix, and can't carry out the problem of effectively removing dust to the processing environment in the part machining process.
All the components in the utility model are universal standard components or components known by technicians in the field, the structure and principle of the components are known by technicians in the technical manual or known by conventional experimental methods, standard parts used in the application document can be purchased from the market, the components in the application document can be customized according to the description of the specification and the accompanying drawings, the specific connection mode of each component adopts conventional means such as bolts, rivets, welding and the like mature in the prior art, machines, parts and equipment adopt conventional models in the prior art, the control mode is automatically controlled by a controller, a control circuit of the controller can be realized by simple programming of technicians in the field, the components belong to the common knowledge in the field, and the application document is mainly used for protecting mechanical devices, so the control mode and circuit connection are not explained in detail in the application document, no specific description will be made herein.
When the machine is used, the central controller 7 controls the first motor 15, the second motor 24 and the blower 1 to work, the first motor 15 works to drive the lifting threaded rod 14 to rotate, the lifting threaded rod 14 rotates to drive the lifting platform 13 to move downwards along the sliding rod 9, the lifting platform 13 moves downwards to drive the movable wheel 12 to move downwards, under the condition that the first motor 15 continuously works, after the movable wheel 12 is in contact with the ground, the processing table 10 is erected upwards, at the moment, a user can push the processing table 10 to move, the second motor 24 works to drive the bidirectional threaded rod 26 to rotate, the bidirectional threaded rod 26 rotates and simultaneously drives the clamping plates 28 on two sides to approach to the middle end of the clamping table 16 until one side of the clamping plates 28 is tightly attached to a processing part on the top of the clamping table 16, and the processing part on the top of the clamping table 16 can be rapidly clamped and fixed, can drive the inside air current that carries a large amount of processing dusts of control box 4 through 1 work of air-blower and pass through 3 flow direction rose box 20 of suction hood, because rose box 20's inside is provided with dust filter screen 21, can fully filter the dust in the air current of air-blower 1 transport, the air current after filtering is under the continuous transport of air-blower 1, discharge to the external world from blast pipe 19, under holistic cooperation, when having realized that processing platform 10 is convenient for remove, can carry out the quick clamp to the processing part and fix the purpose of removing dust in with the course of working, collect multi-functional in an organic whole, very big satisfied the functional demand of the machining that the user used workstation.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims (7)

1. A multifunctional workbench for machining, which comprises a machining table (10), and is characterized in that: the processing table is characterized in that two sliding rods (9) are fixedly connected to the two ends of the surface of an inner cavity of the processing table (10), two lifting platforms (13) are movably connected between the sliding rods (9), all the peripheries of the bottoms of the lifting platforms (13) are movably connected with movable wheels (12) through bearings, a first motor (15) is fixedly mounted at the middle end of the top of the inner cavity of the processing table (10) through a support, an output end of the first motor (15) is fixedly connected with a lifting threaded rod (14), the surface threads of the lifting threaded rod (14) are connected to the middle end of the lifting platforms (13), a clamping table (16) is fixedly connected to the middle end of the top of the processing table (10), a second motor (24) is fixedly mounted on the right side of the outer surface of the clamping table (16), a bidirectional threaded rod (26) is fixedly connected to the output end of the second motor (24), and the two ends of the surface of the bidirectional threaded rod, two ends of the surface of the bidirectional threaded rod (26) are both in threaded connection with clamping plates (28), the top of the processing table (10) is fixedly connected with an operation box (4), the lower end of the left side of the outer surface of the operation box (4) is fixedly provided with a central controller (7), the right end of the top of the outer surface of the operation box (4) is fixedly provided with an air blower (1), the input end of the air blower (1) is fixedly connected with a dust hood (3), the top of the dust hood (3) is fixedly arranged at the middle end of the top of the inner cavity of the operation box (4) through a bracket, the output end of the blower (1) is fixedly connected with a filter box (20), and the left side of the outer surface of the filter box (20) is fixedly connected with the right side of the outer surface of the operation box (4), both ends of the inner cavity of the filter box (20) are fixedly connected with dust filter screens (21), the lower end of the right side of the filter box (20) is fixedly connected with an exhaust pipe (19).
2. A multifunctional machining workbench according to claim 1, wherein: the anti-skidding bottom plate is characterized in that anti-skidding bottom plates (11) are fixedly connected to two ends of the bottom of the outer surface of the processing table (10), and the anti-skidding bottom plates (11) are made of rubber.
3. A multifunctional machining workbench according to claim 1, wherein: the processing table is characterized in that both ends of the top of the processing table (10) are fixedly connected with blanking pipes (18), and the bottom of each blanking pipe (18) is in threaded connection with a crushed material collecting box (17).
4. A multifunctional machining workbench according to claim 1, wherein: processing platform (10) positive surface's both sides all have maintenance door (22) through hinge swing joint, observation window (23) have been seted up on the surface of maintenance door (22), and the inboard of observation window (23) is including transparent glass.
5. A multifunctional machining workbench according to claim 1, wherein: the top of the clamping table (16) is provided with a guide hole (27), the bottom of the inner cavity of the clamping table (16) is provided with a sliding groove (25), and the lower end of the surface of the clamping plate (28) is movably connected to the surface of the sliding groove (25).
6. A multifunctional machining workbench according to claim 1, wherein: the lamp box is characterized in that illuminating lamps (2) are fixedly mounted at two ends of the top of an inner cavity of the operating box (4), plates (6) are fixedly connected to the middle ends of two sides of the inner cavity of the operating box (4), and the box (5) is placed on a tool fixedly connected to the top of the plates (6).
7. A multifunctional machining workbench according to claim 1, wherein: both ends of the top of the outer surface of the processing table (10) are fixedly connected with material guide plates (8), and one side of the surface of each material guide plate (8) is fixedly connected to the lower end of the surface of the inner cavity of the operation box (4).
