本实用新型提供了一种图像服务器用机箱，包括箱体和主板组件，主板组件设置在箱体内部；还包括隔板、散热组件和风扇；箱体内设置有隔板，隔板将箱体内部分隔为互不连通的第一腔体和第二腔体；散热组件位于第一腔体内且与隔板固定连接，散热组件延伸方向两端的箱体上分别设置有进风口和出风口，进风口、散热组件和出风口相互连通形成完整的空气通路；出风口处的箱体上设置有风扇；主板组件设置在第二腔体内，主板组件产生的热量通过隔板向散热组件传递，风扇强制抽风并将该热量排出箱体。
The utility model provides a case for an image server, which comprises a case body and a main board assembly, wherein the main board assembly is arranged inside the case body; it also includes a partition plate, a heat dissipation component and a fan; It is divided into a first cavity and a second cavity that are not connected to each other; the heat dissipation component is located in the first cavity and is fixedly connected with the partition plate. , The heat dissipation component and the air outlet are connected to each other to form a complete air passage; the box body at the air outlet is provided with a fan; the main board component is arranged in the second cavity, the heat generated by the main board component is transmitted to the heat dissipation component through the partition plate, and the fan is forced to draw air. and dissipate the heat out of the box.
Description
Technical Field
The utility model relates to a machine vision check out test set technical field especially relates to a machine case for image server.
Background
An image server of the machine vision system needs to perform a large amount of image data processing and operation, the obtained images are collected and processed mainly through a camera, and the image processing function is realized by configuring hardware such as a main board, a CPU, a memory, a hard disk, a power supply and the like for the server. With the continuous development of IT technology, the configuration of an image server is higher and higher, the image resolution is higher and higher, the data processing capability is stronger and the size is smaller and smaller.
The image server is generally arranged in an industrial field with a severe environment, each component of the server is installed inside the case, and dust and water vapor on the field can be accumulated inside the case if entering the image server, so that the reliability of the electronic equipment is affected. Some chassis have seted up many ventilation holes and have cooperated the filter screen, can block the dust to a certain extent and get into, but still can get into in the electrical part subassembly with steam.
SUMMERY OF THE UTILITY MODEL
In view of this, the utility model provides a rational in infrastructure, effectively block the image server machine case that dust or steam of industrial field directly contacted with the hardware of image server under the prerequisite that does not influence hardware normal work.
The technical scheme of the utility model is realized like this: the utility model provides a chassis for an image server, which comprises a box body (1) and a mainboard component (2), wherein the mainboard component (2) is arranged inside the box body (1); the heat dissipation device also comprises a partition plate (3), a heat dissipation assembly (4) and a fan (5); a partition plate (3) is arranged in the box body (1), and the partition plate (3) partitions the interior of the box body (1) into a first cavity (10) and a second cavity (20) which are not communicated with each other; the heat dissipation assembly (4) is positioned in the first cavity (10) and fixedly connected with the partition plate (3), an air inlet (11) and an air outlet (12) are respectively arranged on the box body (1) at two ends of the heat dissipation assembly (4) in the extension direction, and the air inlet (11), the heat dissipation assembly (4) and the air outlet (12) are communicated with each other to form a complete air passage; a fan (5) is arranged on the box body (1) at the air outlet (12); mainboard subassembly (2) set up in second cavity (20), and the heat that mainboard subassembly (2) produced passes through baffle (3) and transmits to radiator unit (4), and fan (5) force convulsions and with heat discharge box (1).
In addition to the above technical solution, preferably, the partition plate (3) is L-shaped.
Preferably, the box body (1) comprises a bottom plate (13), a cover plate (14) and two side plates (15), the bottom plate (13) is U-shaped, the cover plate (14) is arranged at the edge of an opening part of the bottom plate (13), the two side plates (15) are oppositely arranged in the opening part area between the cover plate (14) and the bottom plate (13), and the cover plate (14), the two side plates (15) and the bottom plate (13) are respectively and fixedly connected; the partition plate (3) is positioned in the opening part of the bottom plate (13) and is respectively fixedly connected with the bottom plate (13), the cover plate (14) and the two side plates (15); the partition plate (3), the bottom plate (13), the cover plate (14) and the two side plates (15) are encircled to form a first cavity (10) and a second cavity (20) which are not communicated with each other; the two side plates (15) are correspondingly provided with an air inlet (11) and an air outlet (12).
Still more preferably, the heat dissipation assembly (4) comprises a heat dissipation base (41) and a plurality of heat dissipation fins (42); the outer surface of the heat dissipation base (41) is attached to and fixedly connected with the partition plate (3) positioned in the first cavity (10), and a plurality of heat dissipation fins (42) are arranged on the surface, away from the partition plate (3), of the heat dissipation base (41); one end of the radiating fin (42) is fixedly connected with the radiating base (41), and the other end of the radiating fin (42) extends towards the direction far away from the radiating base (41); the radiating fins (42) are arranged at intervals and at equal intervals; a plurality of grooves are formed between the adjacent radiating fins (42) and between the radiating fins (42) and the radiating base (41), and two ends of each groove are respectively communicated with the air inlet (11) and the air outlet (12).
Still further preferably, the surface of the heat radiating fin (42) in the horizontal extending direction is provided with a plurality of arc-shaped bulges.
Still further preferably, a positioning block (31) is arranged on the partition plate (3), and the positioning block (31) extends outwards from the surface of the partition plate (3); the heat dissipation base (41) is correspondingly provided with a positioning groove (43), and the positioning block (31) is matched with the positioning groove (43) in shape.
Further preferably, the positioning groove (43) is G-shaped.
Still further preferably, the heat-conducting module further comprises a heat-conducting assembly (6), one end of the heat-conducting assembly (6) abuts against the heating portion of the main board assembly (2), and the other end of the heat-conducting assembly (6) is fixedly connected with the surface of the partition plate (3) located in the second cavity (20).
Further preferably, the heat conducting component (6) is a heat pipe.
The utility model provides a pair of image server uses quick-witted case for prior art, has following beneficial effect:
(1) the utility model discloses a set up the second cavity that is totally enclosed in the box for place the mainboard subassembly, and isolate dust and steam entering in the external environment, the mainboard subassembly in the second cavity is in dustless environment, does not contact with the external world, even in the normal work that the more abominable high-dust operating mode can not be influenced; the fan forces air to flow through an air channel formed by the air inlet, the heat dissipation assembly and the air outlet of the first cavity in sequence, so that the main board assembly is cooled forcibly;
(2) the shape of the partition plate can be simultaneously attached to different heating parts and radiating components of the main board component, so that the heat exchange area and the heat exchange efficiency are increased;
(3) the heat dissipation base of the heat dissipation assembly can be fully contacted with the partition plate and the box body, and a plurality of spaced grooves are formed in the first cavity, so that the heat exchange area is further increased;
(4) the positioning groove and the positioning block can play a fool-proof role, so that the heat dissipation assembly is convenient to mount;
(5) the heat conduction assembly can form a heat conduction channel between the inner partition plate of the second cavity and the main plate assembly, and heat transfer is efficiently and reliably realized.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without creative efforts.

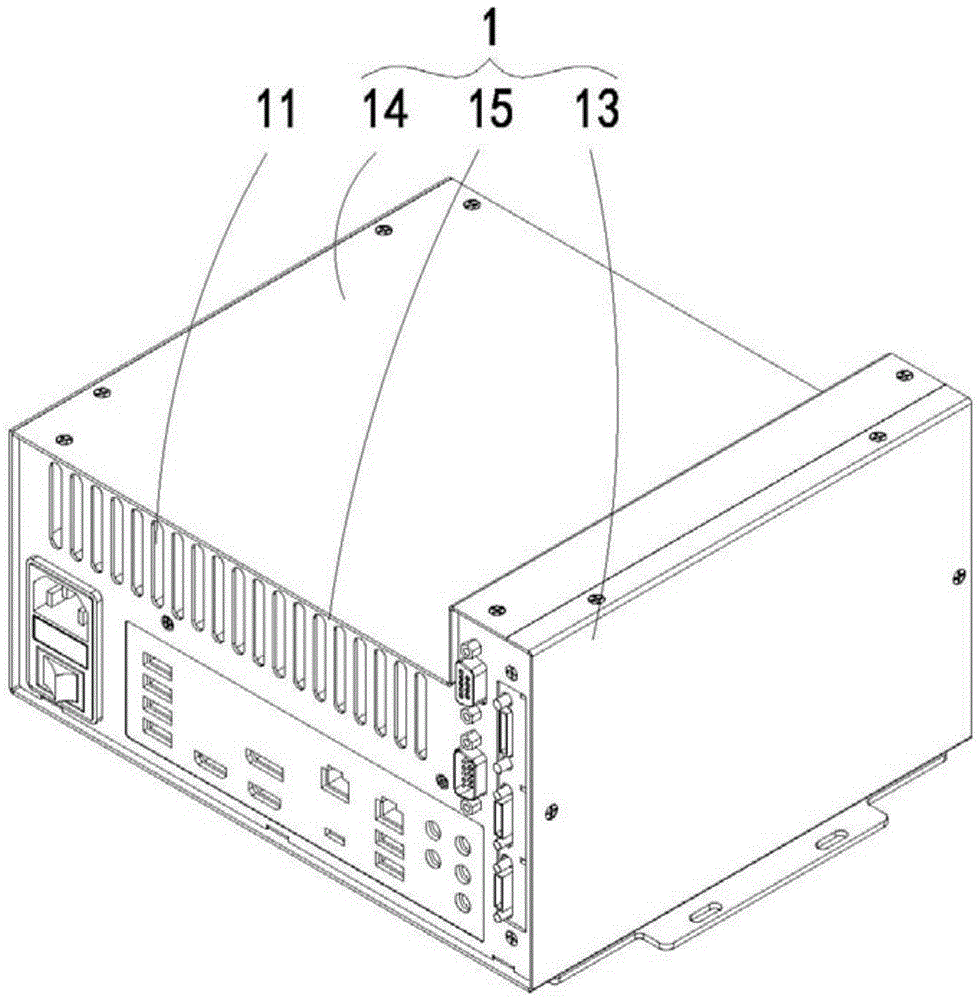

Fig. 1 is a perspective view of a case for an image server according to the present invention;
fig. 2 is a perspective view of another view angle of the case for the image server according to the present invention;
fig. 3 is a front view of a case for an image server according to the present invention;
FIG. 4 is a front view in half section of FIG. 3;
fig. 5 is an exploded perspective view of a cover plate and a side plate of a box body of a chassis for an image server according to the present invention;
fig. 6 is an exploded perspective view of two side plates of a chassis for an image server according to the present invention;
fig. 7 is a perspective view of a partition plate of a case for an image server according to the present invention;
fig. 8 is a perspective view of a heat dissipation assembly of a chassis for an image server according to the present invention.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely below with reference to the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work all belong to the protection scope of the present invention.
As shown in fig. 1, 2 and 3, the present invention provides a chassis for an image server, which includes a box body 1, for facilitating the installation and fixation of a motherboard assembly 2 and providing a certain protection function;
the mainboard assembly 2 is arranged in the box body 1, processes and outputs externally input image data, and is a main source of heat of the image server;
the partition plate 3 is used for partitioning the inner space of the box body 1 so as to enable the main board assembly 2 to be in a closed dust-free environment;
the heat dissipation component 4 is used for performing auxiliary heat dissipation on the main board component 2;
and the fan 5 is used for forcibly exhausting air and taking away the heat of the main board assembly 2.
Specifically, a partition plate 3 is arranged in the box body 1, and the partition plate 3 divides the interior of the box body 1 into a first cavity 10 and a second cavity 20 which are not communicated with each other; the heat dissipation assembly 4 is positioned in the first cavity 10 and fixedly connected with the partition plate 3, the box bodies 1 at two ends of the heat dissipation assembly 4 in the extending direction are respectively provided with an air inlet 11 and an air outlet 12, and the air inlet 11, the heat dissipation assembly 4 and the air outlet 12 are communicated with each other to form a complete air passage; a fan 5 is arranged on the box body 1 at the air outlet 12; mainboard subassembly 2 sets up in second cavity 20, and the heat that mainboard subassembly 2 produced passes through baffle 3 to radiator unit 4 transmission, and fan 5 forces convulsions and with heat discharge box 1.
As shown in fig. 7, the partition board 3 of the present invention is L-shaped. This structure divides the inside of the case 1 into a rectangular space, i.e., the first chamber 10, and an L-shaped space, i.e., the second chamber 20. This configuration is intended to better conform to the shape of the heat sink assembly 4 and the main plate assembly 2, increasing heat exchange area and efficiency.
As shown in fig. 5 and 6, the box body 1 comprises a bottom plate 13, a cover plate 14 and two side plates 15, wherein the bottom plate 13 is U-shaped, the cover plate 14 is arranged at the edge of the opening part of the bottom plate 13, the two side plates 15 are oppositely arranged in the opening part area between the cover plate 14 and the bottom plate 13, and the cover plate 14, the two side plates 15 and the bottom plate 13 are respectively fixedly connected; the partition board 3 is positioned in the opening part of the bottom board 13 and is respectively fixedly connected with the bottom board 13, the cover board 14 and the two side boards 15; the partition plate 3, the bottom plate 13, the cover plate 14 and the two side plates 15 are encircled to form a first cavity 10 and a second cavity 20 which are not communicated with each other; the two side plates 15 are correspondingly provided with an air inlet 11 and an air outlet 12. In order to improve the sealing effect of the box body 1 and reduce gaps as much as possible, the bottom plate 13, the cover plate 14 and the two side plates 15 can be combined, and the gaps at the edges can be sealed by filling gaps by adopting a metal plate integrally-formed structure. As shown, the main board assembly 2 is usually provided with a separate graphic card having a height exceeding the main board assembly 2, and the cover plate 14 has a zigzag shape or an L shape similar to the partition plate 3 in order to prevent interference. The bent portion of the cover plate 14 is fixedly connected to the partition plate 3. The heating part of the display card is tightly attached to the vertical part of the clapboard 3, and the surface heat exchange surface of the clapboard 3 is fully utilized.
As shown in fig. 8, the heat dissipation assembly 4 includes a heat dissipation base 41 and a plurality of heat dissipation fins 42; the outer surface of the heat dissipation base 41 is attached to and fixedly connected with the partition plate 3 positioned in the first cavity 10, and a plurality of heat dissipation fins 42 are arranged on the surface of the heat dissipation base 41 away from the partition plate 3; one end of the heat sink 42 is fixedly connected with the heat dissipation base 41, and the other end of the heat sink 42 extends towards the direction far away from the heat dissipation base 41; the radiating fins 42 are arranged at intervals and at equal intervals; a plurality of grooves are formed between adjacent radiating fins 42 and between the radiating fins 42 and the radiating base 41, and two ends of each groove are respectively communicated with the air inlet 11 and the air outlet 12. Each groove increases the contact area of the heat dissipation assembly 4 and the air, and improves the heat exchange efficiency and the heat exchange speed. The fins 42 may be trapezoidal in longitudinal cross-section or rectangular as shown.
The surface of the heat radiating fin 42 in the horizontal extending direction is provided with dry arc-shaped protrusions, so that the contact area with air can be further increased. The heat sink 42 and the heat sink base 42 may be made of aluminum alloy or copper alloy having good thermal conductivity.
The partition board 3 is provided with a positioning block 31, and the positioning block 31 extends outwards from the surface of the partition board 3; the heat dissipation base 41 is correspondingly provided with a positioning groove 43, and the positioning block 31 is matched with the positioning groove 43 in shape. Specifically, as shown in fig. 7 and 8, the positioning groove 43 has a G-shape. The positioning groove 43 and the positioning block 31 are combined to play a fool-proof role, so that the heat dissipation assembly 4 is quickly installed, the heat dissipation assembly 4 is prevented from being installed wrongly, the air passage is prevented from deviating or being separated, and the heat dissipation effect is guaranteed.
As shown in fig. 8, the fan 5 may be built in the case 1 to make the case 1 beautiful, and a fan catch may be provided in the heat dissipating unit 4 to avoid interference. In order to reduce the volume of the case 1, the main board assembly 2 may use an ITX main board as a main body. The number of the fans 5 can be increased or decreased according to the amount of heat dissipation.
As shown in fig. 4, the present invention further includes a heat conducting component 6, one end of the heat conducting component 6 abuts against the heat generating portion of the main board component 2, and the other end of the heat conducting component 6 is fixedly connected to the surface of the partition board 3 located in the second cavity 20. The heat conducting assembly 6 is a heat pipe. The heat conduction assembly 6 can adapt to the installation of the mainboard assemblies 2 with different specifications, and the heat conduction assemblies 6 with different shapes can be selected according to different installation requirements.
The main board assembly 2 is provided with a plurality of connector interfaces, such as HDMI, USB, ethernet and DB9 interfaces shown in fig. 1; the side plate 15 corresponding to the connector interface is provided with a corresponding window, and each connector interface is embedded in the window; in order to further prevent direct contact with the external environment, each connector interface can be blocked and protected by a dustproof cap made of silica gel, so that dust or water vapor is prevented from entering the connector interface. When the case needs to be cleaned, only the cover plate 14 needs to be detached, and the fan 5 and the heat dissipation assembly 4 need to be cleaned.
The second cavity 20 may further include a power source, the power source is fixed in the second cavity 20, and a heat generating portion of the power source is also attached to the surface of the partition plate 3 in the second cavity 20. The heat sink assembly 4 can also provide a heat sink effect for the power supply.
The above description is only a preferred embodiment of the present invention, and should not be taken as limiting the invention, and any modifications, equivalent replacements, improvements, etc. made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
