CN212237544U - Substitute reducing mechanism for plant extract product fodder of antibiotic - Google Patents

Abstract

The utility model discloses a pulverizing device for plant extract feed that replaces antibiotics, comprising a sixth shell, a fourth shell is welded on one inner side of the sixth shell, and one side of the sixth shell is welded A fifth casing is welded, a second motor is installed on the inner side of the fifth casing, the output shaft of the second motor penetrates the sixth casing, and one end of the second rotating shaft is connected to the first shaft through a third bearing. The six shells are connected in rotation; when the device is in use, a screen plate is set to screen the material after breaking up the material, so that the volume is more uniform and the crushing effect of the device is improved. The filter plate is fixed inside the sixth casing with the clamping block, and the cover plate is used to facilitate the disassembly of the filter plate for replacement or cleaning; the second slider is set to slide in the second slide rail, and the spring strengthens the filter plate The compressive ability of the filter screen prevents the shape of the filter plate from changing due to impact.

Description

A crushing device for plant extract feed that replaces antibiotics

technical field

The utility model relates to the technical field of feed processing equipment, in particular to a crushing device for plant extract feed that replaces antibiotics.

Background technique

Plant extracts use plants as raw materials. According to the needs of the use of the extracted final products, through the process of physical and chemical extraction and separation, one or more active ingredients in plants are directionally obtained and concentrated without changing their active ingredients. The products formed by the structure, according to the different components of the extracted plants, form glycosides, acids, polyphenols, polysaccharides, terpenes, flavonoids, alkaloids, etc.; , is the general term for the food of animals raised by all people. In a narrow sense, general feed mainly refers to the food of animals raised in agriculture or animal husbandry. Feed includes soybean, soybean meal, corn, fish meal, amino acid, miscellaneous meal, whey powder, More than ten varieties of feed raw materials such as oil, meat and bone meal, grains, feed additives, etc.

During the processing of plant extract feed, the raw material blocks need to be crushed. When the existing crushing device for plant extract feed is used, the crushed materials are accumulated inside the crushing device, which is inconvenient to discharge.

China Publicly Authorized Invention: CN201721907105.0 discloses a new type of feed pulverizer. The device quickly discharges the pulverized materials by setting a discharge bin and its internal automatic discharge structure, but when the device is in use, it will The material block is broken up by the rotor, but it is not screened, the volume of the material after breaking up is uneven, and the pulverization effect is not good. Therefore, a pulverizing device for plant extract feed that replaces antibiotics is proposed.

Utility model content

(1) Technical problems solved

Aiming at the deficiencies of the prior art, the utility model provides a crushing device for plant extract feed that replaces antibiotics.

(2) Technical solutions

In order to achieve the above purpose, the present utility model provides the following technical scheme: a plant extract feed crushing device that replaces antibiotics, comprising a sixth casing, and a fourth casing is welded on one side of the inner side of the sixth casing. A fifth shell is welded on one side of the sixth shell, a second motor is installed on the inner side of the fifth shell, the output shaft of the second motor penetrates the sixth shell, and the second motor One side of the output shaft passing through the sixth casing is rotatably connected to the sixth casing through a second bearing, and one end of the output shaft of the second motor passing through the sixth casing is welded with a second rotating shaft, and one side of the second rotating shaft is welded. The pulverizing blade is uniformly welded, one end of the second shaft is rotatably connected to the sixth shell through the third bearing, the top side of the fourth shell is connected with a first hopper, and the inner side of the first hopper is connected A sixth valve is installed, a second hopper is communicated with the bottom side of the fourth shell, a fourth valve is installed on the inner side of the second hopper, and a fifth valve is communicated with one side of the sixth shell. A conduit, a fifth valve is installed on the inner side of the fifth conduit, two second casings are welded on the inner side of the sixth casing, and a second casing is installed on the inner side of the second casing A slide rail, two second limit blocks are welded on both sides of the inside of the second slide rail, a second slider is slidably connected to the inside of the second slide rail, and one side of the second slide block is welded with A clamping block, one side of the clamping block is welded with a spring, one end of the spring is welded with the second shell, a clamping groove is opened inside the clamping block, and a first threaded hole is clamped inside the clamping groove A first bolt is threaded inside the first threaded hole plate, a threaded hole is opened on one side of the clamping block, and one end of the first bolt is threadedly connected to the clamping block through the threaded hole, and the sixth shell is The inner side of the body is provided with a screen plate, one side of the first threaded hole plate is welded with the screen plate, and one side of the sixth shell is hinged with a cover plate through the second pin, the cover plate A handle is welded on one side of the cover plate, a second threaded orifice plate is welded on one side of the cover plate, a second bolt is threadedly connected to the inside of the second threaded orifice plate, and one end of the second bolt is connected to the sixth shell Body threaded connection.

Preferably, two support columns are welded to the bottom of the sixth housing, a second fixing plate is welded to one side of the support column, and a threaded rod is threadedly connected to the inside of the second fixing plate. A roller is installed at one end.

Preferably, a first motor is installed on an inner side of the fifth housing, the output shaft of the first motor penetrates the sixth housing, and the output shaft of the first motor penetrates one side of the sixth housing and passes through the first motor. The bearing is rotatably connected with the sixth housing, the first motor output shaft passes through one end of the sixth housing and is welded with a first rotating shaft, and one side of the first rotating shaft is uniformly welded with a helical blade, and the sixth shell is A fourth conduit is communicated with one side, and a third valve is installed on an inner side of the fourth conduit.

Preferably, a third casing is welded on one side of the sixth casing, a third conduit is connected to one side of the third casing, and a second valve is installed on the inner side of the third conduit, so One side of the top of the third shell is connected with a second conduit, one side of the sixth shell is installed with a suction fan, one end of the second conduit is communicated with the air outlet of the suction fan, and the inlet of the suction fan is connected. The tuyere is communicated with a first conduit, one end of the first conduit penetrates the sixth housing, and a first valve is installed on an inner side of the first conduit.

Preferably, a first casing is welded on an inner side of the sixth casing, two first sliding rails are installed on an inner side of the sixth casing, and both inner sides of the first sliding rails are welded. There are two first limit blocks, a first sliding block is slidably connected to the inside of the first slide rail, a first fixing plate is provided on the inner side of the sixth housing, and one of the first sliding blocks is The side is welded with the first fixing plate, one side of the first fixing plate is uniformly welded with a dispersing blade, the inner side of the first casing is installed with a third motor, and the output shaft of the third motor passes through the first casing. Four bearings are rotatably connected to the first housing, one end of the output shaft of the third motor is welded with a turntable, one side of the turntable is rotatably connected with a third shaft through a fifth bearing, and one end of the third shaft passes through a sixth bearing A connecting rod is rotatably connected, and one end of the connecting rod is hinged with the first fixing plate through a first pin shaft.

(3) Beneficial effects

Compared with the prior art, the utility model provides a crushing device for plant extract feed that replaces antibiotics, and has the following beneficial effects:

1. When the device is in use, a screen plate is set to sieve the material after breaking up the material, so that the volume is more uniform and the crushing effect of the device is improved. The filter screen plate is fixed inside the sixth housing, and cooperates with the cover plate to facilitate the removal of the filter screen plate for replacement or cleaning;

2. Set the second sliding block to slide in the second sliding rail, and cooperate with the spring to enhance the pressure resistance of the filter screen plate, so as to prevent the filter screen plate from being impacted and causing its shape to change.

Description of drawings

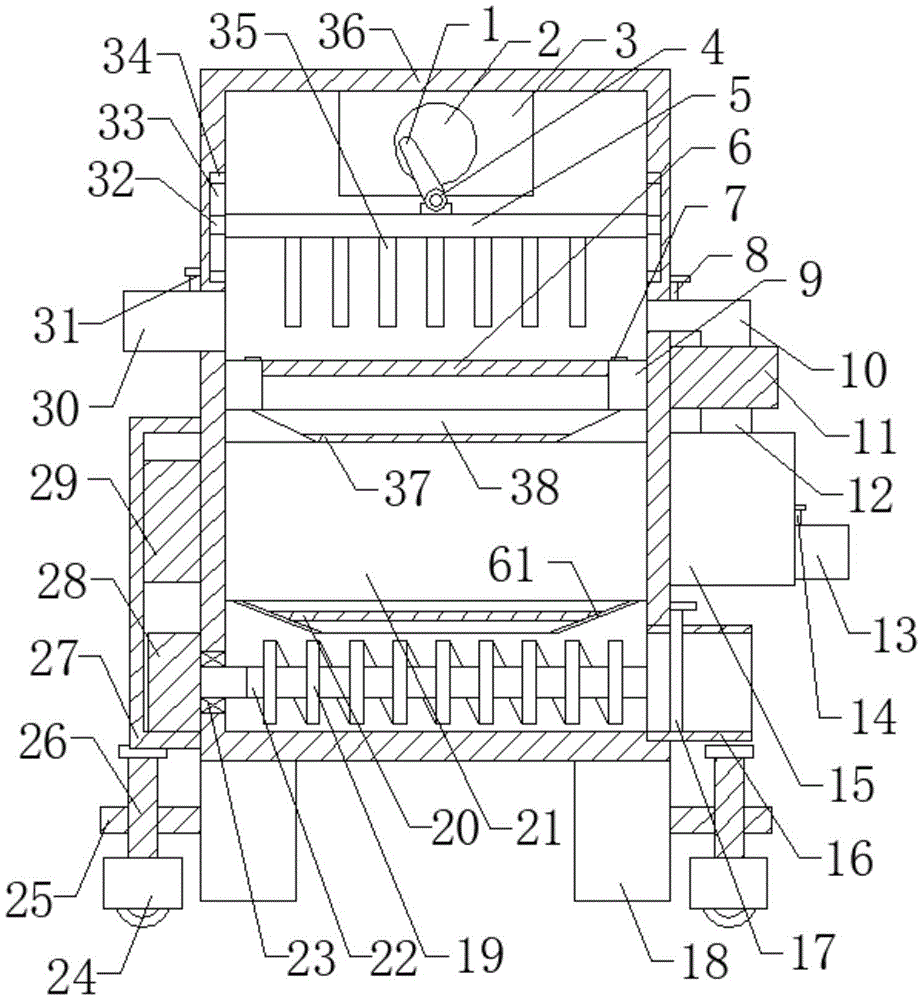

Fig. 1 is the structural representation of the utility model;

2 is a schematic diagram of the internal structure of the fourth housing in the utility model;

3 is a schematic diagram of the internal structure of the second housing in the utility model;

4 is a schematic structural diagram of a sixth housing in the utility model;

FIG. 5 is a schematic diagram of the internal structure of the first housing in the present invention.

In the figure: 1. Connecting rod; 2. Turntable; 3. The first housing; 4. The first pin; 5. The first fixing plate; 6. The filter plate; 7. The first bolt; 8. The first valve ; 9, the second shell; 10, the first conduit; 11, the suction fan; 12, the second conduit; 13, the third conduit; 14, the second valve; 15, the third shell; 16, the fourth conduit; 17, the third valve; 18, the support column; 19, the spiral blade; 20, the fourth valve; 21, the fourth shell; 22, the first shaft; 23, the first bearing; 24, the roller; 25, the second fixed plate; 26, threaded rod; 27, fifth housing; 28, first motor; 29, second motor; 30, fifth conduit; 31, fifth valve; 32, first slider; 33, first slider Rail; 34, the first limit block; 35, break up the blade; 36, the sixth shell; 37, the sixth valve; 38, the first hopper; 39, the second bearing; 40, the crushing blade; 41, the second Rotary shaft; 42, the third bearing; 43, the slot; 44, the second slider; 45, the second slide rail; 46, the second limit block; 47, the threaded hole; 48, the spring; 49, the block; 50 51, the second pin; 52, the cover plate; 53, the handle; 54, the second threaded hole plate; 55, the second bolt; 56, the third motor; 57, the fourth bearing; 58, the fifth bearing; 59, the third shaft; 60, the sixth bearing; 61, the second hopper.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Example

Please refer to FIGS. 1-5, the present utility model provides a technical solution: a plant extract feed crushing device that replaces antibiotics, comprising a sixth shell 36, and a fourth shell is welded on the inner side of the sixth shell 36 Body 21, a fifth casing 27 is welded on one side of the sixth casing 36, a second motor 29 is installed on the inner side of the fifth casing 27, and the output shaft of the second motor 29 penetrates the sixth casing 36, The output shaft of the second motor 29 penetrates one side of the sixth housing 36 and is rotatably connected to the sixth housing 36 through the second bearing 39 . The output shaft of the second motor 29 penetrates one end of the sixth housing 36 and is welded with a second rotating shaft 41 . One side of the second rotating shaft 41 is evenly welded with the pulverizing blade 40 , one end of the second rotating shaft 41 is rotatably connected to the sixth casing 36 through the third bearing 42 , the top side of the fourth casing 21 is connected with the first hopper 38 , and the first hopper 38 is connected to the top side of the fourth casing 21 . A sixth valve 37 is installed on the inner side of a hopper 38, a second hopper 61 is connected to the bottom side of the fourth housing 21, a fourth valve 20 is installed on the inner side of the second hopper 61, and the sixth housing 36 A fifth conduit 30 is connected to one side of the duct, a fifth valve 31 is installed on the inner side of the fifth conduit 30, and two second casings 9 are welded on the inner side of the sixth casing 36. A second sliding rail 45 is installed on one side of the inner side, two second limit blocks 46 are welded on both sides of the inner side of the second sliding rail 45, and a second sliding block 44 is slidably connected to the inner side of the second sliding rail 45. One side of the block 44 is welded with a clamping block 49, one side of the clamping block 49 is welded with a spring 48, one end of the spring 48 is welded with the second housing 9, and a clamping groove 43 is opened inside the clamping block 49, and the interior of the clamping groove 43 A first threaded hole plate 50 is clamped, a first bolt 7 is threadedly connected inside the first threaded hole plate 50, a threaded hole 47 is opened on one side of the clamping block 49, and one end of the first bolt 7 passes through the threaded hole 47 and the clamping block. 49 threaded connection, the inner side of the sixth shell 36 is provided with a screen plate 6, one side of the first threaded hole plate 50 is welded with the screen plate 6, and one side of the sixth shell 36 passes through the second pin shaft 51 A cover plate 52 is hinged, a handle 53 is welded on one side of the cover plate 52, a second threaded hole plate 54 is welded on one side of the cover plate 52, and a second bolt 55 is threaded inside the second threaded hole plate 54. One end of the two bolts 55 is threadedly connected to the sixth housing 36. The model of the first motor 28 is FTZP8025-4, the model of the suction fan 11 is YX-71D-3, the model of the second motor 29 is R1.27, and the model of the third motor 29 is R1.27. The model of the motor 56 is 42HS03, and one side of the sixth housing 36 is equipped with a switch group for controlling the start and closing of the first motor 28, the second motor 29, the suction fan 11 and the third motor 56, and the switch group is connected to the external mains. Connected to power the first motor 28 , the second motor 29 , the suction fan 11 and the third motor 56 .

In this embodiment, specifically: the bottom of the sixth housing 36 is welded with two support columns 18 , one side of the support columns 18 is welded with a second fixing plate 25 , and the inside of the second fixing plate 25 is threadedly connected with a threaded rod 26 One end of the threaded rod 26 is installed with a roller 24, which is convenient to move the device, and the threaded rod 26 is set to cooperate with the second fixing plate 25 to fix the position of the device.

Further: a first motor 28 is installed on the inner side of the fifth housing 27, the output shaft of the first motor 28 penetrates the sixth housing 36, and the output shaft of the first motor 28 penetrates one side of the sixth housing 36 and passes through the first motor 28. The bearing 23 is rotatably connected to the sixth housing 36, the output shaft of the first motor 28 passes through one end of the sixth housing 36 and is welded with the first rotating shaft 22, and one side of the first rotating shaft 22 is uniformly welded with the helical blade 19, and the sixth casing A fourth conduit 16 is connected to one side of the 36, and a third valve 17 is installed on the inner side of the fourth conduit 16. A first motor 28 is arranged to cooperate with the first rotating shaft 22 and the helical blade 19 to facilitate discharging.

On the basis of the foregoing scheme: the third shell 15 is welded on one side of the sixth shell 36 , the third conduit 13 is connected to one side of the third shell 15 , and the second conduit 13 is installed on the inner side of the third conduit 13 . The valve 14, the top side of the third casing 15 is connected with the second conduit 12, the suction fan 11 is installed on one side of the sixth casing 36, and one end of the second conduit 12 is communicated with the air outlet of the suction fan 11, and the suction fan The air inlet of 11 is connected with the first duct 10, one end of the first duct 10 penetrates the sixth shell 36, the first valve 8 is installed on the inner side of the first duct 10, and the suction fan 11 is arranged to displace the sixth shell after crushing. The fumes inside the body 36 are sucked out.

In this embodiment, specifically: the inner side of the sixth casing 36 is welded with the first casing 3 , the inner side of the sixth casing 36 is installed with two first slide rails 33 , and the first slide rail 33 is Two first limit blocks 34 are welded on both sides of the interior, a first sliding block 32 is slidably connected to the interior of the first sliding rail 33, and a first fixing plate 5 is provided on the inner side of the sixth housing 36, and the first sliding One side of the block 32 is welded with the first fixed plate 5, one side of the first fixed plate 5 is evenly welded with the dispersing blade 35, the inner side of the first housing 3 is installed with a third motor 56, The output shaft is rotatably connected to the first housing 3 through a fourth bearing 57 , one end of the output shaft of the third motor 56 is welded with a turntable 2 , and one side of the turntable 2 is rotatably connected to a third shaft 59 through a fifth bearing 58 , and the third shaft 59 One end of the connecting rod 1 is rotatably connected to the connecting rod 1 through the sixth bearing 60, and one end of the connecting rod 1 is hinged with the first fixing plate 5 through the first pin 4, and the third motor 56 is arranged to cooperate with the blade 35 to disperse the larger material blocks. to break up.

To sum up, the working principle and working process of the plant extract feed crushing device that replaces antibiotics are as follows: when in use, the material is put into the sixth housing 36 through the fifth conduit 30, and the first shell is controlled by the switch group. The third motor 56 is activated, the third motor 56 drives the turntable 2 to rotate, and cooperates with the connecting rod 1 to drive the dispersing blade 35 to move up and down, to disperse the bulky material caught by the screen plate 6, and the material enters through the first hopper 38. The fourth casing 21 is controlled by the switch group to start the second motor 29. The second motor 29 drives the pulverizing blade 40 to rotate to pulverize the material, and discharges it out of the fourth casing 21 through the second hopper 61, and starts the first electric motor 28 , drive the spiral blade 19 to rotate, discharge the pulverized material through the fourth conduit 16, and start the suction fan 11 after the material is discharged to suck out the smoke and dust generated during pulverization in the sixth shell 36, turn the second bolt 55, open the Cover plate 52, turn the first bolt 7 to make one end come out from the threaded hole 47, then the filter screen plate 6 can be removed and replaced or cleaned.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (5)

1. A pulverizing device for plant extract feed that replaces antibiotics, comprising a sixth shell (36), characterized in that: a fourth shell (21) is welded on an inner side of the sixth shell (36) a fifth shell (27) is welded on one side of the sixth shell (36), a second motor (29) is installed on the inner side of the fifth shell (27), and the second motor The output shaft of (29) penetrates the sixth housing (36), the output shaft of the second motor (29) penetrates one side of the sixth housing (36) through the second bearing (39) and the sixth housing (36) ) rotatably connected, the output shaft of the second motor (29) is welded with a second shaft (41) through one end of the sixth casing (36), and a pulverizing blade ( 40), one end of the second shaft (41) is rotatably connected to the sixth shell (36) through the third bearing (42), and the top side of the fourth shell (21) is connected with the first hopper ( 38), a sixth valve (37) is installed on the inner side of the first hopper (38), and a second hopper (61) is communicated with the bottom side of the fourth shell (21). A fourth valve (20) is installed on the inner side of the hopper (61), a fifth conduit (30) is communicated with one side of the sixth casing (36), and the inner side of the fifth conduit (30) is connected A fifth valve (31) is installed, two second shells (9) are welded on the inner side of the sixth shell (36), and a first shell (9) is installed on the inner side of the second shell (9). Two slide rails (45), two second limit blocks (46) are welded on both sides of the inner side of the second slide rail (45), and a second slide rail (45) is slidably connected to the inside of the second slide rail (45). A block (44), a clamping block (49) is welded on one side of the second slider (44), a spring (48) is welded on one side of the clamping block (49), and one end of the spring (48) is welded Welded with the second casing (9), a clamping slot (43) is opened inside the clamping block (49), and a first threaded hole plate (50) is clamped inside the clamping slot (43). A first bolt (7) is threadedly connected inside the first threaded hole plate (50), a threaded hole (47) is opened on one side of the inner side of the clamping block (49), and one end of the first bolt (7) passes through the threaded hole (47) is threadedly connected with the clamping block (49), the inner side of the sixth housing (36) is provided with a filter screen plate (6), and one side of the first threaded hole plate (50) is connected to the filter screen The plate (6) is welded, one side of the sixth housing (36) is hinged with a cover plate (52) through a second pin (51), and a handle (53) is welded on one side of the cover plate (52). ), a second threaded hole plate (54) is welded on one side of the cover plate (52), and a second bolt (55) is threadedly connected to the inside of the second threaded hole plate (54). One end of (55) is screwed with the sixth housing (36). 2. The plant extract feed pulverizing device for substituting antibiotics according to claim 1, characterized in that: the bottom of the sixth shell (36) is welded with two support columns (18), and the support A second fixing plate (25) is welded on one side of the column (18), a threaded rod (26) is threadedly connected to the inside of the second fixing plate (25), and a roller (26) is installed at one end of the threaded rod (26). twenty four). 3. The plant extract feed crushing device for replacing antibiotics according to claim 1, characterized in that: a first motor (28) is installed on the inner side of the fifth housing (27), and the The output shaft of the first motor (28) penetrates the sixth housing (36), and the output shaft of the first motor (28) penetrates one side of the sixth housing (36) and passes through the first bearing (23) and the sixth housing (36) Rotating connection, one end of the output shaft of the first motor (28) passing through the sixth casing (36) is welded with a first rotating shaft (22), and one side of the first rotating shaft (22) is uniformly welded with a spiral In the vane (19), a fourth conduit (16) is communicated with one side of the sixth casing (36), and a third valve (17) is installed on the inner side of the fourth conduit (16). 4. The plant extract feed pulverizing device for replacing antibiotics according to claim 1, characterized in that: a third shell (15) is welded on one side of the sixth shell (36), and the sixth shell (36) is One side of the third casing (15) is communicated with a third conduit (13), and a second valve (14) is installed on the inner side of the third conduit (13). A second conduit (12) is communicated with one side of the top, a suction fan (11) is installed on one side of the sixth housing (36), and one end of the second conduit (12) is connected to the outlet of the suction fan (11). The air inlet is connected with the air inlet, the air inlet of the suction fan (11) is connected with a first duct (10), one end of the first duct (10) penetrates the sixth housing (36), and the first duct (10) has a A first valve (8) is installed on the inner side. 5. The plant extract feed pulverizing device for substituting antibiotics according to claim 1, characterized in that: the inner side of the sixth shell (36) is welded with the first shell (3), so the Two first slide rails (33) are installed on the inner side of the sixth housing (36), and two first limit blocks (34) are welded on both sides of the inner side of the first slide rail (33). A first sliding block (32) is slidably connected to the inside of the first sliding rail (33), a first fixing plate (5) is provided on the inner side of the sixth housing (36), and the first sliding block (36) is One side of the block (32) is welded with the first fixing plate (5), one side of the first fixing plate (5) is uniformly welded with a dispersing blade (35), and the inside of the first housing (3) A third motor (56) is installed on one side, the output shaft of the third motor (56) is rotatably connected to the first housing (3) through a fourth bearing (57), and the output shaft of the third motor (56) A turntable (2) is welded at one end, one side of the turntable (2) is rotatably connected with a third shaft (59) through a fifth bearing (58), and one end of the third shaft (59) is connected with a sixth bearing (60). ) is rotatably connected with a connecting rod (1), and one end of the connecting rod (1) is hinged with the first fixing plate (5) through a first pin shaft (4).
