CN212027679U

CN212027679U - Geological prospecting drilling device

Info

Publication number: CN212027679U
Application number: CN202020587128.3U
Authority: CN
Inventors: 高存山
Original assignee: Individual
Current assignee: Individual
Priority date: 2020-04-17
Filing date: 2020-04-17
Publication date: 2020-11-27
Anticipated expiration: 2030-04-17

Abstract

The utility model relates to the technical field of exploration and drilling devices, and discloses a geological prospecting and drilling device, which comprises a base, the top of the base is provided with a mounting pipe, the middle of the top of the base is provided with a gear supporting ring sleeve, a driven gear is arranged on the gear support ring sleeve, the screw rod is sleeved on the base, a gear is arranged on the driven gear, the driven gear is meshed with the driving gear, one side of the driving gear is fixedly connected with a driving shaft, the driving shaft is fixedly arranged at the top of the bearing bracket, the bottom of the screw is fixedly provided with a drill bit, the inside of the mounting pipe is sleeved with a fixing bolt, this geology is looked for ore deposit drilling rig design is novel, utilizes the gim peg and the monolith support of installation pipe substitute means, and the structure is more simple and convenient, and is small, and in use can conveniently carry, to the probing of geology shallow layer more practical.

Description

Geological prospecting drilling device

Technical Field

The utility model relates to an reconnaissance probing device technical field specifically is a geology is given for change probing device.

Background

The geological exploration is to survey and detect geology by various means and methods, determine a proper bearing stratum, determine a foundation type according to the foundation bearing capacity of the bearing stratum, calculate the investigation and research activities of basic parameters, find an industrially significant mineral deposit in the mineral product general survey, provide mineral product reserves and geological data required by mine construction design for finding out the quality and quantity of the mineral product and the technical conditions of mining and utilization, and carry out investigation and research work on the geological conditions of rocks, strata, structures, mineral products, hydrology, landforms and the like in a certain area.

Most of the existing drilling equipment are large in size and inconvenient to carry, and are not suitable for geological exploration activities which only need to be carried out at shallow drilling depth.

SUMMERY OF THE UTILITY MODEL

Not enough to current reconnaissance probing device, the utility model provides a geology is given for change probing device possesses the advantage of small, portable installation, has solved the problem of proposing among the above-mentioned background art.

The utility model provides a following technical scheme: the utility model provides a geology is looked for ore deposit probing device, includes the base, the installation pipe has been seted up at the top of base, the gear support ring cover has been placed to the centre at base top, driven gear has been placed on the gear support ring cover, the screw rod cup joints in the base, the gear has been seted up on the driven gear, driven gear and drive gear meshing, one side fixedly connected with drive gear drive shaft, drive shaft fixed mounting is in the top of bearing bracket, the bottom fixed mounting of screw rod has the drill bit, the gim peg has been cup jointed to the inside of installation pipe.

Preferably, the number of the installation pipes is four, the installation pipes are respectively positioned at four corners of the base, and the sizes of the installation pipes are matched with the sizes of the fixing bolts.

Preferably, the upper surface of the gear support ring sleeve is provided with an annular groove, a plurality of balls are arranged in the annular groove, and the gear support ring sleeve is sleeved with the screw rod.

Preferably, the lower surface of the driven gear is in rolling connection with the upper surface of a gear support ring through a plurality of balls, and the gear support ring is not in contact with the screw rod.

Preferably, the nut and the gear supporting ring sleeve are sequentially sleeved on the screw rod from top to bottom, and the driven gear is sleeved on the nut.

Preferably, the middle part of the base is provided with a guide hole, and the screw rod is movably sleeved with the base through the guide hole.

With current reconnaissance probing device contrast, the utility model discloses possess following beneficial effect:

1. this geology is looked for ore deposit drilling equipment utilizes the monobloc support of gim peg and installation pipe substitution device, and the structure is more simple and convenient, and is small, and in use can conveniently carry, more practical to the probing of geology shallow layer.

2. This geology is looked for ore deposit drilling equipment's drill bit position blade spiral upwards inclines, and at the probing in-process, the geology sample of probing position can be stayed the junction of blade and drill bit and is taken out, the investigation of the geology of being convenient for.

Drawings

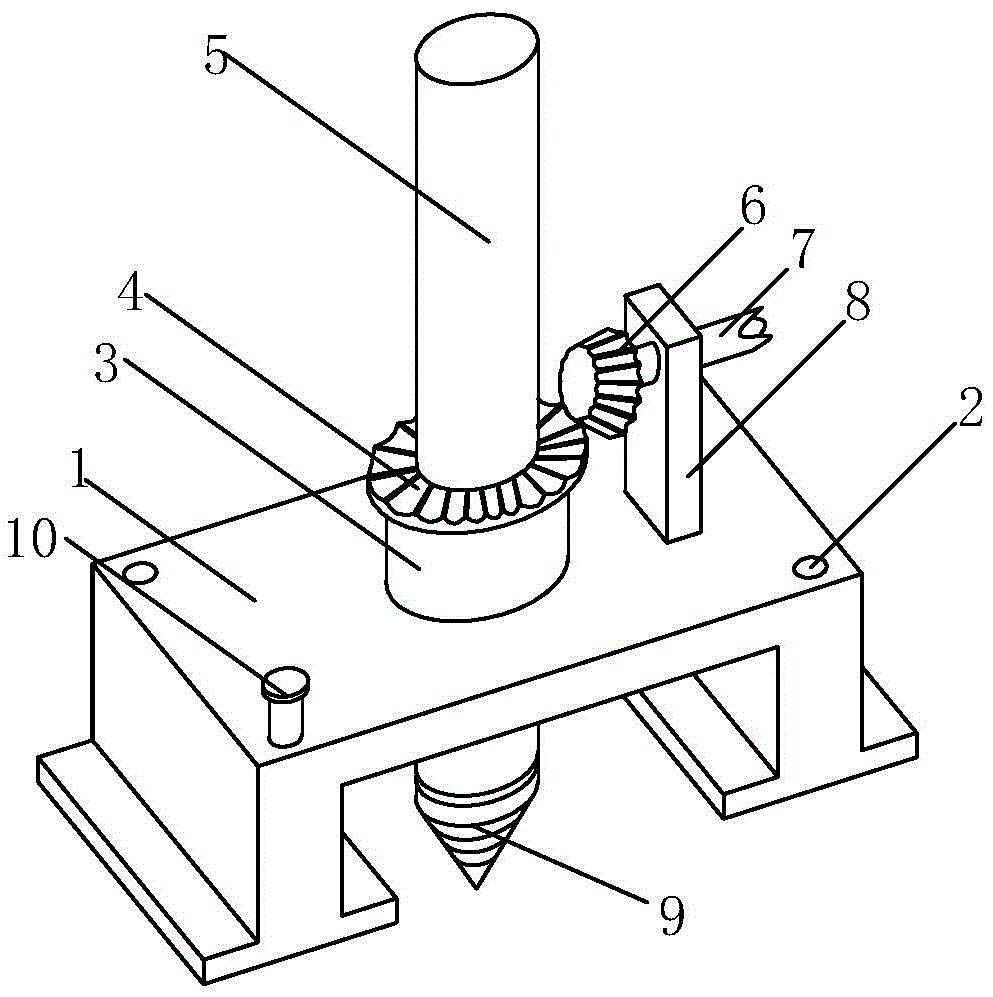

FIG. 1 is a perspective view of the present invention;

FIG. 2 is a schematic front sectional view of the structure of the present invention;

fig. 3 is a schematic diagram of the present invention showing a partially enlarged structure.

In the figure: 1. a base; 2. installing a pipe; 3. a gear support ring sleeve; 4. a driven gear; 5. a screw; 6. a drive gear; 7. a drive shaft; 8. a bearing support; 9. a drill bit; 10. a fixing bolt; 11. a ball bearing; 12. a nut; 13. and (4) a guide hole.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Please refer to fig. 1-3, a geological prospecting and drilling device, which comprises a base 1, a mounting pipe 2 is provided at the top of the base 1, a gear supporting ring sleeve 3 is placed in the middle of the top of the base 1, a driven gear 4 is placed on the gear supporting ring sleeve 3, a screw 5 is sleeved on the base 1, a gear is provided on the driven gear 4, the driven gear 4 is meshed with a driving gear 6, a driving shaft 7 is fixedly connected to one side of the driving gear 6, the driving shaft 7 is fixedly mounted at the top of a bearing support 8, a drill bit 9 is fixedly mounted at the bottom of the screw 5, a fixing bolt 10 is sleeved inside the mounting pipe 2, the fixing bolt 10 is sleeved with the mounting pipe 2, the bottom of the fixing bolt 10 is deep underground, and the whole device.

Wherein, the installation pipe 2 is total four, is located four turnings of base 1 respectively, and the size of installation pipe 2 matches each other with the size of gim peg 10, is convenient for fix, and difficult production is rocked and is influenced stability.

Wherein, the upper surface of gear support ring cover 3 is equipped with the annular groove, and a plurality of ball 11 set up in the annular groove, and gear support ring cover 3 cup joints with screw rod 5, reduces the friction between gear support ring cover 3 and driven gear 4, improves life.

The lower surface of the driven gear 4 is in rolling connection with the upper surface of the gear supporting ring sleeve 3 through a plurality of balls 11, the gear supporting ring sleeve 3 is not in contact with the screw rod 5, friction between the gear supporting ring sleeve 3 and the screw rod 5 is avoided, and loss is reduced.

Wherein, nut 12, gear support ring cover 3 suit from top to bottom on screw rod 5 in proper order, and driven gear 4 suit is on nut 12, and power drives driven gear 4 and rotates to drive the rotation between nut 12 and the screw rod 5.

Wherein, the guiding hole 13 has been seted up at the middle part of base 1, and screw rod 5 passes through guiding hole 13 and base 1 activity cup joints, the fixed direction of probing.

The working principle is as follows: during the use, with the integrated device removal to the position that needs the probing, put into installation pipe 2 and fixed with gim peg 10, be connected drive shaft 7 with power device, start the power supply, drive gear 6 begins the motion, drives driven gear 4 through the meshing and rotates, and relative static between driven gear 4 and the nut 12, nut 12 rotates and drives screw rod 5 and descends, and drill bit 9 begins the probing.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Also in the description of the present invention, it is to be understood that the terms "center", "longitudinal", "lateral", "length", "width", "thickness", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", "clockwise", "counterclockwise", and the like, indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and for simplicity of description, and do not indicate or imply that the equipment or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention. In addition, in the drawings of the present invention, the filling pattern is only for distinguishing the pattern layer, and is not limited to any other pattern.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a geological prospecting drilling equipment, includes base (1), screw rod (5) and nut (12), its characterized in that: installation pipe (2) have been seted up at the top of base (1), gear support ring cover (3) have been placed to the centre at base (1) top, driven gear (4) have been placed on gear support ring cover (3), screw rod (5) cup joint in base (1), the gear has been seted up on driven gear (4), driven gear (4) and drive gear (6) meshing, one side fixedly connected with drive shaft (7) of drive gear (6), drive shaft (7) fixed mounting is in the top of bearing bracket (8), the bottom fixed mounting of screw rod (5) has drill bit (9), gim peg (10) have been cup jointed to the inside of installation pipe (2).

2. A geological exploration drilling rig according to claim 1, wherein: the mounting tubes (2) are four in number and are respectively positioned at four corners of the base (1), and the size of the mounting tubes (2) is matched with that of the fixing bolts (10).

3. A geological exploration drilling rig according to claim 1, wherein: the upper surface of the gear supporting ring sleeve (3) is provided with an annular groove, a plurality of balls (11) are arranged in the annular groove, and the gear supporting ring sleeve (3) is sleeved with the screw rod (5).

4. A geological exploration drilling rig according to claim 1, wherein: the lower surface of the driven gear (4) is in rolling connection with the upper surface of the gear supporting ring sleeve (3) through a plurality of balls (11), and the gear supporting ring sleeve (3) is not in contact with the screw rod (5).

5. A geological exploration drilling rig according to claim 1, wherein: nut (12), gear support ring cover (3) from top to bottom suit in proper order on screw rod (5), driven gear (4) suit is on nut (12).

6. A geological exploration drilling rig according to claim 1, wherein: the middle part of the base (1) is provided with a guide hole (13), and the screw rod (5) is movably sleeved with the base (1) through the guide hole (13).
