The utility model relates to a totally closed circulating water clown fish parent culture system, including breeding jar, water circulating system and the clean system of water, water self-loopa in the jar will be bred to water circulating system, and the clean system of water will self-loopa water clean and heat, guarantee the cleanness of circulation system water-logging. The utility model provides a totally closed circulating water clown fish parent culture system has complete confined circulating water system, can guarantee the whole culture environment water stability of clown fish, guarantees the stability of the living environment of parent fish, guarantees the reproduction rate.
Description
Technical Field
The utility model belongs to the technical field of the clown fish is bred, concretely relates to totally closed circulating water clown fish parent culture system.
Background
The clown fish is a common name for fishes of the subfamily sea anemone fish of the family bromhididae, is a tropical salt water fish because the face of the clown fish is provided with one or two white stripes which are similar to the clown in the drama of the Beijing. 28 species are known, one from acanthopagrus (Premnas) and the others from amphisarus (ampphirion). Clown fish and sea anemone have a dense and inseparable symbiotic relationship, so they are also called sea anemone fish.
More and more artificial fingerlings are sold in the ornamental fish market. The successfully paired clown fishes can lay eggs 2 times per month at a proper water temperature, but the egg laying amount is only hundreds to thousands of eggs each time, and the small water body is suitable for breeding the seedlings; and the individual size differentiation is obvious in the clown fish fry breeding process, fishes with similar individual sizes need to be bred together through frequently separating fries, the growth of small individual fishes is facilitated, the existing breeding equipment has the following defects that the separation of fries is not easy, and the mutual fighting loss of clown fish groups is large.
The following patent documents related to the present application are found by searching, and the specific disclosures are as follows:
patent document CN204837572U discloses an indoor cultivation device for clown fish, comprising a water treatment tank, a cultivation barrel, a water pump, a water inlet pipe, a water outlet pipe, a filtration algae plate and a submersible ultraviolet germicidal lamp, wherein the water treatment tank comprises a first water treatment tank grid, a second water treatment tank grid, a third water treatment tank grid and a fourth water treatment tank grid, a first lower channel is arranged between the first water treatment tank grid and the second water treatment tank grid, a second upper channel is arranged between the second water treatment tank grid and the third water treatment tank grid, a third lower channel is arranged between the third water treatment tank grid and the fourth water treatment tank grid, the first water treatment tank grid is provided with filtration cotton, a biological ball and first filtration sand, the second water treatment tank grid is provided with second filtration coral sand, the third water treatment tank grid is provided with algae, the water pump is arranged in the fourth water treatment tank grid, the filtration algae plate is arranged on the second water treatment tank grid, the submersible ultraviolet germicidal lamp is arranged in the water outlet pipe and has the characteristics of convenient use and low cost.
Patent document CN205492162U discloses an equipment of numerous culture clown fish, including breeding the pond, the water treatment pond, water pipe and water pump, breed the pond including first check breed the pond, the pond is bred to the second check, the pond is bred to the third check, the pond is bred to the fourth check, the pond is bred to the fifth check, pond and the pond is bred to the sixth check, the water treatment pond includes first check water treatment pond, second check water treatment pond, third check water treatment pond, fourth check water treatment pond and fifth check water treatment pond, laid the supreme fretwork plastic frame of placing in proper order from the bottom down in the first check water treatment pond, the bio-ball, lower floor bolting-silk, coral sand, upper strata bolting silk, sand and filter pulp, laid first coral stone in the second check water treatment pond, laid the second coral stone in the third check water treatment pond, the water pump is installed in the fifth check water treatment pond.
The difference between the clown fish culture equipment and the structure provided by the application is large, and novelty and creativity of the application are not influenced.
SUMMERY OF THE UTILITY MODEL
The utility model aims to overcome prior art's weak point, the application provides a totally closed circulating water clown fish parent cultivation system of self-loopa, easy operation.
The utility model provides a its technical problem take following technical scheme to realize:
a totally-enclosed circulating water clown fish parent breeding system comprises a breeding tank, wherein a plurality of layers of partition plates are arranged in the breeding tank in an up-down parallel mode, the breeding tank is divided into a plurality of layers of breeding boxes which are in an up-down parallel mode and have the same structure, the lowest layer is a water circulating box body, and a daylight lamp is installed below each layer of partition plate;
a plurality of vertical plates are arranged in each layer of cultivation box at intervals in parallel, each layer of cultivation box is divided into a plurality of cultivation bins, a communicating pipe is arranged at the lower part of each vertical plate, the communicating pipe is used for communicating and circulating the water in the cultivation boxes at the same layer, and a spawning crock is placed in each cultivation bin;
a sewer pipe is arranged at one corner of the left side of the culture tank, the sewer pipe penetrates through the partition plate of each layer of culture tank from top to bottom and extends into the water circulation tank body at the lowest part, a water level baffle is arranged in the culture bin provided with the sewer pipe, a communicating pipe is arranged at the lower part of the water level baffle, and a water level control pipe is arranged in a space enclosed by the water level baffle and the culture bin;
set up a plurality of risers of interval parallel in the hydrologic cycle box, form a plurality of filtration rooms, riser lower part installation communicating pipe installs filter box, filter material, albumen separator, heating rod, ultraviolet disinfection lamp and installation water pump in the filtration room, and the jar inlet tube is bred in the connection of water pump delivery port, and the inlet tube sets up a plurality of branch water pipes, divides the water pipe to correspond every case of breeding, for breeding case circulating water.
And two layers of filter cotton are arranged in the filter box, and the outlet of the sewer pipe corresponds to the filter box and enters the water circulation box after being filtered by the filter box.
And, set up a plurality of risers of interval parallel in the hydrologic cycle box, form a plurality of filtration rooms, riser lower part installation communicating pipe, install filter cartridge in proper order in the left side filtration room, set up protein separator, heating rod, ultraviolet disinfection lamp in two middle filtration rooms placed coral sand filter material, the right side filtration room to and installation water pump.
The utility model has the advantages that:
the utility model provides a totally closed circulating water clown fish parent culture system has complete confined circulating water system, can guarantee the whole culture environment water stability of clown fish, guarantees the stability of the living environment of parent fish, guarantees the reproduction rate.
The utility model provides a totally closed circulating water clown fish parent culture system has water level control device, can guarantee culture system water level degree of depth, mobility and oxygen-enriched nature with the cultivation water level control of the parent fish of clown fish on a take the altitude.
Drawings

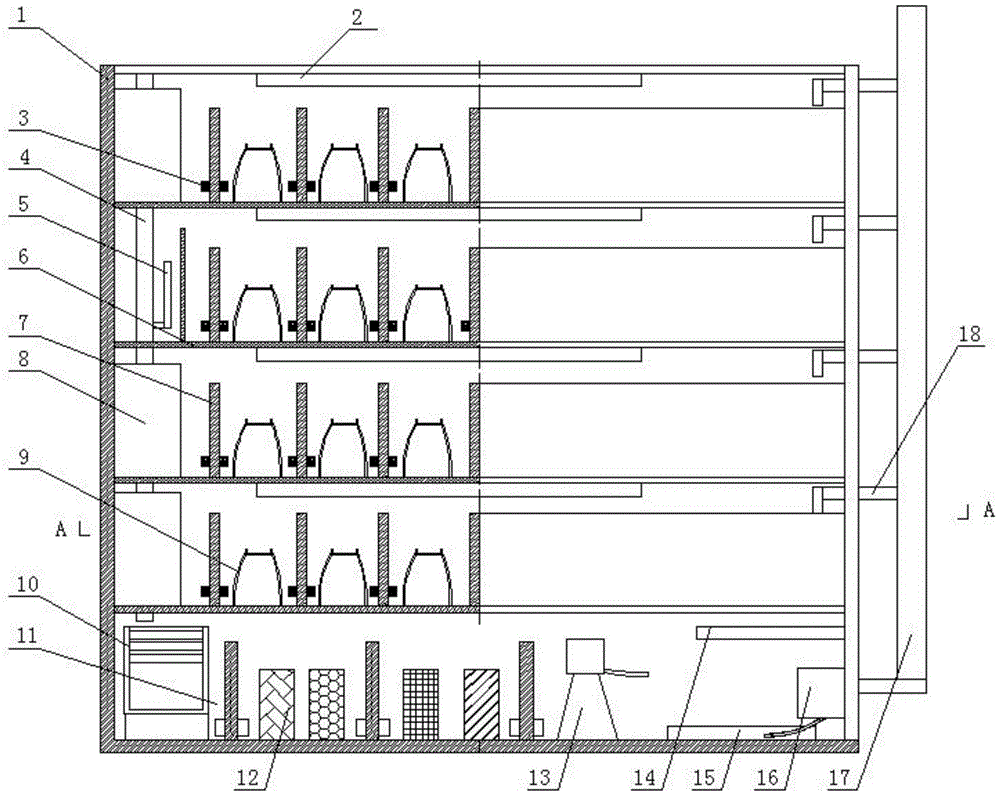

Fig. 1 is a schematic structural diagram of the present invention.
Fig. 2 is a sectional view taken along line a-a in fig. 1.
Detailed Description
The present invention will be described in more detail with reference to the following specific examples, which are provided for illustrative purposes only and are not intended to limit the scope of the present invention.
The utility model provides a totally closed circulation water clown fish parent breeding system, is including breeding jar 1, water circulating system and water cleaning system, and water self-loopa in the jar will be bred to water circulating system, and water cleaning system will clean and heat self-loopa water, guarantees the cleanness of circulation system water-logging, and concrete structure is as follows:
the multi-layer partition plates 6 are arranged in the culture tank in an up-down parallel mode, the culture tank is divided into multi-layer culture boxes which are parallel up and down and have the same structure, the lowest layer is a water circulation box body 11, and a daylight lamp 2 is arranged below each layer of partition plate and used for simulating daylight irradiation in the culture boxes.
A plurality of risers 7 of interval parallel arrangement in every layer of breed incasement, breed the case with every layer and divide into a plurality of breed storehouses, at every riser lower part installation communicating pipe 3, communicating pipe will carry out the intercommunication circulation with the incasement water of breeding on the same floor, guarantee the uniformity of water level balance and water condition, place a tiling jar 9 of laying eggs in every breed storehouse, the sunken inner wall of tiling jar is generally will be in disorder to clown fish parent fish.
A downcomer 4 is arranged at one corner of the left side of the culture tank, the downcomer penetrates through a partition plate of each layer of culture box from top to bottom and extends into a water circulation box body at the lowest part, a water level baffle 8 is arranged in the culture bin provided with the downcomer, a communicating pipe is arranged at the lower part of the water level baffle, a water level control pipe 5 is arranged in a space enclosed by the water level baffle and the culture bin, the height of the water level control is equal to the height of the water level of the culture box at the layer, and the height of the water level of the culture box at the layer is further.
Set up a plurality of risers of interval parallel in the hydrologic cycle box, form a plurality of filtration rooms, riser lower part installation communicating pipe, install filter cartridge 10 in proper order in the left side filtration room, placed coral sand filter material (and/or ceramic ring filter material) 12 in two middle filtration rooms, set up protein separator 13 in the right side filtration room, heating rod 15, ultraviolet disinfection lamp 14, and installation water pump 16, the jar inlet tube 17 is bred in water pump delivery port intercommunication connection, the inlet tube sets up a plurality of branch inlet tubes 18, branch inlet tube corresponds every breed case, for breeding case circulating water.
Two layers of filter cotton are arranged in the filter box, and the outlet of the sewer pipe corresponds to the filter box and enters the water circulation box after being filtered by the filter box.
The utility model discloses a use method:
after the water is filled, the power supply water circulation is started, the water circulates in the whole culture tank after being heated (30 ℃), and after being purified and heated in the water circulation tank after being circulated, the water circulates in each culture tank of the culture tank again to form self circulation without adding water or purifying.
Claims (3)
1. The utility model provides a totally closed circulation water clown fish parent culture system which characterized in that: the cultivation tank is divided into a plurality of cultivation boxes which are parallel up and down and have the same structure, the lowest layer is a water circulation box body, and a daylight lamp is arranged below each layer of partition;
a plurality of vertical plates are arranged in each layer of cultivation box at intervals in parallel, each layer of cultivation box is divided into a plurality of cultivation bins, a communicating pipe is arranged at the lower part of each vertical plate, the communicating pipe is used for communicating and circulating the water in the cultivation boxes at the same layer, and a spawning crock is placed in each cultivation bin;
a sewer pipe is arranged at one corner of the left side of the culture tank, the sewer pipe penetrates through the partition plate of each layer of culture tank from top to bottom and extends into the water circulation tank body at the lowest part, a water level baffle is arranged in the culture bin provided with the sewer pipe, a communicating pipe is arranged at the lower part of the water level baffle, and a water level control pipe is arranged in a space enclosed by the water level baffle and the culture bin;
set up a plurality of risers of interval parallel in the hydrologic cycle box, form a plurality of filtration rooms, riser lower part installation communicating pipe installs filter box, filter material, albumen separator, heating rod, ultraviolet disinfection lamp and installation water pump in the filtration room, and the jar inlet tube is bred in the connection of water pump delivery port, and the inlet tube sets up a plurality of branch water pipes, divides the water pipe to correspond every case of breeding, for breeding case circulating water.
2. The fully-closed circulating water clown fish parent breeding system as claimed in claim 1, wherein: two layers of filter cotton are arranged in the filter box, and the outlet of the sewer pipe corresponds to the filter box and enters the water circulation box after being filtered by the filter box.
3. The fully-closed circulating water clown fish parent breeding system as claimed in claim 1, wherein: set up a plurality of risers of parallel at the interval in the hydrologic cycle box, form a plurality of filtration rooms, riser lower part installation communicating pipe, install filter cartridge in proper order in the left side filtration room, set up protein separator, heating rod, ultraviolet disinfection lamp in two middle filtration rooms placed coral sand filter material, the right side filtration room in the middle of and install the water pump.
