CN211643829U - Loading device and fuel cell stack assembly system with same - Google Patents

Abstract

Embodiments of the present application provide a feeding device and a fuel cell stack assembly system having the same. The feeding device includes: a jig conveying part, the jig conveying part is provided with a first conveying mechanism that carries the jig and drives the jig to move, and a second conveying mechanism that drives the jig to separate from the first conveying mechanism and move to the processing position , the processing position at least includes the feeding position; the first feeding part, the first feeding part includes a first feeding mechanism and a feeding positioning assembly, and the first feeding mechanism carries the first material and drives the first material to move to the feeding positioning assembly. On, the feeding positioning component positions the first material at the first clamping position; the first clamping part, the first clamping part is used to clamp the first material at the first clamping position and place it on the feeding position on the jig. The feeding device can realize automatic feeding and stacking.

Description

Feeding device and fuel cell stack assembly system having the same

technical field

The embodiments of the present application relate to the technical field of industrial machinery, and in particular, to a feeding device and a fuel cell stack assembly system having the same.

Background technique

The existing fuel cell stack assembly and production process cannot be automated because of the variety of workpieces and complex processes, and can only be manually installed. For example, an existing production process is as follows: using manual labor or a conveyor belt to transport the jig between the various processes, when the jig reaches the station of a certain process, the jig is manually removed from the conveyor belt, and the material is removed from the material. Take the workpiece out of the frame and install it on the jig, and then check the installed workpiece accordingly to ensure that the workpiece installation meets the quality requirements, put the jig with the workpiece installed back on the conveyor belt, and make it move to the next process. Continue the installation at the next step until the installation is complete.

The above-mentioned installation method has the problem that the manual installation has low production efficiency and high labor intensity, and it is easy to cause installation errors due to the fatigue of the staff, resulting in a low yield rate and the need for repeated rework.

Utility model content

In view of this, embodiments of the present application provide a feeding device and a fuel cell stack assembly system having the same, so as to solve the problem of low production efficiency in the prior art.

An embodiment of the present application provides a feeding device, which includes: a jig conveying part, on which a first conveying mechanism that carries a jig and drives the jig to move, and a first conveying mechanism that drives the jig to separate from the first conveying mechanism and move The second conveying mechanism to the processing position, the processing position at least includes the feeding position; the first feeding part, the first feeding part includes a first feeding mechanism and a feeding positioning assembly, and the first feeding mechanism carries the first material and drives the first material. A material moves to the feeding positioning assembly, and the feeding positioning assembly positions the first material at the first clamping position; the first clamping part, the first clamping part is used to place the first material at the first clamping position The clamp is placed on the jig at the feeding position.

Optionally, the first feeding mechanism includes: a first feeding belt, which carries the first material and drives the first material to move to the material preparation position in a horizontal direction; a position adjustment component, which is set corresponding to the material preparation position, And push the first material in the material preparation position to the material supply positioning component.

Optionally, the position adjustment component includes: a vertical adjustment piece, the vertical adjustment piece is arranged below the first material, and drives the first material in the material preparation position to move upward to a first material that matches the height of the bearing surface of the material supply positioning component. Adjusting the position; a leveling piece, the leveling piece drives the first material in the first adjustment position to move horizontally to the bearing surface of the feeding positioning assembly.

Optionally, the feeding device further includes: a second feeding part, the second feeding part has a second gripping position and a second feeding mechanism for sequentially conveying multiple types of second materials to the second gripping position; The first gripping portion is also used for gripping the second material at the second gripping position on the jig.

Optionally, the second feeding mechanism includes: an endless belt base; an endless conveyor belt, the endless conveyor belt is movably arranged on the endless belt base, and the conveying path of the endless conveyor belt passes through the second clamping position; the second material tray, There are multiple second material trays, which are arranged on the endless conveyor belt at intervals, and each second material tray is used to carry one type of second material.

Optionally, the second feeding mechanism further includes a locking structure, and at least one second material tray is correspondingly provided with a locking structure. When the second material tray where it is located is located at the second clamping position, the locking structure is locked to lock the second material tray where it is located. The material tray remains in the second gripping position.

Optionally, the feeding device further includes: a third feeding part, the third feeding part includes a third clamping position and a third feeding mechanism, and the third feeding mechanism carries the third material and transports the third material to the third feeding part. The clamping position; the second clamping part, the second clamping part is used for clamping the third material in the third clamping position to the jig.

Optionally, the first conveying mechanism includes: at least two conveying lines, each conveying line can move along a first straight line, the at least two conveying lines are arranged parallel to each other, and the moving directions of two adjacent conveying lines are opposite; the connecting assembly , the connecting component is set corresponding to the ends of two adjacent conveyor lines, the connecting component includes a moving tray, the moving tray can reciprocate along the second straight line, and transfer the fixture on one of the conveyor lines to the other adjacent conveyor line , the second straight line is perpendicular to the first straight line.

Optionally, the connecting assembly further includes a loading and unloading structure, the loading and unloading structure is arranged on the moving tray, and the loading and unloading structure is movable along the first straight line to load the fixture into or output from the moving tray.

According to another aspect of the present invention, a fuel cell stack assembly system is provided, which includes the above-mentioned feeding device.

It can be seen from the above technical solutions that the feeding device provided by the embodiment of the present application, through the feeding device of this embodiment, the first conveying mechanism of the jig conveying part can convey the jig, and the second conveying mechanism (not shown in the figure) When necessary, the jig can be driven to disengage from the first conveying mechanism and move to the processing position, so that the jig stays in the processing position, so that the first clamping part can place the first material to be clamped to the corresponding position of the jig. superior. The first feeding part is used to automatically transport the first material, and use the feeding positioning component to accurately position it to the first gripping position, so as to ensure that the first gripping part can accurately grip the first material, thereby ensuring that it will The placement accuracy of the first material on the fixture. In this way, the purpose of automatically placing the first material on the fixture through the feeding device is realized, the automation degree in the production process is improved, the labor intensity is reduced, the efficiency is improved, and the error rate is reduced.

Description of drawings

In order to more clearly illustrate the embodiments of the present application or the technical solutions in the prior art, the following briefly introduces the accompanying drawings required for the description of the embodiments or the prior art. Obviously, the drawings in the following description are only These are some embodiments described in the embodiments of the present application. For those of ordinary skill in the art, other drawings can also be obtained according to these drawings.

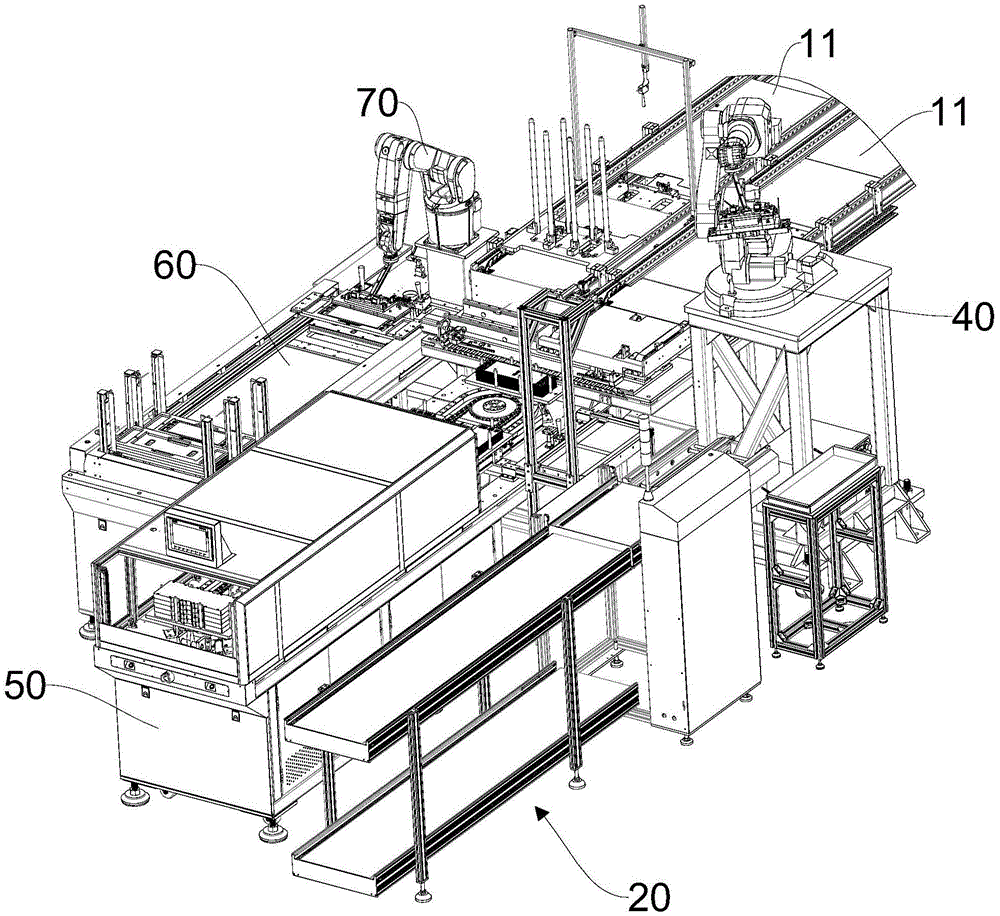

FIG. 1 is a partial three-dimensional structural schematic diagram of the cooperation between a feeding device and a jig conveying part according to an embodiment of the application;

2 is a schematic three-dimensional structural diagram of the cooperation of the first feeding part and the first clamping part in the feeding device according to the embodiment of the application;

3 is a schematic three-dimensional structural diagram of a second feeding part of a feeding device according to an embodiment of the application without a cover;

4 is a schematic three-dimensional structural diagram of the cooperation of the third feeding part and the second clamping part of the feeding device according to the embodiment of the application;

5 is a schematic three-dimensional structural diagram of a jig conveying part of a feeding device according to an embodiment of the application that omits part of the conveying line;

6 is a partial enlarged view of one of the connecting components of the first conveying mechanism of the feeding device according to the embodiment of the application;

FIG. 7 is a partial enlarged view of another connection component of the first conveying mechanism of the feeding device according to the embodiment of the application.

Description of reference numbers:

10, the first conveying mechanism; 11, the conveying line; 12, the connecting assembly; 121, the moving tray; 122, the loading and unloading structure; 123, the guide rail; 124, the driving part; 20, the first feeding mechanism; belt; 30, feeding positioning assembly; 40, first clamping part; 50, second feeding mechanism; 51, endless belt base; 52, endless conveyor belt; 53, second material tray; 60, third feeding mechanism; 70. The second clamping part.

Detailed ways

In order to make those skilled in the art better understand the technical solutions in the embodiments of the present application, the following will clearly and completely describe the technical solutions in the embodiments of the present application with reference to the accompanying drawings in the embodiments of the present application. The embodiments described above are only a part of the embodiments of the present application, rather than all the embodiments. All other embodiments obtained by persons of ordinary skill in the art based on the embodiments in the embodiments of the present application should fall within the protection scope of the embodiments of the present application.

The specific implementation of the embodiments of the present application is further described below with reference to the accompanying drawings of the embodiments of the present application.

As shown in Figures 1-7, according to the embodiment of the present utility model, the feeding device includes a jig conveying part, a first feeding part and a first clamping part 40. The jig conveying part is provided with a bearing jig and drives the The first conveying mechanism 10 that moves the fixture and the second conveying mechanism that drives the fixture to separate from the first conveying mechanism 10 and move to the processing position, the processing position at least includes the feeding position; the first feeding part includes the first feeding mechanism 20 and The feeding positioning assembly 30, the first feeding mechanism 20 carries the first material and drives the first material to move to the feeding positioning assembly 30, and the feeding positioning assembly 30 positions the first material at the first clamping position; the first clamping The part 40 is used for clamping and placing the first material at the first clamping position on the jig at the feeding position.

Through the feeding device of this embodiment, the first conveying mechanism 10 of the jig conveying part can convey the jig, and the second conveying mechanism (not shown in the figure) can drive the jig to disengage from the first conveying mechanism 10 when necessary. And move to the processing position, so that the fixture stays at the processing position, so that the first clamping part 40 can place the clamped first material on the corresponding position of the fixture. The first feeding part is used to automatically transport the first material, and use the feeding positioning assembly 30 to accurately position it to the first clamping position, so as to ensure that the first clamping part 40 can accurately clamp the first material, thereby ensuring The accuracy of placing the first material on the fixture. In this way, the purpose of automatically placing the first material on the fixture through the feeding device is realized, the automation degree in the production process is improved, the labor intensity is reduced, the efficiency is improved, and the error rate is reduced.

The first feeding part, the second feeding part and the third feeding part shown in the figure will be described below with reference to FIGS. 1 to 4 . Of course, in other embodiments, other structures of the first feeding part, the second feeding part and the third feeding part may be adopted, which are not limited in this embodiment.

Optionally, as shown in FIGS. 1 and 2 , the first feeding mechanism 20 includes a first feeding belt 21 and a position adjustment assembly. The first feeding belt 21 carries the first material and drives the first material to move to the material preparation position in the horizontal direction. The position adjustment component is set corresponding to the material preparation position, and pushes the first material in the material preparation position to the material supply positioning component 30 .

In this embodiment, the first material may be a bipolar plate in a stack of a fuel cell. The bipolar plate can be directly placed on the first feeding belt 21 , or can be contained in a bin or tray, and placed on the first feeding belt 21 through a bin or tray.

Taking it in the material box as an example, the first feeding belt 21 can move horizontally, and drive the material box with the bipolar plate placed on it to move to the material preparation position in the horizontal direction (the material preparation position can be the first material preparation position). the end of the feed belt 21 or other suitable location).

The first feeding belt 21 can be any suitable conveyor belt, for example, in this embodiment, the first feeding belt 21 includes a sprocket and a chain matched with the sprocket, and the chain is driven to move by driving the sprocket to rotate to convey the material box. . In this way, the first material can be transported stably, quickly and reliably.

The position adjustment component is used to adjust the position of the material box, and push the first material out of the material box to the material supply positioning component 30, so that the material supply positioning component 30 positions the first material to the first clamping position.

For example, in this embodiment, the position adjustment assembly includes a vertical adjustment member and a horizontal adjustment member to adjust the vertical position and the horizontal position, respectively.

The vertical adjustment member is disposed below the first material, and drives the first material in the material preparation position to move upward to a first adjustment position that matches the height of the bearing surface of the material supply positioning assembly 30 .

The vertical adjustment member may be a vertically arranged telescopic cylinder, a lead screw lift, a turbine worm lift or other structures that can adjust the vertical height of the first material. Preferably, the vertical adjustment member may be a telescopic cylinder, so as to make the structure simpler while ensuring the reliability of the vertical adjustment. When it is detected by the limit switch, position sensor and other detection components that the material box moves to the material preparation position, the vertical adjustment member is controlled to extend to raise the material box, so that its height is the same as the height of the bearing surface of the feeding positioning assembly 30 Matching (matching can be understood as the height of the material box is higher than the height of the bearing surface, and the height difference is less than the set value, the set value can be determined according to needs).

The horizontal adjustment member drives the first material in the first adjustment position to move horizontally to the bearing surface of the supply positioning assembly 30 .

Wherein, the horizontal adjustment member may be a horizontally arranged telescopic cylinder, a telescopic hydraulic cylinder or other structures that can adjust the horizontal position of the first material. Preferably, the horizontal adjustment member may be a horizontally arranged telescopic cylinder, and the horizontal adjustment member pushes the first material of the top layer or the first material of the bottom layer among the plurality of first materials arranged in layers, so as to make it move from the material box onto the bearing surface of the feed positioning assembly 30 .

A specific feeding process is as follows: as shown in Figure 2, the material box is placed on the lower conveyor belt of the first feeding belt 21 and moved under the driving of the lower conveyor belt, and the material preparation position is the position of the tray of the vertical adjustment piece. disk. When the material box is moved to the pallet of the vertical adjustment piece, it is moved to the stocking position. At this time, the vertical adjustment member moves the material box upward to a suitable height, and then the horizontal adjustment member in the material box pushes the first material out of the material box to make it reach the feeding positioning assembly 30 . After the first material is pushed out of the material box, the material box is sent out from the upper conveyor belt of the first feeding belt 21 .

As shown in FIG. 2 , in this embodiment, the feeding and positioning assembly 30 includes a support table and a jack-up table, and the upper surface of the support table is the bearing surface. A conveyor belt is arranged on the support table to transport the first material on it to the jacking table, and the first material is jacked up to the first clamping position by the jacking table. In this way, the first clamping part 40 can accurately clamp the first material, which can not only ensure the reliability of clamping, but also ensure the accuracy of clamping, thereby ensuring the accuracy of placing the first material on the jig. .

Of course, in other embodiments, other structures of the material supply positioning assembly may be adopted, as long as the first material can be ensured to be transported to the first clamping position.

As shown in FIG. 2 , the first gripping part 40 may be a multi-dimensional industrial robot or a soft robot, etc., as long as it can grip and place the first material.

In this embodiment, the first gripping part 40 is a multi-dimensional industrial robot, which has multiple degrees of freedom, and can adjust the posture as required and move to a required position. For example, the first clamping part 40 includes a clamping base, a first support arm, a second support arm, a third support arm and a clamping jaw, wherein the first support arm is arranged on the base and can be about a vertical axis relative to the base Rotation, the first end of the second support arm is connected to the first support arm, and the second support arm can rotate around the horizontal axis relative to the first support arm, and the first end of the third support arm is connected to the second support arm. On the two ends, the third support arm can rotate around the horizontal axis relative to the second support arm, the clamping jaw is connected to the second end of the third support arm, and can rotate around the horizontal axis relative to the third support arm.

Of course, the specific structure of the first gripping part 40 is not limited to this, and other types of industrial robots can also be used as required.

Optionally, a visual detection module and an identity recognition module can also be set on the first clamping part 40, and the visual detection module includes a camera, which is used to collect images, so as to determine whether the materials in the collected images are damaged by analyzing the images, Realize the visual inspection function.

The identity recognition module may include a QR code recognizer, which can scan the QR code on the material to identify the identity.

As shown in FIG. 1 and FIG. 3 , the feeding device further includes a second feeding part, and the second feeding part has a second gripping position and a first feeding part for sequentially conveying various types of second materials to the second gripping position. Two feeding mechanisms 50; the first clamping part 40 is also used for clamping the second material at the second clamping position to the jig.

The second material may be a single plate in a fuel cell stack, and the number and type of the single plate in different stacks may be different. The second feeding mechanism 50 is used for conveying different types of second materials to move to the second clamping position in sequence. 40 Clamp the veneer and place it on the jig. Conversely, if the veneer in the second gripping position is not required, the second feeding mechanism 50 continues to move to move the veneer of this type out of the second gripping position.

Optionally, the second feeding mechanism 50 includes an endless belt base 51, an endless conveying belt 52 and a second material tray 53, the endless conveying belt 52 is movably arranged on the endless belt base 51, and the conveying path of the endless conveying belt 52 passes through. The second clamping position; there are multiple second material trays 53 and are arranged on the endless conveyor belt 52 at intervals, and each second material tray 53 is used to carry one type of second material. Through the second feeding mechanism 50 with this structure, different kinds of second materials can be sequentially transported to the second clamping position, and cyclic feeding can be realized.

The endless belt base 51 is used for supporting structures such as the endless conveyor belt 52 , the second material and the second material tray 53 .

As shown in FIG. 3 , in this embodiment, the endless conveyor belt 52 includes a driving sprocket, a tensioning sprocket and a chain. The chain is sleeved on the driving sprocket and the tensioning sprocket to move under the driving of the driving sprocket. Each of the second material trays 53 is connected to the chain, so as to be able to move with the movement of the chain, so as to realize the purpose of sequentially transporting various types of second materials to the second clamping position.

Preferably, in order to reduce wear and ensure stable and reliable movement of the second material tray 53, an annular guide rail is also provided on the annular belt base 51, the second material tray 53 is arranged on the annular guide rail, and the annular guide rail is used to carry the weight of the second material tray 53 , so that the endless conveyor belt 52 only needs to give a small force to the second material tray 53 to make it move along the endless guide rail.

Preferably, in order to ensure that the first clamping part 40 can be stable and reliable when clamping the second material, it is ensured that the second feeding mechanism 50 further includes a locking structure, and at least one second material tray 53 is correspondingly provided with a locking structure. When the second material tray 53 is located at the second clamping position, the locking structure is locked to maintain the second material tray 53 in the second clamping position.

It should be noted that the second material tray 53 provided with the locking structure can be determined as required, as long as it can be limited to the second gripping position so that the first gripping portion 40 can grip the second material.

The locking structure can be any suitable structure, as long as it is detected that the second material tray 53 moves to the second gripping position and needs to grip the second material thereon, the locking structure is controlled to be locked, so as to prevent the second material tray 53 from continuing to Move to keep it in the second gripping position, waiting for the first gripping part 40 to grip the second material thereon.

A feasible locking structure can be a locking air rod. When the photoelectric sensor detects that the second material tray 53 has reached the second clamping position, the controller determines that the second material on it needs to be clamped, and controls the locking air rod to extend. Insert into the positioning hole to lock the second material tray 53 .

The positioning holes may be provided on the annular belt base 51, or may be provided on the annular guide rail, or may be provided on other structures.

As shown in FIG. 1 and FIG. 4 , in order to realize automatic feeding and stacking of the third material, the feeding device further includes a third feeding part and a second clamping part 70 . The third feeding part includes a third clamping position and a third feeding mechanism 60. The third feeding mechanism 60 carries the third material and conveys the third material to the third clamping position; the second clamping part 70 is used for feeding the third material to the third clamping position. The third material in the third clamping position is clamped to the fixture.

The third feeding part is used for conveying the third material, and the third material may be the membrane electrode in the stack of the fuel cell. In this embodiment, the third feeding mechanism 60 includes a third material conveying belt and a third material storage rack. As shown in FIG. 4 , a plurality of third materials are stacked on the third material storage rack, and the third material storage rack is transported to the third clamping position during the movement of the third material conveyor belt.

After the controller receives the detection signal of detecting the third material transmitted by the photoelectric sensor located at the third clamping position, it controls the action of the second clamping part 70 to clamp and place the third material on the jig.

In this embodiment, the second gripping part 70 can be a multi-dimensional industrial robot, which can be the same or different in structure from the first gripping part 40 . In this embodiment, a visual detection module and an identity recognition module are provided on the second clamping part 70, and the visual detection module can be a structure such as a camera, which collects the image of the third material to visually inspect the third material to determine Whether it is damaged, if there is no damage, clamp it to the feeding position and place it on the jig.

The identification module can be a structure such as a two-dimensional code identifier, which is used to identify the machine identification code on the third material, and determine its type or related information.

During the material stacking process on the jig, the first clamping part 40 and the second clamping part 70 cooperate to clamp the first material, the second material and the third material and place them on the jig in the loading position . During the stacking process, since the conveying and positioning accuracy of the first material, the second material and the third material is ensured, the position accuracy of the jig placed on the jig is guaranteed. In addition, a positioning rod is arranged on the jig to limit the positions of the first material, the second material and the third material on the jig, so as to achieve the functions of calibrating and fixing them.

In this embodiment, the jig is set on the first conveying mechanism 10 and moves with it. When the material needs to be placed thereon, the jig is driven to the processing position by the second conveying mechanism. The structure and working process of a specific fixture conveying part will be described in detail below with reference to FIGS. 5-7 . It should be noted that, in other embodiments, the jig conveying portion may adopt other appropriate structures, as long as the jig can be conveyed.

Optionally, in this embodiment, the first conveying mechanism 10 of the jig conveying part includes at least two conveying wires 11 and a connecting assembly 12 . The conveying line 11 is used to transport the jig so that the jig passes through at least one processing position. The connecting assembly 12 is used to transfer the jig between the conveying lines 11 .

For example, each conveying line 11 can move along the first straight line, at least two conveying lines 11 are arranged parallel to each other, and the moving directions of two adjacent conveying lines 11 are opposite; The end is set, the connecting assembly 12 includes a moving tray 121, the moving tray 121 can reciprocate along the second straight line, and transfer the fixture on one of the conveying lines 11 to the other adjacent conveying line 11. The second straight line is perpendicular to first straight line.

The conveying line 11 can be a double-speed chain, which is driven by a frequency conversion motor, so as to convey the jig located thereon during the movement. The jig can be transported quickly by using the double-speed chain. Since at least two conveying lines 11 are arranged in parallel to each other, the space is fully utilized, and the conveying lines 11 are arranged in parallel in the space to ensure that the conveying lines are long enough and have enough positions to arrange the processing positions, and the workshops where they are placed do not need to be too long. The length of the plant can be reduced, so that the construction difficulty of the workshop is reduced and the adaptability of the feeding device is better.

As shown in FIG. 5 , in the illustrated embodiment, there are two conveying lines 11 , and the moving directions are opposite, and there are two connecting components 12 , and the conveying line 11 is located between the two connecting components 12 , so that when the fixture is in the After the conveyor line 11 moves along the first straight line to the end of the conveyor line 11, it will move to the moving pallet 121 of the connecting assembly 12. Since the moving pallet 121 can move along the second straight line, the fixture is carried by the moving pallet 121. to the position corresponding to the adjacent conveying line 11 and conveyed to the adjacent conveying line 11 . In this way, the transfer of the jig between the two conveying lines 11 is realized.

Since there are two connecting components 12 , the movement track of the fixture on the conveying line 11 and the connecting component 12 is a circular track, so the fixture can be circulated between the conveying lines 11 and the space can be fully utilized.

Optionally, in this embodiment, in order to facilitate the jig to enter the motion tray 121 or move out from the motion tray 121, the connection assembly 12 further includes a loading and unloading structure 122, and the loading and unloading structure 122 is arranged on the moving tray 121, and the loading and unloading structure 122 is along the movement tray 121. The first straight line is movable to load the jig into or output from the motion tray 121 .

For example, the loading and unloading structure 122 can be a conveyor belt, and the conveyor belt is set on the moving tray 121, so that the fixture is placed on the conveyor belt. Since the conveyor belt can move along the first straight line, when the fixture moves from the conveyor line 11 to the moving tray 121, The jig is driven by the conveyor belt to move to the moving tray 121 more easily, or when the jig is detached from the moving tray 121 , it can be pushed out of the moving tray 121 by the conveyor belt to the conveying line 11 more easily.

Of course, the loading and unloading structure 122 can also be other structures, such as conveying rollers, conveying wheels, and the like.

Optionally, in order to make the movement of the moving tray 121 more stable and reliable, and to make the control more convenient, the connecting assembly 12 further includes a guide rail 123 and a driving member 124 . The guide rail 123 extends along the second straight line, and the moving tray 121 is arranged on the guide rail 123 and can be moved along the guide rail 123 to a first position aligned with one of the two adjacent conveying lines 11 or to a position aligned with one of the two adjacent conveyor lines 11 . The second position where the other of the adjacent two conveying lines 11 is aligned. The driving member 124 is connected with the moving tray 121 through the transmission screw rod, and drives the moving tray 121 to reciprocate along the second straight line.

In this embodiment, the driving member 124 can provide a power source for the moving tray 121, so that the movement of the moving tray 121 (eg, whether to move or the direction of movement, etc.) can be well controlled.

The driving part 124 includes a prime mover and a transmission part, and the prime mover can be an electric motor, an air cylinder, a hydraulic motor, and the like. The transmission member may include a screw rod and a screw nut arranged on the screw rod, and the screw rod is connected with the prime mover to convert the rotation of the prime mover into the linear motion of the screw nut, thereby driving the movement connected with the screw nut The tray 121 moves so as to reciprocate.

Of course, in other embodiments, the driving member 124 may have other structures, for example, the driving member 124 includes a prime mover and a transmission chain, etc., which is not limited in this embodiment.

The guide rails 123 are used to guide the movement of the moving tray 121 to avoid deviation during the movement, thereby ensuring work reliability and preventing damage to the driving member 124 connected thereto caused by the deviation.

In this embodiment, there are two guide rails 123, which are arranged parallel to each other. The movement tray 121 is provided with a groove that cooperates with the guide rails 123, so that the movement tray 121 can move along the guide rails 123, so as to utilize the guide rails 123. The sliding rails 123 reduce the frictional force during the movement of the moving tray 121, reduce the wear on the moving tray 121, and improve the service life.

Optionally, in order to improve the processing speed and the degree of automation, along the conveying stroke of the first conveying mechanism 10, a plurality of processing positions are distributed, and each processing position is correspondingly provided with a second conveying mechanism and a detector, and the detector is disposed at on the first conveying mechanism 10; the feeding device further includes a controller, which is respectively connected with the first conveying mechanism 10, a plurality of second conveying mechanisms and a plurality of detectors, and controls the first conveying according to the detection signals of the detectors Activation or deactivation of the mechanism 10 and/or control of activation or deactivation of the respective second conveying mechanisms.

The processing position is used for the fixture to stay, so as to place the first material, the second material and the third material on the fixture, so as to process the desired product. In a feasible manner, each processing position may correspond to a step in the processing procedure. For example, the processing position for stacking the first material, the second material and the third material may also be referred to as a loading position. Of course, in other feasible manners, two or more processing positions may correspond to one step in the process.

A second conveying mechanism and a detector are correspondingly disposed at each processing position, and the detector is used to detect whether the fixture reaches a position corresponding to the processing position during the movement with the first conveying mechanism 10 . The second conveying mechanism is used to disengage the jig from the first conveying mechanism 10 and move to the processing position when the corresponding detector detects the jig. For example, the second conveying mechanism may be a structure such as a lift cylinder, a hydraulic cylinder, etc., and the jig and the first conveying mechanism 10 are separated or contacted by the lifting and lowering of the second conveying mechanism.

Optionally, a photoelectric sensor for detecting whether the fixture is lifted in place is also provided on the top of the second conveying mechanism.

The controller can be a control chip such as a CPU, MCU, PLC, etc., or a computer, a mobile terminal, etc., as long as the control function can be realized. The controller is used to receive the detection signal of the detector, and control at least the first conveying mechanism 10 and the second conveying mechanism according to the detection signal of the detector.

For example, if the controller receives the detection signal indicating the detection of the fixture, it controls the second conveying mechanism corresponding to the detection signal indicating the detection of the fixture to start, and lifts the fixture to the processing position; and/or, if the control According to the received detection signal, the controller determines that there are jigs in two adjacent processing positions, and then controls the first conveying mechanism 10 to stop.

The following describes the control process of the controller by taking three processing positions as an example:

It is assumed that there are three processing positions, and detectors (referred to as detectors A to C) and second conveyance mechanisms (referred to as second conveyance mechanisms A to C) are correspondingly provided at each processing position. During the movement of the fixture with the first conveying mechanism 10, when detected by the detector A, it sends detection information indicating that the fixture is detected to the controller, and the controller controls the second conveying mechanism A to start according to the detection information, The second conveying mechanism A extends and pushes up the jig to separate it from the first conveying mechanism 10 and reaches the processing position. At this time, the first conveying mechanism 10 continues to move and convey other jigs. When the jig stays at the processing position, the material can be clamped by the first clamping part 40 and the second clamping part 70 and placed on the corresponding position of the jig.

When the first material, the second material and the third material are placed, and a processing position after the processing position is free, the controller can control the second conveying mechanism to shrink, so that the jig after the material is placed is lowered to On the first conveying mechanism 10, the first conveying mechanism 10 continues to move to the next processing position.

When the first material, the second material and the third material are placed, and a processing position after the processing position is not free (that is, there is a fixture), the controller determines that there are fixtures in the two adjacent processing positions. If the movement of the first conveying mechanism 10 cannot continue, the first conveying mechanism 10 is controlled to stop (for example, the frequency of the motor of the first conveying mechanism 10 is reduced to 0).

Optionally, in order to ensure that when the jig on the first conveying mechanism 10 reaches a position corresponding to the processing position, the jig can be blocked from passing through as required, a blocking component is further provided on the first conveying mechanism 10 . This allows the jig to be blocked with the blocking assembly when needed.

For example, in this embodiment, the blocking component includes a telescopic piece and a blocking piece, and the telescopic piece is provided on the first conveying mechanism 10 at a position corresponding to the processing position. The blocking member is rotatably arranged on the telescopic member through the blocking base, and moves up and down reciprocatingly under the driving of the telescopic member. In this embodiment, the detector is arranged on the blocking base, and the first end of the blocking member is matched with the telescopic member, and the second end of the blocking member is higher than the first end, so that when the fixture arrives, it will touch The second end of the blocking piece is rotated, and the first end of the blocking piece moves downward and touches the detector, and the detector detects that "the fixture is in place". The second conveying mechanism jacks up the jig.

When the operation on the jig is completed and the jig needs to pass, the second conveying mechanism descends so that the blocking component and the jig descend together. Afterwards, the retractable member shrinks, so that the blocking base and the blocking member are lowered relative to the jig together, and are separated from the jig, so that the jig can pass. At this time, the second end of the blocking member is no longer under the action of the jig, so the first end of the blocking member is separated from the detector.

Optionally, in order to make the jig pass through more easily, a roller is provided on the second end to reduce the frictional force when the jig passes.

According to another aspect of the present invention, a fuel cell stack assembly system is provided, which includes the above-mentioned feeding device. The fuel cell stack assembly system using the feeding device can automatically place the first material, the second material and the third material on the jig, thereby improving the automation degree of the production process, reducing the production cost, and ensuring the production quality.

Of course, implementing any technical solution of the embodiments of the present application does not necessarily need to achieve all the above advantages at the same time.

The expressions "first," "second," "the first," or "the second" as used in various embodiments of this application may modify various elements regardless of order and/or importance , but these expressions do not limit the corresponding parts. The above expressions are only used for the purpose of distinguishing an element from other elements. For example, a first user radiation therapy device and a second user radiation therapy device represent different user radiation therapy devices, although both are user radiation therapy devices. For example, a first element could be termed a second element, and, similarly, a second element could be termed a first element, without departing from the scope of the present disclosure.

While the preferred aspects of the present application have been described, those skilled in the art may make additional changes and modifications to these once the basic inventive concepts are known. Therefore, the appended claims are intended to be construed to include the preferred and all changes and modifications that fall within the scope of this application. Obviously, those skilled in the art can make various changes and modifications to the present application without departing from the spirit and scope of the present application. Thus, if these modifications and variations of the present application fall within the scope of the claims of the present application and their equivalents, the present application is also intended to include these modifications and variations.

Claims (10)

1. A loading device, comprising:

the jig conveying part is provided with a first conveying mechanism (10) for bearing the jig and driving the jig to move and a second conveying mechanism for driving the jig to be separated from the first conveying mechanism (10) and move to a machining position, and the machining position at least comprises a feeding position;

the first feeding part comprises a first feeding mechanism (20) and a feeding positioning assembly (30), the first feeding mechanism (20) bears a first material and drives the first material to move onto the feeding positioning assembly (30), and the feeding positioning assembly (30) positions the first material at a first clamping position;

the first clamping part (40) is used for clamping the first material on the first clamping position onto the jig on the material loading position.

2. A loading device according to claim 1, wherein said first feeding mechanism (20) comprises:

the first feeding belt (21) bears the first material and drives the first material to move to a material preparing position along the horizontal direction;

a position adjustment assembly disposed corresponding to the stock preparation position and pushing the first material at the stock preparation position onto the feed positioning assembly (30).

3. A loading device as claimed in claim 2, wherein said position adjustment assembly comprises:

the vertical adjusting piece is arranged below the first material and drives the first material in the material preparing position to move upwards to a first adjusting position matched with the height of the bearing surface of the feeding positioning assembly (30);

the horizontal adjusting piece drives the first material in the first adjusting position to horizontally move to the bearing surface of the feeding positioning assembly (30).

4. The loading device of claim 1, further comprising:

a second feeding section having a second gripping position and a second feeding mechanism (50) that sequentially conveys a plurality of types of second materials to the second gripping position;

the first clamping part (40) is also used for clamping the second material at the second clamping position onto the jig.

5. A feeding device according to claim 4, wherein the second feeding mechanism (50) comprises:

an endless belt mount (51);

an endless conveyor belt (52), the endless conveyor belt (52) being movably disposed on the endless belt base (51), and a conveying path of the endless conveyor belt (52) passing through the second gripping position;

a plurality of second material trays (53), wherein the second material trays (53) are arranged on the annular conveying belt (52) at intervals, and each second material tray (53) is used for carrying one type of second materials.

6. The feeding device according to claim 5, wherein the second feeding mechanism (50) further comprises a locking structure, and at least one second material tray (53) is correspondingly provided with the locking structure, and when the second material tray (53) is located at the second clamping position, the locking structure is locked to maintain the second material tray (53) at the second clamping position.

7. A feeding device according to any one of claims 1-6, further comprising:

a third feeding section including a third gripping position and a third feeding mechanism (60), the third feeding mechanism (60) carrying a third material and conveying the third material to the third gripping position;

a second clamping part (70), wherein the second clamping part (70) is used for clamping the third material at the third clamping position onto the jig.

8. A loading device according to claim 1, characterized in that said first conveying means (10) comprise:

at least two conveying lines (11), wherein each conveying line (11) can move along a first straight line, the at least two conveying lines (11) are arranged in parallel, and the moving directions of two adjacent conveying lines (11) are opposite;

the connecting assembly (12), the connecting assembly (12) is corresponding to the terminal setting of two adjacent transfer chain (11), connecting assembly (12) is including motion tray (121), motion tray (121) can be along second straight line reciprocating motion to with the tool transmission on one of transfer chain (11) to adjacent another on transfer chain (11), the second straight line is perpendicular to first straight line.

9. A loading device according to claim 8, wherein said connection assembly (12) further comprises a handling structure (122), said handling structure (122) being arranged on said moving tray (121), and said handling structure (122) being movable along said first line to load said jigs into said moving tray (121) or to output said jigs from said moving tray (121).

10. A fuel cell stack assembly system, comprising the charging device according to any one of claims 1 to 9.
