The application provides an automatic cutting equipment of panel, including panel loading attachment, panel loading attachment one side is equipped with the location conveyor who is used for carrying panel, location conveyor's output is equipped with cutting device, location conveyor below is equipped with finished product conveyor, finished product conveyor one side be equipped with be used for will dropping extremely panel waste material on the finished product conveyor pushes away from finished product conveyor's first waste material pusher, location conveyor's output one side be equipped with be used for with panel waste material on the location conveyor pushes away from location conveyor's second waste material pusher. The application provides an automatic cutting equipment of panel not only cuts the automation, and the material loading in addition, cut the recovery of finished product and waste material all be full automatization operation, need not the handheld operation of staff, easy operation, intensity of labour is little, labour saving and time saving, the operation safety makes things convenient for the production application of enterprise very, is favorable to the production and the development of enterprise.
Description
[ technical field ] A method for producing a semiconductor device
The application relates to the technical field of automation, especially, relate to automatic cutting equipment of panel.
[ background of the invention ]
At the in-process of preparation hardware products, often need cut the operation of cutting out the material to hardware board, current staff is handheld cutting device usually and cuts hardware board, not only troublesome poeration, intensity of labour is big, wastes time and energy, but also extremely dangerous, causes the injury to the staff easily, threatens staff's life safety even, causes serious production accident, is unfavorable for the production and the development of enterprise.
[ summary of the invention ]
In order to solve the problem, the application provides an automatic cutting equipment of panel.
The application is realized by the following technical scheme:
automatic cutting equipment of panel, including panel loading attachment, panel loading attachment one side is equipped with the location conveyor who is used for carrying panel, location conveyor's output is equipped with cutting device, location conveyor below is equipped with finished product conveyor, finished product conveyor one side is equipped with and is used for dropping extremely panel waste material on the finished product conveyor pushes away from finished product conveyor's first waste material pusher, location conveyor's output one side be equipped with be used for with panel waste material on the location conveyor pushes away from location conveyor's second waste material pusher.
According to the automatic plate cutting equipment, the positioning and conveying device comprises a conveying rack, and a plate pushing mechanism used for pushing a plate to the cutting device and a plate positioning mechanism arranged at a position corresponding to the cutting device and used for positioning the plate are arranged on the conveying rack.
The automatic cutting equipment of panel, panel push mechanism is including locating the last propelling movement slide rail and the propelling movement rack that extends along the propelling movement direction of conveyer frame, be equipped with sliding fit's material that pushes away and remove the seat on the propelling movement slide rail, it is equipped with ejector pad pole and the driving motor who is used for promoting panel to push away to remove the seat, the last drive gear that is equipped with the meshing of propelling movement rack.
According to the automatic plate cutting equipment, the plate positioning mechanism comprises two positioning frame strips which are oppositely arranged, an accommodating space for placing plates is formed between the two positioning frame strips, and the conveying rack is provided with a positioning driving device for driving one positioning frame strip to be close to or far away from the other positioning frame strip.
According to the automatic plate cutting equipment, the positioning strips located above the accommodating space are connected between the two positioning frame strips, and the positioning frame strips in transmission connection with the positioning driving device can move relative to the positioning strips.
According to the automatic plate cutting equipment, one end, close to the plate pushing mechanism, of each positioning frame strip is provided with the inclined guide plate which extends in the direction close to the plate pushing mechanism and is gradually far away from the other positioning frame strip.
According to the automatic plate cutting equipment, the finished product collecting box is arranged below the output end of the finished product conveying device.
According to the automatic cutting equipment for the plates, the plate feeding device comprises a material rack for storing the plates and a feeding and carrying mechanism for carrying the plates on the material rack to the positioning and conveying device.
The automatic cutting equipment of panel as above, material loading transport mechanism is including the transport support, be equipped with ability horizontal migration's transport seat on the transport support, be equipped with the transport pole that can reciprocate on the transport seat, the transport pole lower extreme is equipped with the fixed plate, the fixed plate downside is equipped with the panel sucking disc.
The automatic cutting equipment for the sheet material comprises a punching cutting machine.
Compared with the prior art, the method has the following advantages:
the application provides an automatic cutting equipment of panel not only cuts the automation, and the material loading in addition, cut the recovery of finished product and waste material all be full automatization operation, need not the handheld operation of staff, easy operation, intensity of labour is little, labour saving and time saving, the operation safety makes things convenient for the production application of enterprise very, is favorable to the production and the development of enterprise.
[ description of the drawings ]
In order to more clearly illustrate the technical solutions in the embodiments of the present application, the drawings used in the description of the embodiments will be briefly introduced below.

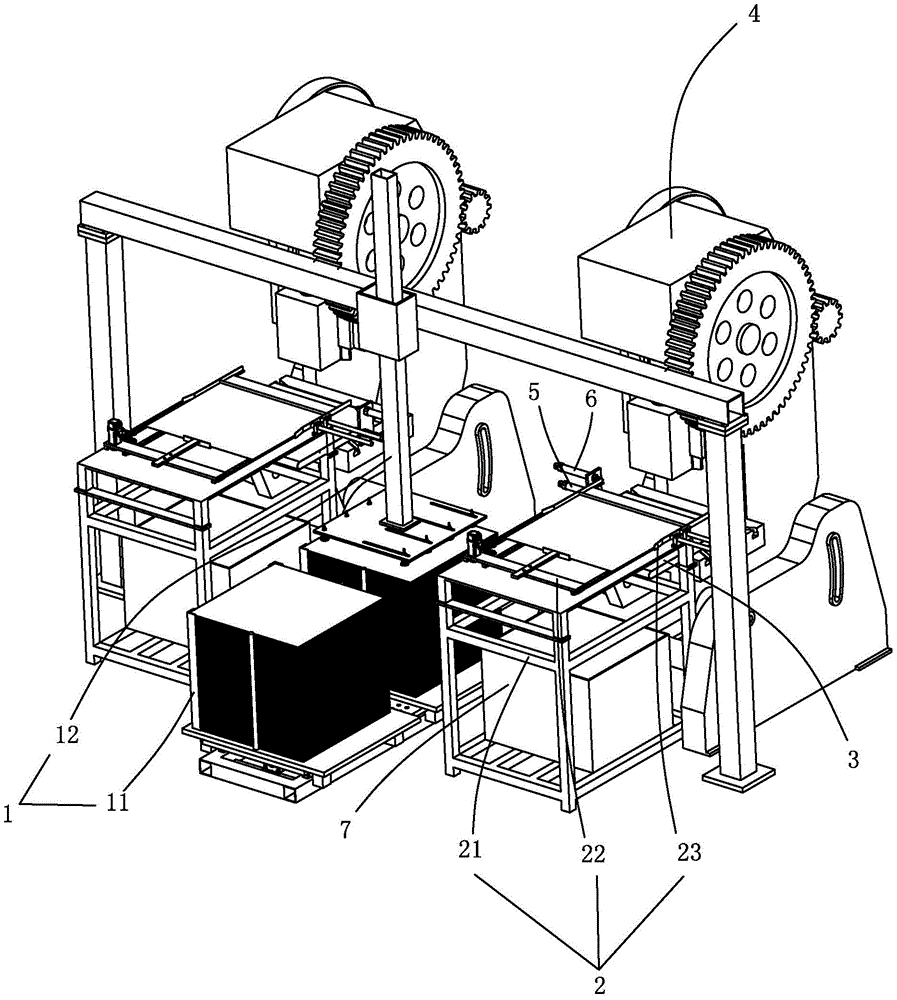

FIG. 1 is a schematic diagram of the operation of an automated plate cutting apparatus;
FIG. 2 is a schematic view of a positioning conveyor;
fig. 3 is a schematic view of the material loading and conveying mechanism.
[ detailed description ] embodiments
In order to make the technical problems, technical solutions and advantageous effects solved by the present application more clear and obvious, the present application is further described in detail below with reference to the accompanying drawings and embodiments. It should be understood that the specific embodiments described herein are merely illustrative of the present application and are not intended to limit the present application.
When the embodiments of the present application refer to ordinal numbers such as "first", "second", etc., it should be understood that the terms are used for distinguishing only when the context clearly indicates that the order is changed.
In the description of the present application, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "connected" are to be construed broadly, e.g., as meaning either a fixed connection, a removable connection, or an integral connection; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present application can be understood in a specific case by those of ordinary skill in the art.
The automatic plate cutting equipment shown in fig. 1 to 3 comprises a plate feeding device 1, wherein a positioning and conveying device 2 for conveying plates is arranged on one side of the plate feeding device 1, a cutting device 4 is arranged at the output end of the positioning and conveying device 2, specifically, the cutting device 4 comprises a punching and cutting machine, a finished product conveying device 3 is arranged below the positioning and conveying device 2, a first waste pushing device 5 for pushing plate waste falling onto the finished product conveying device 3 away from the finished product conveying device 3 is arranged on one side of the finished product conveying device 3, and a second waste pushing device 6 for pushing the plate waste on the positioning and conveying device 2 away from the positioning and conveying device 2 is arranged on one side of the output end of the positioning and conveying device 2. The automatic cutting equipment of panel that this embodiment provided not only cuts the automation, and the material loading moreover, cut the recovery of finished product and waste material all be full automatization operation, need not the handheld operation of staff, easy operation, intensity of labour is little, labour saving and time saving, the operation safety makes things convenient for the production application of enterprise very, is favorable to the production and the development of enterprise.
Further, in order to make cutting device 4 cut five metals panel accurately, location conveyor 2 is including carrying frame 21, be equipped with on carrying frame 21 and be used for with panel propelling movement extremely the panel push mechanism 22 of cutting device 4 department with locate with the position department that cutting device 4 corresponds is used for carrying out the panel positioning mechanism 23 of fixing a position to panel.
Further, in order to effectively and accurately locate propelling movement five metals panel to cutting device, panel push mechanism 22 is including locating carry the frame 21 on along propelling movement direction extension propelling movement slide rail 221 and propelling movement rack 222, be equipped with sliding fit's the material that pushes away on the propelling movement slide rail 221 and remove seat 223, it is equipped with material pushing rod 224 and the driving motor 225 that is used for promoting panel to push away to remove to be equipped with on the seat 223, be equipped with on the driving motor 225 with the drive gear 226 that the propelling movement rack 222 meshed mutually. Simple structure, panel propelling movement is respond well.
Further, panel positioning mechanism 23 includes two location frame strips 231 that set up relatively, forms the accommodation space 232 that is used for placing panel between two location frame strips 231, panel push mechanism 22 pushes into five metals panel in the accommodation space 232, be equipped with on the conveyer frame 21 and be used for driving a location frame strip 231 to be close to or keep away from another location frame strip 231's location drive arrangement 233. Drive through location drive arrangement 233 makes two location frame strips 231 from the five metals panel that the both sides limit clamp band cut, ensures that the horizontal skew can not take place at the in-process five metals panel that cuts, makes the precision of cutting of five metals panel obtain guaranteeing, simple structure and can the stable positioning. In order to prevent the hardware plate from tilting upwards and separating from the positioning and conveying device in the cutting process, a positioning strip 234 positioned above the accommodating space 232 is connected between the two positioning frame strips 231, and the positioning frame strips 231 in transmission connection with the positioning driving device 233 can move relative to the positioning strips 234.
In order to facilitate the plate pushing mechanism 22 to push the hardware plate into the accommodating space 232, a guide inclined plate 2311 extending in a direction close to the plate pushing mechanism 22 and gradually far away from the other positioning frame 231 is arranged at one end of the positioning frame 231 close to the plate pushing mechanism 22, and the plate can be pushed into the accommodating space more easily through the guide effect of the guide inclined plate 2311.
Further, in order to conveniently recover the cut hardware finished products, a finished product collecting box 7 is arranged below the output end of the finished product conveying device 3. In particular, in order to make the overall structure of the apparatus more compact, the product collection box 7 is disposed inside the conveyor frame 21.
Further, in order to effectively realize full automation of feeding, the plate feeding device 1 includes a rack 11 for storing plates and a feeding and conveying mechanism 12 for conveying the plates on the rack 11 to the positioning and conveying device 2. Specifically, material loading transport mechanism 12 is including carrying support 121, be equipped with ability horizontal migration's transport seat 122 on the carrying support 121, be equipped with the transport pole 123 that can reciprocate on the transport seat 122, the transport pole 123 lower extreme is equipped with fixed plate 124, the fixed plate 124 downside is equipped with the panel sucking disc 125 that is used for adsorbing panel. Simple structure and convenient transportation.
In order to improve the cutting work efficiency, a positioning and conveying device 2, a cutting device 4, a finished product conveying device 3, a first waste pushing device 5, a second waste pushing device 6 and a finished product collecting box 7 can be respectively arranged on two sides of the material rack.
The working principle of the embodiment is as follows:
panel loading attachment 1 will treat the five metals panel transport that cuts to location conveyor 2 on, location conveyor 2 will treat the five metals panel location that cuts and carry to cutting device 4, and cutting device 4 is when cutting five metals panel waste part, and finished product conveyor 3 stops to carry, and the panel waste material after cutting drops to finished product conveyor 3 department from location conveyor 2 department, and first waste material pusher 5 will drop extremely panel waste material on finished product conveyor 3 pushes away from finished product conveyor 3 is in order to retrieve, and the panel waste material cuts the back of accomplishing, cuts useful part of five metals panel, and finished product conveyor 3 starts the transport this moment, and finished product conveyor 3 will drop after cutting extremely five metals finished product on finished product conveyor 3 carries to finished product collecting box 7 in order to collect, and the five metals finished product cuts the back of accomplishing, and the panel waste material who stays on location conveyor pushes away from location conveyor through second waste material pusher 6 For recycling.
