CN211290582U - Photovoltaic-driven solar medium-temperature air heat collector heating and water heating system - Google Patents
Photovoltaic-driven solar medium-temperature air heat collector heating and water heating system Download PDFInfo
- Publication number
- CN211290582U CN211290582U CN201921798395.9U CN201921798395U CN211290582U CN 211290582 U CN211290582 U CN 211290582U CN 201921798395 U CN201921798395 U CN 201921798395U CN 211290582 U CN211290582 U CN 211290582U
- Authority
- CN
- China
- Prior art keywords
- air
- heat
- solar
- energy
- heating
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02B—CLIMATE CHANGE MITIGATION TECHNOLOGIES RELATED TO BUILDINGS, e.g. HOUSING, HOUSE APPLIANCES OR RELATED END-USER APPLICATIONS
- Y02B10/00—Integration of renewable energy sources in buildings
- Y02B10/10—Photovoltaic [PV]
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02B—CLIMATE CHANGE MITIGATION TECHNOLOGIES RELATED TO BUILDINGS, e.g. HOUSING, HOUSE APPLIANCES OR RELATED END-USER APPLICATIONS
- Y02B10/00—Integration of renewable energy sources in buildings
- Y02B10/20—Solar thermal
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02B—CLIMATE CHANGE MITIGATION TECHNOLOGIES RELATED TO BUILDINGS, e.g. HOUSING, HOUSE APPLIANCES OR RELATED END-USER APPLICATIONS
- Y02B10/00—Integration of renewable energy sources in buildings
- Y02B10/70—Hybrid systems, e.g. uninterruptible or back-up power supplies integrating renewable energies
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02E—REDUCTION OF GREENHOUSE GAS [GHG] EMISSIONS, RELATED TO ENERGY GENERATION, TRANSMISSION OR DISTRIBUTION
- Y02E10/00—Energy generation through renewable energy sources
- Y02E10/40—Solar thermal energy, e.g. solar towers
- Y02E10/44—Heat exchange systems
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02E—REDUCTION OF GREENHOUSE GAS [GHG] EMISSIONS, RELATED TO ENERGY GENERATION, TRANSMISSION OR DISTRIBUTION
- Y02E10/00—Energy generation through renewable energy sources
- Y02E10/50—Photovoltaic [PV] energy
Abstract
The utility model discloses a photovoltaic driven solar energy medium temperature air heat collector heating and hot water system, it becomes hot-blast through making the room air temperature promotion realize the heating effect with room air circulation with air heating through solar energy air heat collector. The heated air passes through an energy storage heat exchanger arranged indoors, and heat energy can be stored in the energy storage heat exchanger for heating at night; the heat exchanger is arranged in the circulating pipeline of the device, the indoor water storage tank is heated in the hot air circulation process, domestic hot water is provided, the system provides electric energy through the solar photovoltaic panel, power is provided for the circulating fan, the heat energy and the circulating power of the system are both derived from solar energy, the heat energy and the circulating driving electric energy are synchronous, an additional control device is not needed, a heat transfer medium is air, freezing and blocking cannot occur at low temperature at night, the accident rate is greatly reduced, system maintenance is reduced, the reliability and the practicability are high, and solar heating of families of farmer and herder is facilitated.
Description
Technical Field
The utility model relates to a solar heating equips technical field, especially relates to a photovoltaic driven solar energy medium temperature air heat collector heating and hot water system.
Background
As is well known, in the field of existing solar heating technologies, solar heat exchange is mostly achieved through a liquid medium, heat is collected through a solar heating pipe, storage or living use is achieved after heat is collected, however, in the actual use process, indoor air heat exchange is mostly achieved through an air conditioner structure, and indoor temperature is achieved through refrigeration equipment.
In recent years, solar temperature increasing devices for directly heating air appear on the market, but the current temperature increasing devices have technical disadvantages, which are represented by: 1. heating can be realized only in the daytime, and heating cannot be realized under the condition of no illumination at night. 2. There is no heat energy storage function and the simultaneous supply of hot water and warm air cannot be realized.
In addition, in the current market, solar heating systems all operate by means of commercial power and are provided with control systems, the system configuration is complex, the failure rate is high, but in some areas, the commercial power supply is insufficient, the maintenance cost is too high, even after-sales service is not available, and once the system goes wrong, the shutdown phenomenon can occur, so that waste is caused.
Aiming at the defects in the prior art, as technical personnel in the industry, how to improve the heat collection and hot water system of the photovoltaic-driven solar medium-temperature air heat collector by the aid of the technology is designed, the heat collection efficiency is greatly improved, indoor heat supply and hot water supply can be realized, energy storage in daytime and use at night can be realized, and the system is imperative.
Disclosure of Invention
In view of the above shortcoming of the prior art, the utility model aims at providing a photovoltaic driven solar energy medium temperature air heat collector heats and hot water system, and the operation of a whole set of system is realized to accessible solar energy, and heat energy and circulation drive electric energy are synchronous, need not to add controlling means in addition.
The utility model relates to a photovoltaic-driven solar medium-temperature air heat collector heating and water heating system, which comprises a support frame arranged at a higher lighting position, wherein a plurality of groups of solar air heat collectors and solar photovoltaic panels are erected towards the sun by the support frame;
the air inlet end of the solar air heat collector is connected to the indoor through an indoor air outlet pipe, the air outlet end of the solar air heat collector is connected through an indoor air inlet pipe, the solar photovoltaic panel provides electric energy for driving the circulating fan, and the circulating fan forms closed circulation of the solar air heat collector and room air;
the heat exchanger is arranged on the hot air circulating pipeline and connected with the hot water storage tank, and the heat energy generated by the hot air flowing through the heat exchanger is stored in the heat preservation water tank for later use through thermosiphon circulation.
The energy storage heat exchanger communicated with the tail end of the indoor hot air outlet is a multi-gap solid energy storage heat exchanger, and the stored heat energy is used for heating at night.
The utility model discloses following beneficial effect has: the utility model discloses an above design, it becomes hot-blast through making indoor air temperature promote with indoor air circulation and realize the heating effect with air heating through solar energy air heat collector. The heated air passes through an energy storage heat exchanger arranged indoors, and heat energy can be stored in the energy storage heat exchanger for heating at night; be provided with the heat exchanger in this device circulating line, will heat to indoor storage water tank in the hot-blast circulation in-process, provide life hot water, this system provides the electric energy through the solar photovoltaic board, provide power for circulating fan, this system heat energy and circulating power all derive from solar energy, heat energy and cycle drive electric energy are synchronous, need not to add controlling means in addition, heat transfer medium is the air, freezing can not appear when low temperature night, it is stifled to freeze, the greatly reduced accident rate, the system maintenance has been reduced, the reliability is strong, be favorable to civilian popularization of large tracts of land, be an ideal photovoltaic driven solar energy medium temperature air heat collector heating and hot water system.
Drawings
The present invention will be further explained with reference to the drawings and examples.

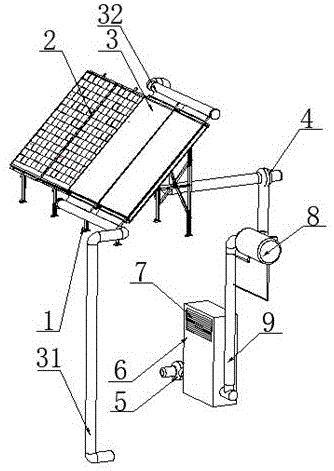

FIG. 1 is a schematic perspective view of the present apparatus;
FIG. 2 is a schematic front view of the device;
FIG. 3 is a schematic side view of the apparatus;
FIG. 4 is an enlarged view of the structure in the direction A of FIG. 2;
FIG. 5 is a schematic view of the present apparatus in use;
in the figure, the solar photovoltaic panel, the solar air collector, the indoor air outlet pipe, the indoor air inlet pipe, the indoor air outlet pipe, the indoor air inlet pipe, the indoor circulating fan, the indoor heat storage exchanger, the indoor heat storage block, the indoor air outlet pipe, the indoor heat storage tank, the indoor.
Detailed Description
Other advantages and effects of the present invention will be apparent to those skilled in the art from the disclosure of the present invention.
A photovoltaic-driven solar medium-temperature air heat collector heating and water heating system is shown in figure 1 and comprises a support frame 1 arranged on a roof 11, wherein a plurality of groups of solar air heat collectors 3 and solar photovoltaic panels 2 are erected on the support frame 1 towards the sun, the solar air heat collectors 3 and the solar photovoltaic panels 4 are used as a technology which is relatively universal in the solar heating and power generation industry, and the specific connection structure of the interior of the system is not repeated;
the solar air heat collector 3 is connected with an indoor air outlet pipe 31 at the inlet end, an indoor air inlet pipe 32 at the outlet end is connected with an energy storage heat exchanger 6 into a whole through a circulating fan 4, in the connecting process, in order to realize indoor air heating, a hot air circulating pipeline 9 is arranged indoors, indoor low-temperature air is continuously pumped into the solar air heat collector through the circulating fan 4 to be heated and then enters the energy storage heat exchanger 6 through the indoor air inlet pipe 32 and the hot air circulating pipeline 9, and then hot air is discharged into the room through an air dispersing opening 7, so that closed circulation of the solar air heat collector and the room air is formed;
energy storage heat exchanger 6 on, its bottom is connected with fan 5 and realizes indoor air supply, sets up through above structure, the utility model discloses when realizing indoor hot-blast, it is hot-blast through 6 back entering indoorly through scattered wind gap 7 of energy storage heat exchanger, energy storage heat exchanger 6 be many spaces solid energy storage heat exchanger, its inside packing has cobble or other heat-retaining devices as heat storage piece 61, can realize heat energy storage through heat storage piece 61, realizes the continuous use of heat source.
A be connected with storage hot water tank 8 on the reposition of redundant personnel tuber pipe 10 for connecting energy storage heat exchanger 6, storage hot water tank 8 on be provided with two heat transfer honeycomb ducts 81 and be connected to the reposition of redundant personnel tuber pipe inside, at the inside spiral heat exchanger 82 that is provided with of reposition of redundant personnel tuber pipe, realize the heating to liquid in the storage hot water tank 8 through the inside spiral heat exchanger 82 of reposition of redundant personnel tuber pipe to this hot water function of realizing this device.
Further, the solar photovoltaic panel 2 is connected with the circulating fan 4 through a wire, so that electric energy supply to the electric driving part of the solar heat collection system is realized, and the connection is a universal connection mode for electricians and is not described herein.
To summarize: through the design, the solar air heat collector 3 and the solar photovoltaic panel 2 are arranged at the top of the house 11, the air heating is realized through the solar air heat collector 3, the indoor air is heated and then circularly guided into the room again, the heated air passes through the energy storage heat exchanger 6 arranged indoors while the indoor heating is realized, and the heat energy can be stored in the energy storage heat exchanger 6 for heating at night; furthermore, this device is provided with storage hot water tank 8 indoor, realize storing up hot water tank 8 internal water heating through the 82 heat transfer of spiral heat exchanger when hot-air passes through shunt tubes 9, hot water supply has been realized realizing providing the heating heat source indoor, this system provides the electric energy through the solar photovoltaic board, provide power for circulating fan, the hot circulating power of this system all derives from solar energy, heat energy and cycle drive electric energy are synchronous, need not to add controlling means in addition, heat transfer medium is the air, freezing can not appear when low temperature night, freeze stifled, greatly reduced accident rate, the system maintenance has been reduced, the reliability practicality is strong, be an ideal photovoltaic drive's solar energy medium temperature air heat collector and hot water system.
Claims (2)
1. A photovoltaic-driven heating and water heating system with solar energy medium-temperature air heat collectors comprises a support frame arranged at a higher lighting position, wherein a plurality of groups of solar energy air heat collectors and solar photovoltaic panels are erected on the support frame towards the sun;
the method is characterized in that: the air inlet and the air outlet of the solar air heat collector are connected to the room, the solar photovoltaic panel provides electric energy for driving the circulating fan, and the circulating fan realizes closed circulation of the solar air heat collector and the air in the room;
a heat exchanger is arranged in the hot air circulation pipeline and connected with a hot water storage tank, and heat energy generated by hot air flowing through the heat exchanger is stored in the heat preservation water tank for later use through thermosiphon circulation.
2. A photovoltaic-driven solar medium temperature air collector heating and water heating system as claimed in claim 1, wherein: the energy storage heat exchanger communicated with the tail end of the hot air outlet in series is a multi-gap solid energy storage heat exchanger, and the stored heat energy is used for heating at night.
