Abstract

The utility model discloses a laser cutting machine convenient to location work piece, including main part and work piece, moving mechanism is installed at the main part top, wherein, processingequipment is installed at the moving mechanism top, is close to moving mechanism the process groove has been seted up to main part one side, process groove one side is connected with first rotary rod, the swiveling wheel has been cup jointed to first rotary rod one side, swiveling wheel one side is connected with the conveyer belt. This laser cutting machine convenient to location work piece is provided with two-way threaded rod and can rotates through second motor during operation to can drive first rotation axis when two-way threaded rod rotates, the belt rotates with the second rotation axis, thereby can drive the sliding block when two-way threaded rod rotates and carry out the screw thread slip, and then can drive the clamping piece when sliding block screw thread slip and remove, can fix a position the work piece when clamping piece removes the assigned position, the convenience can fix a position according to the work piece size.

Description

Laser cutting machine convenient to location work piece
Technical Field
The utility model relates to a laser cutting equipment technical field specifically is a laser cutting machine convenient to location work piece.
Background
The laser cutting machine replaces the traditional mechanical knife with invisible light beams, has the characteristics of high precision, quick cutting, no limitation on cutting patterns, automatic typesetting, material saving, smooth cut, low processing cost and the like, and can gradually improve or replace the traditional metal cutting process equipment. The existing laser cutting machine is inconvenient to position according to the size of a workpiece, the thickness of the workpiece is inconvenient to clamp, and the workpiece is inconvenient to collect after being cut.
The laser cutting machine on the market at present has many defects, is inconvenient for workpiece positioning, clamping and collecting after the workpiece is cut, so that the technology for improving the structure of the laser cutting machine which is convenient for positioning the workpiece is urgently needed in the market to perfect the equipment.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a laser cutting machine convenient to location work piece to the laser cutting machine on the existing market that the solution above-mentioned background art provided has many defects, inconvenient work piece location, inconvenient work piece clamping, the problem of collecting after the inconvenient work piece cutting.
In order to achieve the above object, the utility model provides a following technical scheme: a laser cutting machine convenient for positioning a workpiece comprises a main body and the workpiece, wherein a moving mechanism is arranged at the top of the main body,
the processing device is mounted at the top of the moving mechanism, a processing groove is formed in one side of the main body close to the moving mechanism, one side of the processing groove is connected with a first rotating rod, a rotating wheel is sleeved on one side of the first rotating rod, a conveying belt is connected to one side of the rotating wheel, a first motor is mounted at one end of the first rotating rod close to the main body, fixed blocks are fixed to two sides of the processing groove close to the first rotating rod, a bidirectional threaded rod penetrates through the inside of each fixed block, a second motor is mounted at one end of the bidirectional threaded rod close to the main body, a first rotating shaft is sleeved on one side of the bidirectional threaded rod close to the second motor, a belt is connected to one side of the first rotating shaft, and a second;
be close to the fixed block the sliding block has been cup jointed on one side of the two-way threaded rod, be close to the sliding block the spout has been seted up to fixed block one side, the clamping groove has been seted up to clamping block one side, the swivelling chute has been seted up to clamping groove one side, the second rotary rod has been run through to the swivelling chute inside, is close to the clamping block the third motor is installed to second rotary rod one end, is close to the swivelling chute second rotary rod one side has cup jointed first pulley, the cylinder is installed at clamping block top, is close to the clamping groove cylinder one end is fixed with the mount, the inside third rotary rod that has run through of mount, the second pulley has been cup jointed to third rotary rod one side, the work piece sets up between second pulley and first pulley.
Preferably, the first rotating rods are provided with two groups, and a rotating structure is formed between the first rotating rods and the rotating wheel.
Preferably, the two-way threaded rod is provided with two sets, and constitutes threaded connection between two-way threaded rod and the sliding block.
Preferably, the first rotating shaft and the second rotating shaft are cylindrical, and an interlocking mechanism is formed among the first rotating shaft, the belt and the second rotating shaft.
Preferably, the rotating grooves are provided in four groups, and a rotating structure is formed between the rotating grooves and the first pulley about the second rotating rod.
Preferably, the fixing frame is E-shaped, and a telescopic structure is formed between the fixing frame and the cylinder.
Compared with the prior art, the beneficial effects of the utility model are that: this laser cutting machine convenient to location work piece:
1. the bidirectional threaded rod can rotate through the second motor when working, so that the first rotating shaft, the belt and the second rotating shaft can be driven to rotate when the bidirectional threaded rod rotates, the sliding block can be driven to perform threaded sliding while the bidirectional threaded rod rotates, the clamping block can be driven to move when the sliding block performs threaded sliding, the workpiece can be positioned when the clamping block moves to a specified position, and the positioning can be conveniently performed according to the size of the workpiece;
2. the fixing frame can move through the air cylinder, so that the fixing frame can drive the second pulley to move when moving, a workpiece can be extruded when the second pulley moves, and the thickness of the workpiece can be conveniently fixed;
3. be provided with first rotary rod and can rotate through first motor work to can drive the swiveling wheel when first rotary rod rotates and rotate, thereby can drive the conveyer belt when the swiveling wheel rotates and rotate, and then can drive the work piece after the cutting when the conveyer belt rotates and remove, the work piece after the convenient cutting can be collected.
Drawings

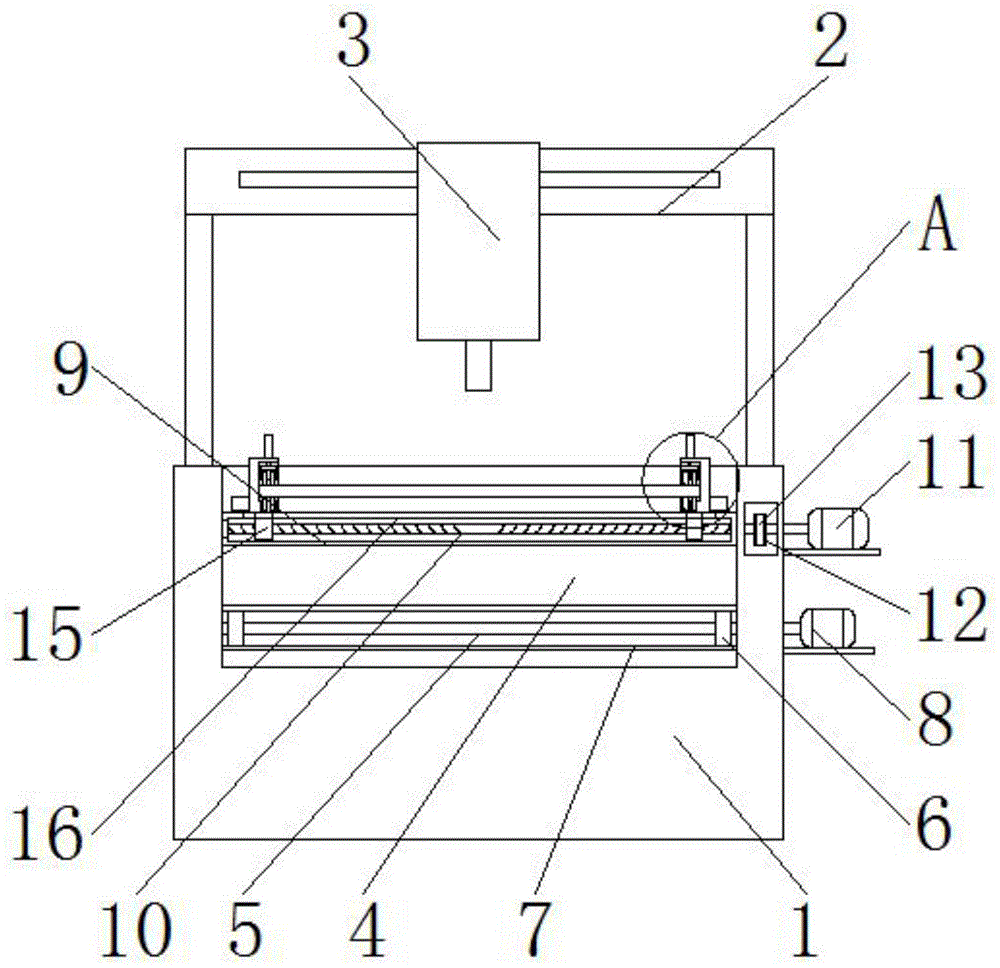

FIG. 1 is a front view of the cross-sectional structure of the present invention;
FIG. 2 is a schematic side view of the cross-sectional structure of the present invention;
fig. 3 is an enlarged schematic view of part a of the present invention.
In the figure: 1. a main body; 2. a moving mechanism; 3. a processing device; 4. processing a tank; 5. a first rotating rod; 6. a rotating wheel; 7. a conveyor belt; 8. a first motor; 9. a fixed block; 10. a bidirectional threaded rod; 11. a second motor; 12. a first rotating shaft; 13. a belt; 14. a second rotation shaft; 15. a slider; 16. a chute; 17. a clamping block; 18. a clamping groove; 19. a rotating tank; 20. a second rotating rod; 21. a third motor; 22. a first pulley; 23. a cylinder; 24. a fixed mount; 25. a third rotating rod; 26. a second pulley; 27. and (5) a workpiece.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-3, the present invention provides a technical solution: a laser cutting machine convenient for positioning workpieces comprises a main body 1, a moving mechanism 2, a processing device 3, a processing groove 4, a first rotating rod 5, a rotating wheel 6, a conveyor belt 7, a first motor 8, a fixed block 9, a bidirectional threaded rod 10, a second motor 11, a first rotating shaft 12, a belt 13, a second rotating shaft 14, a sliding block 15, a sliding chute 16, a clamping block 17, a clamping groove 18, a rotating groove 19, a second rotating rod 20, a third motor 21, a first pulley 22, an air cylinder 23, a fixed frame 24, a third rotating rod 25, a second pulley 26 and workpieces 27, wherein the moving mechanism 2 is installed at the top of the main body 1,
processing device 3 is installed at the top of moving mechanism 2, and be close to moving mechanism 2 processing groove 4 has been seted up to 1 one side of main part, processing groove 4 one side is connected with first rotary rod 5, first rotary rod 5 is provided with two sets ofly, and constitutes revolution mechanic between first rotary rod 5 and the swiveling wheel 6, and first rotary rod 5 rotates through the work of first motor 8, can drive swiveling wheel 6 when first rotary rod 5 rotates and rotate, can drive conveyer belt 7 when swiveling wheel 6 rotates and rotate, swiveling wheel 6 has been cup jointed to 5 one side of first rotary rod, 6 one side of swiveling wheel is connected with conveyer belt 7, is close to main part 1 first rotary rod 5 one end is installed first motor 8, is close to 5 first rotary rod 4 both sides of processing groove is fixed with fixed block 9, two-way threaded rod 10 runs through inside fixed block 9, the two-way threaded rod 10 is provided with two groups, the two-way threaded rod 10 and the sliding block 15 form threaded connection, the two-way threaded rod 10 can drive the sliding block 15 to perform threaded sliding while rotating, the sliding block 15 can drive the clamping block 17 to move when in threaded sliding, one end of the two-way threaded rod 10 close to the main body 1 is provided with the second motor 11, one side of the two-way threaded rod 10 close to the second motor 11 is sleeved with the first rotating shaft 12, the first rotating shaft 12 and the second rotating shaft 14 are both cylindrical, a linkage mechanism is formed among the first rotating shaft 12, the belt 13 and the second rotating shaft 14, the two-way threaded rod 10 can drive the first rotating shaft 12 to rotate when rotating, the first rotating shaft 12 can drive the belt 13 to rotate, the belt 13 can drive the second rotating shaft 14 to rotate when rotating, one side of the first rotating shaft 12 is connected with the belt 13, a second rotating shaft 14 is connected to the side of the belt 13 far away from the first rotating shaft 12;
close to fixed block 9 sliding block 15 has been cup jointed on two-way threaded rod 10 one side, and be close to sliding block 15 sliding groove 16 has been seted up on fixed block 9 one side, sliding block 15 one side is fixed with clamping block 17, clamping groove 18 has been seted up on clamping block 17 one side, clamping groove 18 one side has been seted up rotatory groove 19, rotatory groove 19 is provided with four groups, and constitutes revolution mechanic about second rotary rod 20 between rotatory groove 19 and the first pulley 22, and third motor 21 during operation can drive second rotary rod 20 and rotate, can drive first pulley 22 and rotate when second rotary rod 20 rotates, can drive work piece 27 and remove when first pulley 22 rotates, second rotary rod 20 has run through to the inside of rotatory groove 19, be close to clamping block 17 second rotary rod 20 one end is installed third motor 21, is close to rotatory groove 19 first pulley 22 has been cup jointed on second rotary rod 20 one side, the cylinder 23 is installed at the top of the clamping block 17, the cylinder 23 is close to the clamping groove 18, a fixing frame 24 is fixed to one end of the cylinder 23, the fixing frame 24 is E-shaped, a telescopic structure is formed between the fixing frame 24 and the cylinder 23, the fixing frame 24 moves through the cylinder 23, the fixing frame 24 can drive the second pulley 26 to move when moving, the second pulley 26 can extrude a workpiece 27 when moving, a third rotating rod 25 penetrates through the fixing frame 24, the second pulley 26 is sleeved on one side of the third rotating rod 25, and the workpiece 27 is arranged between the second pulley 26 and the first pulley 22.
The working principle is as follows: when the laser cutting machine convenient for positioning the workpiece is used, firstly, the laser cutting machine convenient for positioning the workpiece needs to be simply known, when in use, the two-way threaded rod 10 rotates through the second motor 11 when in use, the two-way threaded rod 10 can drive the first rotating shaft 12, the belt 13 and the second rotating shaft 14 to rotate when rotating, the two-way threaded rod 10 can drive the sliding block 15 to perform threaded sliding when rotating, further, the sliding block 15 can drive the clamping block 17 to move when performing threaded sliding, the workpiece 27 is placed on the first pulley 22 of the clamping groove 18 when the clamping block 17 moves to a specified position, the third motor 21 can drive the second rotating rod 20 to rotate when operating, the second rotating rod 20 can drive the first pulley 22 to rotate when rotating, the first pulley 22 can drive the workpiece 27 to move when rotating, the fixing frame 24 can move through the air cylinder 23 when the workpiece 27 slides to the specified position, the fixing frame 24 can drive the second pulley 26 to move when moving, the second pulley 26 can extrude and fix the workpiece 27 when moving, the workpiece 27 can be processed after being fixed, the moving mechanism 2 and the processing device 3 can move and cut the workpiece 27, fragments of the workpiece 27 after being cut can fall on the conveyor belt 7, the first rotating rod 5 rotates through the work of the first motor 8, the first rotating rod 5 can drive the rotating wheel 6 to rotate when rotating, the rotating wheel 6 can drive the conveyor belt 7 to rotate when rotating, the conveyor belt 7 can drive the workpiece 27 after being cut to move when rotating, and the workpiece 27 after being cut can be collected.
Although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments or portions thereof without departing from the spirit and scope of the invention.

Claims (6)

1. A laser cutting machine convenient to location work piece, includes main part (1) and work piece (27), its characterized in that: the top of the main body (1) is provided with a moving mechanism (2), wherein,
the processing device (3) is installed at the top of the moving mechanism (2), a processing groove (4) is formed in one side of the main body (1) close to the moving mechanism (2), one side of the processing groove (4) is connected with a first rotary rod (5), a rotary wheel (6) is sleeved on one side of the first rotary rod (5), one side of the rotary wheel (6) is connected with a conveying belt (7), one end of the first rotary rod (5) close to the main body (1) is provided with a first motor (8), two sides of the processing groove (4) close to the first rotary rod (5) are fixed with fixed blocks (9), a two-way threaded rod (10) penetrates through the inside of each fixed block (9), one end of the two-way threaded rod (10) close to the main body (1) is provided with a second motor (11), one side of the two-way threaded rod (10) close to the second motor (11, a belt (13) is connected to one side of the first rotating shaft (12), and a second rotating shaft (14) is connected to one side of the belt (13) far away from the first rotating shaft (12);
close to fixed block (9) two-way threaded rod (10) one side has cup jointed sliding block (15), be close to sliding block (15) fixed block (9) one side has seted up spout (16), sliding block (15) one side is fixed with clamping block (17), clamping block (17) one side has seted up clamping groove (18), clamping groove (18) one side has seted up rotating slot (19), second rotary rod (20) has been run through to rotating slot (19) inside, be close to clamping block (17) second rotary rod (20) one end is installed third motor (21), be close to rotating slot (19) second rotary rod (20) one side has cup jointed first pulley (22), cylinder (23) is installed at clamping block (17) top, be close to clamping groove (18) cylinder (23) one end is fixed with mount (24), third rotary rod (25) has been run through to mount (24) inside, and one side of the third rotating rod (25) is sleeved with a second pulley (26), and the workpiece (27) is arranged between the second pulley (26) and the first pulley (22).
2. A laser cutting machine for facilitating positioning of a workpiece according to claim 1, wherein: first rotary rod (5) are provided with two sets ofly, and constitute revolution mechanic between first rotary rod (5) and swiveling wheel (6).
3. A laser cutting machine for facilitating positioning of a workpiece according to claim 1, wherein: the bidirectional threaded rod (10) is provided with two groups, and the bidirectional threaded rod (10) is in threaded connection with the sliding block (15).
4. A laser cutting machine for facilitating positioning of a workpiece according to claim 1, wherein: the first rotating shaft (12) and the second rotating shaft (14) are cylindrical, and a linkage mechanism is formed among the first rotating shaft (12), the belt (13) and the second rotating shaft (14).
5. A laser cutting machine for facilitating positioning of a workpiece according to claim 1, wherein: the rotating grooves (19) are provided with four groups, and a rotating structure is formed between the rotating grooves (19) and the first pulley (22) relative to the second rotating rod (20).
6. A laser cutting machine for facilitating positioning of a workpiece according to claim 1, wherein: the fixed frame (24) is E-shaped, and a telescopic structure is formed between the fixed frame (24) and the air cylinder (23).
