Abstract

The utility model discloses a single-arm lifter for sorting materials, which comprises a frame, a single-arm lifting component and a lifting platform, wherein the single-arm lifting component comprises a vertical arm, a conveying chain belt, a chain wheel correspondingly connected with the conveying chain belt up and down, a chain wheel seat, a transmission motor and a reduction gearbox, the vertical arm is fixedly connected to one side of the frame, both sides are also provided with a slide block and a slide rail, the slide rail is fixedly connected to both sides of the vertical arm, the slide block is fixedly connected with the lifting platform through a right-angle frame, the lifting platform comprises a plurality of rollers which are uniformly arrayed and used for being connected with external material conveying equipment for feeding, the front side and the rear side are also provided with supporting plates, the rear supporting plates are fixedly connected to chain links of the conveying chain belt through positioning plates, the positioning plates are also fixedly connected with the right-angle frames on both sides, the single-arm lifter for sorting materials replaces a forklift or manual conveying to, and the external material conveying equipment is connected to complete feeding, manual operation is not needed, and the efficiency is high.

Description

Material sorting single-arm elevator
Technical Field
The utility model relates to a letter sorting equipment technical field, concretely relates to material letter sorting single armed lift.
Background
With the rapid development of the modern logistics industry, the fields of express delivery, warehouse management and the like are developed in a crossing manner, more sorting technology assistance is also needed, and the sorted products need to be received, even lifted up and down, and materials are transferred; for example, in the warehouse pipe, the lifting process of putting on the shelf is implemented to the material, and the traditional mode is exactly to adopt fork truck or artifical cat ladder transport, and the artifical transport then need only be to the general material of weight, but very heavier metal material just is difficult to carry, wastes time and energy, and efficiency is also not high. Therefore, equipment for automatically lifting the heavy material products needs to be designed to meet the requirement of efficient feeding.
Disclosure of Invention
The utility model discloses the purpose is: in view of the demand of promoting the automatic speed of heavier material product among the background art, realize using manpower sparingly and time for the purpose of material loading efficiency, we design and propose a material letter sorting single armed lift, replace fork truck or artifical transport with the material lifting to the material frame on, adopt single armed lifting unit, with the material lifting of lower part to upper portion, need not artifical manual operation, safe and reliable, efficiency is high.
The technical scheme adopted for solving the problems is as follows:
a single-arm lifter for sorting materials, which comprises a frame, a single-arm lifting component and a lifting platform,
the single-arm lifting component comprises a vertical arm, a conveying chain belt, a chain wheel seat, a transmission motor and a reduction gearbox, wherein the chain wheel, the chain wheel seat, the transmission motor and the reduction gearbox are correspondingly connected with the conveying chain belt up and down, the vertical arm is fixedly connected with one side of the frame, sliding blocks and sliding rails are further arranged on two sides of the vertical arm, the sliding rails are fixedly connected with two sides of the vertical arm, the sliding blocks are fixedly connected with the lifting,
the elevating platform includes the roller of a plurality of even arrays for meet with external conveying material equipment and carry out the material loading, and the front and back side still is provided with the backup pad, and the back backup pad links firmly through the locating plate on the chain link of conveying chain belt, the locating plate still links firmly with the right angle frame of both sides for keep the stability of elevating platform.
Furthermore, the transmission motor is connected with the reduction gearbox through a rotating shaft, and the reduction gearbox is connected with the chain wheel at the lower part through a coupler.
Furthermore, the lower part of the lifting platform is also symmetrically provided with reinforcing ribs for connecting with a support plate to ensure the structural stability of the lifting platform.
Furthermore, the roller bears the material box, and the material box is lifted to the upper part from the lower part under the action of the transmission motor of the single-arm lifting assembly driving the transmission chain belt to lift the lifting platform.
The utility model has the advantages that:
this material letter sorting single armed lift replaces fork truck or artifical transport with article lifting to the material frame on, adopts single armed lifting unit, by placing the material lifting to upper portion on the elevating platform with the lower part, meets by external conveying material equipment again and accomplishes the material loading, need not artifical manually operation, safe and reliable, efficiency is high.
Drawings
In order to more clearly illustrate the technical solutions in the embodiments of the present invention, the drawings provided in the description of the embodiments will be briefly introduced below.

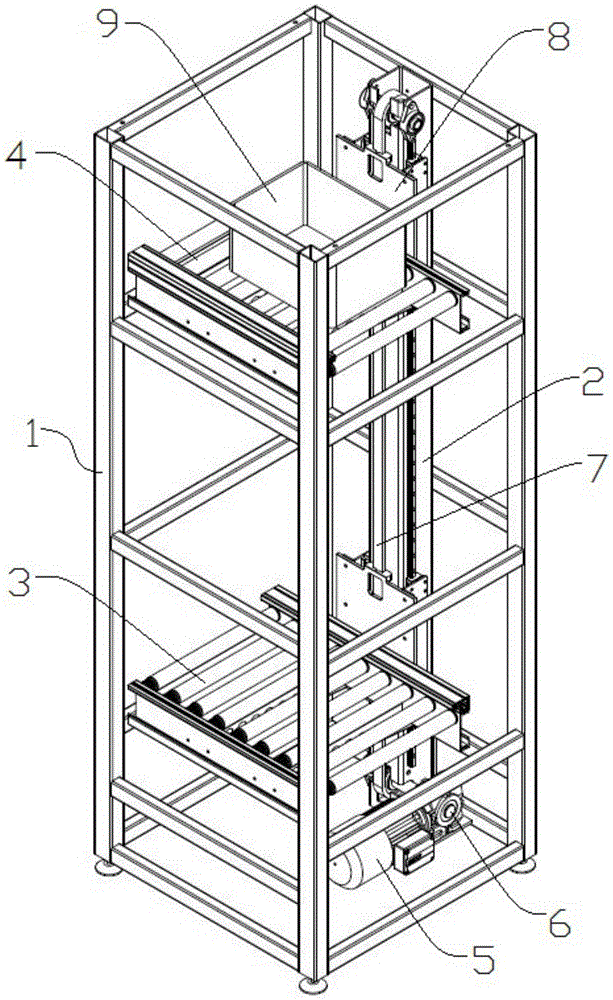

Fig. 1 is a schematic structural diagram of a single-arm material sorting elevator according to the embodiment;
FIG. 2 is a schematic structural diagram of a material sorting single-arm elevator removing rack according to the embodiment;
FIG. 3 is a schematic side-bottom view of the material sorting single-arm elevator removing frame according to the present embodiment;
FIG. 4 is an enlarged view of a portion of FIG. 2 at A;
FIG. 5 is an enlarged view of a portion of FIG. 2 at B;
the device comprises a machine frame 1, a vertical arm 2, a main chain wheel 21, a main chain wheel 3, a roller of a lifting platform in a lower state 31, a reinforcing rib of the lifting platform in the lower state 32, a supporting plate of the lifting platform in the lower state 4, a roller of the lifting platform in an upper state 41, a reinforcing rib of the lifting platform in the upper and lower states 41, a transmission motor 5, a reduction gearbox 6, a conveying chain belt 7, a positioning plate 8, a material box 9, a sliding rail 10, a chain wheel seat 11, a right-angle frame 12, a coupler 13, a chain wheel 14 and a sliding block 15.
Detailed Description
The technical solution in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention.
Referring to fig. 1-5, the present embodiment provides a single-arm lifter for sorting materials, which includes a frame 1, a single-arm lifting assembly, and a lifting platform capable of moving up and down.
Specifically speaking, single armed lifting unit includes founding arm 2, conveying chain belt 7, corresponds sprocket 14, chain wheel seat 11 and driving motor 5 and the reducing gear box 6 of connecting the conveying chain belt from top to bottom, found arm 2 and linked firmly in 1 one side of frame, both sides still are provided with slider 15 and slide rail 10, wherein slide rail 10 links firmly in founding arm 2 both sides, slider 15 through right angle frame 12 with the elevating platform links firmly, the elevating platform includes the roller 3 of 9 even arrays for meet with external conveying material equipment and carry out the material loading, the front and back side still is provided with backup pad 32, and the backup pad 32 of rear side links firmly through locating plate 8 on the chain link of conveying chain belt 7, locating plate 8 still links firmly with the right angle frame 12 of both sides for keep the stability of elevating platform.
In a further embodiment, the transmission motor 5 is connected with the reduction gearbox 6 through a rotating shaft, and the reduction gearbox 6 is connected with a chain wheel 14 at the lower part through a coupler 13.
In a further embodiment, reinforcing ribs (31, 41) are symmetrically arranged at the lower part of the lifting platform and are used for being connected with the supporting plate 32 to ensure the structural stability of the lifting platform.
In a further embodiment, the rollers (3 and 4) bear a material box 9, and the material box 9 is lifted from the lower part to the upper part under the action of a transmission motor 5 of the single-arm lifting assembly driving the conveying chain belt 7 to lift the lifting platform.
The embodiments of the present invention have been described in detail with reference to the accompanying drawings, but the present invention is not limited to the above embodiments, and various changes, modifications, substitutions and alterations can be made without departing from the spirit of the present invention within the knowledge of those skilled in the art, and the scope of the present invention is defined by the appended claims and their equivalents.

Claims (4)

1. The utility model provides a material sorting single armed lift, includes frame, single armed lifting unit and elevating platform, its characterized in that:
the single-arm lifting component comprises a vertical arm, a conveying chain belt, a chain wheel seat, a transmission motor and a reduction gearbox, wherein the chain wheel, the chain wheel seat, the transmission motor and the reduction gearbox are correspondingly connected with the conveying chain belt up and down, the vertical arm is fixedly connected with one side of the frame, sliding blocks and sliding rails are further arranged on two sides of the vertical arm, the sliding rails are fixedly connected with two sides of the vertical arm, the sliding blocks are fixedly connected with the lifting,
the elevating platform includes the roller of a plurality of even arrays for meet with external conveying material equipment and carry out the material loading, and the front and back side still is provided with the backup pad, and the back backup pad links firmly through the locating plate on the chain link of conveying chain belt, the locating plate still links firmly with the right angle frame of both sides for keep the stability of elevating platform.
2. The material sorting single-arm lift according to claim 1, wherein: the transmission motor is connected with the reduction gearbox through a rotating shaft, and the reduction gearbox is connected with the chain wheel at the lower part through a coupler.
3. The material sorting single-arm lift according to claim 1, wherein: the lower part of the lifting platform is also symmetrically provided with reinforcing ribs for connecting with the supporting plate to ensure the structural stability of the lifting platform.
4. The material sorting single-arm lift according to claim 1, wherein: the roller bears the material box, and the material box is lifted to the upper part from the lower part under the action that the transmission motor of the single-arm lifting assembly drives the transmission chain belt to lift the lifting platform.
