Abstract
The utility model discloses a pelvic floor muscle group recovery trainer, which comprises a transverse plate, a vibrating bar, a leg fixing belt and a waist fixing belt; the left and right end parts of the transverse plate are both provided with arc grooves which are sunken towards the middle part of the transverse plate, and the inner walls of the arc grooves are elastically connected with arc plates; a group of leg fixing belts are fixedly arranged on the front side and the rear side of the left end part and the right end part of the transverse plate, and the middle parts of the front end part and the rear end part of the transverse plate are connected with the waist fixing belts through connecting belts; under the use of the vibrating spear, the vagina is continuously stimulated to shrink, then the buttocks are lifted independently, the root of the thigh of a user compresses the arc-shaped plate, and the contraction, expansion and other work are carried out under the action of elasticity, so that on one hand, the contraction of the vagina is stimulated, on the other hand, the pelvic floor muscle function is exercised, and the postpartum pelvic recovery is realized; the utility model has simple operation and low cost; the utility model is very convenient when used for recovering and training the pelvic floor muscle group, and saves the time of patients.
Description
Technical Field
The application relates to the technical field of medical instruments, in particular to a pelvic floor muscle group recovery trainer.
Background
Myoelectric biofeedback training and neuromuscular electrical stimulation belong to physical therapy, and are a first-line treatment method for treating pelvic floor dysfunctional diseases, wherein the pelvic floor dysfunctional diseases (such as urinary incontinence, organ prolapse, constipation, urine retention and pelvic floor pain) are frequently encountered diseases of postpartum women and climacteric women, patients with the diseases are treated in hospitals, a first-line treatment method is that a vaginal electrode is placed in the vagina of the patients, treatment equipment collects myoelectric signals on the pelvic floor surface of the patients or sends out pulse electrical stimulation through the vaginal electrode to carry out pelvic floor myoelectric biofeedback training and neuromuscular electrical stimulation treatment, the equipment is complex in operation and high in price, the individuals cannot purchase the equipment and can only carry out the treatment in the hospitals, about 30 minutes of each treatment, 10-15 times of treatment course are needed, 1-2 treatment courses are generally needed, and the patients need to be rushed to the hospitals each time, the treatment is carried out in a queue, a large amount of time is wasted on the way to and from the hospital, the patient who needs to go to work still needs to leave the hospital for treatment, and many patients who are not serious abandon the treatment, so that the patient is very inconvenient in the process of carrying out the rehabilitation training on the pelvic floor muscle group, and the time is wasted in the treatment process.
Disclosure of Invention
The utility model discloses the purpose is: provides a pelvic floor muscle group recovery trainer which is used for solving the technical problems in the background technology.
The technical scheme of the utility model is that: a pelvic floor muscle group recovery trainer comprises a transverse plate, a vibrating bar, a leg fixing belt and a waist fixing belt; the left and right end parts of the transverse plate are respectively provided with an arc-shaped groove which is sunken towards the middle part of the transverse plate, and the inner wall of the arc-shaped groove is elastically connected with an arc-shaped plate; a group of leg fixing belts are fixedly arranged on the front side and the rear side of the left end part and the right end part of the transverse plate, and the middle parts of the front end part and the rear end part of the transverse plate are connected with the waist fixing belts through connecting belts; the middle part fixedly connected with cylindricality installation section of thick bamboo of diaphragm up end, the inside of cylindricality installation section of thick bamboo vertically seted up with vibrting spear handle matched with jack, just the inside glue joint of jack has the silica gel pad, the interpolation has the vibrting spear in the jack.
Furthermore, the transverse plate is of an 8-shaped structure, and the transverse plate is made of soft polyethylene materials.
Furthermore, the leg fixing band and the waist fixing band are glued with the transverse plate, and the two ends of the leg fixing band and the two ends of the waist fixing band are connected through the magic tapes. Can be with through using shank fixed band and waist fixed band the utility model discloses firmly fix on one's body at the user for patient is using the utility model discloses when training its pelvic floor flesh crowd, stability is better.
Furthermore, the inner wall of the arc-shaped groove is connected with the arc-shaped plate through a spring. Under the use of vibrting spear, lasting amazing vagina shrink, clip the arc between the thigh root simultaneously, then independently carry buttockss, user's thigh root compression arc contracts, work such as expansion under elastic effect, the shrink of amazing vagina on the one hand, pelvic floor muscle function is tempered to on the other hand to realize postpartum pelvis recovery.
Furthermore, the arc-shaped plate is made of pure natural latex, and two end parts of the spring are respectively glued with the arc-shaped plate and the inner wall of the arc-shaped groove. The cooperation of the curved plate and the spring makes the user more comfortable when training his pelvic floor muscle group.
Furthermore, the cylindricality installation section of thick bamboo splices in the middle part of diaphragm up end, just the cylindricality installation section of thick bamboo is mutually perpendicular with the up end of diaphragm.
Furthermore, the vibrating rod is a USB rechargeable vibrating rod, and the motor in the vibrating rod is an M390 vibrating speed motor.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the arc is cliied to user's two thigh roots, under the use of vibrting spear, lasts amazing vagina shrink, then independently carry buttockss, and work such as shrink, expansion are carried out to user's thigh root compression arc under elastic effect, and the contraction of stimulating the vagina on the one hand, pelvic floor muscle function is tempered to on the other hand to realize postpartum pelvis recovery.
2. The utility model discloses easy and simple to handle, cost are lower. The utility model is very convenient when being used for carrying out the recovery training on the pelvic floor muscle group, simultaneously reduces the time spent by the patient on the road to and from the hospital, saves the time,
3. can be with through using shank fixed band and waist fixed band the utility model discloses firmly fix on one's body at the user for patient is using the utility model discloses when training its pelvic floor flesh crowd, stability is better. In addition, the cooperation of the arc-shaped plate and the spring makes the user more comfortable when training the pelvic floor muscle group.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings required to be used in the description of the embodiments are briefly introduced below, the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without creative efforts.

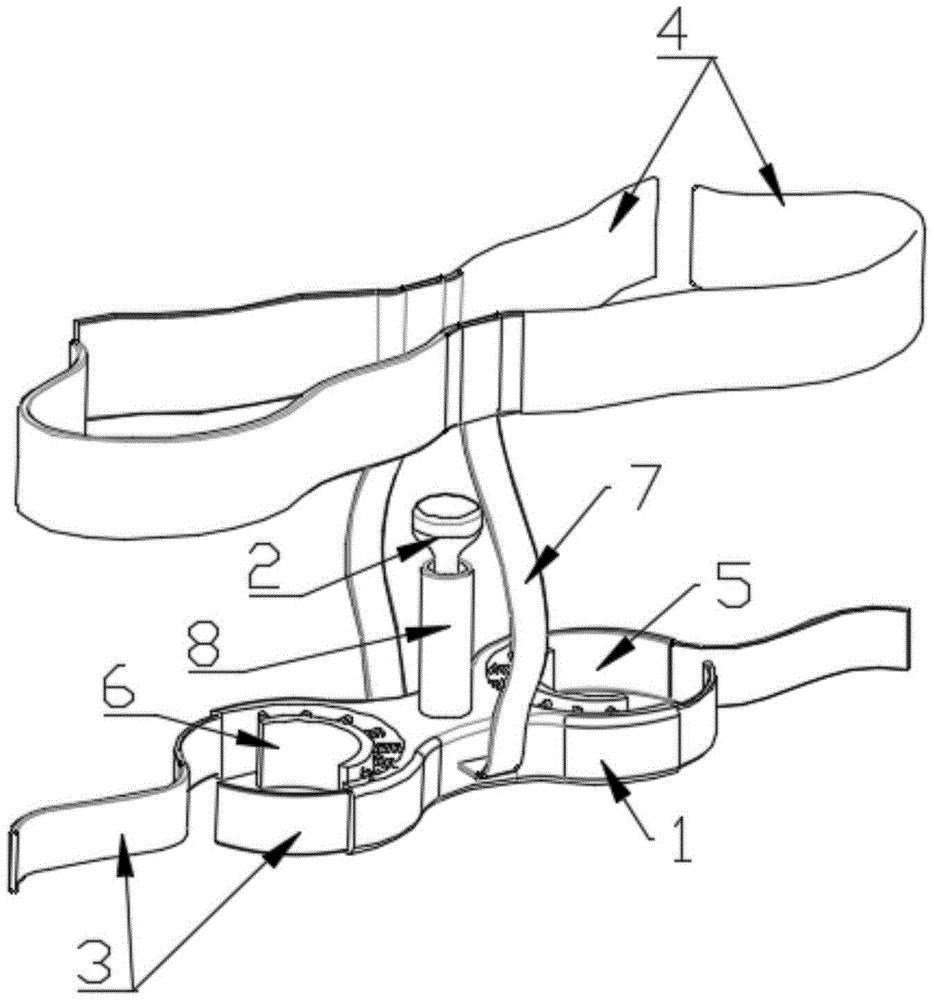

Fig. 1 is a schematic view of a first-view perspective structure of the present invention;
fig. 2 is a schematic view of a second perspective three-dimensional structure of the present invention;
FIG. 3 is a schematic view of the connection of the partial structure of the present invention;
fig. 4 is a top view of a partial structure of the present invention.
Wherein: the vibration device comprises a transverse plate 1, a vibrating rod 2, leg fixing belts 3, waist fixing belts 4, arc-shaped grooves 5, arc-shaped plates 6, connecting belts 7 and a cylindrical mounting cylinder 8.
Detailed Description
The above-described scheme is further illustrated below with reference to specific examples. It should be understood that these examples are for illustrative purposes and are not intended to limit the scope of the present invention. The conditions employed in the examples may be further adjusted according to specific conditions, and the conditions not specified are generally conditions in routine experiments.
As shown in fig. 1 to 4, a pelvic floor muscle group recovery trainer comprises a transverse plate 1, a vibrating bar 2, a leg fixing strap 3 and a waist fixing strap 4; the left and right end parts of the transverse plate 1 are both provided with an arc-shaped groove 5 which is sunken towards the middle part, and the inner wall of the arc-shaped groove 5 is elastically connected with an arc-shaped plate 6; a group of leg fixing belts 3 are fixedly arranged on the front side and the rear side of the left and right end parts of the transverse plate 1, and the middle parts of the front and rear end parts of the transverse plate 1 are connected with the waist fixing belt 4 through a connecting belt 7; the middle part of diaphragm 1 up end fixedly connected with cylindricality installation section of thick bamboo 8, the inside of cylindricality installation section of thick bamboo 8 vertically seted up with 2 handle matched with jacks of vibrating spear, and the inside glue joint of jack has the silica gel pad, and the interpolation has vibrating spear 2 in the jack.
In this embodiment, the transverse plate 1 is an 8-shaped structure, and the transverse plate 1 is made of a soft polyethylene material. Leg fixing band 3, waist fixing band 4 all glue with diaphragm 1 mutually, and the both ends of leg fixing band 3 and waist fixing band 4 all are connected through the magic subsides. Can will through using shank fixed band 3 and waist fixed band 4 the utility model discloses firmly fix on one's body at the user for patient is using the utility model discloses when training its pelvic floor muscle crowd, stability is better. The inner wall of the arc-shaped groove 5 is connected with the arc-shaped plate 6 through a spring. Under the use of vibrting spear 2, lasting amazing vagina shrink, clip arc 6 between the thigh root simultaneously, then independently carry buttockss, user's thigh root compresses arc 6, contracts, work such as expansion under elastic effect, the shrink of amazing vagina on the one hand, pelvic floor muscle function is tempered to on the other hand to realize postpartum pelvis recovery. The arc-shaped plate 6 is made of pure natural latex, and two end parts of the spring are respectively glued with the arc-shaped plate 6 and the inner wall of the arc-shaped groove 5. The use of the arcuate plate 6 in conjunction with the spring provides the user with greater comfort in training his pelvic floor muscles. The cylindrical mounting cylinder 8 is glued to the middle of the upper end face of the transverse plate 1, and the cylindrical mounting cylinder 8 is perpendicular to the upper end face of the transverse plate 1. The vibrating rod 2 is a USB rechargeable vibrating rod 2, and the motor in the vibrating rod 2 is an M390 vibrating speed motor.
Use the utility model discloses when recovering the training to pelvic floor muscle group, earlier place vibrating spear 2 in the jack of cylindricality installation section of thick bamboo 8 and start vibrating spear 2, will this use is novel to be placed under user's hip again, and user's thigh root is placed in arc recess 5, then fixes on one's body at the user through shank fixed band 3 and waist fixed band 4 (guarantee vibrating spear 2 and insert user's private parts), can will through using shank fixed band 3 and waist fixed band 4 the utility model discloses firmly fix on one's body at the user for patient is using the utility model discloses when training its pelvic floor muscle group, stability is better. In addition, the use of the arcuate plate 6 in conjunction with the spring provides the user with greater comfort in training his pelvic floor muscles. Because arc 6 is cliied to user's two thigh roots, under the use of vibrting spear 2, continuously stimulate the vagina shrink, then independently carry buttockss, user's thigh root compression arc 6, work such as shrink, expansion under elastic effect, the shrink of stimulation vagina on the one hand, pelvic floor muscle function is tempered to on the other hand to realize postpartum pelvis recovery. Moreover, both ends of shank fixed band 3 and waist fixed band 4 are all connected through the magic subsides, will this use novel dress again on one's body the user, perhaps with it from the user on one's body very simple and convenient and swift when taking off. In addition, the utility model discloses easy and simple to handle, the cost is lower. The utility model is very convenient when used for recovering the pelvic floor muscle group, and simultaneously reduces the time spent by the patient on the road to and from the hospital, and saves the time.
The above is only a specific application example of the present invention, and does not constitute any limitation to the protection scope of the present invention. In addition to the above embodiments, other embodiments of the present invention are also possible. All the technical solutions formed by adopting equivalent substitutions or equivalent transformations fall within the scope of the present invention as claimed.
Claims (7)
1. A pelvic floor muscle group recovery trainer comprises a transverse plate (1), a vibrating bar (2), a leg fixing belt (3) and a waist fixing belt (4); the method is characterized in that: the left and right ends of the transverse plate (1) are both provided with arc-shaped grooves (5) which are sunken towards the middle part of the transverse plate, and the inner walls of the arc-shaped grooves (5) are elastically connected with arc-shaped plates (6); a group of leg fixing belts (3) is fixedly arranged on the front side and the rear side of the left end part and the right end part of the transverse plate (1), and the middle parts of the front end part and the rear end part of the transverse plate (1) are connected with the waist fixing belts (4) through connecting belts (7); the middle part fixedly connected with cylindricality installation section of thick bamboo (8) of diaphragm (1) up end, the inside of cylindricality installation section of thick bamboo (8) vertically seted up with vibrting spear (2) handle matched with jack, just the inside glue joint of jack has the silica gel pad, peg graft in the jack has vibrting spear (2).
2. The pelvic floor muscle group recovery trainer according to claim 1, wherein: the transverse plate (1) is of an 8-shaped structure, and the transverse plate (1) is made of soft polyethylene materials.
3. The pelvic floor muscle group recovery trainer according to claim 1, wherein: the leg fixing belt (3) and the waist fixing belt (4) are both glued with the transverse plate (1), and the two ends of the leg fixing belt (3) and the waist fixing belt (4) are both connected through magic tapes.
4. The pelvic floor muscle group recovery trainer according to claim 1, wherein: the inner wall of the arc-shaped groove (5) is connected with the arc-shaped plate (6) through a spring.
5. The pelvic floor muscle group recovery trainer according to claim 4, wherein: the material of arc (6) is pure natural latex, the both ends of spring glue joint mutually between the inner wall of arc (6), arc recess (5) respectively.
6. The pelvic floor muscle group recovery trainer according to claim 1, wherein: the cylindrical mounting cylinder (8) is bonded in the middle of the upper end face of the transverse plate (1), and the cylindrical mounting cylinder (8) is perpendicular to the upper end face of the transverse plate (1).
7. The pelvic floor muscle group recovery trainer according to claim 1, wherein: the vibrating spear (2) is a USB rechargeable vibrating spear (2), and the motor in the vibrating spear (2) is an M390 vibrating speed motor.
