The utility model relates to the technical field of irrigation, in particular to an irrigation device for planting nursery stocks, which comprises a base, a platform and a straight water pipe; a protective cover is fixedly arranged in the middle of the base, a sliding rod is fixedly arranged above the protective cover, a sliding sleeve is slidably arranged on the sliding rod, and the platform is fixedly arranged on the sliding sleeve; the platform is rotatably provided with a rotating shaft, the periphery of the top end of the rotating shaft is uniformly hinged with a plurality of straight water pipes, and the bottoms of the straight water pipes are fixedly connected with the rotating shaft through springs; the tail end of the straight water pipe is provided with a water spraying port, and a plurality of spray heads are uniformly arranged on the straight water pipe; and the base is also provided with a push-pull mechanism for driving the sliding sleeve to move up and down. The utility model discloses a driving motor drives the rotation axis and rotates to drive straight water pipe and stimulate the spring and expand under centrifugal force effect, change the position of shower nozzle when straight water pipe constantly expands, and then change the scope of spraying to the nursery stock irrigation, effectively improve irrigation effect, water economy resource.
Description
Technical Field
The utility model relates to an irrigate technical field, specifically a nursery stock is planted and is used irrigation equipment.
Background
Irrigation refers to irrigation with water, and mainly comprises modes of flood irrigation, spray irrigation, micro-spray irrigation, drip irrigation, infiltrating irrigation, deficit irrigation and the like, and is divided into types of irrigation before sowing, seedling-accelerating irrigation, growth period irrigation, winter irrigation and the like. The irrigation principle is that the irrigation quantity, the irrigation times and the irrigation time are determined according to the water requirement characteristics, the growth stage, the climate and the soil conditions of the medicinal plants, and the medicinal plants are irrigated in a proper time and in a proper amount and reasonably.
Irrigation equipment's among the prior art shower nozzle is fixed the setting mostly, can't adjust to lead to the irrigation scope to be difficult to change, not only influence irrigation efficiency, waste water resource moreover easily.
Therefore, in view of the above situation, there is an urgent need to develop an irrigation device for seedling planting to overcome the shortcomings in the current practical application.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a nursery stock is planted and is used irrigation equipment to solve the problem that proposes in the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme:
an irrigation device for nursery stock planting comprises a base, a platform and a straight water pipe; a protective cover is fixedly arranged in the middle of the base, a sliding rod is fixedly arranged above the protective cover, a sliding sleeve is slidably arranged on the sliding rod, and the platform is fixedly arranged on the sliding sleeve; the platform is rotatably provided with a rotating shaft, the periphery of the top end of the rotating shaft is uniformly hinged with a plurality of straight water pipes, and the bottoms of the straight water pipes are fixedly connected with the rotating shaft through springs; the tail end of the straight water pipe is provided with a water spraying port, a plurality of spray heads are uniformly arranged on the straight water pipe, the spray heads are arranged towards the tail end of the straight water pipe, and the spray heads are communicated with the interior of the straight water pipe; and the base is also provided with a push-pull mechanism for driving the sliding sleeve to move up and down.
As a further aspect of the present invention: the upper end fixed mounting of rotation axis has the water tank, and the water tank passes through inlet tube and straight water pipe intercommunication, is provided with the open-close valve on the inlet tube.
As a further aspect of the present invention: and a water supply mechanism for supplying water to the water tank is also arranged on the base.
As a further aspect of the present invention: the rotary motor is fixedly mounted on the platform and is of a variable frequency motor structure, and the output end of the rotary motor is in transmission connection with the rotating shaft through a second bevel gear set.
As a further aspect of the present invention: the four corners of the bottom of the base are provided with trundles.
As a further aspect of the present invention: the push-pull mechanism comprises a first screw and a second screw which are symmetrically and rotatably arranged on the left side and the right side of the sliding rod, the rotating directions of external threads on the first screw and the second screw are opposite, a first screw sleeve and a second screw sleeve are respectively in threaded connection with the first screw and the second screw, the first screw sleeve and the second screw sleeve are respectively hinged with a push-pull rod, and the other end of the push-pull rod is hinged with the sliding sleeve.
As a further aspect of the present invention: first screw rod right-hand member and second screw rod left end all stretch into the inside of safety cover, the bottom of base is fixed mounting still has driving motor, and driving motor's output is connected through the transmission of the input end that stretches into of first bevel gear group and first screw rod and second screw rod.
Compared with the prior art, the beneficial effects of the utility model are that: the utility model discloses a driving motor drives the rotation axis and rotates to drive straight water pipe and stimulate the spring and expand under centrifugal force effect, change the position of shower nozzle when straight water pipe constantly expands, and then change the scope of spraying to the nursery stock irrigation, effectively improve irrigation effect, water economy resource.
Drawings

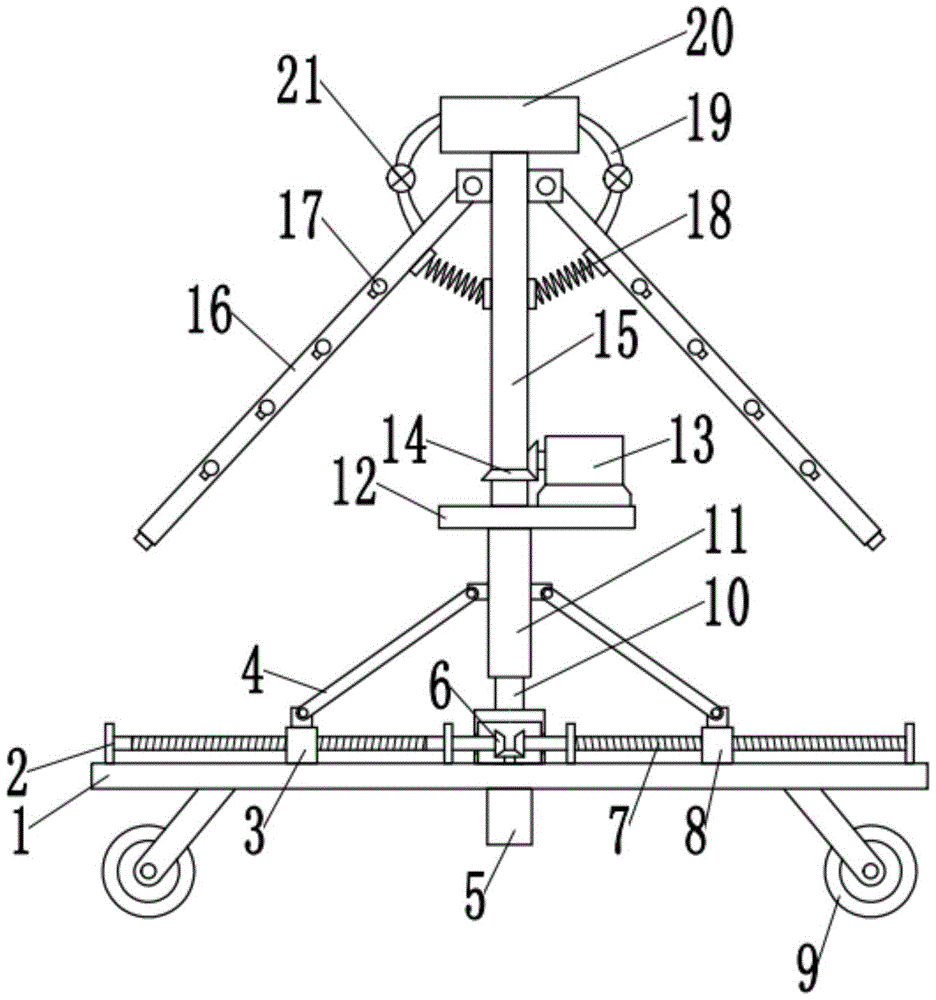

Fig. 1 is a schematic structural diagram of an irrigation device for seedling planting.
Fig. 2 is a schematic structural diagram of a straight water pipe in the irrigation device for seedling planting.
Fig. 3 is a top view of the irrigation device for planting seedlings when the straight water pipe is unfolded.
In the figure: 1-base, 2-first screw, 3-first thread sleeve, 4-push-pull rod, 5-driving motor, 6-first bevel gear set, 7-second screw, 8-second thread sleeve, 9-caster, 10-sliding rod, 11-sliding sleeve, 12-platform, 13-rotating motor, 14-second bevel gear set, 15-rotating shaft, 16-straight water pipe, 17-nozzle, 18-spring, 19-water inlet pipe, 20-water tank and 21-open-close valve.
Detailed Description
The technical solution of the present patent will be described in further detail with reference to the following embodiments.
Reference will now be made in detail to embodiments of the present patent, examples of which are illustrated in the accompanying drawings, wherein like or similar reference numerals refer to the same or similar elements or elements having the same or similar function throughout. The embodiments described below with reference to the drawings are exemplary only for the purpose of explaining the present patent and are not to be construed as limiting the present patent.
In the description of this patent, it is to be understood that the terms "center," "upper," "lower," "front," "rear," "left," "right," "vertical," "horizontal," "top," "bottom," "inner," "outer," and the like are used in the orientations and positional relationships indicated in the drawings for the convenience of describing the patent and for the simplicity of description, and are not intended to indicate or imply that the referenced devices or elements must have a particular orientation, be constructed and operated in a particular orientation, and are not to be considered limiting of the patent.
In the description of this patent, it is noted that unless otherwise specifically stated or limited, the terms "mounted," "connected," and "disposed" are to be construed broadly and can include, for example, fixedly connected, disposed, detachably connected, disposed, or integrally connected and disposed. The specific meaning of the above terms in this patent may be understood by those of ordinary skill in the art as appropriate.
Example 1
Referring to fig. 1 to 3, in an embodiment of the present invention, an irrigation device for nursery stock planting includes a base 1, a platform 12 and a straight water pipe 16; a protective cover is fixedly arranged in the middle of the base, a sliding rod 10 is fixedly arranged above the protective cover, a sliding sleeve 11 is arranged on the sliding rod 10 in a sliding mode, the platform 12 is fixedly arranged on the sliding sleeve 11, and the sliding sleeve 11 drives the platform 12 to move up and down when sliding up and down along the sliding rod 10; the platform 12 is rotatably provided with a rotating shaft 15, the periphery of the top end of the rotating shaft 15 is uniformly hinged with a plurality of straight water pipes 16, the bottoms of the straight water pipes 16 are fixedly connected with the rotating shaft 15 through springs 18, and in the rotating process of the rotating shaft 15, the straight water pipes 16 pull the springs 18 to be unfolded under the action of centrifugal force; the tail end of the straight water pipe 16 is provided with a water spraying port, the straight water pipe 16 is also uniformly provided with a plurality of spray heads 17, the spray heads 17 are arranged towards the tail end of the straight water pipe 16, the spray heads 17 are communicated with the interior of the straight water pipe 16, and when the rotating shaft 15 rotates, the straight water pipe 16 is continuously unfolded, so that the positions of the spray heads 17 are changed, and the spraying range for irrigating the nursery stocks is further changed;
a water tank 20 is fixedly mounted at the upper end of the rotating shaft 15, the water tank 20 is communicated with the straight water pipe 16 through a water inlet pipe 19, and an opening and closing valve 21 is arranged on the water inlet pipe 19; the base 1 is also provided with a water supply mechanism for supplying water to the water tank 20;
specifically, in this embodiment, a rotating motor 13 is fixedly installed on the platform 12, the rotating motor 13 is of a variable frequency motor structure, and an output end of the rotating motor 13 is in transmission connection with a rotating shaft 15 through a second bevel gear set 14, and is used for driving the rotating shaft 15 to rotate;
the base 1 is also provided with a push-pull mechanism which drives the sliding sleeve 11 to move up and down and is used for adjusting the height of the sliding sleeve 11, further adjusting the height of the straight water pipe 16 and changing the spraying range;
in order to facilitate the movement of the device, the four corners of the bottom of the base 1 are provided with casters 9.
Example 2
Referring to fig. 1 to 3, in an embodiment of the present invention, an irrigation device for nursery stock planting includes a base 1, a platform 12 and a straight water pipe 16; a protective cover is fixedly arranged in the middle of the base, a sliding rod 10 is fixedly arranged above the protective cover, a sliding sleeve 11 is arranged on the sliding rod 10 in a sliding mode, the platform 12 is fixedly arranged on the sliding sleeve 11, and the sliding sleeve 11 drives the platform 12 to move up and down when sliding up and down along the sliding rod 10; the platform 12 is rotatably provided with a rotating shaft 15, the periphery of the top end of the rotating shaft 15 is uniformly hinged with a plurality of straight water pipes 16, the bottoms of the straight water pipes 16 are fixedly connected with the rotating shaft 15 through springs 18, and in the rotating process of the rotating shaft 15, the straight water pipes 16 pull the springs 18 to be unfolded under the action of centrifugal force; the tail end of the straight water pipe 16 is provided with a water spraying port, the straight water pipe 16 is also uniformly provided with a plurality of spray heads 17, the spray heads 17 are arranged towards the tail end of the straight water pipe 16, the spray heads 17 are communicated with the interior of the straight water pipe 16, and when the rotating shaft 15 rotates, the straight water pipe 16 is continuously unfolded, so that the positions of the spray heads 17 are changed, and the spraying range for irrigating the nursery stocks is further changed;
a water tank 20 is fixedly mounted at the upper end of the rotating shaft 15, the water tank 20 is communicated with the straight water pipe 16 through a water inlet pipe 19, and an opening and closing valve 21 is arranged on the water inlet pipe 19; the base 1 is also provided with a water supply mechanism for supplying water to the water tank 20;
specifically, in this embodiment, a rotating motor 13 is fixedly installed on the platform 12, the rotating motor 13 is of a variable frequency motor structure, and an output end of the rotating motor 13 is in transmission connection with a rotating shaft 15 through a second bevel gear set 14, and is used for driving the rotating shaft 15 to rotate;
the base 1 is also provided with a push-pull mechanism which drives the sliding sleeve 11 to move up and down and is used for adjusting the height of the sliding sleeve 11, further adjusting the height of the straight water pipe 16 and changing the spraying range;
in order to facilitate the movement of the device, the four corners of the bottom of the base 1 are provided with casters 9.
The difference between the embodiment and the embodiment 1 is that the push-pull mechanism includes a first screw rod 2 and a second screw rod 7 which are symmetrically and rotatably installed on the left side and the right side of a sliding rod 10, the rotation directions of external threads on the first screw rod 2 and the second screw rod 7 are opposite, a first screw sleeve 3 and a second screw sleeve 8 are respectively in threaded connection with the first screw rod 2 and the second screw rod 7, a push-pull rod 4 is respectively hinged on the first screw sleeve 3 and the second screw sleeve 8, the other end of the push-pull rod 4 is hinged with a sliding sleeve 11, and the sliding sleeve 11 is driven to move upwards by the push-pull rod 4 when the first screw sleeve 3 and the second screw sleeve 8 move towards each other;
2 right-hand members of first screw rod and the inside that the safety cover was all stretched into to the 7 left ends of second screw rod, the bottom of base 1 is fixed mounting still has driving motor 5, and driving motor 5's output is connected through the transmission of the end of stretching into of first bevel gear group 6 with first screw rod 2 and second screw rod 7 for drive first screw rod 2 and second screw rod 7 simultaneously and rotate.
The above is only the preferred embodiment of the present invention, and it should be noted that, for those skilled in the art, without departing from the concept of the present invention, several modifications and improvements can be made, which should also be regarded as the protection scope of the present invention, and these will not affect the effect of the implementation of the present invention and the practicability of the patent.
Claims (7)
1. An irrigation device for nursery stock planting comprises a base (1), a platform (12) and a straight water pipe (16); the device is characterized in that a protective cover is fixedly arranged in the middle of the base, a sliding rod (10) is fixedly arranged above the protective cover, a sliding sleeve (11) is slidably arranged on the sliding rod (10), and the platform (12) is fixedly arranged on the sliding sleeve (11); a rotating shaft (15) is rotatably arranged on the platform (12), a plurality of straight water pipes (16) are uniformly hinged on the periphery of the top end of the rotating shaft (15), and the bottoms of the straight water pipes (16) are fixedly connected with the rotating shaft (15) through springs (18); the tail end of the straight water pipe (16) is provided with a water spraying port, the straight water pipe (16) is also uniformly provided with a plurality of spray heads (17), the spray heads (17) face the tail end of the straight water pipe (16), and the spray heads (17) are communicated with the interior of the straight water pipe (16); the base (1) is also provided with a push-pull mechanism which drives the sliding sleeve (11) to move up and down.
2. The irrigation device for seedling planting according to claim 1, wherein a water tank (20) is fixedly mounted at the upper end of the rotating shaft (15), the water tank (20) is communicated with the straight water pipe (16) through a water inlet pipe (19), and an open-close valve (21) is arranged on the water inlet pipe (19).
3. The irrigation device for seedling planting according to claim 2, wherein a water supply mechanism for supplying water to the water tank (20) is further arranged on the base (1).
4. The irrigation device for seedling planting according to claim 1, wherein a rotating motor (13) is fixedly mounted on the platform (12), the rotating motor (13) is of a variable frequency motor structure, and an output end of the rotating motor (13) is in transmission connection with a rotating shaft (15) through a second bevel gear set (14).
5. The irrigation device for seedling planting according to claim 1, wherein casters (9) are mounted at four corners of the bottom of the base (1).
6. The irrigation device for seedling planting according to any one of claims 1-5, wherein the push-pull mechanism comprises a first screw rod (2) and a second screw rod (7) which are symmetrically and rotatably installed on the left side and the right side of the sliding rod (10), the rotation directions of external threads on the first screw rod (2) and the second screw rod (7) are opposite, the first screw sleeve (3) and the second screw sleeve (8) are respectively in threaded connection with the first screw rod (2) and the second screw rod (7), the first screw sleeve (3) and the second screw sleeve (8) are both provided with a push-pull rod (4) in a hinged mode, and the other end of the push-pull rod (4) is hinged to the sliding sleeve (11).
7. The irrigation device for seedling planting according to claim 6, wherein the right end of the first screw (2) and the left end of the second screw (7) both extend into the protective cover, the bottom of the base (1) is further fixedly provided with a driving motor (5), and the output end of the driving motor (5) is in transmission connection with the extending ends of the first screw (2) and the second screw (7) through a first bevel gear set (6).
