CN210587354U - Profile modeling slot milling machine for aluminum alloy doors and windows - Google Patents
Profile modeling slot milling machine for aluminum alloy doors and windows Download PDFInfo
- Publication number
- CN210587354U CN210587354U CN201921342076.7U CN201921342076U CN210587354U CN 210587354 U CN210587354 U CN 210587354U CN 201921342076 U CN201921342076 U CN 201921342076U CN 210587354 U CN210587354 U CN 210587354U
- Authority
- CN
- China
- Prior art keywords
- aluminum alloy
- workstation
- milling machine
- alloy door
- milling cutter
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Milling Processes (AREA)
Abstract
The utility model relates to a profile modeling milling machine field discloses an aluminum alloy door and window profile modeling groove cutting machine, and its technical essential is: the utility model provides an aluminum alloy door and window profile modeling slot milling machine, comprises a workbench, arrange the bed body of workstation top and the quick-witted case of sliding connection in bed body top in, machine roof portion is provided with the motor, machine bottom of the case portion is provided with milling cutter, be provided with the stopper on the workstation, the workstation is close to operating personnel one side and is provided with the mounting, the stopper is located the milling cutter both sides respectively with the mounting, machine bottom of the case portion is close to that operating personnel's side articulates there is the safety cover, the safety cover is provided with a plurality of fans towards the lateral wall of milling. The utility model discloses an aluminum alloy door and window profile modeling groove cutting machine can prevent that a large amount of pieces from piling up in milling cutter department, guarantees milling cutter's normal work, improves milling machine's work efficiency.
Description
Technical Field
The utility model belongs to the technical field of profile modeling milling machine's technique and specifically relates to an aluminum alloy door and window profile modeling groove cutting machine is related to.
Background
The milling machine is a machine tool with wide application, and can process planes, grooves, tooth dividing parts, spiral surfaces and various curved surfaces on the milling machine. When the milling machine works, a workpiece is arranged on the workbench, and the surface of the workpiece is machined by the rotation of the milling cutter assisted by the feeding motion of the workbench. The existing milling machine for processing the door and window frame cannot control the distance of a workbench during operation according to the size of a part to be processed during workpiece processing.
In order to solve the above problems, the chinese patent publication No. CN207508366U discloses a profiling milling machine capable of bidirectional processing, which has the technical points that: including frame, workstation, electric cabinet, lathe bed, distance control mechanism, motor, gear lever, the upper surface before the frame is located to the workstation, frame right side upper surface is located to the electric cabinet, the lathe bed sets up in the frame upper surface, distance control mechanism sets up inside the lathe bed, the motor sets up in lathe bed upper surface, gear lever sets up in lathe bed upper surface right side, through setting up distance control mechanism, when handling different machined part, adjusts workstation part distance size according to part size for the part of different sizes can be handled to same equipment, has improved the practicality of profile modeling milling machine.
The problem of profile modeling milling machine workstation distance adjustment has been solved to this scheme, but profile modeling milling machine in the course of working, can produce a large amount of pieces, and a large amount of pieces are piled up in milling cutter department, influence milling cutter's normal work, and profile modeling milling machine's work efficiency is low.
SUMMERY OF THE UTILITY MODEL
The utility model aims at providing a not enough to prior art exists, the utility model aims at providing an aluminum alloy door and window profile modeling groove cutting machine, the device can prevent to produce a large amount of pieces in the profile modeling groove cutting process and pile up in milling cutter department, guarantees milling cutter's normal work, improves milling machine's work efficiency.
The above technical purpose of the present invention can be achieved by the following technical solutions: the utility model provides an aluminum alloy door and window profile modeling slot milling machine, includes the workstation, arranges the bed body of workstation top and the quick-witted case of sliding connection in bed body top in, machine roof portion is provided with the motor, machine bottom of the case portion is provided with milling cutter, be provided with the stopper on the workstation, one side that the workstation is close to operating personnel is provided with the mounting, the stopper is located the milling cutter both sides respectively with the mounting, machine bottom of the case portion is close to that operating personnel's side articulates there is the safety cover, the safety cover is provided with a plurality of fans towards milling cutter's lateral wall, one side that the mounting was kept.
Through adopting above-mentioned technical scheme, the work piece that will treat processing is placed the position that lies in between stopper and the mounting on the workstation, through the mounting with the rigidity of work piece, rotate the position that the safety cover arrived with milling cutter parallel, start the fan, blow the piece that produces in the profile modeling milling flutes course of working to the one side of keeping away from the mounting, start cleaning device simultaneously, the piece that will drop keeping away from mounting one side at the workstation cleans totally, not only prevent that the piece that produces from splashing on one's body to the user in the profile modeling milling flutes course of working, guarantee that operating personnel's is healthy, and prevent that a large amount of pieces from piling up in milling cutter department, guarantee milling cutter's normal work, the work efficiency of milling machine is improved, can also be with the piece clean up that drops on the workstation, guarantee that the.
The utility model discloses further set up to: the safety cover includes with quick-witted case side articulated protection otter board, be located protection otter board both sides and towards the side guard plate that stopper one side set up, the fan sets up in protection otter board towards milling cutter one side.
Through adopting above-mentioned technical scheme, through the cooperation of protection otter board and side guard plate, make the piece only blow off from one side relative with the protection otter board, prevent that the piece from scattering from the side guard plate direction, the follow-up clearance of being convenient for.
The utility model discloses further set up to: and a protective net is arranged between the two side protective plates and is positioned on one side of the fan close to the milling cutter.
Through adopting above-mentioned technical scheme, the protection network can prevent that the piece that produces from splashing to the flabellum of fan in the profile modeling milling flutes course of working, not only can cause the flabellum to damage, has the potential safety hazard moreover.
The utility model discloses further set up to: the workstation edge is provided with the guard plate perpendicularly, just guard plate and safety cover are just to setting up.
Through adopting above-mentioned technical scheme, block the piece that produces in the profile modeling milling flutes course of working at the workstation within range through the guard plate, convenience of customers clears up, collects the piece.
The utility model discloses further set up to: the cleaning device comprises a motor, a gear meshed with the elongated toothed belt is coaxially arranged on an output shaft of the motor, and a cleaning brush is coaxially arranged at the end part of the output shaft of the motor, which penetrates through the elongated through hole.
By adopting the technical scheme, the motor is started, the output shaft of the motor rotates to drive the gear which is coaxially connected with the motor to rotate, so that the gear relatively moves on the strip-shaped toothed belt, the cleaning brush is driven to move on the workbench, and when the output shaft of the motor reaches the end part of the strip-shaped through hole, the motor is controlled to rotate reversely, so that the cleaning brush moves towards the direction opposite to the previous direction, and the workbench is cleaned.
The utility model discloses further set up to: the two sides of the workbench are provided with cleaning ports which are parallel to the arrangement of the cleaning brushes.
Through adopting above-mentioned technical scheme, the piece of sweeping the workstation both sides through cleaning the brush is cleared up out the workstation by the clearance mouth, makes and keeps clean, clean and tidy on the workstation.
The utility model discloses further set up to: and a scrap collecting box is arranged at the bottom of the cleaning port.
Through adopting above-mentioned technical scheme, the piece of sweeping out through the clearance mouth drops in album bits incasement portion, and convenience of customers collects the piece to treat follow-up use.
The utility model discloses further set up to: and the side wall of the bottom of the cleaning port and the top of the scrap collecting box are respectively provided with a hook plate and a hook.
Through adopting above-mentioned technical scheme, collection bits case passes through the hook plate with the clearance mouth and the couple can be dismantled and be connected, and convenience of customers changes the collection bits case that is equipped with piece, and convenience of customers uses.
To sum up, the utility model discloses a beneficial technological effect does:
1. the position that is located between stopper and the mounting on the workstation is placed to the work piece of treating processing, through the mounting with the rigidity of work piece, rotate the safety cover to the position parallel with milling cutter, start the fan, blow the piece that produces in the profile modeling milling flutes course of working to the one side of keeping away from the mounting, start cleaning device simultaneously, the piece that will drop keeping away from mounting one side at the workstation cleans totally, the piece that not only prevents to produce in the profile modeling milling flutes course of working splashes on one's body to the user, guarantee operating personnel's healthy, and prevent that a large amount of pieces from piling up in milling cutter department, guarantee milling cutter's normal work, the work efficiency of improvement milling machine, the piece clean up that can also drop on the workstation, guarantee that the workstation is clean and tidy.
2. And when the output shaft of the motor reaches the end part of the strip-shaped through hole, the motor is controlled to rotate reversely, so that the cleaning brush moves towards the direction opposite to the previous direction, and the workbench is cleaned.
Drawings

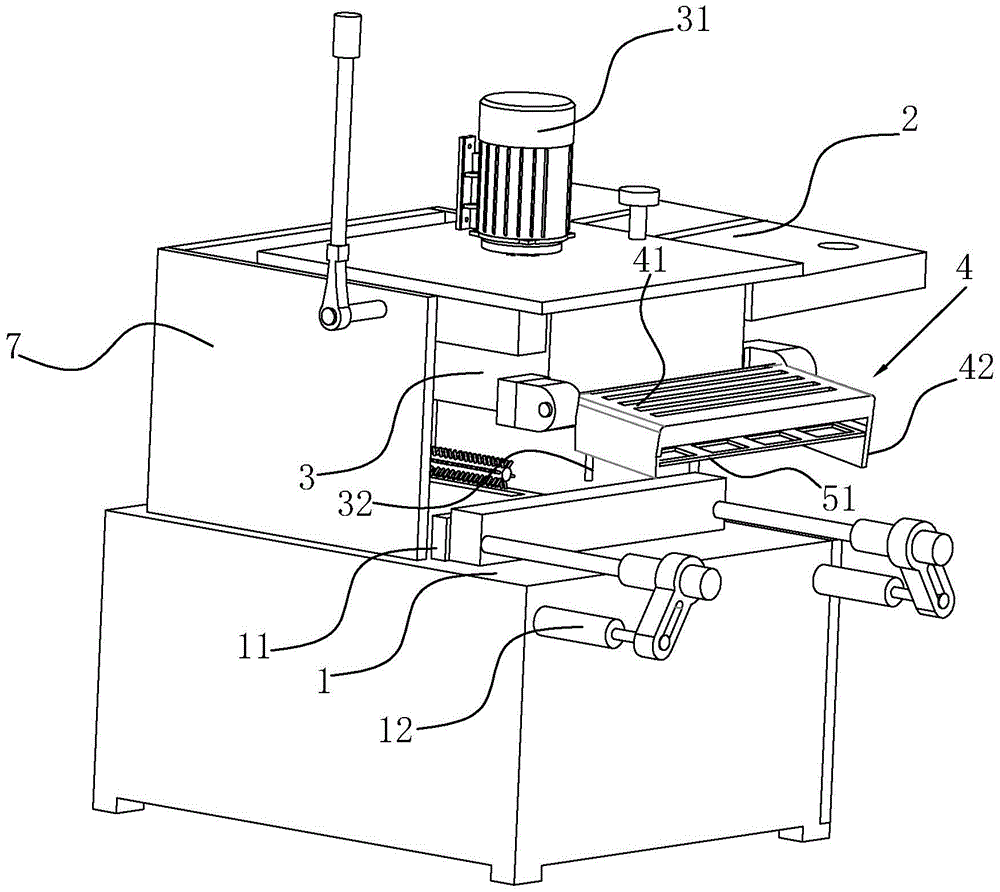

Fig. 1 is a schematic view of the overall structure of the present invention;
fig. 2 is an overall sectional view of the present invention;
fig. 3 is a partially enlarged schematic view of a portion a in fig. 2.
In the figure, 1, a workbench; 11. a limiting block; 12. a fixing member; 2. a bed body; 3. a chassis; 31. a motor; 32. milling cutters; 4. a protective cover; 41. a protective mesh plate; 42. a side guard plate; 5. a fan; 51. a protective net; 6. a cleaning device; 61. a motor; 62. a gear; 63. cleaning with a brush; 7. a protection plate; 71. a strip-shaped through hole; 72. a strip-shaped toothed belt; 8. cleaning the opening; 81. a scrap collecting box; 82. a hook plate; 83. and (4) hanging hooks.
Detailed Description
The present invention will be described in further detail with reference to the accompanying drawings.
Referring to fig. 1, for the utility model discloses an aluminum alloy door and window profile modeling groove cutting machine, including workstation 1, the bed body 2 and the quick-witted case 3 of sliding connection in bed body 2 top of arranging workstation 1 top in, quick-witted case 3 top is provided with motor 31, and 3 bottoms of quick-witted case are provided with milling cutter 32, are provided with stopper 11 on the workstation 1, and workstation 1 is close to operating personnel one side and is provided with mounting 12, and stopper 11 is located milling cutter 32 both sides respectively with mounting 12. As shown in fig. 1 and 2, a protective cover 4 is hinged to a side of the bottom of the case 3 close to the operator, a plurality of fans 5 are arranged on the side wall of the protective cover 4 facing the milling cutter 32, and a cleaning device 6 is arranged on one side of the workbench 1 far away from the fixing part 12. The method comprises the steps of placing a workpiece to be machined on a workbench 1 and located between a limiting block 11 and a fixing piece 12, fixing the position of the workpiece through the fixing piece 12, rotating a protective cover 4 to a position parallel to a milling cutter 32, starting a fan 5, blowing chips generated in the machining process of the profile milling groove to one side far away from the fixing piece 12, and simultaneously starting a cleaning device 6 to clean the chips falling on one side, far away from the fixing piece, of the workbench.
As shown in fig. 1 and 2, the protective cover 4 includes a protective screen 41 hinged to the side of the chassis 3, and a side protective plate 42 located on both sides of the protective screen 41 and disposed toward one side of the limiting block 11, and through the cooperation between the protective screen 41 and the side protective plate 42, the debris is blown out only from the side opposite to the protective screen 41, and is prevented from scattering from the side protective plate 42. The fan 5 is arranged on one side of the protective screen plate 41 facing the milling cutter 32, and the situation that the normal use of the fan 5 is affected by the splash of the scraps generated in the process of machining the profiling milling groove on the fan blades of the fan 5 is prevented.
As shown in fig. 2 and 3, the protection plate 7 is vertically arranged on the edge of the workbench 1, the protection plate 7 is arranged opposite to the protection cover 4, and the protection plate 7 is used for blocking the scraps generated in the process of the profile milling groove in the range of the workbench 1. Protection plate 7 one side is provided with rectangular shape cingulum 72, and on workstation 1 was arranged in to rectangular shape cingulum 72, be equipped with the rectangular shape through-hole 71 parallel with rectangular shape cingulum 72 on the protection plate 7, cleaning device 6 included motor 61, be provided with the slide rail (not shown in the figure) on the workstation 1 of motor 61 below, motor 61 slides and sets up on the slide rail, and the output shaft of motor 61 is coaxial to be provided with the gear 62 with rectangular shape cingulum 72 meshing, and the output shaft of motor 61 passes the coaxial cleaning brush 63 that is provided with of the tip of rectangular shape through-hole 71, and workstation 1 both sides are provided with clearance mouth 8, and cleaning brush 63 is on a parallel with. The motor 61 is started, the output shaft of the motor 61 rotates to drive the gear 62 which is coaxially connected with the motor to rotate, so that the gear 62 relatively moves on the strip-shaped toothed belt 72, the cleaning brush 63 is driven to move on the workbench 1, and the chips which are cleaned to the two sides of the workbench 1 through the cleaning brush 63 are cleaned out of the workbench 1 through the cleaning port 8, so that the workbench 1 is kept clean and tidy. The bottom of the cleaning port 8 is provided with a scrap collecting box 81. The side wall of the bottom of the cleaning port 8 and the top of the chip collecting box 81 are respectively provided with a hook plate 82 and a hook 83, the chip collecting box 81 and the cleaning port 8 are detachably connected through the hook plate 82 and the hook 83, and a user can replace the chip collecting box 81 with chips conveniently.
The implementation principle of the embodiment is as follows: the utility model discloses an aluminum alloy door and window profile modeling groove cutting machine is when using, at first, will treat the work piece of processing and place the position that lies in between stopper 11 and mounting 12 on workstation 1 to through mounting 12 with the rigidity of work piece. Secondly, the protective cover 4 is rotated to a position parallel to the milling cutter 32, the fan 5 is started, the motor 31 is started to control the milling cutter 32 to work, and the fan 5 blows the fragments generated in the process of machining the profile milling groove to the side far away from the fixing piece 12. And thirdly, starting the motor 61, driving the gear 62 coaxially connected with the motor 61 to rotate by the rotation of the output shaft of the motor 61, and enabling the gear 62 to relatively move on the strip-shaped toothed belt 72, thereby driving the cleaning brush 63 to move on the workbench 1, controlling the motor 61 to reversely rotate when the output shaft of the motor 61 reaches the end part of the strip-shaped through hole 71, enabling the cleaning brush 63 to move in the direction opposite to the previous direction, cleaning the chips swept to the two sides of the workbench 1 by the cleaning brush 63 out of the workbench 1 through the cleaning port 8, and dropping the chips into the chip collecting box 81 at the bottom of the cleaning port 8, so that the workbench 1 is kept clean and tidy. Finally, the user periodically replaces and empties the dust collection box 81.
The embodiment of this specific implementation mode is the preferred embodiment of the present invention, not limit according to this the utility model discloses a protection scope, so: all equivalent changes made according to the structure, shape and principle of the utility model are covered within the protection scope of the utility model.
Claims (8)
1. The utility model provides an aluminum alloy door and window profile modeling slot milling machine, includes workstation (1), arranges bed body (2) and the quick-witted case (3) of sliding connection in bed body (2) top above workstation (1) in, quick-witted case (3) top is provided with motor (31), quick-witted case (3) bottom is provided with milling cutter (32), be provided with stopper (11) on workstation (1), workstation (1) is close to operating personnel one side and is provided with mounting (12), stopper (11) are located milling cutter (32) both sides respectively with mounting (12), its characterized in that: case (3) bottom is close to operating personnel's side and articulates there is safety cover (4), safety cover (4) are provided with a plurality of fans (5) towards the lateral wall of milling cutter (32), one side that mounting (12) were kept away from in workstation (1) is provided with cleaning device (6).
2. The aluminum alloy door and window profiling slot milling machine as claimed in claim 1, wherein: the protection cover (4) comprises a protection screen (41) hinged with the side edge of the case (3), and side protection plates (42) located on two sides of the protection screen (41) and arranged towards one side of the limiting block (11), and the fan (5) is arranged on one side of the protection screen (41) towards the milling cutter (32).
3. The aluminum alloy door and window profiling slot milling machine as claimed in claim 2, wherein: a protective net (51) is arranged between the two side protective plates (42), and the protective net (51) is positioned on one side, close to the milling cutter (32), of the fan (5).
4. The aluminum alloy door and window profiling slot milling machine as claimed in claim 3, wherein: protection plate (7) are vertically arranged at the edge of the workbench (1), and the protection plate (7) is arranged opposite to the protection cover (4).
5. The aluminum alloy door and window profiling slot milling machine as claimed in claim 4, wherein: protection plate (7) one side is provided with rectangular shape cingulum (72), rectangular shape cingulum (72) are installed on workstation (1), be equipped with on protection plate (7) with rectangular shape cingulum (72) parallel rectangular shape through-hole (71), cleaning device (6) include motor (61), the output shaft of motor (61) is coaxial to be provided with gear (62) with rectangular shape cingulum (72) meshing, the coaxial brush cleaner (63) that is provided with of tip that the output shaft of motor (61) passed rectangular shape through-hole (71).
6. The aluminum alloy door and window profiling slot milling machine as claimed in claim 5, wherein: the cleaning device is characterized in that cleaning ports (8) are arranged on two sides of the workbench (1), and the cleaning ports (8) are parallel to the cleaning brush (63).
7. The aluminum alloy door and window profiling slot milling machine as claimed in claim 6, wherein: and a scrap collecting box (81) is arranged at the bottom of the cleaning port (8).
8. The aluminum alloy door and window profiling slot milling machine as claimed in claim 7, wherein: the side wall of the bottom of the cleaning opening (8) and the top of the scrap collecting box (81) are respectively provided with a hook plate (82) and a hook (83).
