本实用新型涉及一种电脑配套装置，即一种变位电脑架，包括支撑电脑的支架(1)和座椅，其特点在于：所说的支架(1)有一个卡板(3)，卡板(3)上设有与电脑键盘相接合的键盘槽(4)以及与显示器底座相接合的显示器底座槽(5)，键盘槽(4)及显示器底座槽(5)上均配有卡头(6)，卡板(3)下面通过转轴(7)与支撑杆(8)上端相铰链，所说的座椅是一种变形椅(2)，有靠背(11)、椅座(12)、椅架(14)，靠背(11)与椅座(12)的夹角大小可调，椅座(12)前边缘通过折页连接有折叠板(15)。其有益效果是：电脑的键盘和显示器的角度可变，操作者既可以坐姿操作，又可以卧姿操作，可延长工作时间，避免腰颈部劳损，特别适合长时间使用电脑的人员及需要卧床的人群使用。
The utility model relates to a computer supporting device, that is, a displacement computer rack, which includes a bracket (1) and a seat for supporting the computer. The board (3) is provided with a keyboard groove (4) connected with the computer keyboard and a display base groove (5) connected with the display base, and the keyboard groove (4) and the display base groove (5) are equipped with clips (6), below clamping plate (3) is hinged by rotating shaft (7) and support bar (8) upper end, and said seat is a kind of deformation chair (2), has backrest (11), seat seat (12) , chair frame (14), the angle size of backrest (11) and seat seat (12) is adjustable, and seat seat (12) front edge is connected with folding plate (15) by hinge. Its beneficial effects are: the angle of the keyboard and monitor of the computer is variable, the operator can operate in a sitting position or in a lying position, which can prolong the working time and avoid the strain of the waist and neck. It is especially suitable for those who use the computer for a long time and need to stay in bed people use.
Description
Technical field
The utility model relates to a kind of computer corollary apparatus, i.e. a kind of displacement computer rack.
Background technology
Desktop computer mainly contains main frame, display and keyboard and constitutes, and matches with tables and chairs during use, and the people is sitting on the chair and can operates.At present, though the development of computer product is very fast,, desktop computer remains main office equipment at present.Because the computation time is long, many people's waist and cervical vertebra occur uncomfortable, and diseases such as lumber ertebral disc protrusion, lumbar muscle strain, hyperplasia of prostate, cervical vertebra hyperplasia have generation more.Address this problem, except the restraint of labour time, outside strengthening physical training, people wish to change the computation posture, particularly adopt the back floating position operation, to reduce the waist injury of neck.Particularly special populations such as some the elderlys, disabled person also wish to lie on the back operating computer., owing to do not have corollary equipment, this hope to be difficult to realize at present.
Summary of the invention
The purpose of this utility model provides a kind of can the operation by sitting posture, the computer corollary apparatus of the operation of lying on the back again.
Above-mentioned purpose is realized by following technical scheme: develop a kind of displacement computer rack, comprise the support and the seat that support computer, be characterized in: said support has a clamp, clamp is provided with the keyboard groove that engages with computor-keyboard and the display base groove that engages with display base, all is furnished with dop on keyboard groove and the display base groove, clamp is below by rotating shaft and post upper phase hinge, said seat is a kind of deformed chair, backrest is arranged, seat support, the chair frame, the corner dimension of backrest and seat support is adjustable, and the seat support leading edge is connected with folded sheet by folding.
The support bar of said clamp has four, is contained in the clamp both sides respectively, wherein, has at least two support bars to be provided with the inserted link of heightening of adjustment height.
Said post upper is provided with the slideway that along continuous straight runs is installed, and the inserted link of heightening of adjusting height is housed above the slideway, and the inserted link upper end is connected with clamp with setscrew nut by rotating shaft.
The beneficial effects of the utility model are: the keyboard of computer and the variable-angle of display, the operator both can operate by sitting posture, can prone position operate again, can lengthen working hours, avoid the waist neck strain, be particularly suitable for using for a long time the personnel of computer and need the crowd of bed to use, and have simple in structure, cheap, characteristics such as easy to use are expected to become the office equipment of room indispensability.
Description of drawings
Fig. 1 is the front view of first kind of embodiment;
Fig. 2 is the front view of the part stent of first kind of embodiment;
Fig. 3 is the left view of the part stent of first kind of embodiment;
Fig. 4 is the vertical view of the part stent of first kind of embodiment;
Fig. 5 is the left view of the part distortion chair of first kind of embodiment;
Fig. 6 is the vertical view of the part distortion chair of first kind of embodiment;
Fig. 7 is a kind of use state diagram of first kind of embodiment;

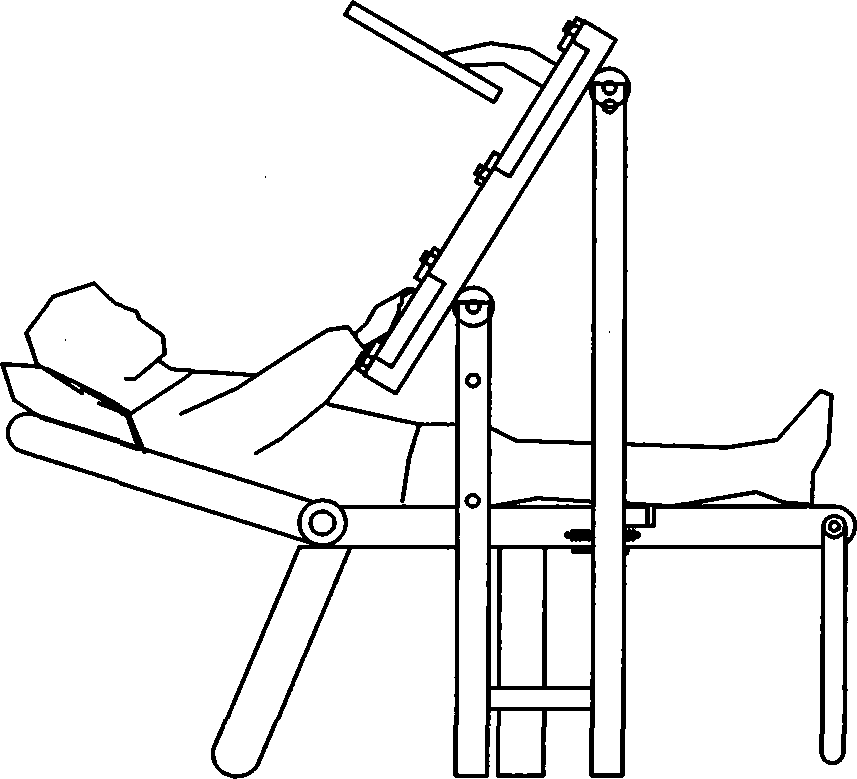

Fig. 8 is that the another kind of first kind of embodiment uses state diagram;
Fig. 9 is the front view of second all embodiment.
Among the figure as seen: support 1, deformed chair 2, clamp 3, keyboard groove 4, display base groove 5, dop 6, rotating shaft 7, support bar 8 is heightened inserted link 9, alignment pin 10, backrest 11, seat support 12, locating shaft 13, chair frame 14, folded sheet 15, snap 16, slideway 17, setscrew nut 18.
The specific embodiment
The total design of the utility model is the angle that changes computor-keyboard and display, thereby is fit to sit the two kinds of posture operations of crouching.Introduce a kind of embodiment below in conjunction with accompanying drawing:
First kind of embodiment: Fig. 1 introduced and a kind ofly formed the displacement computer rack by support 1 and deformed chair 2, in conjunction with Fig. 2,3,4 as seen, it is the clamp 3 of a rectangle above the support 1, have two grooves above the clamp 3, one is to have the keyboard groove 4 that keyboard is installed, another is that 5, two of the display base grooves that display base can be installed all are provided with dop 6 above the groove.The middle part below by 8, four support bars 8 of support bar of four settings of rotating shaft 7 hinges of clamp 1 is heightened inserted link 9 and is pegged graft, and also is furnished with alignment pin 10, can be used for adjusting the height of support bar 8.Certainly, also can only adjust the height of two of two of fronts or back.In conjunction with Fig. 5,6 as seen, deformed chair 2 is to be made of backrest 11, seat support 12, chair frame 14 etc., has locating shaft 13 to link to each other between backrest 11 and the seat support 12, and angle is variable.The seat support leading edge is equipped with folded sheet 15 by folding and snap 16.
During use, as shown in Figure 7, the clamp of support is horizontal, and the deformed chair backrest is erect, and the folded sheet 15 of seat support 12 fronts falls, and namely the same with common seat, operating personnel are with the sitting posture operating computer.As shown in Figure 8, back two support bars are raise, clamp 3 tilts, and the keyboard and the display that are fixed in the above tilt thereupon, the backrest 11 of deformed chair 2 are put down again, and the folded sheet 15 of front is lifted, and operating personnel namely can the back floating position operating computer.
Experiment showed, and adopt sitting posture and prone position conversion work, can lessen fatigue, prevent single position strain, significantly improve operating efficiency.Certainly, for the more weak the old,weak,sick and disabled personnel of health, this mode is more suitable.
Second kind of embodiment: as shown in Figure 9, deformed chair is bed, and stent support is in the both sides of bed, and the people is operating computer in bed, should belong to the technical scheme that is equal to the mode of first kind of embodiment.
In addition, the structure of support and last embodiment are different: its four are equipped with slideway 17 above the support bar, adjustable for height inserted link 9 is housed above the slideway 17, and inserted link 9 upper ends are connected with clamp 3 with setscrew nut 18 by rotating shaft.During use, the angle of inclination of clamp and height and front-back direction can change, and can better adapt to people's requirement.
