The utility model relates to a multifunctional integrated office chair which comprises a headrest frame, a chair back frame, a right handrail, a left handrail, a display screen stand column, a seat cushion frame, a desk top, a leg support frame, a pedal support, a pedal, a main support and a base case, wherein the lower end of the headrest frame is connected with the upper end of the chair back frame, the chair back frame and the seat cushion frame are connected through a wrenched angle regulator, the seat cushion frame and the leg support frame are connected through a rotating type angle regulator, the front end of the left handrail is provided with the display stand column, the left handrail and the right handrail are respectively connected with the chair back frame through a handrail angle fixing joint, the desk top is connected with the left handrail through a sliding device in the left handrail, the lower end of the leg support frame is connected with the pedal support, the pedal support is provided with the pedal, the base case is arranged in the main support, and the bottom of the main support is provided with rolling wheels. The multifunctional integrated office chair has the beneficial effects that the working postures can be regulated according to favors of a user, the fatigue can be relieved, and the working efficiency can be improved. By using the multifunctional integrated office chair, office sites can be saved for enterprises, and the constant cost of the enterprises can be reduced.
Description
Technical field
The utility model relates to a kind of office furniture, relates in particular to a kind of multifunctional all office chair.
Background technology
At present, known clerk's working environment is made of desk and seat.The long-term sitting posture that keeps caused many occupational diseases thus when personnel worked, pile up as stomach fat, and cervical spondylopathy, lumbar vertebrae is outstanding, shoulder, the back spasm of aching, headaches etc., the discomfort during work cause operating efficiency to reduce.Simultaneously, it is excessive that the office desk and chair separation makes that the individual takies work area, and enterprise's place rent cost is difficult to reduce.
Do not accommodate fatigue for what reduce that the deskman works long hours under existing office furniture environment, improve working environment, reduce enterprise fixed cost expenditure simultaneously, necessaryly provide a kind of multifunctional integrated office chair that computer desk and computer chair are become one.
The utility model content
The purpose of this utility model provides a kind of multifunctional integrated office chair, it becomes one computer desk and computer chair, various work postures such as can not only standing, sit up straight, couch for the user provides, the desktop area that also provides general operate as normal to use, and integrated computer putting position, bookcase drawers etc. satisfy general office needs fully.
The purpose of this utility model is to be achieved through the following technical solutions:
A kind of multifunctional integrated office chair, comprise head restraint frame, seat back frame, right armrest, left side handrail, cushion frame, desktop, leg holder framework, pedal support, pedal, main support and pedestal case, wherein the head restraint frame lower end is connected with the seat back frame upper end, seat back frame is connected by the pull type recliner with cushion frame, pull spanner and can make chair back layback, maximum can reach 180 degree; Cushion frame is connected by rotary recliner with leg holder framework, rotary recliner makes the leg holder on it can be raised up to level, and minimum angles can be-90 degree, when multifunctional integrated office chair is when lying low posture, the extension support is drawn out, to guarantee not overturning backward of chair; Left side handrail front end is equipped with the display column, the display column is provided with display bracket, left side handrail, right armrest all are connected with seat back frame by handrail fixed angle joint, left side handrail, right armrest can be in level and vertically put down between arbitrarily angled fixing, desktop is connected with the left side handrail by the carriage in the handrail of left side; Leg holder framework lower end is connected with pedal support, and pedal support is provided with pedal; Main support is arranged on the cushion frame below, and the pedestal case is arranged in the main support, and the main support bottom is provided with roller.
Described carriage comprises slide rail and sliding bolt, and slide rail and handrail are equidirectional, after directly antecurvature, double wedge is equipped with in the slide rail below, recessed tooth is equipped with in cunning bolt bottom, upspringing and pressing down by control button, pull bar and double wedge spring of double wedge jointly controls.
But described stand type support comprises the vertical upper bracket and the vertical lower carriage of socket, and vertical upper bracket is installed on the seat back frame, and vertical lower carriage is installed on the main support top board on the main support, and reverse support bar is housed in the vertical lower carriage.
Support slot is a spray shape in the described pedal support, and the location hole of differing heights can be provided, and pedal cross shaft passes location hole.
Be provided with in the described pedestal case and draw basket and drawer, be used to deposit office appliance, as stationery, file etc.
But there are two folding and unfolding transverse slats in the left side of described pedestal case, and the below transverse slat is used for the brain server that discharges, top transverse slat can discharge water cup, phone etc.
With novel beneficial effect be: the employee can adjust operating attitude according to hobby, slows down fatigue, increases work efficiency.Enterprise can save office space, reduces enterprise's fixed cost.
Description of drawings
With reference to the accompanying drawings the utility model is described in further detail below.
Fig. 1 is the described multifunctional integrated office chair frame structure side plan view of the utility model embodiment;
Fig. 2 .1 is the described multifunctional integrated office chair of a utility model embodiment left side handrail vertical view;
Fig. 2 .2 is the described multifunctional integrated office chair of a utility model embodiment left side armrest schematic diagram;
Fig. 3 .1 is the described multifunctional integrated office chair double wedge of the utility model embodiment slide rail side sectional view when upspringing;
Slide rail side sectional view when Fig. 3 .2 is the described multifunctional integrated office chair double wedge withdrawal of the utility model embodiment;
Fig. 3 .3 is the described multifunctional integrated office chair double wedge of the utility model embodiment sliding bolt front section view of slide rail when upspringing;
The sliding bolt front section view of slide rail when Fig. 3 .4 is the described multifunctional integrated office chair double wedge withdrawal of the utility model embodiment;
Fig. 4 .1 is the sliding stud structure figure of the described multifunctional integrated office chair of the utility model embodiment;
Fig. 4 .2 is the double wedge structure chart on the sliding bolt of the described multifunctional integrated office chair of the utility model embodiment;
Fig. 4 .3 is the sliding bolt front view of the described multifunctional integrated office chair of the utility model embodiment;

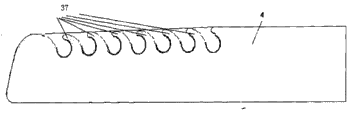

Fig. 5 .1 is the described multifunctional integrated office chair right armrest structure chart of the utility model embodiment;
Fig. 5 .2 is the undaform fixed slot configurations figure in the described multifunctional integrated office chair right armrest of the utility model embodiment;
Fig. 6 is the described multifunctional integrated office chair pedal support structural map of the utility model embodiment;
Fig. 7 .1 is the vertical upper bracket structure chart of the described multifunctional integrated office chair of the utility model embodiment;
Fig. 7 .2 is the vertical lower carriage structure chart of the described multifunctional integrated office chair of the utility model embodiment;
Fig. 7 .3 is the described multifunctional integrated office chair stand type support structure chart of the utility model embodiment;
Fig. 7 .4 is that the support of the described multifunctional integrated office chair stand type support of the utility model embodiment connects horizontal stud structure figure;
Fig. 8 is the described multifunctional integrated office chair office chair frame standing position figure of the utility model embodiment;
Fig. 9 is the described multifunctional integrated office chair office chair frame lying posture figure of the utility model embodiment;
Figure 10 is the described multifunctional integrated office chair desktop structural map of the utility model embodiment;
Figure 11 is the described multifunctional integrated office chair one chair specific bookshelf structural map of the utility model embodiment;
Figure 12 .1 is the described multifunctional integrated office chair pedestal box structure figure of the utility model embodiment;
Figure 12 .2 is the left view of the described multifunctional integrated office chair pedestal case of the utility model embodiment.
Among the figure: 0, head restraint frame; 1, seat back frame; 2, handrail fixed angle joint; 3, pull type recliner; 4, right armrest; 5, left side handrail; 6, column; 7, cushion frame; 8, rotary recliner; 9, leg holder framework; 10, pedal support; 11, pedal; 12, main support top board; 13, main support; 14, roller; 15, slide bolt slip control button; 16, desktop transverse axis; 17, slide rail; 18, slide bolt; 19, double wedge; 20, ball in the bolt; 21, ball set bolt; 22, recessed tooth; 23, vertical upper bracket; 24, upper bracket is buckled; 25, vertical lower carriage; 26, reverse support bar; 27, support connecting hole; 28, support connects horizontal bolt; 29, bolt hole; 30, desktop; 31, extension support; 32, double wedge spring; 33, slide rail installation bracket; 34, the first double wedge connecting rod; 35, the second double wedge connecting rod; 36, the 3rd double wedge connecting rod; 37, undaform holddown groove; 38, pedal position hole; 39, host computer shelf; 40, display bracket; 41, bookshelf plate; 42, bookshelf leg; 43, pedestal case; 44, foreign material plate.
The specific embodiment
In Fig. 1, the described multifunctional integrated office chair of the utility model embodiment, comprise head restraint frame 0, seat back frame 1, right armrest 4, left side handrail 5, cushion frame 7, desktop 30, leg holder framework 9, pedal support 10, pedal 11, main support 13 and pedestal case 43, wherein head restraint frame 0 lower end is connected with seat back frame 1 upper end, seat back frame 1 is connected by pull type recliner 3 with cushion frame 7, pull spanner and can make chair back layback, maximum can reach 180 degree; Cushion frame 7 is connected by rotary recliner 8 with leg holder framework 9, rotary recliner makes the leg holder on it can be raised up to level, and minimum angles can be-90 degree, when multifunctional integrated office chair is when lying low posture, extension support 31 is drawn out, to guarantee not overturning backward of chair; Left side handrail 5 front ends are equipped with display column 6, display bracket 40 is installed on the display column 6, left side handrail 5, right armrest 4 all are connected with seat back frame 1 by handrail fixed angle joint 2, left side handrail 5, right armrest 4 can be in level and vertically put down between arbitrarily angled fixing; Desktop 30 is connected with left side handrail 5 by the carriage in the left side handrail 5; Leg holder framework 9 lower ends are connected with pedal support 10, and pedal support 10 is provided with pedal 11; Main support 13 is arranged on cushion frame 7 belows, and pedestal case 43 is arranged in the main support 13, and main support 13 bottoms are provided with roller 14.
In Fig. 2 .1-2.2, carriage comprises slide rail 17 and sliding bolt 18, and sliding bolt 18 can be along slide rail 17 to front slide, when sliding bolt 18 is in slide rail 17 sweeps, desktop 30 load-bearing are mainly in the front end circular bulge position of handrail, and this moment, desktop 30 was opened, and was convenient to about the user.Have only when control button 15 is pressed, sliding bolt 18 just can slide backward at the straight line portion of slide rail 17, and when button 15 was released, sliding bolt 18 was locked, can not move backward.
Fig. 3 .1-3.4 explains the principle of sliding bolt 18 lockings.
Among Fig. 3 .3-3.4, outermost layer is a slide rail 17, and the top of slide rail 17 and right side have and slide rail 17 fluting in the same way, and the bottom of slide rail 17 is level, middle fluting.Double wedge 19 puts in the slide rail 17 from bottom slot.Fig. 3 .2 intermediate layer is sliding bolt 18.There is circular hole on sliding bolt 18 tops and right side, and the top circular hole is used for by ball set bolt 21, and the right side circular hole is used for by desktop transverse axis 16.Sliding bolt 18 bottoms are that both sides are level and smooth, middle recessed tooth 22.Contain ball 20 in the bolt in the middle of the sliding bolt 18, ball 20 links to each other with desktop transverse axis 16 in the bolt.When set bolt 21 screwed, ball 20 was fixed in the bolt, and then desktop 30 tilts forward and back angle and is fixed.When control button 15 was released, double wedge spring 32 was upspring double wedge 19, and sliding bolt 18 can not slide backward.When control button 15 was pressed, the second double wedge connecting rod 34, the second double wedge connecting rod 35 and the 3rd double wedge connecting rod 36 1 worked, and double wedge 19 is left behind, and sliding bolt 18 can slide backward.
Fig. 4 .1-4.3 has illustrated the structure of sliding bolt 18 and recessed tooth 22.
Fig. 5 .1-5.2 has illustrated the structure of right armrest 4.The right-hand member of desktop transverse axis 16 inserts in the undaform holddown groove.
Fig. 6 has illustrated the structure of pedal support 10.Support slot is a spray shape in the pedal support 10, and the location hole of differing heights can be provided, and pedal cross shaft passes location hole.
Fig. 7 .1-7.4 has illustrated the structure of stand type support.Stand type support is divided into vertical upper bracket 23 and vertical lower carriage 25 two parts, and wherein vertical upper bracket 23 lower ends are connected with seat back frame 1 by rotating shaft, and the time spent does not upwards pack up, and is close to the chair back, buckles 24 with upper bracket and fixes.Vertical upper bracket 23 is decontroled downwards during use, and by support being connected horizontal bolt 27 insertion support connecting holes 28 upper bracket and lower carriage is connected and fixed.Vertical lower carriage 25 is installed on the main support top board 12 of main support 13 tops, contains reverse support bar 26 in the vertical lower carriage 25; But vertical upper bracket 23 and 25 sockets of vertical lower carriage.
Fig. 8 is multifunctional integrated office chair simple type framework standing position figure.Host computer is placed on the main frame shelf 39.But main frame shelf 39 horizontal directions are swung by a small margin, make things convenient for the user to open CD-ROM drive.
Fig. 9 is multifunctional integrated office chair simple type framework lying posture figure.
Figure 10 has illustrated desktop 30 structures.Desktop 30 top layers spraying iron powder, adsorbable magnet.
Figure 11 has illustrated the specific bookshelf structure.Bookshelf leg 42 can be extracted out backward.The rear portion unci of bookshelf leg 42 can be used to catch on desktop 30 edges.
Figure 12 .1-12.2 has illustrated the structure of pedestal case 43.Pedestal case 43 is used for basic model.There are host computer shelf 39 and foreign material plate 44 in pedestal case 43 casings the right, and the pedestal case 43 casing left sides are drawers.
Claims (6)
1. multifunctional integrated office chair, comprise head restraint frame, seat back frame, right armrest, left side handrail, display column, cushion frame, desktop, leg holder framework, pedal support, pedal, main support and pedestal case, it is characterized in that: the head restraint frame lower end is connected with the seat back frame upper end, and seat back frame is connected by the pull type recliner with cushion frame; Cushion frame is connected by rotary recliner with leg holder framework; Left side handrail front end is equipped with the display column, and the display column is provided with display bracket; Left side handrail, right armrest all are connected with seat back frame by handrail fixed angle joint, and desktop is connected with the left side handrail by the carriage in the handrail of left side; Leg holder framework lower end is connected with pedal support, and pedal support is provided with pedal; Main support is arranged on the cushion frame below, and the pedestal case is arranged in the main support, and the main support bottom is provided with roller.
2. multifunctional integrated office chair according to claim 1, it is characterized in that: described carriage comprises slide rail and sliding bolt, slide rail and handrail are equidirectional, after directly antecurvature, double wedge is equipped with in the slide rail below, recessed tooth is equipped with in sliding bolt bottom, and upspringing and pressing down by control button, pull bar and double wedge spring of double wedge jointly controls.
3. multifunctional integrated office chair according to claim 1, it is characterized in that: but described stand type support comprises the vertical upper bracket and the vertical lower carriage of socket, vertical upper bracket is installed on the seat back frame, vertical lower carriage is installed on the main support top board on the main support, and reverse support bar is housed in the vertical lower carriage.
4. multifunctional integrated office chair according to claim 1 is characterized in that: support slot is the spray shape of location hole that differing heights can be provided in the described pedal support, and pedal cross shaft passes location hole.
5. multifunctional integrated office chair according to claim 1 is characterized in that: be provided with in the described pedestal case and draw basket and drawer.
6. according to each described multifunctional integrated office chair of claim 1-5, it is characterized in that: but there are two folding and unfolding transverse slats in the left side of described pedestal case.
