Abstract
The utility model discloses a forced air circulating heat pump areca nut drying device, which comprises an enclosed heat-preserving drying room and a heat pump device for supplying hot air into the heat-preserving drying room, wherein a movable material vehicle is arranged in the heat-preserving drying room; the movable material vehicle is provided with an areca nut accommodating frame; and the hot air outlet of the heat pump device is positioned at the bottom of the movable material vehicle. When the forced hot air circulating heat pump areca nut drying device is used for drying areca nuts, the areca nuts are placed above the areca nut accommodating device in the movable material vehicle, the heat pump device is used for supplying hot air to the areca nuts from the bottom of the movable material vehicle for drying, and the heat pump device is used for supplying hot air, so that energy can be saved effectively; moreover, a full automatic drying flow of the areca nuts can be finished through the device, foods are not polluted in a drying process, labor force can be saved, the drying efficiency is increased, and meanwhile, the drying effect is more uniform. The forced hot air circulating heat pump areca nut drying device is applied to the field of drying equipment.
Description
Technical field
The utility model relates to a kind of food processing apparatus, particularly relates to a kind of betel nut drying unit.
Background technology
The processing of betel nut mainly concentrates on Hainan and Hunan area at present, and the processing capacity of annual betel nut Chinese olive is all above 400,000 tons, and annual value of production is above 16,000,000,000 yuan.
But the oven dry of betel nut processing at present all is manually to carry out, have the production cost height, useless fruit rate is high and the mass dryness fraction of oven dry inadequately evenly, the low inferior shortcoming of production efficiency.
The utility model content
For addressing the above problem, it is a kind of full-automatic and the forced hot air circulation formula heat pump betel nut drying unit of even oven dry can be provided betel nut that the utility model provides.
The technical scheme that its technical problem that solves the utility model adopts is:
A kind of forced hot air circulation formula heat pump betel nut drying unit, comprise airtight insulation drying room and to the insulation drying room in the supply hot blast heat pump assembly, also be placed with mobile materials vehicle in the insulation drying room, mobile materials vehicle is provided with the betel nut rack, and the hot-blast outlet of heat pump assembly is positioned at the bottom of mobile materials vehicle.
Be further used as the improvement of technical solutions of the utility model, heat pump assembly comprises machine in the heat pump that the heat pump main frame reaches with the heat pump main frame links to each other that is positioned over outside the insulation drying room, and hot-blast outlet is positioned on the heat pump machine.
Be further used as the improvement of technical solutions of the utility model, the hot-blast outlet of machine is provided with the hot-air channel that leads to mobile materials vehicle in the heat pump.
Be further used as the improvement of technical solutions of the utility model, the bottom angled setting of mobile materials vehicle, the height of pusher side is higher than the height away from pusher side in the heat pump in the close heat pump in mobile materials vehicle bottom.
Be further used as the improvement of technical solutions of the utility model, mobile materials vehicle top cross section is rectangle, and the bottom of mobile materials vehicle is provided with some wheels.
Be further used as the improvement of technical solutions of the utility model, the top of insulation drying room is provided with moisture exhausting port, and the dehumidifier fan is installed in the moisture exhausting port.
Be further used as the improvement of technical solutions of the utility model, the bottom of insulation drying room is provided with air inlet.
The beneficial effects of the utility model: this forced hot air circulation formula heat pump betel nut drying unit is when carrying out betel nut oven dry operation, betel nut is placed on betel nut rack top in the mobile materials vehicle, provide hot blast to dry from the bottom of mobile materials vehicle to betel nut by heat pump assembly then, heat pump assembly provides hot blast can effectively save the energy, and can finish the full automatic drying flow process of betel nut by this device, drying course is pollution-free to food, can save human cost and can improve drying efficiency, drying effect is more even simultaneously.
Description of drawings
The utility model is described in further detail below in conjunction with accompanying drawing:

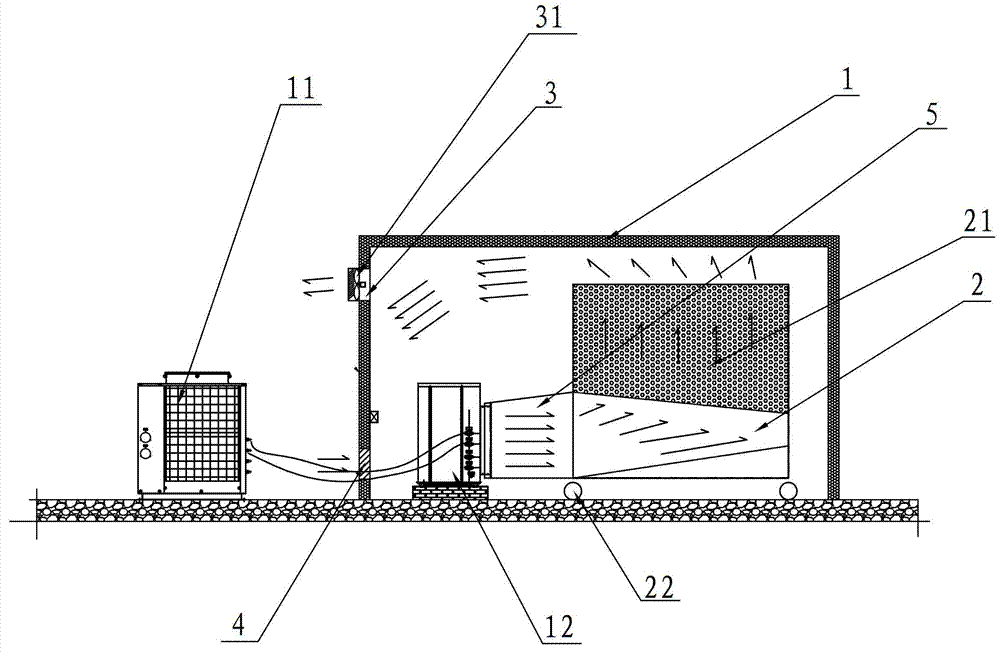

Fig. 1 is the utility model embodiment overall structure schematic diagram.
The specific embodiment
With reference to Fig. 1, the utility model is a kind of forced hot air circulation formula heat pump betel nut drying unit, comprise airtight insulation drying room 1 and the heat pump assembly of supply hot blast in the insulation drying room 1, also be placed with mobile materials vehicle 2 in the insulation drying room 1, mobile materials vehicle 2 is provided with betel nut rack 21, and the hot-blast outlet of heat pump assembly is positioned at the bottom of mobile materials vehicle 2.
This forced hot air circulation formula heat pump betel nut drying unit is when carrying out betel nut oven dry operation, betel nut is placed on betel nut rack 21 tops in the mobile materials vehicle 2, provide hot blast to dry from the bottom of mobile materials vehicle 2 to betel nut by heat pump assembly then, heat pump assembly provides hot blast can effectively save the energy, and can finish the full automatic drying flow process of betel nut by this device, drying course is pollution-free to food, can save human cost and can improve drying efficiency, and drying effect is more even simultaneously.
As the utility model preferred embodiment, heat pump assembly comprises machine 12 in the heat pump that heat pump main frame 11 reaches with heat pump main frame 11 links to each other that is positioned over outside the insulation drying room 1, and hot-blast outlet is positioned on the heat pump machine 12.
The device that the baking needed hot blast is provided is heat pump assembly, and heat pump assembly has the characteristics of environmental protection and energy saving, can effectively reduce the processing cost of betel nut oven dry, improves the product quality of betel nut oven dry.
Betel nut is placed on the betel nut rack 21 in the mobile materials vehicle 2, in the process of betel nut oven dry, under the effect of betel nut own wt, squeezing action can take place to the betel nut of lower floor in the betel nut on upper strata, can effectively improve " getting into the frame of mind for work " effect of betel nut, formation to the betel nut form is favourable, makes that its economic benefit is better.
As the utility model preferred embodiment, the hot-blast outlet of machine 12 is provided with the hot-air channel 5 that leads to mobile materials vehicle 2 in the heat pump, can improve efficient from heat pump assembly to mobile materials vehicle 2 bottoms that transmit hot blast by, guarantees effective transmission of hot blast.
As the utility model preferred embodiment, the bottom angled setting of mobile materials vehicle 2, the height of machine 12 sides is higher than the height away from 12 sides of machine in the heat pump in the close heat pump in mobile materials vehicle 2 bottoms.
As the utility model preferred embodiment, mobile materials vehicle 2 top cross sections are rectangle, and the bottom of mobile materials vehicle 2 is provided with some wheels 22.
Mobile materials vehicle 2 can move by the wheel 22 that install its bottom, thereby simplifies the dress fruit and go out fruit work, can save a large amount of manpowers, enhances productivity.
As the utility model preferred embodiment, the top of insulation drying room 1 is provided with moisture exhausting port 3, and dehumidifier fan 31 is installed in the moisture exhausting port 3.
As the utility model preferred embodiment, the bottom of insulation drying room 1 is provided with air inlet 4.
Moisture exhausting port 3 in the insulation drying room 1 and air inlet 4 make that the air-flow in the insulation drying room 1 is circulated, and can make temperature and humidity in the insulation drying room 1 control under the environment that it is fixed that is comparatively weighed, forced circulation by hot blast, can take away a large amount of moistening steam by moisture exhausting port 3, heat uniform distribution in the feasible insulation drying room 1 guarantees its drying effect.Further improve the quality of finished of dry fruit.
This betel nut drying unit can adopt the temperature and humidity in the next high-precision control insulation of the PLC intelligent control system drying room 1, and whole process realizes full automatic operation, need not manually on duty.
Certainly, the invention is not limited to above-mentioned embodiment, those of ordinary skill in the art also can make equivalent variations or replacement under the prerequisite of the utility model spirit, the modification that these are equal to or replacement all are included in the application's claim institute restricted portion.
Claims (7)
1. forced hot air circulation formula heat pump betel nut drying unit, it is characterized in that: comprise airtight insulation drying room (1) and the heat pump assembly of supply hot blast in the described insulation drying room (1), also be placed with mobile materials vehicle (2) in the described insulation drying room (1), described mobile materials vehicle (2) is provided with betel nut rack (21), and the hot-blast outlet of described heat pump assembly is positioned at the bottom of mobile materials vehicle (2).
2. forced hot air circulation formula heat pump betel nut drying unit according to claim 1, it is characterized in that: described heat pump assembly comprises machine (12) in the heat pump that is positioned over the outer heat pump main frame (11) of insulation drying room (1) and links to each other with heat pump main frame (11), and described hot-blast outlet is positioned on the described heat pump machine (12).
3. forced hot air circulation formula heat pump betel nut drying unit according to claim 2 is characterized in that: the hot-blast outlet of machine (12) is provided with the hot-air channel (5) that leads to mobile materials vehicle (2) in the described heat pump.
4. forced hot air circulation formula heat pump betel nut drying unit according to claim 2, it is characterized in that: the bottom angled setting of described mobile materials vehicle (2), the height of machine (12) side is higher than the height away from machine in the heat pump (12) side in the close heat pump in described mobile materials vehicle (2) bottom.
5. forced hot air circulation formula heat pump betel nut drying unit according to claim 1 and 2 is characterized in that: described mobile materials vehicle (2) top cross section is rectangle, and the bottom of described mobile materials vehicle (2) is provided with some wheels (22).
6. forced hot air circulation formula heat pump betel nut drying unit according to claim 1, it is characterized in that: the top of described insulation drying room (1) is provided with moisture exhausting port (3), and dehumidifier fan (31) is installed in the described moisture exhausting port (3).
7. forced hot air circulation formula heat pump betel nut drying unit according to claim 1, it is characterized in that: the bottom of described insulation drying room (1) is provided with air inlet (4).
