The utility model relates to a squat type both-arm clean and jerk sports device. The squat type both-arm clean and jerk sports device is characterized by comprising a base plate, a fixing frame which is arranged on the base plate, a seat which is arranged on one side of the fixing frame, and a clean and jerk frame which is arranged on the fixing frame and connected with the base plate through a tension spring. Guide wheels are arranged on the clean and jerk frame and arranged inside guiding grooves formed in guiding groove pillars on one side of the fixing frame in an embedded mode. A U-shaped barre is arranged at the top end of the clean and jerk frame and arranged inside limiting groove holes at the upper end of the fixing frame in an embedded mode. When the squat type both-arm clean and jerk sports device is in use, a sporter sits in the seat, tightly grips the U-shaped barre by both hands to do upward clean and jerk motions by both arms so that upper limb muscle and chest muscle can be stretched in a use process, and therefore the sporter takes exercise and a body-building aim is achieved.

Description

A kind of squatting-sitting both arms clean and jerk sports apparatus
Technical field
The utility model relates to a kind of squatting-sitting both arms clean and jerk sports apparatus.
Background technology
In daily live and work, because bend over one's desk working for a long time, add and lack necessary physical training, people generally feel soreness of waist and ache in legs, health is in sub-health state for a long time, if things go on like this even serious lumbar vertebra disease, cervical spondylopathy and cardiovascular and cerebrovascular disease be can bring out, people's normal work and life had a strong impact on.
The utility model content
Technical problem to be solved in the utility model is to provide a kind of upper limbs and chest muscle of making and stretches, thereby is taken exercise, and reaches the both arms clean and jerk sports apparatus of purpose of fitness.
The utility model adopts following technical scheme:
The utility model comprises bedplate, be arranged on fixed mount on bedplate, be arranged on the seat of fixed mount one side and be arranged on the clean and jerk frame that is connected extension spring to connect with bedplate on fixed mount, be provided with guide wheel on described clean and jerk frame, described guide wheel is embedded in guide groove on fixed mount one side guidance post.Described clean and jerk frame top is provided with U-shaped handle, and described U-shaped handle is embedded in the spacing slotted eye of fixed mount upper end.
Good effect of the present utility model is as follows:
When using the utility model, the sporter sits on the seat, and both hands are held U-shaped handle both arms and done the clean and jerk action that makes progress, and because U-shaped handle is connected with the clean and jerk frame, the lower end employing extension spring of clean and jerk frame is fixed on bedplate.The repeating clean and jerk actions upper limbs and chest muscle are stretched of both arms like this, thus taken exercise, reach the purpose of body-building.
Description of drawings

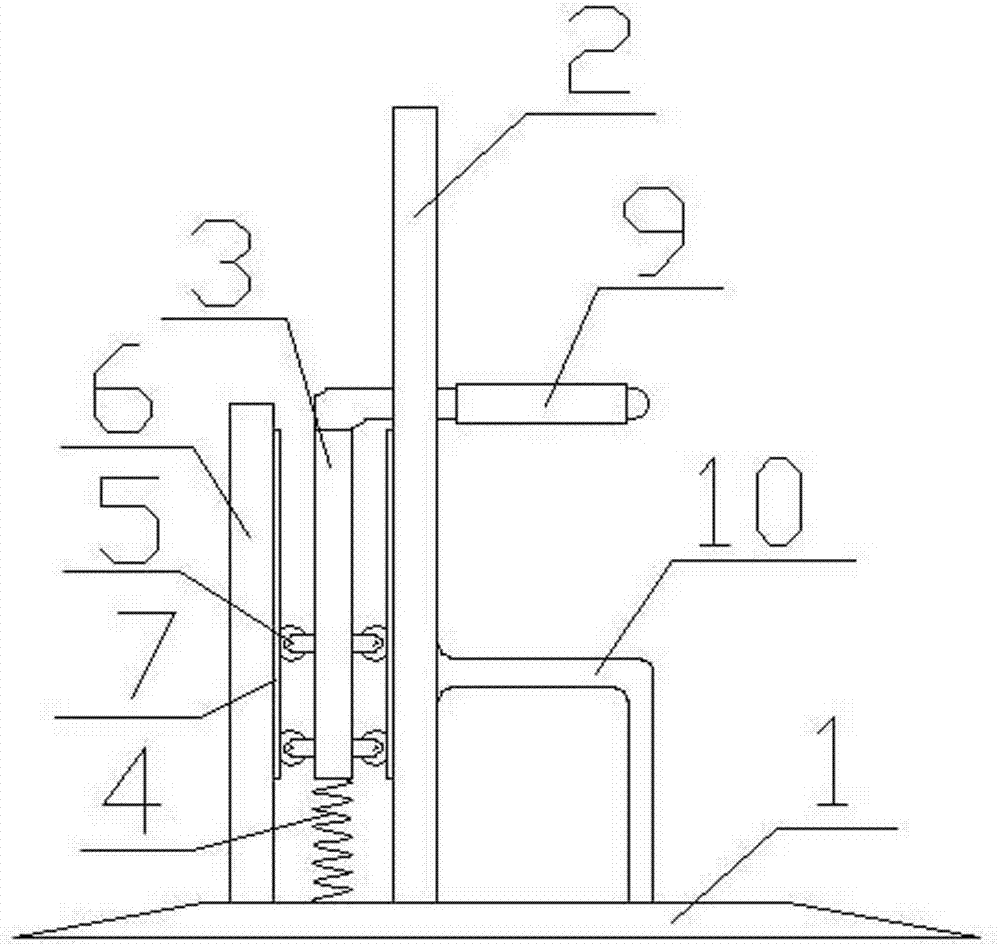

Accompanying drawing 1 is the utility model structural representation;
Accompanying drawing 2 is the utility model side structure schematic diagram;
Accompanying drawing 3 is the utility model plan structure schematic diagram.
In the accompanying drawings: 1 bedplate, 2 fixed mounts, 3 clean and jerk framves, 4 extension springs, 5 guide wheels, 6 guide groove posts, 7 guide grooves, 8 spacing slotted eyes, 9 U-shaped handles, 10 seats.
The specific embodiment
As shown in accompanying drawing 1,2,3, the utility model comprises bedplate 1, be arranged on fixed mount 2 on bedplate 1, be arranged on the seat 10 of fixed mount 2 one sides and be arranged on the clean and jerk frame 3 that being connected with bedplate on fixed mount 2 adopts extension spring 4 to connect, be provided with guide wheel 5 on described clean and jerk frame 3, described guide wheel 5 is embedded in guide groove 7 on fixed mount 2 one side guidance posts 6.As shown in Figure 3, described clean and jerk frame 3 tops are provided with U-shaped handle 9, and U-shaped handle 9 is embedded in the spacing slotted eye 8 of fixed mount 2 upper ends.
When using the utility model, the sporter is sitting on seat 10, and both hands are held U-shaped handle 9 both arms and done the clean and jerk action that makes progress, and because U-shaped handle 9 is connected with clean and jerk frame 3, the 3 lower ends employing extension springs 4 of clean and jerk frame are fixed on bedplate 1.The repeating clean and jerk actions upper limbs and chest muscle are stretched of both arms like this, thus taken exercise, reach the purpose of body-building.

Claims (1)

1. squatting-sitting both arms clean and jerk sports apparatus, it is characterized in that it comprises bedplate (1), be arranged on the fixed mount (2) on bedplate (1), be arranged on the seat (10) of fixed mount (2) one sides and be arranged on and be connected 1 with bedplate on fixed mount (2)) the clean and jerk frame (3) that adopts extension spring (4) to connect, be provided with guide wheel (5) on described clean and jerk frame (3), described guide wheel (5) is embedded in guide groove (7) on fixed mount (2) one side guidance posts (6), described clean and jerk frame (3) top is provided with U-shaped handle (9), described U-shaped handle (9) is embedded in the spacing slotted eye (8) of fixed mount (2) upper end.
