Abstract
本实用新型涉及一种双臂推拉健身器。本实用新型由通过拉簧设置在固定架上下横杆之间的两个推拉杆构成。使用本实用新型时，双手分别紧握两个推拉杆做前后推拉的运动，这样可使上肢和胸部肌肉得到拉伸锻炼，达到锻炼身体的目的。本实用新型尤其适合中老年人以及康复的病人使用。
The utility model relates to a double-arm push-pull fitness device. The utility model is composed of two push-pull rods arranged between the upper and lower cross bars of the fixed frame through extension springs. When the utility model is used, both hands hold the two push-pull rods tightly respectively to do forward and backward push-pull movements, so that the upper limbs and chest muscles can be stretched and exercised to achieve the purpose of exercising the body. The utility model is especially suitable for middle-aged and elderly people and rehabilitation patients.
Description
技术领域 technical field
本实用新型涉及一种双臂推拉健身器。 The utility model relates to a double-arm push-pull fitness device.
背景技术 Background technique
在日常的生活和工作中，因为长期伏案工作，再加上缺乏必要体育锻炼，人们普遍感到腰酸腿疼，身体长期处于亚健康状态，长此以往甚至会诱发严重的腰椎病、颈椎病和心脑血管疾病，严重影响了人们的正常的工作和生活。 In daily life and work, due to long-term desk work and lack of necessary physical exercise, people generally feel backache and leg pain, and the body is in a sub-health state for a long time. If things go on like this, it will even induce serious lumbar spondylosis, cervical spondylosis and cardiovascular and cerebrovascular diseases. Diseases have seriously affected people's normal work and life.
实用新型内容 Utility model content
本实用新型所要解决的技术问题是提供一种可使上肢和胸部肌肉得到拉伸锻炼，达到锻炼身体的目的，尤其适合中老年人以及康复的病人使用的双臂推拉健身器。 The technical problem to be solved by the utility model is to provide a double-arm push-pull fitness device that can stretch and exercise the upper limbs and chest muscles to achieve the purpose of exercising the body, and is especially suitable for middle-aged and elderly people and rehabilitation patients.
本实用新型采用如下技术方案： The utility model adopts the following technical solutions:
本实用新型由通过拉簧设置在固定架上下横杆之间的两个推拉杆构成。 The utility model is composed of two push-pull rods arranged between the upper and lower cross bars of the fixed frame through extension springs.
本实用新型的积极效果如下： The positive effect of the utility model is as follows:
使用本实用新型时，双手分别紧握两个推拉杆做前后推拉的运动，这样可使上肢和胸部肌肉得到拉伸锻炼，达到锻炼身体的目的。本实用新型尤其适合中老年人以及康复的病人使用。 When the utility model is used, both hands hold the two push-pull rods tightly respectively to do forward and backward push-pull movements, so that the upper limbs and chest muscles can be stretched and exercised to achieve the purpose of exercising the body. The utility model is especially suitable for middle-aged and elderly people and rehabilitation patients.
附图说明 Description of drawings

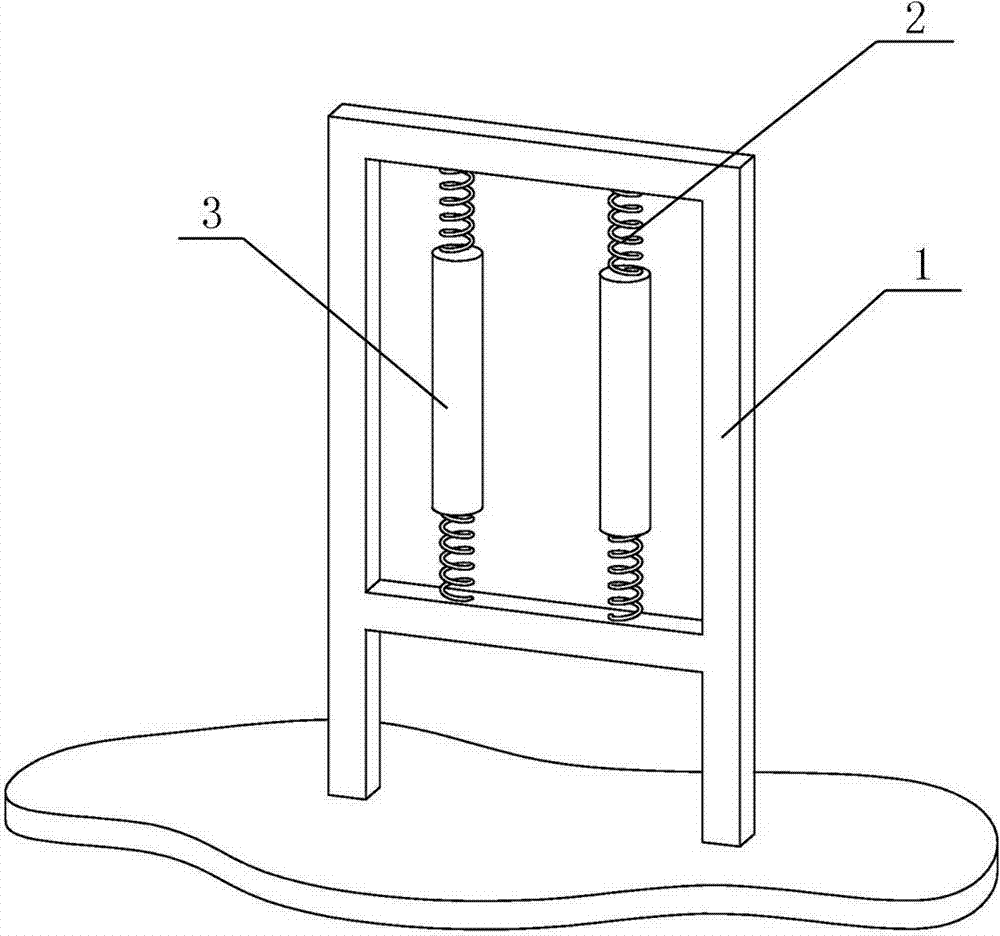

附图1为本实用新型结构示意图。 Accompanying drawing 1 is the structural representation of the utility model.
在附图中：1 固定架、2 拉簧、3 推拉杆。 In the accompanying drawings: 1 fixed mount, 2 extension spring, 3 push-pull rod.
具体实施方式 Detailed ways
如附图1所示，本实用新型由通过拉簧2设置在固定架1上下横杆之间的两个推拉杆3构成。使用本实用新型时，双手分别紧握两个推拉杆3做前后推拉的运动，这样可使上肢和胸部肌肉得到拉伸锻炼，达到锻炼身体的目的。本实用新型尤其适合中老年人以及康复的病人使用。 As shown in accompanying drawing 1, the utility model is made of two push-pull rods 3 that are arranged between the upper and lower cross bars of the fixed mount 1 by extension springs 2. When using the utility model, both hands hold the two push-pull rods 3 tightly respectively and do push-pull motions back and forth, so that the upper limbs and chest muscles can be stretched and exercised to achieve the purpose of exercising the body. The utility model is especially suitable for middle-aged and elderly people and rehabilitation patients.
