Abstract
本实用新型涉及一种双臂前后拉伸运动器械，其特征在于其包括固定杆、和固定杆的横杆相连接的带有左滑槽的左滑杆、和固定杆的横杆相连接的带有右滑槽的右滑杆、嵌置在左滑杆滑槽内的左滑块、嵌置在右滑杆滑槽内的右滑块、通过左拉绳与左滑块相连接的左拉环以及通过右拉绳与右滑块相连接的右拉环。使用本实用新型时，双手紧握左拉环和右拉环做前后拉伸摆动运动，左滑块和右滑块可在左、右滑槽里自由滑动，这样在使用过程中可使上肢和胸部肌肉拉伸，从而得到锻炼，达到健身的目的。
The utility model relates to a double-arm front and rear stretching exercise device, which is characterized in that it comprises a fixed rod, a left sliding rod with a left chute connected with the cross bar of the fixed rod, and a left sliding rod connected with the cross bar of the fixed rod. Right slider with right slide groove, left slider embedded in the left slider groove, right slider embedded in the right slider groove, left slider connected with the left slider through the left pull cord Pull ring and the right pull ring connected with the right slide block by the right pull rope. When using the utility model, hold the left pull ring and the right pull ring tightly with both hands to perform stretching and swinging motions back and forth, and the left slider and the right slider can slide freely in the left and right chute, so that the upper limbs and the The chest muscles are stretched to get exercise and achieve the purpose of fitness.
Description
Technical field
The utility model relates to a kind of both arms front and back extensional motion apparatus.
Background technology
In daily live and work, because bend over one's desk working for a long time, add and lack necessary physical training, people generally feel soreness of waist and ache in legs, health is in sub-health state for a long time, if things go on like this even can bring out serious lumbar vertebra disease, cervical spondylopathy and cardiovascular and cerebrovascular disease, people's normal work and life have been had a strong impact on.
The utility model content
Technical problem to be solved in the utility model provides a kind of upper limbs and chest muscle of making and stretches, thereby is taken exercise, and reaches the both arms front and back stretching fitness equipment of purpose of fitness.
The utility model adopts following technical scheme:
The right slide bar with right rail that the cross bar with the left slide bar of left chute and fixed bar that the utility model comprises that the cross bar of fixed bar and fixed bar is connected is connected, the left drawing ring that is embedded in left slider in the left slide bar chute, is embedded in right slide block in the right slide bar chute, is connected with left slider by Zola's rope and the right draw ring that is connected with right slide block by right stay cord.
Good effect of the present utility model is as follows:
When using the utility model, both hands hold left drawing ring and right draw ring is done front and back stretching oscillating motion, left slide bar is fixedly connected with the cross bar of fixed bar with right slide bar, left drawing ring is connected with left slider by Zola's rope, right draw ring is connected with right slide block by right stay cord, and left slider and right slide block can be free to slide in chute, and upper limbs and chest muscle are stretched, thereby taken exercise, reached the purpose of body-building.
Description of drawings

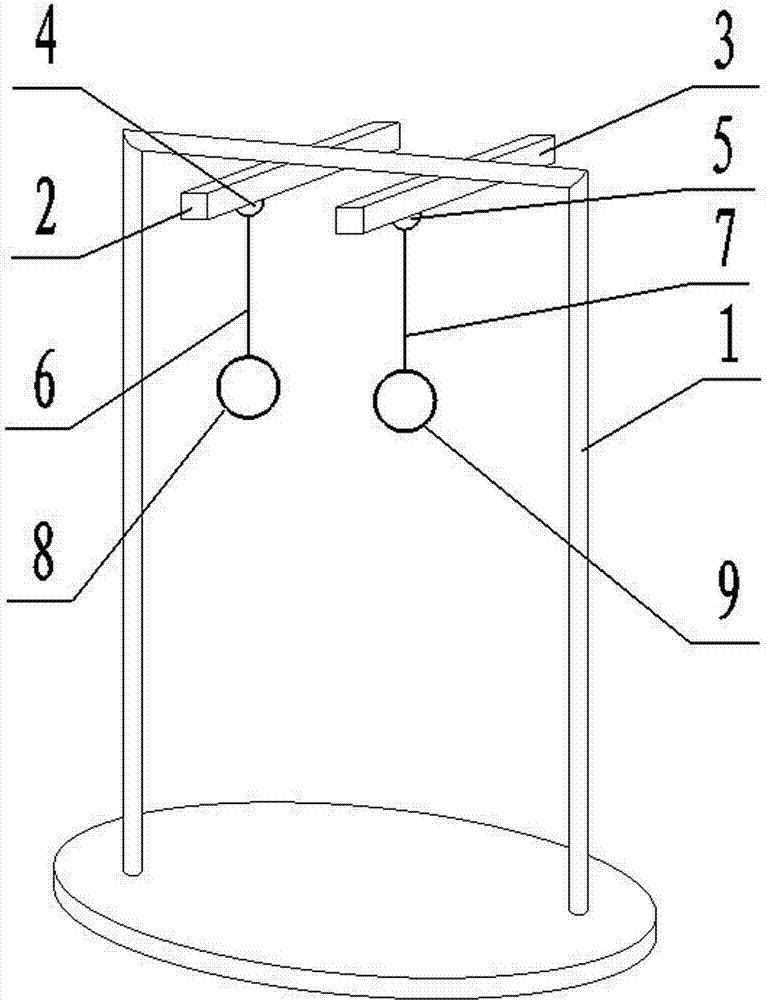

Accompanying drawing 1 is the utility model structural representation.
In the accompanying drawings: 1 fixed bar, 2 left slide bars, 3 right slide bars, 4 left sliders, 5 right slide blocks, 6 Zolas rope, 7 right stay cords, 8 left drawing rings, 9 right draw rings.
The specific embodiment
As shown in Figure 1, the right slide bar 3 with right rail that is connected of the utility model cross bar with the left slide bar 2 of left chute and fixed bar 1 of comprising that the cross bar of fixed bar 1 and fixed bar 1 is connected, the right draw ring 9 that is embedded in left slider 4 in the left chute, is embedded in right slide block 5 in the right rail, restrict 6 left drawing rings 8 that are connected with left slider 4 and be connected with right slide block 5 by right stay cord 7 by the Zola.
When using the utility model, both hands hold left drawing ring 8 and right draw ring 9 is done front and back stretching oscillating motion, left slide bar 2 is fixedly connected with the cross bar of fixed bar 1 with right slide bar 3, left drawing ring 8 is restricted by the Zola and 6 is connected with left slider 4, right draw ring 9 is connected with right slide block 5 by right stay cord 7, and left slider 4 and right slide block 5 can be free to slide in left and right chute, and upper limbs and chest muscle are stretched, thereby taken exercise, reached the purpose of body-building.
Claims (1)
1. extensional motion apparatus before and after the both arms, the right slide bar (3) with right rail that the cross bar with the left slide bar (2) of left chute and fixed bar (1) that it is characterized in that it cross bar that comprises fixed bar (1) and fixed bar (1) is connected is connected, the left drawing ring (8) that is embedded in left slider (4) in left slide bar (2) chute, is embedded in right slide block (5) in right slide bar (3) chute, is connected with left slider (4) by Zola's rope (6) and the right draw ring (9) that is connected with right slide block (5) by right stay cord (7).
