Abstract

本实用新型公开一种耐张绝缘子更换工具，其特征在于，设有支撑在绝缘子底部的托平架（1）和连接在绝缘子两端对应的构架和导线上的卡具，所述卡具包括构架卡具（2）、导线卡具（3）及绝缘调节板（4），所述构架卡具（3）和绝缘调节板（4）为一对，构架卡具通过长度可调的收紧丝杆（5）与绝缘调节板（4）一端连接，所述导线卡具为翼形卡，包括左、右翼（31、32）及用于握紧导线的夹持部（33），所述左、右翼分别与位于导线卡具两侧的连接绝缘调节板（4）连接。本实用新型能够缩小停电范围，简化了操作步骤，提高了工作效率，降低人员劳动强度小，适合变电站过桥线绝缘子更换，大大节约了劳动成本。

Figure 201220695947

The utility model discloses a tension insulator replacement tool, which is characterized in that it is provided with a supporting frame (1) supported on the bottom of the insulator and clamps connected to the corresponding frames and wires at both ends of the insulator, and the clamps include Frame clamp (2), wire clamp (3) and insulation adjustment plate (4), the frame clamp (3) and insulation adjustment plate (4) are a pair, and the frame clamp is tightened by an adjustable length The screw rod (5) is connected to one end of the insulation adjustment plate (4), and the wire clamp is a wing clamp, including left and right wings (31, 32) and a clamping part (33) for holding the wire tightly. The left and right wings are respectively connected with the connection insulation adjustment plates (4) located on both sides of the wire fixture. The utility model can reduce the scope of power failure, simplify the operation steps, improve the work efficiency, reduce the labor intensity of personnel, and is suitable for replacing the insulators of the bridge line of the substation, greatly saving the labor cost.

Figure 201220695947

Description

Strain insulator is changed instrument
Technical field
The utility model relates to high-tension line power equipment maintaining, upkeep operation instrument, specifically a kind of power tool for changing the overhead high voltage line strain insulator.
Background technology
Along with power consumption progressively increases, the transmission facility load constantly increases, 35 kilovolts, 110 kilovolts, aging, the heavy existing picture such as dirty in a large number appears in 220 kilovolts of insulators that wait transmission line, brings very large potential safety hazard to circuit, and can therefore increase and make an inspection tour and the workload of maintenance.Replacing insulator changes trouble very in many specific positions, thus extended interruption duration, strengthen personnel workload, reduced power supply reliability.
The utility model content
The utility model provides a kind of strain insulator to change instrument, to facilitate the replacing insulator operation for fear of the weak point that prior art exists.
The utility model technical solution problem adopts following scheme:
strain insulator is changed instrument, its design feature is, be provided with the holder flatrack that is supported on insulator bottom and be connected to framework corresponding to insulator two ends and the jig on wire, described jig comprises the framework jig, wire jig and insulation adjustable plate, described framework jig and insulation adjustable plate are a pair of, the framework jig is connected with insulation adjustable plate one end by the length-adjustable screw mandrel that tightens up, described wire jig is wing card, comprise a left side, right flank reaches the clamping part for the wire of holding with a firm grip, a described left side, right flank respectively be positioned at the ambilateral insulation adjustable plate that is connected of wire card and connect.
The utility model design feature also is:
Described tighten up screw mandrel by the screw mandrel one that connects the framework jig, connect the screw mandrel two of insulation adjustable plate one end, and form with screw rod bushing that screw mandrel one, screw mandrel two form threaded engagement, described screw rod bushing is provided with turning handle.
The replacing instrument also comprises a flat ladder, and a described flat terraced end is provided with hook.
Compared with the prior art, the utility model beneficial effect is embodied in:
1, the utility model relies on the holder flatrack that the gravity of insulator is alleviated, alleviate the work load of personnel on tower. by jig, wire is fixed, can allow an impetus is arranged when the staff changes insulator on tower, shortened personnel's operating time on the tower, reduce the work high above the ground personnel, improved security performance.
2, the utility model can be changed the insulator of different electric pressures, and is simple and easy.
Description of drawings

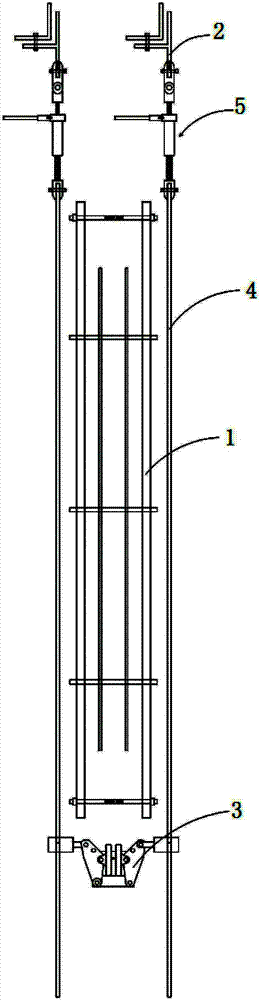

Fig. 1 is the utility model structural representation.
Fig. 2 is the flat terraced structural representation of the utility model.
Fig. 3 is the utility model wire fixture structure schematic diagram.
Fig. 4 is that the utility model tightens up the screw structure schematic diagram.
Number in the figure: 1 holder flatrack, 2 framework jigs, 3 wire jigs, 31 left wings, 32 right flanks, 33 clamping parts, 4 insulation adjustable plates, 5 tighten up screw mandrel, 51 screw mandrels one, 52 screw mandrels two, 53 screw rod bushings, 6 turning handles, 7 flat ladders, 8 hooks.
Technical solutions of the utility model are described further by embodiment below in conjunction with accompanying drawing.
Embodiment
As shown in Figure 1, strain insulator is changed instrument, be provided with the holder flatrack 1 that is supported on insulator bottom and be connected to framework corresponding to insulator two ends and the jig on wire, jig comprises framework jig 2, wire jig 3 and insulation adjustable plate 4, framework jig and insulation adjustable plate are a pair of, the framework jig is connected with insulation adjustable plate 4 one ends by the length-adjustable screw mandrel 5 that tightens up, wire jig 3 is wing card, comprise left wing 31, right flank 32 and the clamping part 33 of the wire that is used for holding with a firm grip, the left and right wing respectively be positioned at the ambilateral insulation adjustable plate that is connected of wire card and connect.
As shown in Figure 2, tighten up screw mandrel by the screw mandrel 1 that connects the framework jig, connect the screw mandrel 2 52 of insulation adjustable plate one end, and form with screw rod bushing 53 that screw mandrel one, screw mandrel two form threaded engagement, screw rod bushing is provided with turning handle 6.
During concrete enforcement, to put down ladder 7 one ends rides on framework, the other end is suspended on wire by linking up with 8, and holder flatrack 1 is suspended in insulator below by hook, the insulator that removes with carrying, jig is connected on the framework and wire of correspondence at insulator two ends, wherein be fixedly connected with framework by framework jig 2, hold wire with a firm grip with fixing by the clamping part 33 of wire jig 3, then by turning handle 6 rotary screw rod covers 53, make insulator lax, change at last insulator and get final product.

Claims (3)

1.耐张绝缘子更换工具，其特征在于，设有支撑在绝缘子底部的托平架（1）和连接在绝缘子两端对应的构架和导线上的卡具，所述卡具包括构架卡具（2）、导线卡具（3）及绝缘调节板（4），所述构架卡具（3）和绝缘调节板（4）为一对，构架卡具通过长度可调的收紧丝杆（5）与绝缘调节板（4）一端连接，所述导线卡具为翼形卡，包括左、右翼（31、32）及用于握紧导线的夹持部（33），所述左、右翼分别与位于导线卡具两侧的连接绝缘调节板（4）连接。1. The replacement tool for strain insulators is characterized in that it is provided with a support frame (1) supported on the bottom of the insulator and clamps connected to the corresponding frames and wires at both ends of the insulator, and the clamps include frame clamps ( 2), the wire clamp (3) and the insulation adjustment plate (4), the frame clamp (3) and the insulation adjustment plate (4) are a pair, and the frame clamp is tightened by the length-adjustable tightening screw rod (5 ) is connected to one end of the insulation adjustment plate (4), the wire clamp is a wing-shaped clamp, including left and right wings (31, 32) and a clamping part (33) for holding the wire, and the left and right wings are respectively Connect with the connection insulation adjustment plate (4) located on both sides of the wire clamp. 2.根据权利要求1所述的耐张绝缘子更换工具，其特征在于，所述收紧丝杆（5）由连接构架卡具的丝杆一（51）、连接绝缘调节板一端的丝杆二（52），以及与丝杆一（51）、丝杆二（52）形成螺纹配合的丝杆套（53）组成，所述丝杆套上设有转动手柄（6）。2. The tension insulator replacement tool according to claim 1, characterized in that the tightening screw (5) is composed of screw one (51) connected to the frame clamp, screw two connected to one end of the insulation adjustment plate (52), and form the screw mandrel cover (53) that forms thread fit with screw mandrel one (51), screw mandrel two (52), and described screw mandrel cover is provided with rotating handle (6). 3.根据权利要求1所述的耐张绝缘子更换工具，其特征在于，更换工具还包括一平梯（7），所述平梯一端设有挂钩（8）。3. The tension insulator replacement tool according to claim 1, characterized in that the replacement tool further comprises a flat ladder (7), and a hook (8) is provided at one end of the flat ladder.
