Abstract

The utility model relates to a solar roofing tile assembly capable of being quickly installed and effectively generating power, comprising a frame rack supporting body and a solar cell panel arranged on the frame rack supporting body, wherein the frame rack supporting body is composed of a left frame, a right frame, a front frame and a back frame which are assembled together, and extension C surfaces convenient to be quickly lapped and inside clamping grooves used for fixing the solar cell panel are arranged on the left frame, the right frame, the front frame and the back frame. Compared with the prior art, the solar roofing tile assembly provided by the utility model has the advantages of capability of being quickly installed, good drainage, ventilation and radiation properties and high power generation efficiency, etc.

Description

But the solar energy roofing tile assembly of Fast Installation efficient power generation
Technical field
The utility model relates to a kind of solar energy roofing tile assembly, but especially relates to a kind of solar energy roofing tile assembly of Fast Installation efficient power generation.
Background technology
Along with continuous development, the continuous progress in science and technology of human society, human to demands for energy also increase day by day.The human danger that in the high-quality life that the enjoyment high-tech brings, also is being faced with the deterioration of the ecological environment, energy crisis aggravation.Simultaneously, along with the continuous exploitation and the consumption of non-renewable energy resources such as oil and coal, human searching of actively making great efforts and utilization are as regenerative resources such as water ability, wind energy and solar energy.Wherein, solar energy has utilization comparatively widely in modern times as the free of contamination again clean energy resource of a kind of economy in industry and the daily life.
Traditional solar power station is to build on the spacious ground basically, and along with the continuous popularization and the utilization of solar energy generation technology, this mounting means takies more surface area with needs, can not in the city, well be used.How to make solar energy generation technology in our daily life, particularly well used and not occupy our surface area in the urban life, the integrated of photovoltaic and building is a perfect solution.Build particularly on the roof in building that solar panel is installed will be another important utilization field of solar energy generation technology; And traditional installation solar panel on the building roof is a kind of mode that installs additional; Promptly on original building room neck, install solar panel additional through mounting bracket, this also is the waste to material and installation cost undoubtedly.
For building roof and solar energy generation technology are organically combined, solar energy roofing tile technology arises.The solar energy roofing tile has the dual-use function of conventional roofing tile and solar panel, and must become is that trend is built on a kind of brand-new roof of building.The solar energy roofing tile is being satisfied under the operation technique condition, can on the building roof, realize that fast simple installation is the another key subjects that we face again.
Summary of the invention
The purpose of the utility model is exactly to provide a kind of ability fast simple installation for the defective that overcomes above-mentioned prior art existence; Have good draining, ventilation and thermal diffusivity, but and can effectively improve the solar energy roofing tile assembly of the Fast Installation efficient power generation of solar energy roofing tile module generating efficiency.
The purpose of the utility model can realize through following technical scheme: but a kind of solar energy roofing tile assembly of Fast Installation efficient power generation; Comprise the frame supporter and be arranged on the solar panel on the frame supporter; Described frame supporter is assembled by left frame, left frame, front bezel and back frame, is equipped with the extension C face of being convenient to overlap joint installation fast and the inboard clip slot that is used for fixing solar panel on described left frame, left frame, front bezel and the back frame.
Be equipped with inboard groove and inboard stealthy rhone on described left frame and the left frame, also be provided with C face overlap joint rhone on the described left frame.
Be equipped with the assembling positioning spiro pit on described front bezel and the back frame, cross water square hole and gravity vent; The assembling positioning spiro pit of front bezel and back frame is through the corresponding respectively inboard groove that is connected left frame and left frame of screw; Be assembled into the frame supporter; Described water square hole excessively is corresponding with the stealthy rhone in said inboard, carries out ventilation and heat through described gravity vent, improves the generating efficiency of solar energy roofing tile.
The extension C face of described left frame is provided with the left frame locating hole; The extension C face of described left frame is provided with the left frame locating hole corresponding with said left frame locating hole; The direct pressing overlap joint of the extension C face of described left frame, left frame, the extension C face prepackage of left frame is gone up rivet with fixing adjacent solar energy roofing tile assembly.
The extension C face of described front bezel is provided with front bezel installing and locating hole and cable hole, and described front bezel installing and locating hole is connected with building roof edge strip, the cabling that described cable hole is used for solar energy roofing tile assembly be connected.
The extension C face of described back frame is provided with back frame locating hole; Back frame is connected with the front bezel of adjacent solar energy roofing tile assembly through said back frame locating hole; Also be provided with clip slot upper edge draining otch on the extension C face of described back frame, the residual water on solar energy roofing tile surface flows out through said clip slot upper edge draining otch.
Described solar panel inserts in the said inboard clip slot, passes through the fluid sealant sealing and fixing then on the frame supporter.
The manufacturing materials of described frame supporter comprises plastics or metal.
Compared with prior art; The utility model is realized fast simple installation through the extension C face of self four frame and the rivet and the locating hole of C face prepackage; Thereby the building roof module that is integrally formed; The particular design of four frames has also reached good draining, ventilation and thermal diffusivity simultaneously, can effectively improve the generating efficiency of solar energy roofing tile module; But the length of the solar energy roofing tile assembly of the utility model Fast Installation efficient power generation should be the several times of traditional roofing tile effective length; The width of width and traditional roofing tile is consistent; The lap width of the two rows solar energy roofing tile also traditional roofing tile lap width with supporting is consistent, so just can make it perhaps mix laying separately with traditional roofing tile and be mounted for building roof main body outward appearance.
Description of drawings

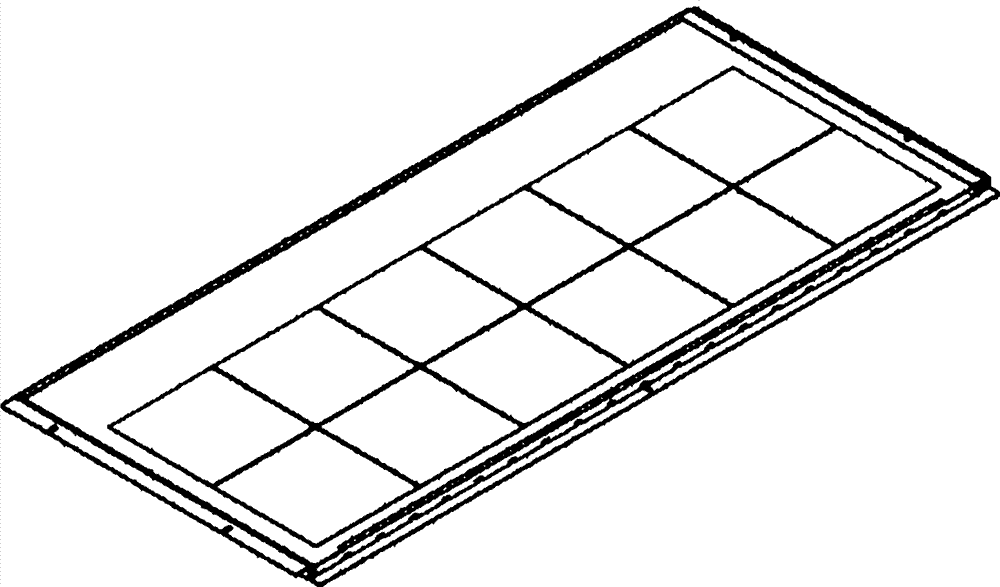

But Fig. 1 is the solar energy roofing tile assembly solar panel sketch map of the Fast Installation efficient power generation of the utility model;
But Fig. 2 is the solar energy roofing tile assembly left frame sketch map of the Fast Installation efficient power generation of the utility model;
But Fig. 3 is the solar energy roofing tile assembly left frame sketch map of the Fast Installation efficient power generation of the utility model;
But Fig. 4 is the solar energy roofing tile assembly front bezel sketch map of the Fast Installation efficient power generation of the utility model;
But Fig. 5 is a frame sketch map behind the solar energy roofing tile assembly of Fast Installation efficient power generation of the utility model;
But Fig. 6 is the solar energy roofing tile component groups dress sketch map of the Fast Installation efficient power generation of the utility model;
Fig. 7 is the enlarged drawing of A among Fig. 6;
Fig. 8 is the enlarged drawing of B among Fig. 6;
Fig. 9 is the supporting with rivet and the female sketch map of rivet of the utility model;
But Figure 10 is the solar energy roofing tile assembly sketch map of the Fast Installation efficient power generation of the utility model;
Figure 11 is the supporting with the preparatory scheme of installation of rivet of the utility model;
Figure 12 is the front bezel cable hole sketch map of the utility model;
Figure 13 is the solar energy roofing tile module diagram of the utility model;
Figure 14 is the solar energy roofing tile module side face sketch map of the utility model;
Figure 15 is the solar energy roofing tile module of the utility model and builds fixedly sketch map of roof;
Figure 16 overlaps sketch map for about the solar energy roofing tile module of the utility model;
Figure 17 arranges the overlap joint sketch map up and down for the solar energy roofing tile module of the utility model.
Among the figure: 1 is photovoltaic tempered glass, and 2 is the battery sheet, and 3 for left frame extends the C face, and 4 is the left frame locating hole, and 5 is the inboard clip slot of left frame; 6 is the left frame inboard groove, and 7 is the inboard stealthy rhone of left frame, and 8 for left frame extends the C face, and 9 is the left frame locating hole, and 10 is left frame C face overlap joint rhone; 11 is the left frame inboard groove, and 12 is the inboard stealthy rhone of left frame, and 13 is the inboard clip slot of left frame, and 14 is the front bezel inboard groove, and 15 are front bezel assembling retaining thread hole; 16 cross the water square hole for front bezel, and 17 is cable hole, and 18 is front bezel installing and locating hole, and 19 is that front bezel is extended the C face, and 20 is the front bezel gravity vent; 21 is frame assembling retaining thread hole, back, and 22 is that the back frame is crossed the water square hole, and 23 is back frame gravity vent, and 24 is that the back frame extends the C face, and 25 is back frame locating hole; 26 is back frame inboard groove, and 27 is clip slot upper edge draining otch, and 28 is the metal screw, and 29 is left frame, and 30 is left frame; 31 is front bezel, and 32 is the back frame, and 33 is solar panel, and 34 is metal rivet; 35 is that rivet is female, and 36 are building roof edge strip, and 37 is solar energy roofing tile assembly, and 38 is metallic screw.
The specific embodiment
Below in conjunction with accompanying drawing and specific embodiment the utility model is elaborated.
Embodiment
Shown in Fig. 1-17; But a kind of solar energy roofing tile assembly of Fast Installation efficient power generation; The solar panel 33 that comprises frame supporter and interior folder, the frame supporter is assembled through metal screw 28 by left frame 29, left frame 30, front bezel 31 and back frame 32, and solar panel 33 inserts in the inboard clip slot of four frames; And in inboard clip slot filling with sealant, solar panel 33 and frame supporter are packaged into solar energy roofing tile assembly.But use total implementation route of the solar energy roofing tile assembly of the utility model Fast Installation efficient power generation to be: earlier four frames in left, right, front and rear and cell panel to be packaged into solar energy roofing tile assembly; After solar energy roofing tile assembly be laid on building be mounted to solar energy roofing tile module on the roof, and fix with metallic screw.
As shown in Figure 1, the solar panel 33 of the utility model mainly is made up of photovoltaic tempered glass 1 and battery sheet 2, and solar panel can adopt two glass/EVA/ battery sheet/EVA/ glass, glass/EVA/ battery sheet/two kinds of forms of EVA/ backboard.
Shown in Fig. 2-5, four frames in left, right, front and rear can be through the mould formed by extrusion and tension that processes, and material can be selected two kinds on plastics and metal, and the various perforates on the frame all need be reprocessed.
As shown in Figure 2, left frame 29 is provided with left frame and extends C face 3, the inboard clip slot 5 of left frame, left frame inboard groove 6 and the inboard stealthy rhone 7 of left frame, also is provided with left frame locating hole 4 on the left frame extension C face 3.
As shown in Figure 3; Left frame 30 is provided with left frame and extends C face 8, the inboard clip slot 13 of left frame, left frame inboard groove 11, the inboard stealthy rhone 12 of left frame and left frame C face overlap joint rhone 10, and left frame extends and also is provided with the left frame locating hole 9 corresponding with left frame locating hole 4 on the C face 8.
As shown in Figure 4, front bezel 31 is provided with front bezel and extends C face 19, the inboard clip slot 14 of front bezel, front bezel assembling retaining thread hole 15, front bezel and cross water square hole 16, cable hole 17, front bezel installing and locating hole 18 and front bezel gravity vent 20.
As shown in Figure 5, back frame 32 is provided with the back frame and extends C face 24, back scuncheon clip slot 26, frame assembling retaining thread hole, back 21, back frame and cross water square hole 22, back frame locating hole 25, back frame gravity vent 23 and clip slot upper edge draining otch 27.
Shown in Fig. 6-8; During assembling solar roofing tile assembly; Elder generation's filling with sealant in the inboard clip slot of four frames; Then solar panel 33 and four frames are pre-installed, in the left frame inboard groove 6 that the back frame assembling retaining thread hole 21 after passing with metal screw 28 in the frame 32 is connected in the left frame 29, promptly accomplished the fixing of an angle.The fixed form at other three angles is the same therewith, but so just the solar panel sealing and fixing of four frames and interior folder is packaged into the solar energy roofing tile assembly of Fast Installation efficient power generation.
Shown in Fig. 3 and 11; After but the solar energy roofing tile component package of Fast Installation efficient power generation is good; Install metal rivet 34 in the left frame locating hole 9 of frame 30 on the right, corresponding rivet female 35 is not set up earlier, lays when installing at building roof solar roofing tile to refill.
Shown in Fig. 7 and 13, when the laying of solar energy roofing tile assembly became building roof module, cable hole 17 connected into the corresponding solar cell array with single solar panel, promptly formed the building roof solar roofing tile array that can generate electricity.
Like Figure 13, shown in 14 and 15, pass solar energy roofing tile assembly 37 front bezel installing and locating holes 18 with metallic screw 38, be fixed on the building roof edge strip 36.The solar energy roofing tile can independently be laid and be mounted for building roof module, also can mix to lay with conventional roofing tile and install.Wherein, about two solar energy roofing tile assemblies be that parallel overlap joint extends, promptly on the corresponding same plane that remains on each row of solar energy roofing tile of each row.Last row's solar energy roofing tile is directly pushed down down row, and the drop of two rows solar energy roofing tile is the height of solar energy roofing tile self.
Shown in Figure 13 and 16; Extend the left frame extension C face 8 of the solar energy roofing tile in the C face 3 direct pressing left sides with the left frame of the solar energy roofing tile in the right; The left frame locating hole 4 that left frame extends C face 3 is enclosed within on the metal rivet 34; The rivet of screwing on then is female 35, so just realized the solar energy roofing tile about extension.When raining, having water in a small amount to get into solar energy roofing tile module through lap gap place, the left and right sides, water just can flow out through left frame C face overlap joint rhone 10.The residual water on solar energy roofing tile surface flows out through back frame clip slot upper edge draining otch 27; Clip slot to prevent rainwater from remaining in solar energy roofing tile surface for a long time through four frames infiltrates in the sun roofing tile module; If low amounts of water is arranged infiltrates; Also can flow to the back frame through the stealthy rhone of left and right frame and cross water square hole 22, flow out then.
Shown in Figure 13 and 17; The back frame of using a row solar energy roofing tile extends the left frame extension C face 3 that C face 24 is directly pushed down next row's solar energy roofing tile; The back frame locating hole 25 of last row's solar energy roofing tile is enclosed within and overlaps on the good metal rivet 34 about next arranges; The rivet of screwing on then is female 35, has so just realized arranging up and down the extension of overlap joint up and down of solar energy roofing tile.Front bezel gravity vent 20 plays a part with ventilation and heat with back frame gravity vent 23, helps improving the generating efficiency of solar energy roofing tile.
In sum, but the utility model provides a kind of solar energy roofing tile assembly of Fast Installation efficient power generation completely newly, so offer application for a patent for invention in accordance with the law; The technology contents and the characteristics of the utility model patent disclose as above, yet the personnel that are familiar with this technology still maybe be based on the announcements of the utility model patent and done various replacement and the modifications that do not deviate from this patent core technology.Therefore, the protection category of the utility model is not limited to specific embodiment announcement person, also should comprise various replacement and modifications of not leaving this patent core technology.

Claims (7)

1. but the solar energy roofing tile assembly of a Fast Installation efficient power generation; It is characterized in that; Comprise the frame supporter and be arranged on the solar panel on the frame supporter; Described frame supporter is assembled by left frame, left frame, front bezel and back frame, is equipped with the extension C face of being convenient to overlap joint installation fast and the inboard clip slot that is used for fixing solar panel on described left frame, left frame, front bezel and the back frame.
2. but the solar energy roofing tile assembly of a kind of Fast Installation efficient power generation according to claim 1 is characterized in that, is equipped with inboard groove and inboard stealthy rhone on described left frame and the left frame, also is provided with C face overlap joint rhone on the described left frame.
3. but the solar energy roofing tile assembly of a kind of Fast Installation efficient power generation according to claim 2; It is characterized in that; Be equipped with the assembling positioning spiro pit on described front bezel and the back frame, cross water square hole and gravity vent; The assembling positioning spiro pit of front bezel and back frame is assembled into the frame supporter through the corresponding respectively inboard groove that is connected left frame and left frame of screw, and described water square hole excessively is corresponding with the stealthy rhone in said inboard.
4. but the solar energy roofing tile assembly of a kind of Fast Installation efficient power generation according to claim 1; It is characterized in that; The extension C face of described left frame is provided with the left frame locating hole; The extension C face of described left frame is provided with the left frame locating hole corresponding with said left frame locating hole, the direct pressing overlap joint of the extension C face of described left frame, left frame, and the extension C face prepackage of left frame is gone up rivet with fixing adjacent solar energy roofing tile assembly.
5. but the solar energy roofing tile assembly of a kind of Fast Installation efficient power generation according to claim 1; It is characterized in that; The extension C face of described front bezel is provided with front bezel installing and locating hole and cable hole; Described front bezel installing and locating hole is connected with building roof edge strip, and described solar energy roofing tile assembly passes through the cable hole cabling and is connected.
6. but the solar energy roofing tile assembly of a kind of Fast Installation efficient power generation according to claim 1; It is characterized in that; The extension C face of described back frame is provided with back frame locating hole; Back frame is connected with the front bezel of adjacent solar energy roofing tile assembly through said back frame locating hole, also is provided with clip slot upper edge draining otch on the extension C face of described back frame.
7. but the solar energy roofing tile assembly of a kind of Fast Installation efficient power generation according to claim 1 is characterized in that, described solar panel inserts in the said inboard clip slot, passes through the fluid sealant sealing and fixing then on the frame supporter.
