Shrimp meat cleaner Download PDFInfo
- Publication number
- CN202197751U CN202197751U CN2011203079638U CN201120307963U CN202197751U CN 202197751 U CN202197751 U CN 202197751U CN 2011203079638 U CN2011203079638 U CN 2011203079638U CN 201120307963 U CN201120307963 U CN 201120307963U CN 202197751 U CN202197751 U CN 202197751U
- Authority
- CN
- China
- Prior art keywords
- peeled shrimp
- cleaning machine
- check
- cage
- conveying mechanism
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Processing Of Meat And Fish (AREA)
Abstract
The utility model belongs to the technical field of food machinery, in particular relates to a shrimp meat cleaner, and especially in particular relates to special shrimp meat cleaning equipment which is specially designed for solving the problem that the shelled fresh shrimp meats are easily polluted. The shrimp meat cleaner comprises a frame, a lifting conveyance mechanism, a cleaning mechanism and an inspection conveyance mechanism; the cleaning mechanism comprises a rinsing pool; a water spraying tube is arranged in the rinsing pool; the rinsing pool is provided with an overflow opening; the inspection conveyance mechanism is corresponding to the overflow opening; and a rolling cage corresponding to the overflow opening is further arranged. By adopting the above technical scheme, the shrimp meat cleaner can clean dirt, such as residual shells, residual claws, intestines, abdomens, viscera, fecal intestines, excrements and the like, from the shelled fresh shrimp meats; moreover, the structural design is ingenious, and the automatic cleaning and decontamination of the shrimp meats are achieved.
Description
Technical field
The utility model belongs to the food machinery technical field, specifically, relates to a kind of peeled shrimp cleaning machine, and it is a kind of to the very easily contaminated characteristics of fresh shrimp after shelling, and custom-designed peeled shrimp purpose-built washing equipment.
Background technology
Peeled shrimp is that to select shrimp alive for use be raw material, cleans the shrimp body with clear water, removes shrimp head, shrimp tail and shrimp shell, and the pure shrimp after peeling off is peeled shrimp.Peeled shrimp is easy to digestion because light tasty and refreshing, Fresh & Tender in Texture, and old children is all suitable, and popular to people deeply.And peeled shrimp is nutritious, and its protein content is fish, egg, milk several times to tens times, also contains compositions such as mineral matters such as abundant potassium, iodine, magnesium, phosphorus and vitamin A, aminophylline; Wherein magnesium has regulating action to cardiomotility; Can well protect cardiovascular system, can reduce content of cholesterol in the blood, prevent artery sclerosis; Simultaneously can also coronary artery dilator, help prophylaxis of hypertension and myocardial infarction.
At present, China processing enterprise adds man-hour to peeled shrimp, and common employed way is to utilize manual work that head or shrimp shell, the internal organ etc. of shrimp are got rid of; But shrimp is in processed process, and the peeled shrimp after the processing can have residual pawl, residual shell, intestines tripe ight soil; As untimely these dirts are rinsed out, under air and action of temperature, these dirts will take place rapidly to foul and rot; Cause peeled shrimp itself to pollute, product quality is descended, increase cost burden to enterprise.
The utility model content
The utility model has overcome shortcoming of the prior art; A kind of peeled shrimp cleaning machine is provided, and it can wash the residual shell on the fresh shrimp after shelling, residual pawl and dirts such as intestines tripe internal organ, ight soil thereof, has both made the shrimp meat clean; Not contaminated again; Keep the original delicate flavour of shrimp meat, and production efficiency is high, automaticity is high.
In order to solve the problems of the technologies described above, the utility model is realized through following technical scheme:
A kind of peeled shrimp cleaning machine; Comprise frame, lifting conveying mechanism, wiper mechanism and check conveying mechanism; Said wiper mechanism comprises rinsing bath, is provided with sparge pipe in this rinsing bath, and said rinsing bath is provided with gap; The corresponding gap setting of said check conveying mechanism is rolled cage mechanism to should gap also being provided with.
Wherein, said lifting conveying mechanism comprises the lifting carriage, and this lifting carriage is provided with the lifting conveyer belt, also comprises regulating the set screw that promotes the conveyer belt rate of tension.
Further, said lifting conveying mechanism input is provided with the prewashing pond.
Further; Also comprise circulating water pool; It comprises filtering ponds, clarifier-tank, the back pool that is communicated with successively, and said filtering ponds are located at and are rolled cage mechanism below, and said back pool and said prewashing pond are communicated with; Said back pool also is provided with water pump and the upper hose that is used for said rinsing bath connection, and said filtering ponds, clarifier-tank and back pool are provided with screen pack.
Wherein, said sparge pipe and said upper hose are communicated with.
Further, said filtering ponds side is provided with gap and spillway basin, and said spillway basin is provided with draining valve.
Further, the said cage mechanism of rolling comprises the major and minor cage that rolls, and is provided with output hopper along said major and minor below of rolling cage upside tangent plane, and said check conveying mechanism is located at said output hopper below.
Further, said major and minor roll cage all around around and the below be provided with water fender.
Wherein, said check conveying mechanism comprises the check carriage, and said check carriage is provided with the check conveyer belt, also comprises the set screw of regulating check conveyer belt rate of tension.
Wherein, be provided with magnet in the said rinsing bath.
Compared with prior art, the beneficial effect of the utility model is:
The utility model comprises frame, lifting conveying mechanism, wiper mechanism and check conveying mechanism; Said wiper mechanism comprises rinsing bath; Be provided with sparge pipe in this rinsing bath; Said rinsing bath is provided with gap, and the corresponding gap setting of said check conveying mechanism is rolled cage mechanism to should gap also being provided with.
Adopt above technical scheme, the utility model can wash the residual shell on the fresh shrimp after shelling, residual pawl and dirts such as intestines tripe internal organ, ight soil thereof, and structural design is ingenious, has realized the automatic cleaning decontamination of peeled shrimp.
Description of drawings
Below in conjunction with the accompanying drawing and the specific embodiment the utility model is done further detailed explanation.

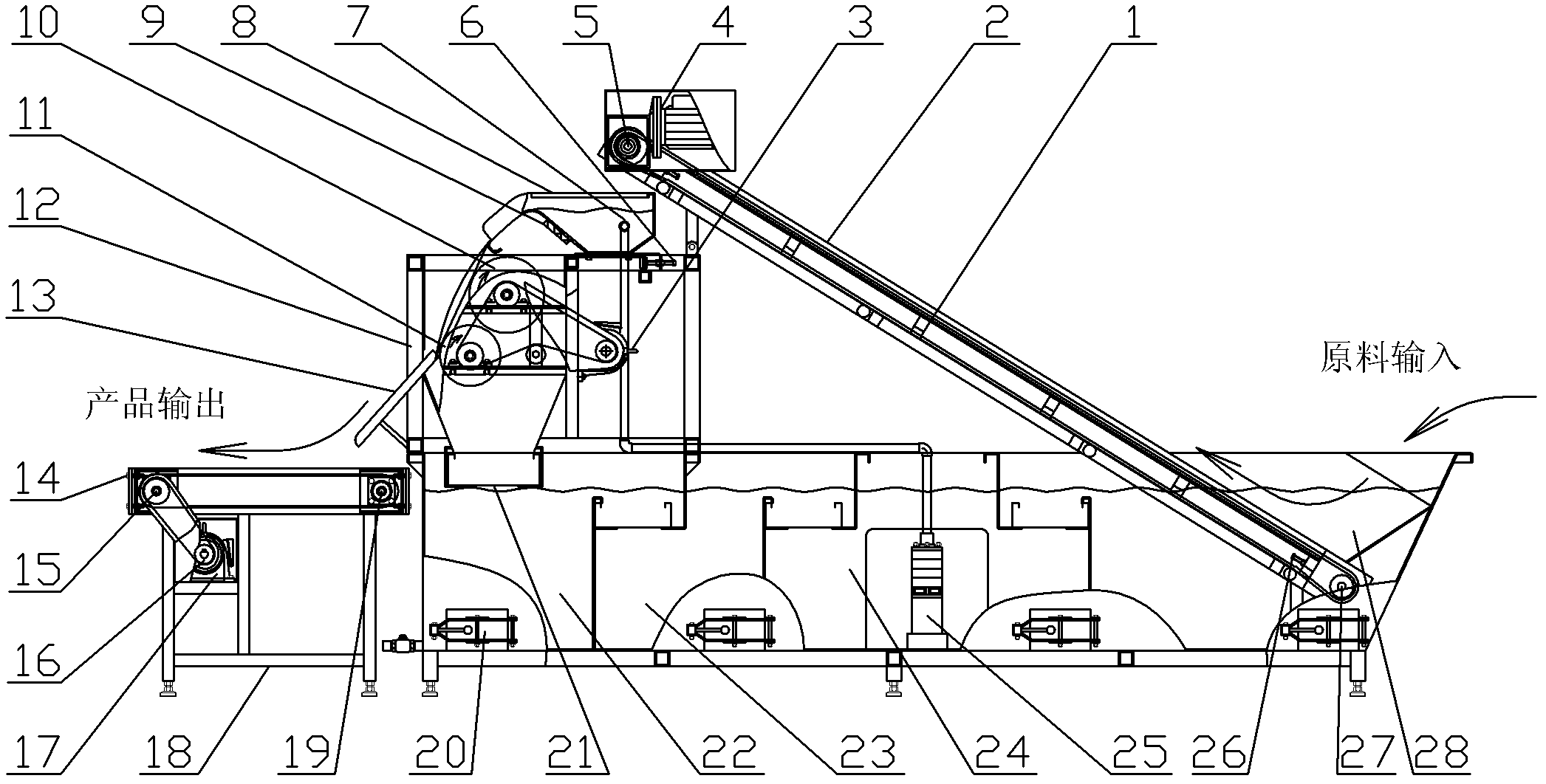

Fig. 1 is the front view of the utility model;
Fig. 2 is the vertical view of the utility model;
Fig. 3 is the left view of the utility model.
The specific embodiment
Shown in Fig. 1 to 3, the described peeled shrimp cleaning machine of the utility model comprises lifting conveying mechanism, wiper mechanism, check conveying mechanism and circulating water pool, and is equipped with electric control box.
1, promote conveying mechanism, its mainly act on be with the raw material peeled shrimp after prerinse, promote and be transported to wiper mechanism.
Promote conveying mechanism and mainly be by promoting conveyer belt 1, promoting parts such as carriage 2, reductor 4, main shaft 5, set screw 26, countershaft 27, left side backplate 29, endshield 30 and right side backplate 31 and constitute, promote in the prewashing pond 28 that conveying mechanism is fixed in circulating water pool with frame 12 on.Wherein main shaft 5, countershaft 27 are installed on through bearing block respectively and promote on the carriage 2, promote conveyer belt 1 and are set on the belt wheel on main shaft 5, the countershaft 27, and regulate its rate of tension by set screw 26.
2, wiper mechanism:
Wiper mechanism mainly be by water pump 25, upper hose 32, adjustment screw 6, sparge pipe 7, rinsing bath 8, magnet 9, the master rolls cage 10, pair is rolled parts such as cage 11, frame 12, reductor 3, funnel 13 and water fender and constituted, wiper mechanism is fixed in filtering ponds 22 tops of water circulation tank.Wherein rinsing bath 8 is placed in frame 12 tops and promotes conveyer belt 1 and is connected, and can be by adjusting screw 6 adjustment positions; Be provided with sparge pipe 7 in the rinsing bath, magnet 9 is equipped with in the bottom, and sparge pipe 7 is connected with upper hose 32 through flexible pipe; The main cage 10 that rolls rolls cage 11 (being uniformly distributed with many cracks on the periphery) with pair and is installed on the frame 12 through bearing block respectively, and is positioned at the below of the gap of rinsing bath 8; With secondary below of rolling cage 11 upside tangent planes product output hopper 13 is housed along the main cage 10 that rolls, main roll cage 10 and pair roll cage 11 all around around and below water fender is housed.
The main effect of wiper mechanism is that dirts such as the residual shell on the raw material peeled shrimp, residual pawl and intestines tripe ight soil thereof are cleaned up, and the peeled shrimp that cleans up is outputed on the check conveyer belt 35 through funnel 13.Magnet 9 is equipped with in rinsing bath 8 bottoms wherein, therefore, reaches the purpose of removing metal impurities if contain irony fine metal grain in the water then can be inhaled in the bottom of rinsing bath 8.
3, check conveying mechanism:
The check conveying mechanism mainly is to be made up of parts such as set screw 14, main shaft 15, drive sprocket 16, reductor 17, check carriage 18, countershaft 19 and check conveyer belts 35, and the front end that the check conveying mechanism is placed in water circulation tank is connected with funnel 13.Wherein main shaft 15 is installed on the check carriage 18 through bearing block respectively with countershaft 19, and check conveyer belt 35 is set on the belt wheel of main shaft 15 and countershaft 19, and regulates its rate of tension by set screw 14.
It is funnel 13 to be exported the peeled shrimp that cleans up test that the check conveying mechanism mainly acts on, and is transported to next procedure.
4, circulating water pool
Circulating water pool mainly is to be made up of filtering ponds 22, clarifier-tank 23, back pool 24 and prewashing pond 28.Wherein each pond is equipped with discharge outlet 20, and screen pack 21 is housed respectively in filtering ponds 22, clarifier-tank 23 and the back pool 24, and filtering ponds 22 right flanks are provided with gap and spillway basin 33, and spillway basin 33 is provided with draining valve 34.
Circulating water pool mainly act on be with the water in the cleaning process filter, decontamination cycle uses.
The operation principle of the utility model is:
The user gives the circulating water pool fills with water earlier; And startup water pump 25 is evacuated to rinsing bath 8 from back pool 24 through upper hose 32 with water; Descend by the overfall overflow of rinsing bath 8 again, roll cage 10 and secondary flow back into the filtering ponds 22 in the circulating water pool after rolling cage 11 through the sprinkle master as cascading, and the water after filtering overflows to clarifier-tank 23 by filtering ponds 22; And then be back in the back pool 24 by clarifier-tank 23, circulation so constantly can make water recycled.Water in circulating water pool overflows to 33 expressions of spillway basin whole system from the gap of filtering ponds 22 right flanks and has filled with water.Can start main cage 10 and the pair of rolling this moment and roll cage 11 and rotate, start respectively then and promote conveyer belt 1 and check conveyer belt 35, and stop the circulating water pool water filling along direction as shown.
After machine start, then can the raw material peeled shrimp be sent into and carry out prerinse in the prewashing pond 28, and then be sent to and carry out rinsing in the rinsing bath 8 by lifting conveyer belt 1.This moment, water pump 25 constantly was evacuated to rinsing bath 8 with water through upper hose 32 from back pool 24; And warp sparge pipe 7 wherein sprays the water boiling that makes in the rinsing bath 8; The raw material peeled shrimp obtains abundant rinsing and makes that residual dirts such as residual shell, residual pawl and intestines tripe ight soil thereof are washed away on the peeled shrimp in this boiled water, and along with the overfall of water from rinsing bath 8 overflows.The individual little light weight of dirt that wherein overflows with water; Therefore can only roll cage 10 or pair is rolled on the cage 11 to main along with water drifts about, and rolled crack on the cage and clamp and take away, when nipped dirt with rolling when being positioned at the below of rolling cage after cage turns over half cycle; Then dashed under the pouring effect and be shed on the screen pack in the filtering ponds 22 dashing of overflow water; And the peeled shrimp that overflows with water is also big owing to its individual big quality weighs the thrust that receives overflow water, and the kinetic energy of acquisition is also big, so distance that its quilt is dished out is also big; Position through adjustment screw 6 adjustment rinsing baths 8; Can make the main cage 10 that rolls be in the dished out position of ultimate range of peeled shrimp, peeled shrimp can only be edged away, not touch the main cage 10 that rolls and roll cage 11 with pair and drop on the funnel 13 with the secondary cage 11 that rolls; And be slipped on the check conveyer belt 35, transmit check and output products by check conveyer belt 35 again.In addition, if contain irony fine metal grain in the water then can inhaled at the bottom of rinsing bath 8 ponds and remove metal impurities by the magnet of rinsing bath 8 bottoms 9.
When bigger list criticizes that if water quality becomes muddiness in the production process; Be added into clear water then can for prewashing pond 28 and make the turbidity in the circulating water pool overflow to spillway basin 33 from the gap of filtering ponds 22 right flanks; Discharge by draining valve 34 again, thus the cleannes of maintenance recirculated water.
When single batch produce to accomplish after, can close down successively earlier and promote conveyer belt 1 and check conveyer belt 35, the master rolls cage 10 and pair is rolled cage 11, water pump 25, then machine is cleaned up.
The utility model is not limited to above-mentioned embodiment; If the various changes of the utility model or distortion are not broken away from the spirit and the scope of the utility model; If these changes and distortion belong within the claim and equivalent technologies scope of the utility model, then the utility model also is intended to comprise these changes and distortion.
